coval PSA 100 B Directions For Use

Directions for use
Electronic vacuum switch PSA 100 B

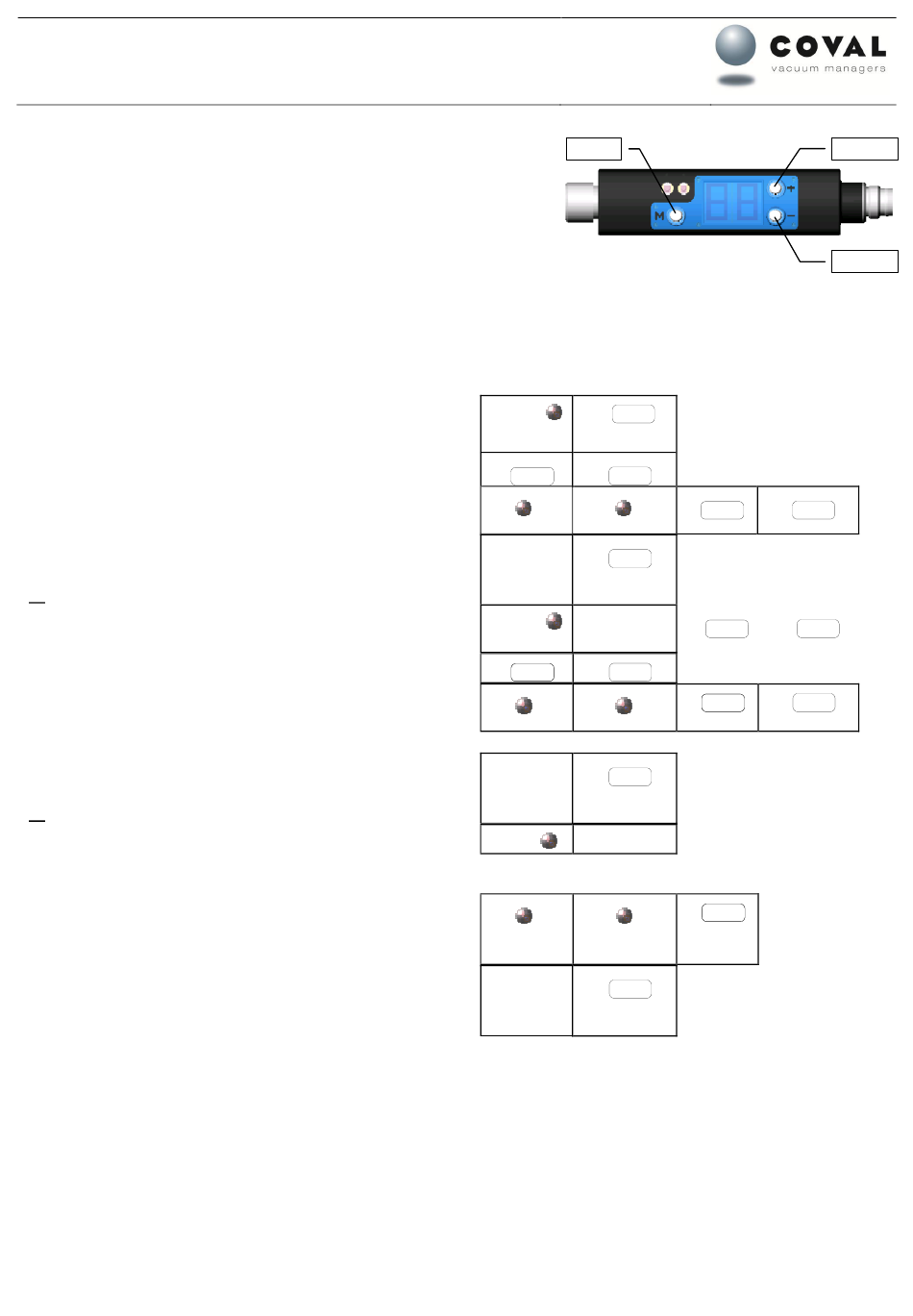

1. Display:

Mode key
Keys +/-
LED output 1 & 2

2. Contact output 1 adjustment

To adjust the threshold of output 1, push the "mode" key 1
time.
The display is alternating between "H1" and the adjusted value.
To change this adjustment, push "+/-" keys until the requested
value is displayed.
After 5 seconds, thechosen value registers automatically and
the screen returns to the vacuum display.
or
To adjust the hysteresis h1, push the mode key.
The display is alternating between "h1" and the adjusted value.
To change this adjustment, push "+/-" keys to display the
requested value.
After 5 seconds, the chosen value registers automatically and
the screen returns to the vacuum display.
or
To adjust output 1configuration, push the "mode" key.
To change this adjustment, push "+/-" keys. NO or NC are
displayed. (NO on standard basis).
After 5 seconds, the chosen value registers automatically and
the screen returns to the vacuum display.
(V06-07)
Selection of the different modes
Changement of the differnet adjustments
Indicates the state of the contact output
Sté COVAL SAS
ZA des Petits Champs
26120 MONTELIER
Tel +33 (0) 4 75 59 91 91
Fax +33 (0) 4 75 59 91 05
http://www.coval.com
e-mail: coval@coval.com
Mode
Display
1 x M
- 1
H1 46
+ -
Wait
75
5s
1 x M
07
h1
+ -
Wait
75
5s
1 x M
+ -
Wait
75
5s
+
-
75
H1
h1 07
h1 10
NO
