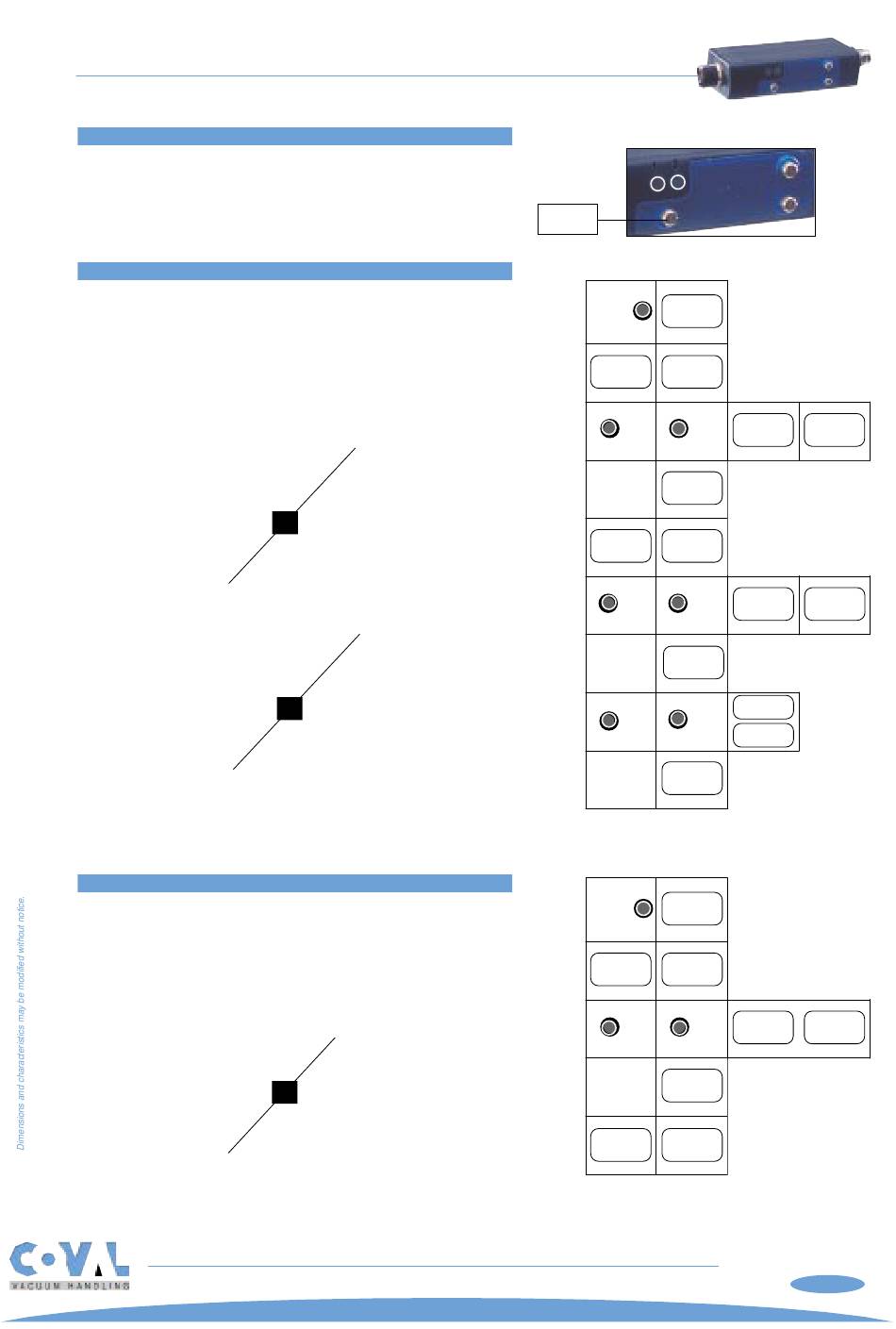

Electronic vacuum switch PSA100C

1 Display

Mode
+/-
LED output 1 & 2

2 Switch output 1 adjustment

To adjust switch output 1 threshold, push the "mode" key
1 time.
The display is alternating between "H1" and the adjusted
value.
To change this adjustment, push "+/-" keys until the
requested value is displayed.
After 5 seconds, the
chosen value registers
automatically and the
screen returns to the
vacuum display.
To change this adjustment, push "+/-" keys to display the
requested value.
After 5 seconds, the
chosen value registers
automatically and the
screen returns to the
vacuum display.
After 5 seconds,
automatically and the screen returns to the vacuum
display.

3 Switch output 2 adjustment

To adjust the switch output 2 threshold, push the "mode"
key 2 times quickly.
The display is alternating between "H2" and the adjusted
value.
To change this adjustment, push "+/-" keys to display the
requested value.
After 5 seconds, the
chosen value registers
automatically and the
screen returns to the
vacuum display.
®
