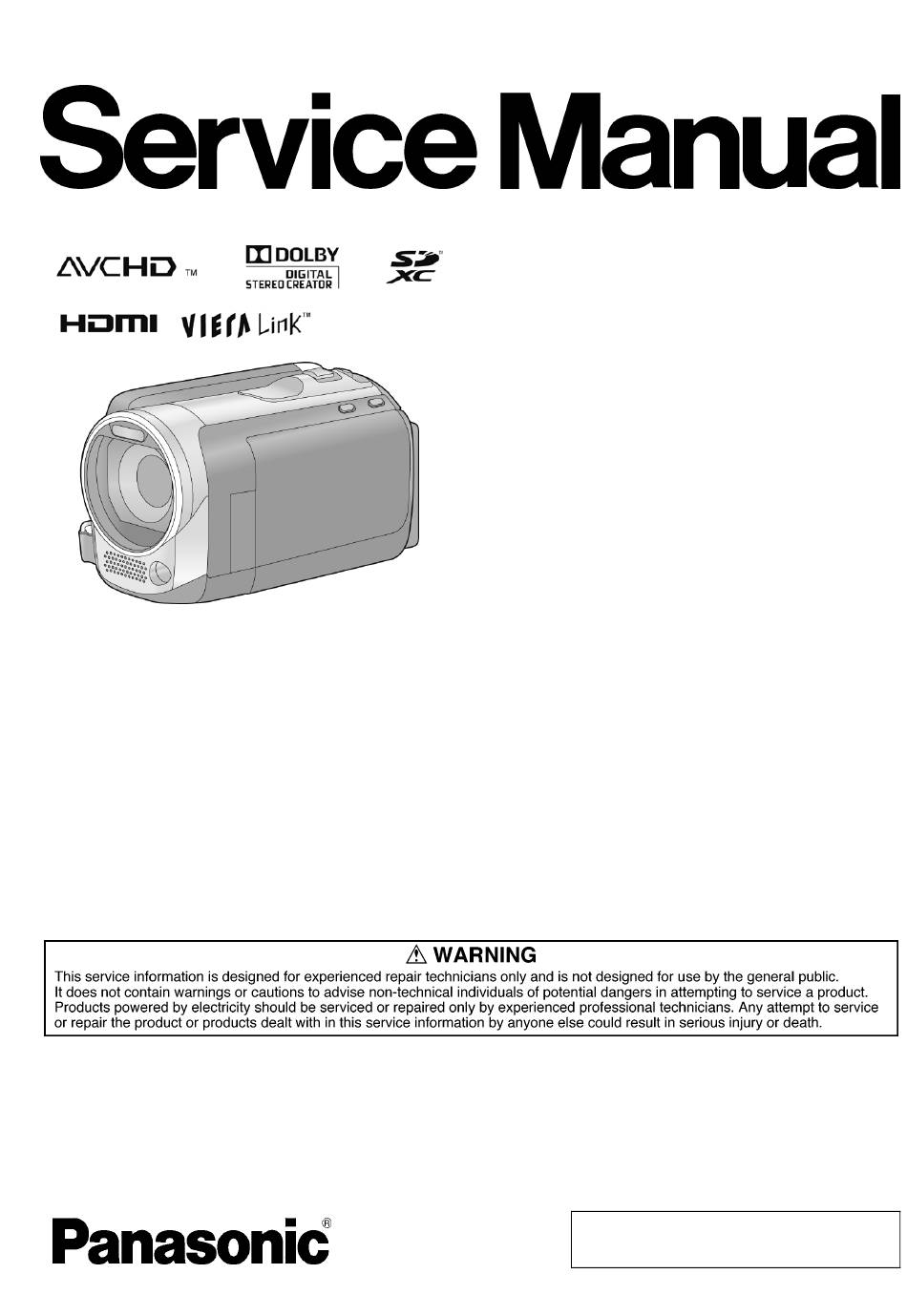

High Definition Video Camera
HDC-HS60P
Model No.
HDC-HS60PC
HDC-HS60PU
HDC-HS60EB
HDC-HS60EC
HDC-HS60EE
HDC-HS60EF
HDC-HS60EG
HDC-HS60EP
HDC-HS60GC
HDC-HS60GK
HDC-HS60GN
HDC-HS60GT
HDC-HS60SG
Vol. 1
Colour
(K)...........Black Type
© Panasonic Corporation 2010 Unauthorized copy-
ing and distribution is a violation of law.
ORDER NO. VM1002005CE
B27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDC-HS60P and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic HDC-HS60P

Summary of Contents for Panasonic HDC-HS60P

  • Page 1 ORDER NO. VM1002005CE High Definition Video Camera HDC-HS60P Model No. HDC-HS60PC HDC-HS60PU HDC-HS60EB HDC-HS60EC HDC-HS60EE HDC-HS60EF HDC-HS60EG HDC-HS60EP HDC-HS60GC HDC-HS60GK HDC-HS60GN HDC-HS60GT HDC-HS60SG Vol. 1 Colour (K)...Black Type © Panasonic Corporation 2010 Unauthorized copy- ing and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 1.1. General Guidelines ----------------------------------------3 1.2. Leakage Current Cold Check ---------------------------3 1.3. Leakage Current Hot Check (See Figure 1.)--------3 1.4. How to Discharge the Capacitor on Flash P.C.B.----------------------------------------------------------4 2 Warning --------------------------------------------------------------5 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices ----------5 2.2.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1.3. Leakage Current Hot Check 1. IMPORTANT SAFETY NOTICE (See Figure 1.) There are special components used in this equipment 1. Plug the AC cord directly into the AC outlet. Do not use which are important for safety. These parts are marked by an isolation transformer for this check.

  • Page 4: How To Discharge The Capacitor On Flash P.c

    1.4. How to Discharge the Capacitor on Flash P.C.B. • This unit equipped with two pieces of capacitors as flash charging capacitors. “Either one of the capacitor discharging operation” makes discharging for others as well. CAUTION: 1. Be sure to discharge the capacitor on FLASH P.C.B.. 2.

  • Page 5: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip"...

  • Page 6: Caution For Ac Cord (For Eb

    2.3.2.3. How to Replace the Fuse A replacement fuse cover can be purchased from your local Panasonic Dealer. 1. Remove the Fuse Cover with a screwdriver. If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safety.

  • Page 7: How To Replace The Lithium Battery

    NOTE: This Lithium battery is a critical component. (Type No.: ML-614S/ZTK Manufactured by Energy Company, Panasonic Corporation) It must never be subjected to excessive heat or discharge. It must therefore only be fitted in requirement designed specifically for its use.

  • Page 8: Service Navigation

    When a part replacement is required for repairing MAIN P.C.B., replace as an assembled parts. (Main P.C.B.) 2. The following category is /are recycle module part. Please send it/them to Central Repair Center. • MAIN P.C.B. (VEP03H84AN: HDC-HS60P/PC/PU/GT) • MAIN P.C.B. (VEP03H84AP: HDC-HS60EB/EC/EF/EG/EP)

  • Page 9: How To Define The Model Suffix (Ntsc Or Pal Model)

    3.4. How to Define the Model Suffix (NTSC or PAL model) There are seven kinds of HDC-HS60. • a) HDC-HS60P • b) HDC-HS60PC • c) HDC-HS60EB/EC/EF/EG/EP/GN • d) HDC-HS60EE • e) HDC-HS60GK • f) HDC-HS60GT • g) HDC-HS60PU/GC/SG What is the difference is that the “INITIAL SETTING” data which is stored in Flash ROM mounted on Main P.C.B..

  • Page 10: Precautions For Handling Hdd

    3.5. Precautions for Handling HDD 1. Handle HDD very carefully to prevent the static electricity and shock. 2. Set the HDD quickly after taking it out from the package. Make sure to put the HDD on buffer materials, etc. 3.5.1. Precautions at incoming process and for opening packages...
  • Page 11 3.5.2. Precautions for installing HDD...
  • Page 12 3.5.3. Precautions for inserting and removing HDD FPC Make sure to use the tool (LSVQ0112) when locking and unlocking the lock lever of HDD FPC connector. Do not lock the lock lever without inserting HDD FPC. Otherwise, the connector may be damaged.
  • Page 13 Make sure to use the tool (LSVQ0112) when opening and closing the lock lever. When install the HDD to main unit, necessary install the HDD FPC and HDD cushion.

  • Page 14: Formatting

    3.6. Formatting...

  • Page 15: Specifications

    4 Specifications...

  • Page 18: Location Of Controls And Components

    5 Location of Controls and Components Power button [ 1 2 3 4 Speaker Intelligent auto/Manual button [iA/MANUAL] Optical image stabilizer button /O.I.S.] Mode switch Battery holder HDMI mini connector [HDMI] USB terminal [ AV MULTI AV multi connector [AV MULTI] Use the AV multi cable (only the supplied cable).
  • Page 19 25 Tripod receptacle 26 Battery release lever [BATTERY] 27 Status indicator 28 Photoshot button [ 29 Zoom lever [W/T] (In Motion Picture Recording Mode or Still Picture Recording Mode) Thumbnail display switch [ Volume lever [ VOL ] (In Playback Mode) 30 HDD access lamp [ACCESS HDD] 31 DC input terminal...
  • Page 20 Selecting a mode Change the mode to recording or playback. Operate the mode switch to change the mode to Motion Picture Recording Mode Still Picture Recording Mode Playback Mode How to use the touch screen You can operate by directly touching the ■...

  • Page 21: Service Mode

    6 Service Mode 1. Indication method of the service menu Set the mode dial “Motion Picture Recording” mode. 2. Turn the power on, and then while keep pressing the "Zoom lever" to W side, "Intelligent auto/Manual" button and "Menu" but- ton for more than 3 seconds until the top screen of the Service Mode Menu being displayed.

  • Page 22: Drive Information Display

    6.1. Drive Information Display Touch the [ 2 ] of LCD, select Drive Information display. Operation specifications Indication contents • Drive Information display Display the fall detection frequency of HDD, Frequency that exceeds highest/lowest operation guarantee temperature and serial number. Push the menu button to end the service mode, and then POWER OFF.

  • Page 23: Lock Search History Indication

    6.3. Lock Search History Indication Touch the [ 4 ] of LCD, select Lock search history indication. Operation specifications Indication contents • Lock search history indication Display the camera system error cord for three histories saved in EEPROM. • The error cord contents which are displayed Error code Function Focus control is abnormal...

  • Page 24: Hdd Hardware Test

    6.5. HDD Hardware Test Touch the [ 6 ] of LCD, select HDD hardware test. Operation specifications Indication contents • HDD hardware test Display the HDD hardware test result information. • The error cord contents which are displayed Error code Function NO ERROR It is normal without the error...

  • Page 25: Service Fixture & Tools

    7 Service Fixture & Tools 7.1. When Replacing the Main P.C.B. After replacing the MAIN P.C.B., be sure to achieve adjustment. The adjustment instruction is available at “software download” on the “Support Information from NWBG/VDBG-AVC” web-site in “TSN system”, together with Maintenance software. 7.2.
  • Page 26 CAUTION-1. (When servicing FLASH P.C.B.) 1. Be sure to discharge the capacitor on FLASH P.C.B.. Refer to “HOW TO DISCHARGE THE CAPACITOR ON FLASH P.C.B.”. The capacitor voltage is not lowered soon even if the AC Cord is unplugged or the battery is removed. 2.

  • Page 27: Disassembly And Assembly Instructions

    8 Disassembly and Assembly Instructions 8.1. Disassembly Flow Chart This is a disassembling chart. When assembling, perform this chart conversely. 8.2. PCB Location...

  • Page 28: Disassembly Procedure

    8.3. Disassembly Procedure Item Removal Side (R) OP P.C.B. Fig.D19 2 Screws (U) Item Removal Unit 1 Screw (V) R Cover Unit Fig.D1 2 Screws (A) Speaker P6501 (Connector) 1 Screw (B) SP Angle Fig.D2 3 Locking tabs Side (R) OP P.C.B. Unit R Cover Unit Speaker Side Case (L) Unit...
  • Page 29 Item Removal Body Unit Fig.D35 3 Screws (j) Body Unit Zoom Guide Pole Fig.D36 2 Zoom Guide Poles OIS Unit OIS Unit 4th Lens Frame Move Fig.D37 4th Lens Frame Move Unit Unit 2 Focus Guide Poles L Focus Guide Pole L Fig.D2 8.3.2.
  • Page 30 Fig.D6 8.3.4. Removal of the Top Case Fig.D4 8.3.3. Removal of the HDD Unit Fig.D7 Fig.D5...
  • Page 31 8.3.6. Removal of the Front Case Unit Fig.D8 8.3.5. Removal of the HDD Shield Frame Unit Fig.D9 Fig.D10...
  • Page 32 8.3.7. Removal of the Side Case (R) Unit 8.3.8. Removal of the Switch Unit (Top)/ Batt Case Unit Fig.D12 8.3.9. Removal of the SD Frame Fig.D13 Fig.D11...
  • Page 33 8.3.10. Removal of the Lens Unit 8.3.11. Removal of the Main P.C.B. Unit Fig.D15 8.3.12. Removal of the Flash P.C.B. Unit Fig.D16 Fig.D14...
  • Page 34 8.3.14. Removal of the Side (R) OP P.C.B. Unit and Speaker Fig.D17 8.3.13. Removal of the Switch Unit (Top) and Power FPC Unit Fig.D19 Fig.D18...
  • Page 35 8.3.15. Removal of the LCD Case Unit 8.3.16. Removal of the Monitor P.C.B. Unit Fig.D21 Fig.D20...
  • Page 36 Fig.D22 Fig.D23...
  • Page 37 8.3.17. Removal of the Barrier Motor 8.3.18. Removal of the Front P.C.B. Unit Fig.D25 8.3.19. Removal of the Lens Damper, Bar- rier Lever and Barrier Change Lever Fig.D26 Fig.D24...
  • Page 38 8.3.20. Removal of the ECM FPC Unit 8.3.21. Removal of the MOS Unit and IR Fil- Fig.D28 8.3.22. Removal of the IRIS Unit Fig.D27 Fig.D29...
  • Page 39 8.3.24. Removal of the Zoom Motor Fig.D30 8.3.23. Removal of the Focus Motor Fig.D32 Fig.D31...
  • Page 40 8.3.25. Removal of the 1st Lens Frame Unit 8.3.26. Removal of the 2nd Lens Frame and Reinforcement Plate Move Unit Fig.D34 8.3.27. Removal of the Body Unit Fig.D33 Fig.D35...
  • Page 41 8.3.28. Removal of the Zoom Guide Pole and OIS Unit Fig.D36 8.3.29. Removal of the 4th Lens Frame Move Unit and Focus Guide Pole L Fig.D37...

  • Page 42: Measurements And Adjustments

    9 Measurements and Adjustments 9.1. Electric Adjustment • Adjustment method is different from a conventional High definition video camera. • An exclusive jig and PC (including software for adjustment “Tatsujin”) are necessary for electric adjustment. • A USB driver for service is necessary to communication with PC. •...
  • Page 43 Adjustment Items • Adjustment item as follows. The adjustment instruction is available at "Software download" on the "Support Information from NWBG/VDBG-AVC" web-site in "TSN System".

  • Page 44: Factory Setting

    10 Factory Setting 10.1. How To Turn On The Factory Settings? 1. Set the mode switch “Motion Picture Recording” mode. 2. Turn the power on, and then while keep pressing the “Zoom lever” to W side, “Intelligent auto/Manual” button and “Menu” but- ton for more than 3 seconds until the top screen of the Service Mode Menu being displayed.

  • Page 45: What Is The Factory Settings

    10.2. What Is The Factory Settings? The factory settings clean up and/or refresh the following settings. 1. MENU, MODE, ADJUSTMENT VALUE. 2. SD card format. 3. Reset the folder number and file number of still pictures. (Setting the folder number is 100, and file number is 0.) 4.
  • Page 46 3.The voltage being indicated on the schematic diagram is measured in "Standard-Playback" mode when there is no specify mode is mentioned. Model No. HDC-HS60P HDC-HS60EG 4.Although the voltage and waveform available on here is measured with standard frame, it may be differ from actual measurement due to modification of circuit and so on.

  • Page 47: S2. Voltage Chart

    S2. Voltage Chart Note) Indicated voltage values are the standard values for the unit measured by the DC electronic circuit tester (high-impedance) with the chassis taken as standard. Therefore, there may exist some errors in the voltage values, depending on the internal impedance of the DC circuit tester. S2.1.

  • Page 48: S3. Block Diagram

    S3. Block Diagram S3.1. Overall Block Diagram NOTE : VIDEO SIGNAL : AUDIO SIGNAL : CLK or CONTROL LINE LENS(F1.8-3.3 25x) IC201 ZOOM/ MOS IMAGE FOCUS IRIS/ SENSOR MOTOR/ Analog COLOR LCD PANEL X301 (42.725275MHz) IC701 Analog LENS/OIS DRIVE MULTI Analog TERMINAL Analog...

  • Page 49: S4. Schematic Diagram

    S4. Schematic Diagram S4.1. Interconnection Diagram ECM FPC FRONT P.C.B. (FOIL SIDE) MOS UINT LENS UNIT FP6600 MOS FPC LENS SD HOLDER P.C.B. BARRIER (FOIL SIDE) PS6002 PP6401 NOREG GND SD CLK TRACEPKT7 UARTO SD GND NOREG GND TRACEPKT6 UARTI FLASH SD DATA1 NOREG GND...

  • Page 50: S4.2. Strobe Schematic Diagram

    S4.2. Strobe Schematic Diagram TO FRONT FP7001 K1MY16BA0159 TO MAIN Q4801 B1ABDF000017 PS7001 G_ECML K1KB30AA0116 C3301 MIC_GND R4817 R4816 MIC_GND 4700 G_ECMR D_GND LENSBA_MT_B+ LENSBA_MT_B+ D_GND LENSBA_MT_A+ S_HDD_G_SDA LENSBA_MT_A+ S_HDD_G_SDA LENSBA_MT_B- S_HDD_G_SCL LENSBA_MT_B- S_HDD_G_SCL F3E0J106A009 LENSBA_MT_A- CHARGE CHARGE LENSBA_MT_A- R4818 C4817 OP_LED CHAEND...

  • Page 51: S4.3. Front Schematic Diagram

    S4.3. Front Schematic Diagram LED_LIGHT LIGHT_ON_H TO_ECM R6605 R6606 FP6601 4300 68K[D] K1MN04BA0197 (2SA2174J0L) (2SC6054J0L) B1ADCF000161 B1ABDF000017 Q6623 ECM[R] Q6622 GND[R] GND[L] R6603 ECM[L] R6607 18K[D] R6604 R6608 C6604 TO_STROBE_PCB 3300[D] K1MN16BA0197 16V0.1[15] FP6603 G_ECML MIC_GND MIC_GND TO LENSBARRIER G_ECMR LENSBA_MT_B+ FP6600 LENSBA_MT_B+...

  • Page 52: S4.4. Sd Schematic Diagram

    S4.4. SD Schematic Diagram G_SENSOR/TEMP_SENSOR PP6401 K1KA40BA0052 CLK49_SDCA_A SD CLK SD_GND BUS24_SDTA1 SD DATA1 R3907 E_CARD_PRO_A BUS24_SDTA0 SD DATA0 R3909 E_CARD_DET_A BUS24_SDTA3 SD DATA3 BUS24_SDTA2 SD DATA2 R3906 SD_GND CLK49_SDCA_A CLK24_SDCMDA SD CMD SD_GND PW_GYRO3V PW_GYRO3V GYRO_GND R3908 PW_SD3R2V $[18] PW_SD3R2V PW_SD3R2V_1 PW_SD3R2V...

  • Page 53: S4.5. Side R Schematic Diagram

    S4.5. Side R Schematic Diagram TO MAIN TO SPEAKER K1MY06BA0370 FP6501 P6501 K1KY02A00010 SPOUT2 SPOUT2 SPOUT2 SPOUT2 SPOUT1 SPOUT1 SPOUT1 SPOUT1 POWER_SW POWER_SW D_GND POWER ON/OFF S6501 K0F111A00589 HDC-HS60 Side R Schematic Diagram...

  • Page 54: S4.6. Monitor Schematic Diagram

    S4.6. Monitor Schematic Diagram TO MAIN TO LCD PANEL FP901 FP904 K1MY16BA0159 K1MY41BA0369 [0.5mm][SHITA] [0.3mm][SHITA][t=0.2mm] CLK18_LCD VGL2 CLK18_LCD PW_REG1R8V PW_REG1R8V PW_REG3V BUS9_LCDYC0 BUS9_LCDYC0 VCC1 C902 C905 BUS9_LCDYC1 BUS9_LCDYC1 $[18] C906 10V1[18] BUS9_LCDYC2 6.3V BUS9_LCDYC2 VCOMH C903 C907 BUS9_LCDYC3 VCOML BUS9_LCDYC3 BUS9_LCDYC4 6.3V BUS9_LCDYC4...

  • Page 55: S4.7. Power Fpc Schematic Diagram

    S4.7. Power FPC Schematic Diagram TO MAIN PS6701 K1KB34A00035 L:0.2 S:0.1 POWER_LED L:0.2 S:0.1 STANDBY_LED L:0.2 S:0.1 E_KEYIN1 L:0.6 S:0.1 E_KEYIN4 BATT_+ BATT_+ BATT_+ BATT_+ BATT_+ BATT_- BATT_- BATT_- BATT_- BATT_- BATT_- BATT_- BATT_- BATT_- JK6701 BATT_- K4ZZ04000056 L:4.2 S:0.1 PW_+B BATT_- L:0.15...

  • Page 56: S4.8. Hdd Fpc Schematic Diagram

    S4.8. HDD FPC Schematic Diagram SINGLE LAYER FPC DOUBLE LAYER FPC FT6200 RESERVED RESERVED RESET- DD10 DD11 DD12 DD13 PS6201 DD14 K1KB40A00128 TEMP_VCC DD15 HDD3R3V HDD_UNLOAD DMARQ DIOW- DIOR- DMACK IORDY IORDY DIOR DMACK- INTRQ ATADATA0 ATADATA1 PDIAG- ATADATA2 ATADATA3 ATADATA4 CS0- AATDATA5...

  • Page 57: S5. Print Circuit Board

    S5. Print Circuit Board S5.1. Strobe P.C.B. FP7001 CL7001 CL7002 C4898 T7001 RL7001 C4804 R4809 R4801 L7001 C7001 CH7003 C7050 IC4801 TL7001 C4809 C4817 TL7002 RL7002 C4816 (Component Side) (Foil Side) HDC-HS60 Strobe P.C.B. S-12...

  • Page 58: S5.2. Front P.c.b

    S5.2. Front P.C.B. R6605 VA6601 R6606 R6608 (Component Side) MK4 MK3 R 6 6 0 4 F P 6 6 0 3 F P 6 6 0 1 (Foil Side) HDC-HS60 Front P.C.B. S-13...

  • Page 59: S5.3. Sd P.c.b

    S5.3. SD P.C.B. / S5.4. Side R P.C.B. MK4 MK3 MK7 MK8 (Component Side) C3906 Q3901 R3906 R3911 C3911C3950 L6405 RX3901 P 6 5 0 1 (Component Side) (Foil Side) (Foil Side) HDC-HS60 HDC-HS60 SD P.C.B. Side R P.C.B. S-14...

  • Page 60: S5.5. Monitor P.c.b

    S5.5. Monitor P.C.B. S5.5.1. Monitor P.C.B. (Component Side) (Component Side) HDC-HS60 Monitor P.C.B. (Component Side) S-15...

  • Page 61: S5.5.2. Monitor P.c.b. (Foil Side

    S5.5.2. Monitor P.C.B. (Foil Side) C905 C907 CH904 CH905 CH906 C908 C909 CH907 C910 C916 C917 C918 C504 C505 (Foil Side) HDC-HS60 Monitor P.C.B. (Foil Side) S-16...

  • Page 62: S5.6. Power Fpc P.c.b

    S5.6. Power FPC P.C.B. JK6701 RL6702 RL6701 VA6701 C6701 FP6701 PS6701 (Component Side) (Foil Side) HDC-HS60 Power FPC P.C.B. S-17...

  • Page 63: S5.7. Hdd Fpc P.c.b

    S5.7. HDD FPC P.C.B. (Component Side) PS6201 (Foil Side) HDC-HS60 HDD FPC P.C.B. S-18...

  • Page 64: S6. Replacement Parts List

    S6. Replacement Parts List Note: 1.* Be sure to make your orders of replacement parts according to this list. 2. IMPORTANT SAFETY NOTICE Components identified with the mark have the special characteristics for safety. When replacing any of these components, use only the same type. 3.
  • Page 65 HDC-HS60EG-K vol.1 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VEP03H84AP MAIN PCB UNIT 1 EG,EP,EF,EB,EC VEP20C81A FRONT PCB UNIT (RTL) E.S.D. (RTL) E.S.D. VEP03H84AQ MAIN PCB UNIT 1 EE,GC,GK,GN,SG C6601 F1G0J1050007 C.CAPACITOR CH 6.3V 1U (RTL) E.S.D.
  • Page 66 HDC-HS60EG-K vol.1 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks R3913 D0GB150JA057 M.RESISTOR CH 1/10W 15 R3914 ERJ2GEJ103 M.RESISTOR CH 1/10W 10K VEP06G49A SIDE R OP PCB UNIT (RTL) E.S.D. R6405 ERJ6GEYJ222V M.RESISTOR CH 1/8W 2.2K R6451 ERJ2GEJ821 M.RESISTOR CH 1/10W 820...
  • Page 67 HDC-HS60EG-K vol.1 Ref.No. Part No. Part Name & DescriptionPcs Remarks Ref.No. Part No. Part Name & DescriptionPcs Remarks VWJ2128 SIDE R OP FPC VYK3V24 FRONT CASE UNIT VEP04954A ECM FPC UNIT VMG1927 LENS DAMPER VGQ0K82 BARRIER LEVER VGQ0K83 BARRIER CHANGE LEVER VGQ0K84 SHEET VMB4357...
  • Page 68 HDC-HS60EG-K vol.1 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VEP03H84AP MAIN PCB UNIT 1 EG,EP,EF,EB,EC (RTL) E.S.D. VEP03H84AQ MAIN PCB UNIT 1 EE,GC,GK,GN,SG (RTL) E.S.D. VEP03H84AN MAIN PCB UNIT 1 P,PC,PU,GT (RTL) E.S.D. VEP26327A FLASH PCB UNIT 1 (RTL) E.S.D.
  • Page 69 HDC-HS60EG-K vol.1 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VYK3V37 LCD CASE (T) UNIT VYK3Q88 PANEL UNIT VEP26329A MONITOR PCB UNIT 1 (RTL) E.S.D. VGQ0K73 LENS HOLDER VGL1330 PRISM SHEET A VGL1331 PRISM SHEET B VGL1296...
  • Page 70 HDC-HS60EG-K vol.1 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VXQ1848 MOS UNIT VXW1109 LENS UNIT VXQ1849 1ST LENS FRAME UNIT VMB4361 1ST LENS FRAME SPRING VMB4361 1ST LENS FRAME SPRING VXP3387 2ND LENS FRAME MOVE UNIT VDW1986 BODY UNIT...
  • Page 71 HDC-HS60EG-K vol.1 Ref.No. Part No. Part Name & DescriptionPcs Remarks Ref.No. Part No. Part Name & DescriptionPcs Remarks K1HY12YY0004 AV MULTI CABLE K1HY04YY0032 USB CABLE  303 K2CQ29A00002 AC CABLE 1 EG,EP,EF,EC,EE,GC,SG  304 K2CT39A00002 AC CABLE 1 EB,GC,SG  305 K2CA2CA00025 AC CABLE 1 P,PC,PU ...

  • Page 72: S7. Exploded View

    S7. Exploded View S7.1. Frame and Casing Section (1) [When FRONT CASE UNIT are exchanged] ECM FPC UNIT(Ref. 32) is not included in FRONT CASE UNIT(Ref. 31). Please detach ECM FPC UNIT from FRONT CASE UNIT for the repair, and install it when you exchange the FRONT CASE UNIT(New parts). S-27...

  • Page 73: S7.2. Frame And Casing Section (2

    S7.2. Frame and Casing Section (2) S-28...

  • Page 74: S7.3. Lcd Section

    S7.3. LCD Section S-29...

  • Page 75: S7.4. Camera Lens Section

    S7.4. Camera Lens Section B213 B214 B215 B210 B211 B209 B201 B212 B208 B202 B206 B203 B205 B204 B216 B217 B207 S-30...

  • Page 76: S7.5. Packing Parts And Accessories Section

    S7.5. Packing Parts and Accessories Section (HDC-HS60EB/GC/SG) (HDC-HS60GN) (HDC-HS60EG/EP/EF/EC/EE/GC/SG) (HDC-HS60P/PC/PU/GT/GK) S-31...
