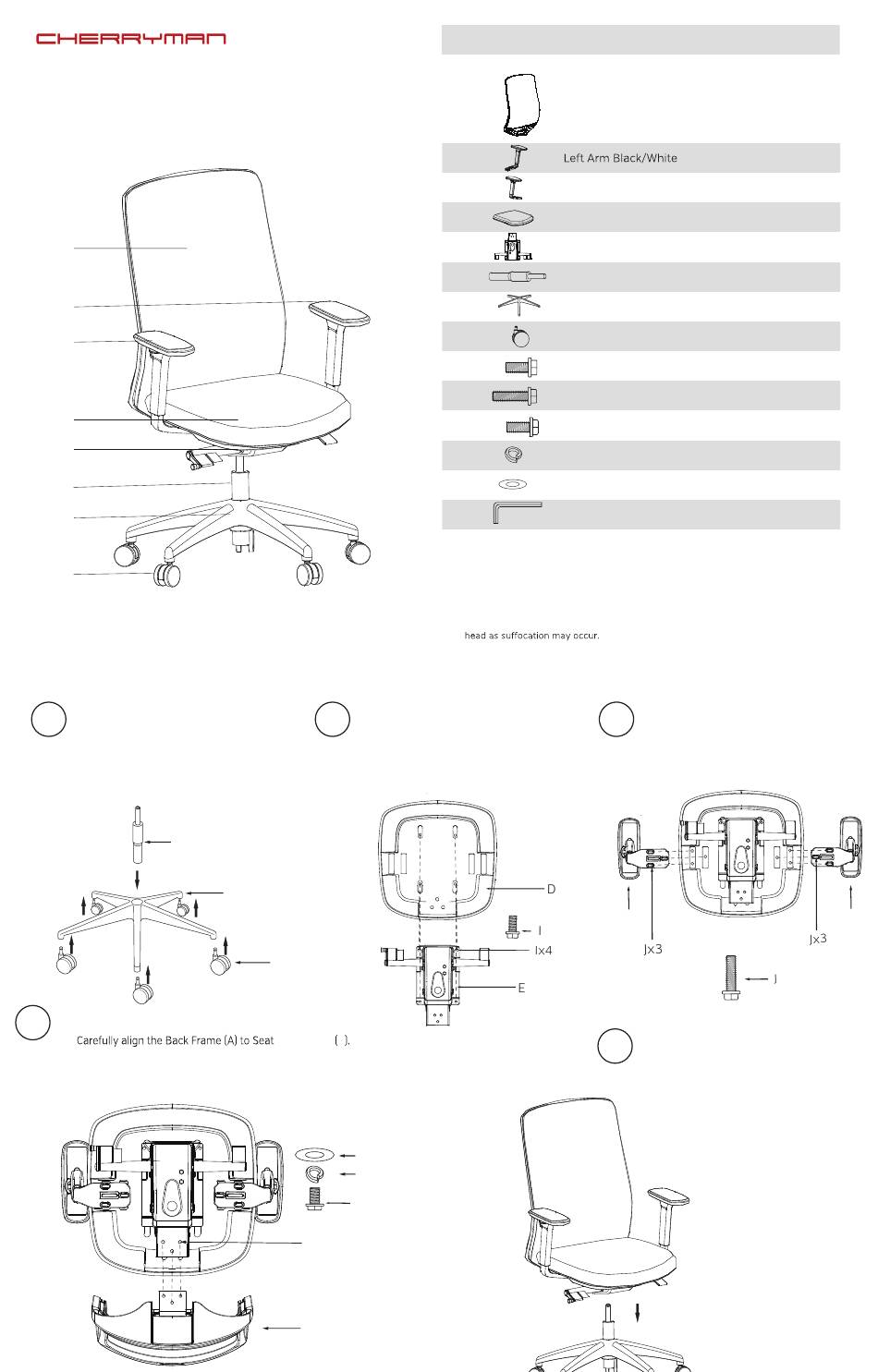

Cherryman ZET110 Assembly Instructions

Assembly Instructions
ZET110 task chair
A
B
C
D
E
F
G
H
1
Base Assembly
Firmly snap Casters (H) into
Base (G).Place base on ground
with casters attached. Drop Gas
Cylinder (F) into base with narrow
end pointing up.
F
4
Seat /Back Assembly
Tighten Back Frame to the Seat
Bolt (K), Lock Washer (L) and Flat Washer (M).
2
Seat Mechanism Assembly
Using Medium Bolts(I) screw the
Seat Mechanism(E) to the under-
side of the Seat Frame(D).
G
Hx5
Mechanism E
Mechanism using Short
M
L
K
Kx3
A
Item Part Name
A Back Frame Black/White
B
C Right Arm Black/White
D Seat Frame Black/White
E Seat Mechanism
F Gas Cylinder
G Base Black/White
H Caster
I
Medium M6x25
J Long Bolt M6x35
K Short Bolt M8x20
L Lock Washer M8
M Flat Washer M8
N Hex Wrench 5mm
Warning
1. This product is for single person use only.
2. Do not use this chair unless all screws are securely tightened.
3. Check that all screws are tightened every six months or as needed.
4. 4. Dispose of all packing materials properly. Do not place the plastic cover over the
5. Do not use this chair as a stepladder.
For assistance, call (888) 471-1616 or visit www. cherrymanindustries.com
3
5
Part #
G00352/G00353
G00354/G00355
G00356/G00357
G00358/G00359
G00360
G00340
G00341/G00351
G00342
G00336
G00337
G00361
G00362
G00363
G00339
Arm Assembly
Using Long Bolts(J) screw the
Arm(B,C)to the underside of the
Seat Frame(D).
C
Final Assembly
With the Base on the ground,
carefullly align the Gas Cylinder with
the hole in the center of the underside of the
Seat Mechanism, applying pressure.
Qty
1
1
1
1
1
1
1
5
4
6
3
3
3
1
B
1/2
