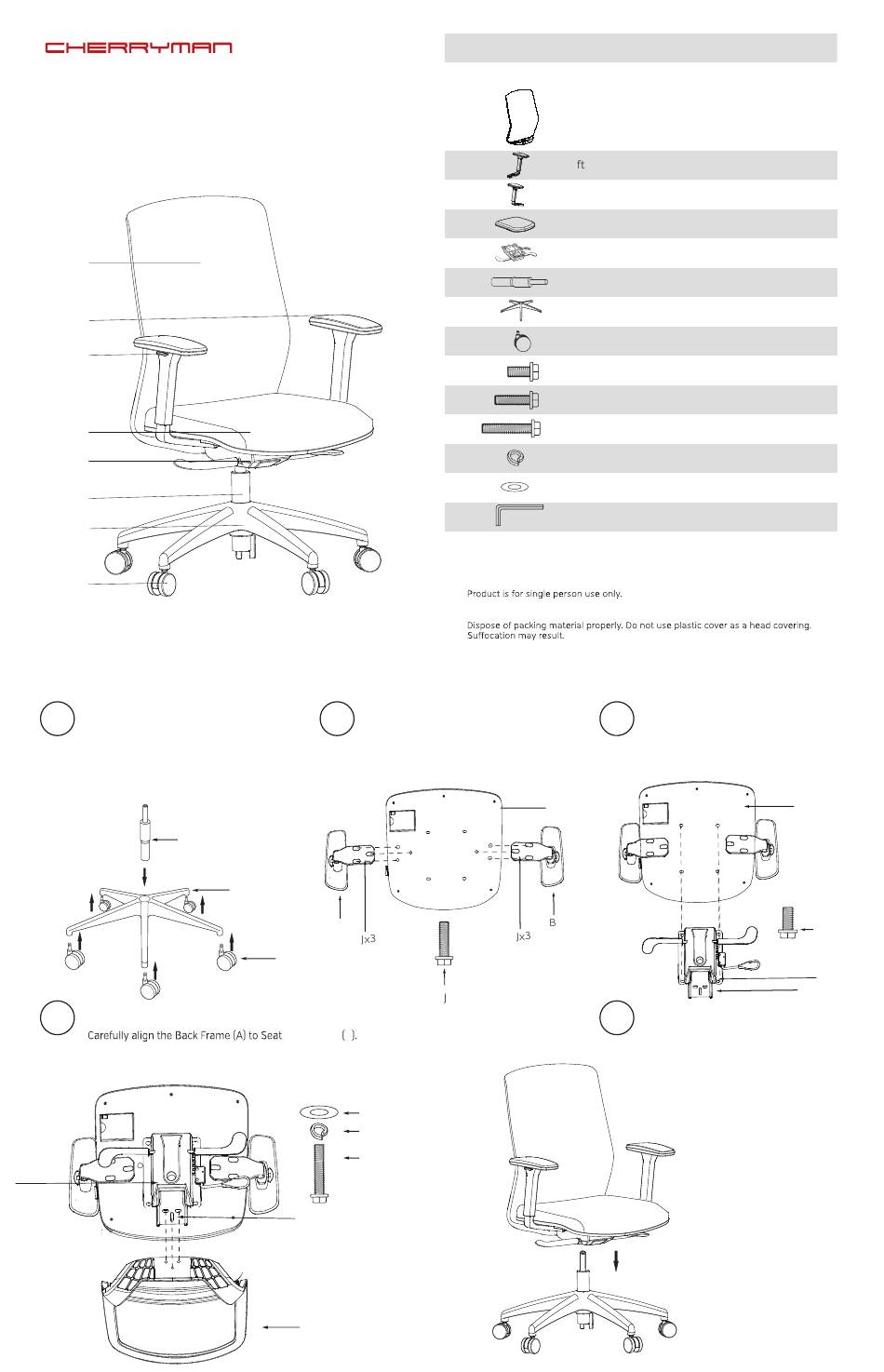

Cherryman ATT106 Assembly Instructions

Assembly Instructions
ATT106 Atto task chair
A
B
C
D
E
F
G
H
1
Base Assembly
Firmly snap Casters (H) into
Base (G).Place base on ground
with casters attached. Drop Gas
Cylinder (F) into base with narrow
end pointing up.
4
Seat /Back Assembly
Tighten Back Frame to the Seat
Bolt (K), Lock Washer (L) and Flat Washer (M).
E
2
F
G
C
Hx5
Mechanism E
Mechanism using Long
Kx3,Lx3,Mx 3
A
Item
A
B
C
D
E
F
G
H
I
J
K
L
M
N
Warning
1.
2. Do not use this chair unless all screws are securely tightened.
3. Check all screws are tightened every six months or as needed.
4.
5. Do not use this chair as a stepladder.
For assistance, call (888) 471-1616 or visit www. cherrymanindustries.com
Arm Assembly
Using Medium Bolts(J) screw
the Arm(B,C)to the underside of
the Seat Frame(D).
M
L
K
Part Name Part #
Back Frame Black/White G00328 /G00329
Le Arm Black/White G00330/G00331
Right Arm Black/White G00332/G00333
Seat Frame Black/White G00349/G00350
Seat Mechanism G00334
Gas Cylinder G00340
Base Black/White G00341/G00351
Caster G00342
Short Bolt M6x25 G00336
Medium M6x35 G00337
Long Bolt M8x50 G00338
Lock Washer M8 G00309
Flat Washer M8 G00310
Hex Wrench 5mm G00339
3
Seat Mechanism Assembly
Using Short Bolts(I) screw the
Seat Mechanism(E) to the under-
side of the Seat Frame(D).
D
5
Final Assembly
With the Base on the ground,
carefullly align the Gas Cylinder with
the hole in the center of the underside of the
Seat Mechanism, applying pressure.
Qty
1
1
1
1
1
1
1
5
4
6
3
3
3
1
D
I
Ix4
E
1/2
