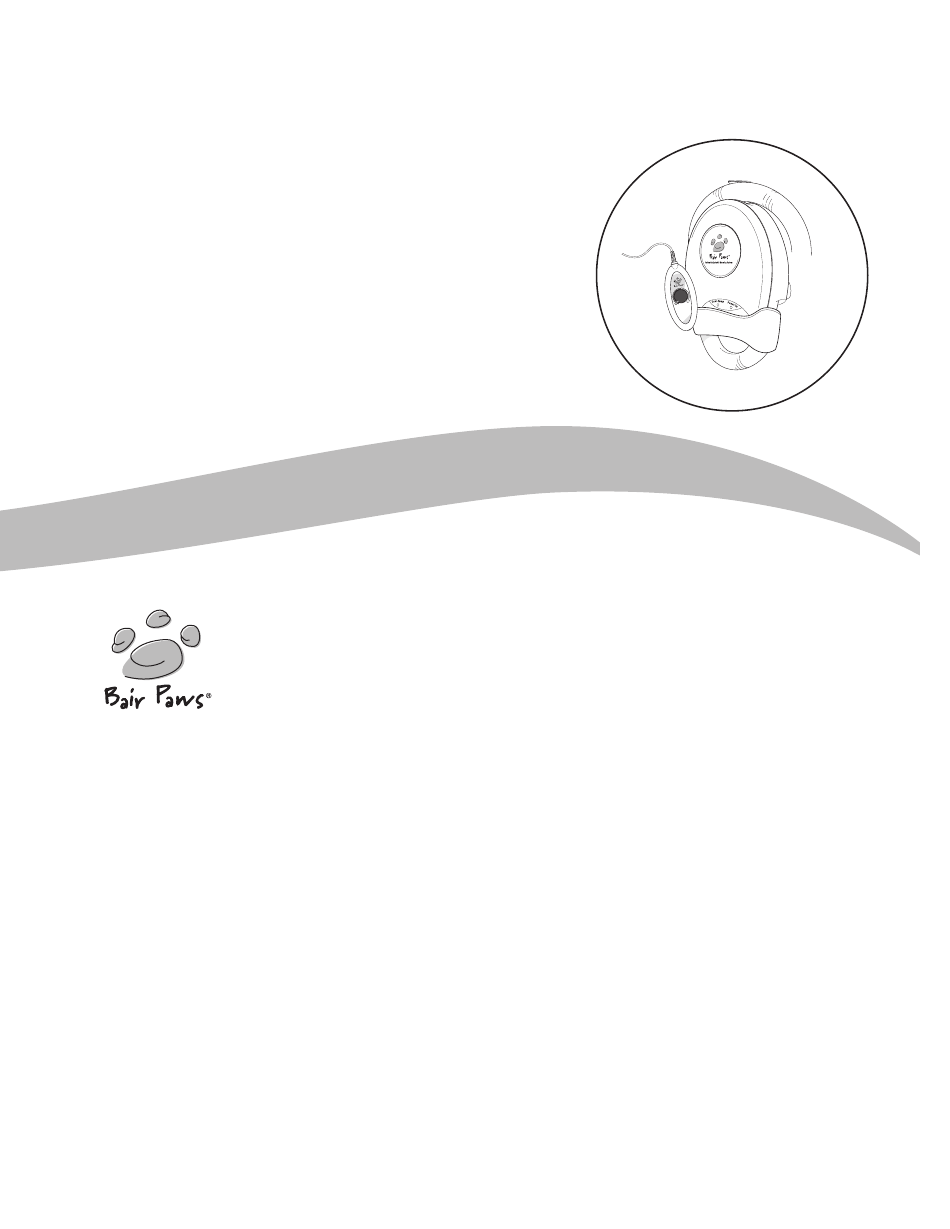

Bair Paws 875 Operator's Manual

Warming unit
Hide thumbs Also See for 875:

Advertisement

Quick Links

Check the Bair Paws system website to ensure you have the most recent version of this document.
Bair Paws
Model 875
Warming Unit
Operator's Manual
Bair Paws
Modell 875
®
Erwärmungssystem
Benutzerhandbuch
Bair Paws
Modèle 875
®
Appareil de Réchauffement
Manuel de l'Utilisateur
Manuale d'Uso dell'Unità
Riscaldante Bair Paws
Modello 875
www.bairpaws.com
®
Bair Paws
Unidad de Calentamiento
Manual del Operador
Bair Paws
Unidade de Aquecimento
Manual do Utilizador
Bair Paws
Verwarmingsunit
®
Gebruikershanadleiding
Modelo 875
®
Modelo 875
®
Model 875
®
reorder #201337B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 875 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bair Paws 875

  • Page 1 Check the Bair Paws system website to ensure you have the most recent version of this document. www.bairpaws.com reorder #201337B Bair Paws ® Model 875 Warming Unit Operator’s Manual Bair Paws Modell 875 Bair Paws Modelo 875 ® ® Erwärmungssystem...
  • Page 2 Operator’s Manual English Deutsch Français Italiano Español Português Nederlands...
  • Page 3: Table Of Contents

    Introduction to the Bair Paws Patient Adjustable Warming System ���������������������������������������1 ® Bair Paws Model 875 Warming Unit �������������������������������������������������������������������������1 Bair Paws Warming Gowns ���������������������������������������������������������������������������������������1 Important Information about the Bair Paws Model 875 Warming Unit �������������������������������2 Indications/Intended Use ������������������������������������������������������������������������������������������2 Contraindication �������������������������������������������������������������������������������������������������������2 Warnings ������������������������������������������������������������������������������������������������������������������2 Cautions ��������������������������������������������������������������������������������������������������������������������3 Notices ����������������������������������������������������������������������������������������������������������������������3...
  • Page 4: Introduction To The Bair Paws Patient Adjustable Warming System

    ® Patient Adjustable Warming System The Bair Paws patient adjustable warming system consists of the Model 875 forced-air warming unit and disposable warming gowns� The Bair Paws Model 875 warming unit can provide comfort warming and prewarming to patients in preoperative settings� In postoperative settings the warming unit can provide comfort warming�...
  • Page 5: Important Information About The Bair Paws Model 875 Warming Unit

    Important Information about the Bair Paws Model 875 Warming Unit Indications/Intended Use The Model 875 warming unit is indicated for patient warming� This warming unit has been designed for use with the Bair Paws warming gowns in all preoperative and postoperative settings�...
  • Page 6: Cautions

    Read Before Servicing Unit All repair, calibration, and servicing of the Model 875 warming unit must be performed by qualified, medical equipment service technicians who are familiar with good practice for medical device repair� If the warming unit does not require the manufacturer’s attention, Arizant Healthcare Inc�...
  • Page 7: Preparing The Bair Paws Model 875 Warming Unit For Use

    Note: It may be necessary to gently strike the case bottom in an upward fashion with the palm of your hand to release the clip from the wall-mount bracket� Wall-mount bracket Case bottom Bair Paws® Model 875 Warming Unit Operator’s Manual...
  • Page 8: Mounting The Warming Unit On An Iv Pole

    Mounting the Warming Unit on an IV Pole Caution: To prevent tipping, mount the Model 875 warming unit on an IV pole at a height that ensures stability� We recommend mounting the warming unit no higher than 44 in� (112 cm) from the floor on an IV pole with a minimum wheelbase radius of 14 in� (35�6 cm)�...
  • Page 9: Mounting The Warming Unit With A Rail-Mount To The Wall

    Mounting the Warming Unit with a Rail-mount to the Wall Precaution: The rail-to-wall bracket is intended for use only with a Bair Paws 800 series warming unit� 1� If the warming unit is not already connected to the rail-mount, slide the clip on the back of the warming unit into the groove of the rail-mount�...
  • Page 10: Operating Information

    Instructions for Use The instructions below describe how to use the Bair Paws Model 875 warming unit with a Bair Paws gown� For more information about the Bair Paws warming gowns, refer to the Instructions for Use that is shipped with the warming gowns�...
  • Page 11: Using The Hand-Held Temperature Controller

    Using the Hand-held Temperature Controller After the hose has been connected to the Bair Paws gown, the patient can adjust the air temperature and airflow by turning the knob on the temperature controller� The following list explains how the unit will operate when the knob is placed in the specified position shown in the figure�...
  • Page 12: Using The Holder For The Hand-Held Temperature Controller

    Allow the warming unit to run for at least 5 minutes� If the “Over-Temp” light illuminates again, return the warming unit to Arizant • Healthcare for service� Otherwise, reconnect the warming unit hose to the Bair Paws gown to resume • patient warming� Arizant Healthcare Inc�...
  • Page 13: General Maintenance

    (2) routinely every six months� Perform the calibration in a similar environment temperature to where the Model 875 will be used� You will need a Bair Paws Model 90055 temperature test kit to perform the calibration� Calibration instructions are included with the test kit�...
  • Page 14: Technical Support And Customer Service

    Paws warming unit� The serial number is located on the back of the unit� Repair and Exchange Call Arizant Healthcare customer service if your Model 875 warming unit requires service� A customer service representative will give you a Return Authorization (RA) number� Please use this RA number on all correspondence concerning your warming unit�...
  • Page 15: Technical Specifications

    Electronically controlled using integrated circuit sensor� heat generated 1000 BTU/hr (average) average operating temperatures User adjustable from: ambient to 43±3˚C (109±5�4˚F) at the end of the hose recommended environment 18˚ to 26˚C (65˚ to 79˚F) temperature range Bair Paws® Model 875 Warming Unit Operator’s Manual...
  • Page 16 Safety System Characteristics thermostat Independent electronic and heater (electromechanical) overcurrent protection Dual input fused line� safety feature Over-temperature protection: color indicator light illuminates, audible alarm sounds, and heater shuts down (blower continues to run)� certifications IEC 60601-1: UL 60601-1; CAN/CSA-C22�2, No� 601�1; EN 60601-1-2;...
  • Page 17: Definition Of Symbols

    Definition of Symbols The following symbols may appear on the product, on the exterior packaging, or in the product labeling� Temperature Control Type BF equipment (patient applied) No free hosing Bair Paws® Model 875 Warming Unit Operator’s Manual...
