2020
p.n.500253
4K 120M KVM Extender
Enjoy the vivid world
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500253 and is the answer not in the manual?

Questions and answers

Summary of Contents for Telran 500253

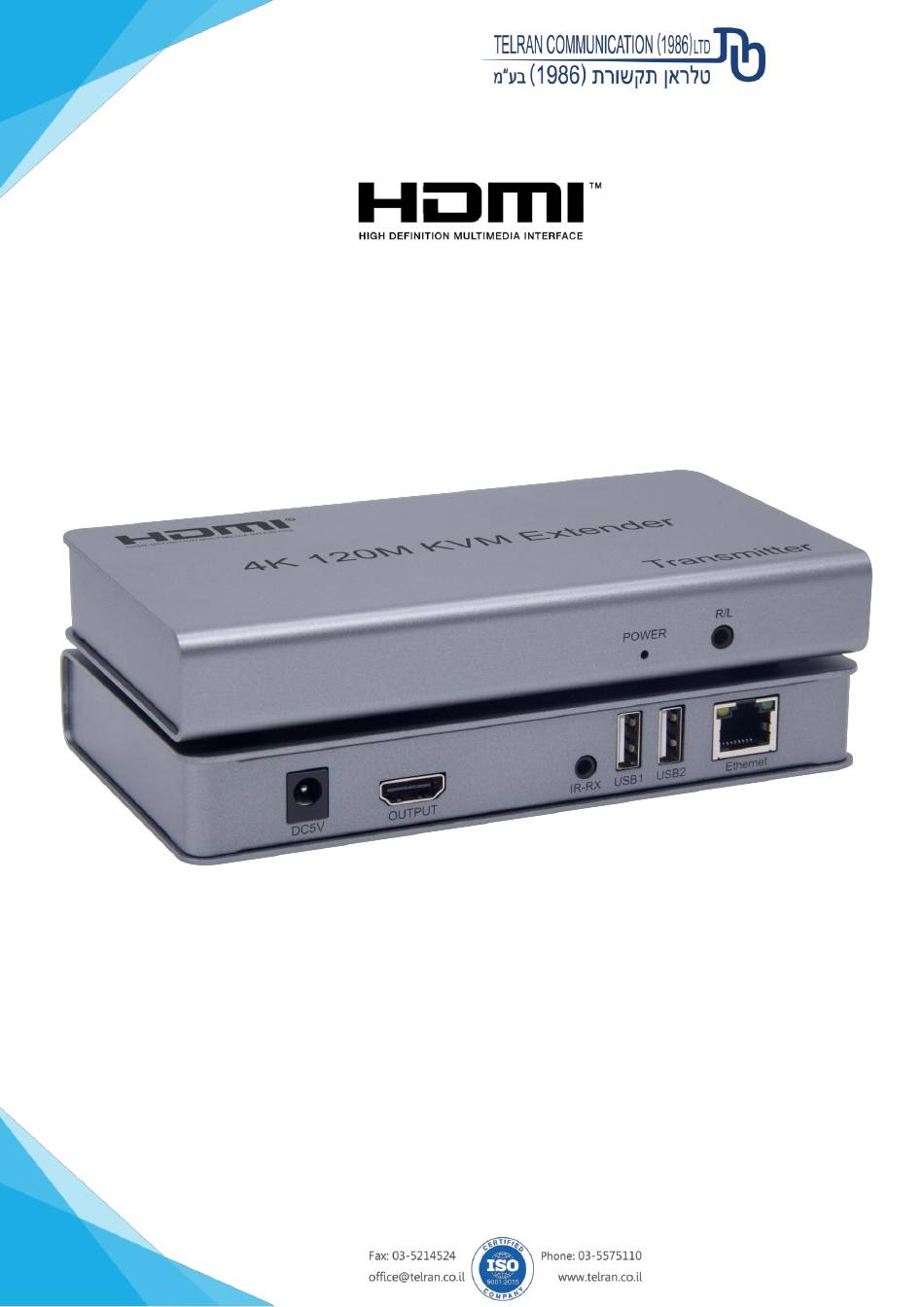

  • Page 1 2020 p.n.500253 4K 120M KVM Extender Enjoy the vivid world...
  • Page 2 2020 Introduction The Extender uses single cat5e or cat6(recommended) cables instead of HDMI cable to transmit high definition signal up to 120 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal. Features Support HDMI 1.4/HDCP1.4 Support local loop-out...
  • Page 3: Specifications

    2020 Specifications Length of CAT5e/CAT6 cable between Rx and TX 120 meters HDMI Input 4k/1080p/720p/576p/576i/480p/480i HDMI Output 4k/1080p/720p/576p/576i/480p/480i Max bandwidth 340MHz Max baud rate 3x3.4Gbps Input video signal 0.5 ~ 1.5Volts p-p Output DDC signal 5Volts p-p (TTL) ≤10m AWG26 HDMI standard cable Input HDMI cable distance ≤10m AWG26 HDMI standard cable Output HDMI cable distance...
  • Page 4: Connecting And Operating

    2020 USER MANUAL Connecting and Operating 1. Connect one HDMI cable between source device and TX Extender, the max cable distance is 10 meters 2. Connect one HDMI cable between display device and RX Extender, the max cable distance is 10 meters 3.
  • Page 5: Application Diagrams

    2020 USB port touch screen function Application diagrams HDMI extender is used in audio-visual conference, command and control center, ticketing platform, home theater, multi-media teaching, conference system and so on. Audio-visual conference Command and control center Home theater...
  • Page 6 2020 Physical interface diagrams Port Function description DC/5V 5V DC Power input port OUTPUT HDMI Loop-out port INPUT HDMI Input port IR-TX IR-TX port USB-PS USB port, connect with the USB of device (PC) Ethernet Cat5e / 6 cable connection port POWER Power indicator light Stereo output...
