Operating/ assembly instructions
Post transport trolley
Prod. code: 131 6201
Assembly instructions for post transport trolley
Thank you very much for choosing a Sport-Thieme product. Please read the
instructions fully before you assemble the equipment so you can enjoy the product
Included:
Pos. Description
1 2 x side (pre-assembled)
2 1 x strut (2.01 m, with tenon)
3 1 x strut (1.92 m, with plate)
4 2 x hex bolt M10 x 45, washer DIN 125, nut DIN 934
5 4 x hex bolt M10 x 65, washer DIN 125 / 9021, nut 934
1. General
This trolley is designed for the storage and transport of max. 16 posts used in
sports (e.g. volleyball post or high bar posts).
On both sides, there are 4 brackets, each 20 cm deep, positioned at a distance
of 25 cm.
Most parts of the transport trolley are pre-assembled.
The brackets have felt pads to protect the posts. For easier transport, the
trolley is fitted with Ø 75 mm double swivel castors.
and its guaranteed safety:
page 1 of 3
38367 Grasleben / Germany
Telephone: +49 (0)53 57 181 81
www.sport-thieme.com

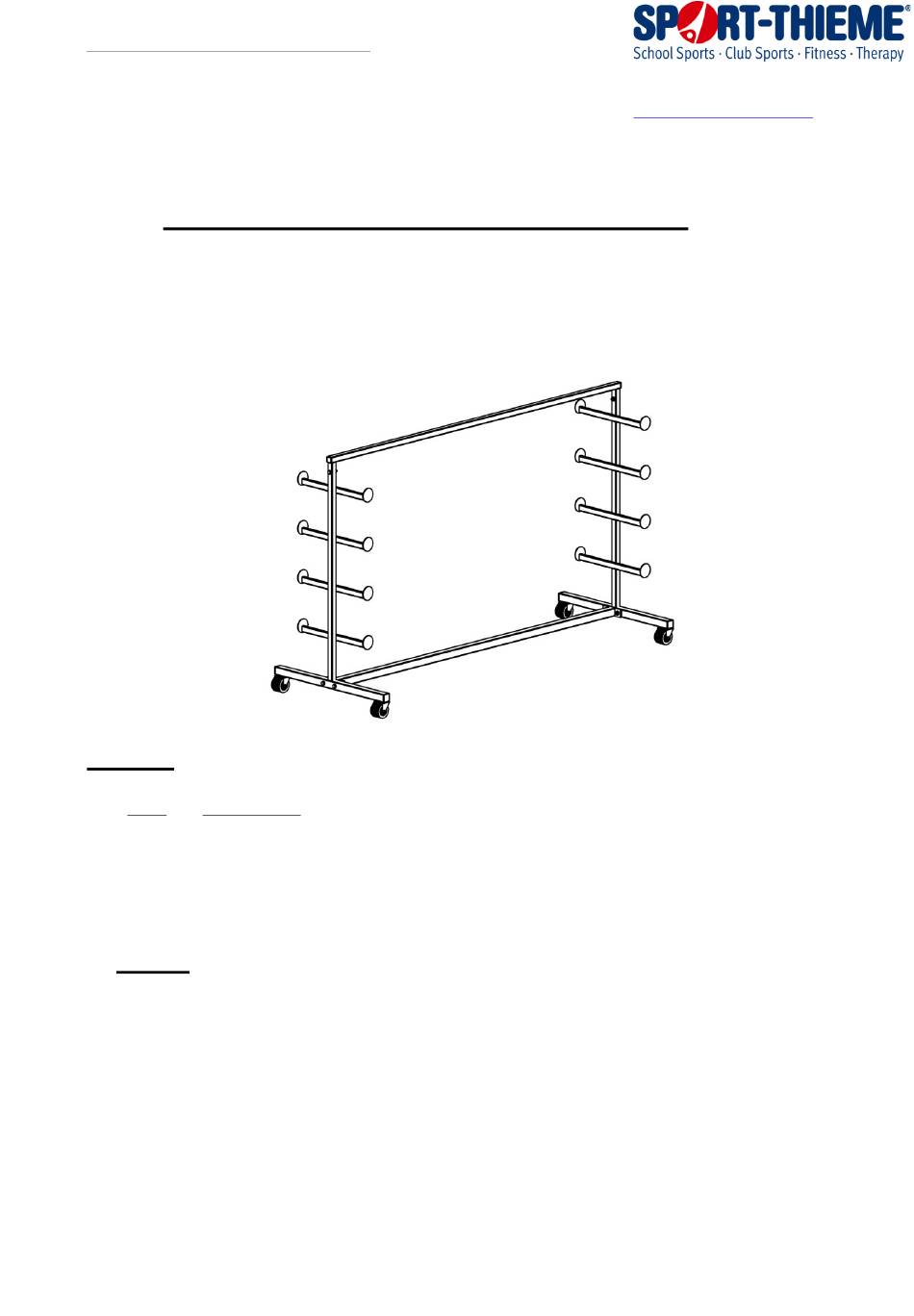

Ill 1: transport trolley
