Platform Guide HIPswitch 150e and HIPswitch I-150e Industrial Security Appliance support@temperednetworks.com +1 206.452.5500 ext. 2 www.temperednetworks.com 3101 Western Ave., Ste. 550 The HIPswitch 150 platforms are small form factor Seattle, WA 98121 industrial (I-150e) and commercial (150e) grade secu- rity appliances that facilitate private overlay networks between customer-provided equipment and devices.
Page 2
Multi-Purpose Button NOTE: Some Tempered Networks documents may refer to this as a “Reset” button. The multi-purpose button provides two different functions, depending on how long it is pressed and held. Short Press Press for 3 seconds and release. The Status LED will now Places the HIPswitch blink steadily.
Page 3
Wiring Power Inputs This device supports dual redundant power supplies, power supply 1 (PWR 1) and power supply 2 (PWR 2). The connec- tors for PWR 1 and PWR 2 are located on the terminal block. Step 1: Insert the negative DC into the V- terminal and the positive DC into the V+ terminal.
Page 4
Once the support bundle .pkg file has been created, you will be provided a download link to the file. A support bundle .pkg file is an encrypted archive that facilitates technical support by Tempered Networks only. Send the support bundle as an email attachment to support@temperednetworks.com.
Page 5

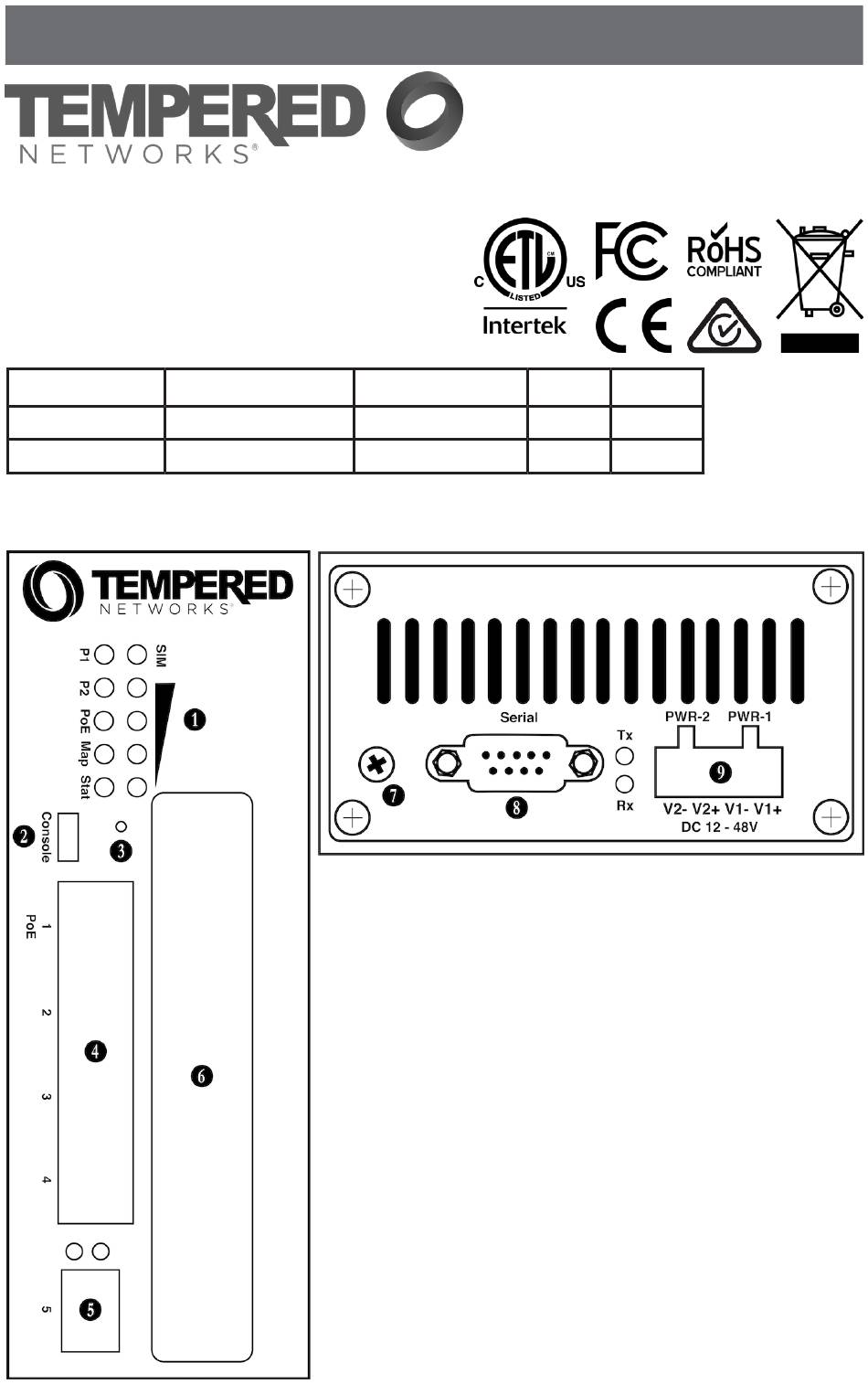

MODÈLES 5012744 Numéro de pièce Modèle Usage Ports Série PLF-0128-01 HIPswitch 150e Commercial PLF-0116-01 HIPswitch I-150e Industriel DISPOSITION DES PANNEAUX SUPÉRIEUR ET AVANT 1. Voyants : Indicateurs de signal 2. Port console micro USB 3. Touche multifonctions 4.
Page 6
Bouton multifonctions REMARQUE : Dans certains documents de Tempered Networks, ce bouton est nommé « Reset » (Réinitialisation). La touche multifonctions fournit deux fonctions différentes, selon le temps d’appui. Appui court Appuyer pendant 3 secondes et relâcher. Le voyant d’état Règle le HIPswitch en...
Page 7
Câblage Alimentations électriques Cet appareil prend en charge deux alimentations électriques redondantes, l’alimentation 1 (PWR 1) et l’alimentation 2 (PWR 2). Les connecteurs PWR 1 et PWR 2 sont situés sur le bloc de jonction. Étape 1 : Insérez l’entrée CC négative dans la borne V- et l’entrée CC positive dans la borne V+.
Page 8
HIPswitch. Créer une trousse d’assistance : Pour faciliter le soutien des clients, il se peut que Tempered Networks demande une trousse d’assistance pour le Conductor. 1. Connectez-vous au Conductor avec un compte d’administrateur système ou d’administrateur réseau.
