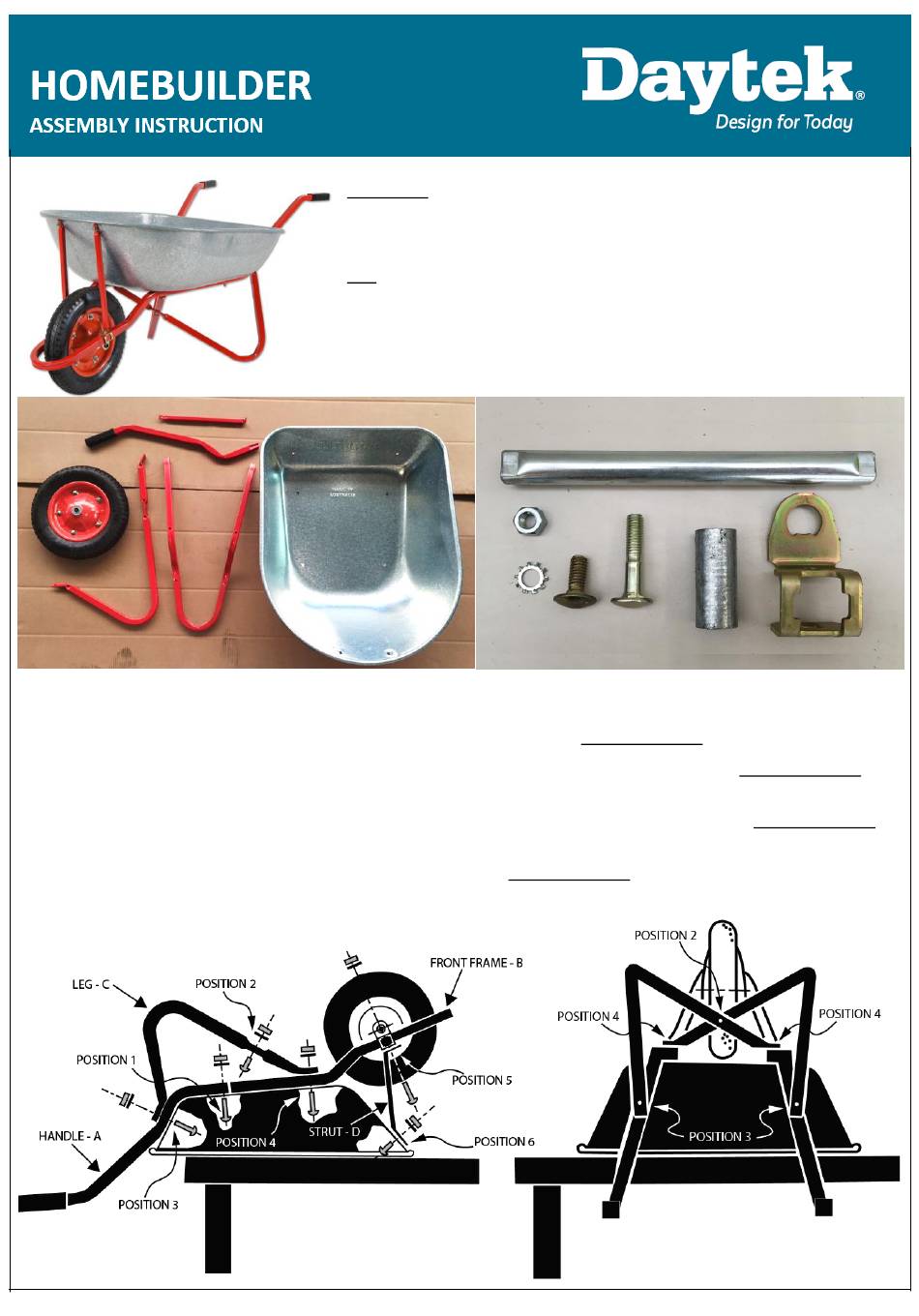

DAYTEK HOMEBUILDER Assembly Instructions

A
x2
WHEEL
C
x2
B
1. PLACE WHEELBARROW BOWL UPSIDE DOWN OVER A BENCH OR TABLE EDGE.
2. ASSEMBLE HANDLES "A" INTO FRONT FRAME "B" AS PER DIAGRAM. LOCATE ASSEMBLY OVER THE HOLES IN THE
BOWL. INSERT 2 x LONG BOLTS FROM INSIDE THE BOWL AT POSITION 1 AND FINGER TIGHTEN WITH WASHERS & NUTS.
3. ASSEMBLE LEGS "C" TOGETHER IN A CROSS-PATTERN AT POSITION 2 WITH 1 x SHORT BOLT AND FINGER TIGHTEN
WITH WASHER & NUT.
4. LOCATE THE LEGS OVER THE BOWL AS SHOWN AND FIX WITH 4 x LONG BOLTS AT POSITION 3 & 4. FINGER TIGHTEN
WITH WASHERS & NUTS.
5. ASSEMBLE THE 2 STRUTS "D" TO THE FRONT OF THE BOWL AND FINGER TIGHTEN ONLY.
CAUTION!
PRESSURE. ENSURE SQUARE NECK OF BOLTS ARE LOCATED IN BOWL
DURING ASSEMBLY.
TIP
IN POSITION DURING ASSEMBLY. USE A MALLET TO KNOCK COMPONENTS
INTO POSITION IF NEEDED.
D
x2
BOWL
– INFLATE TYRE WITH CARE. DO NOT EXCEED RECOMMENDED
– PLACE STRONG TAPE OVER THE HEAD OF THE BOLTS TO HOLD THEM
X11
X11
v1.0
AXLE x1
AXLE SPACER
x2
x3 x8
AXLE
BRACKET
x2
