A
WHEEL
B
C
x2

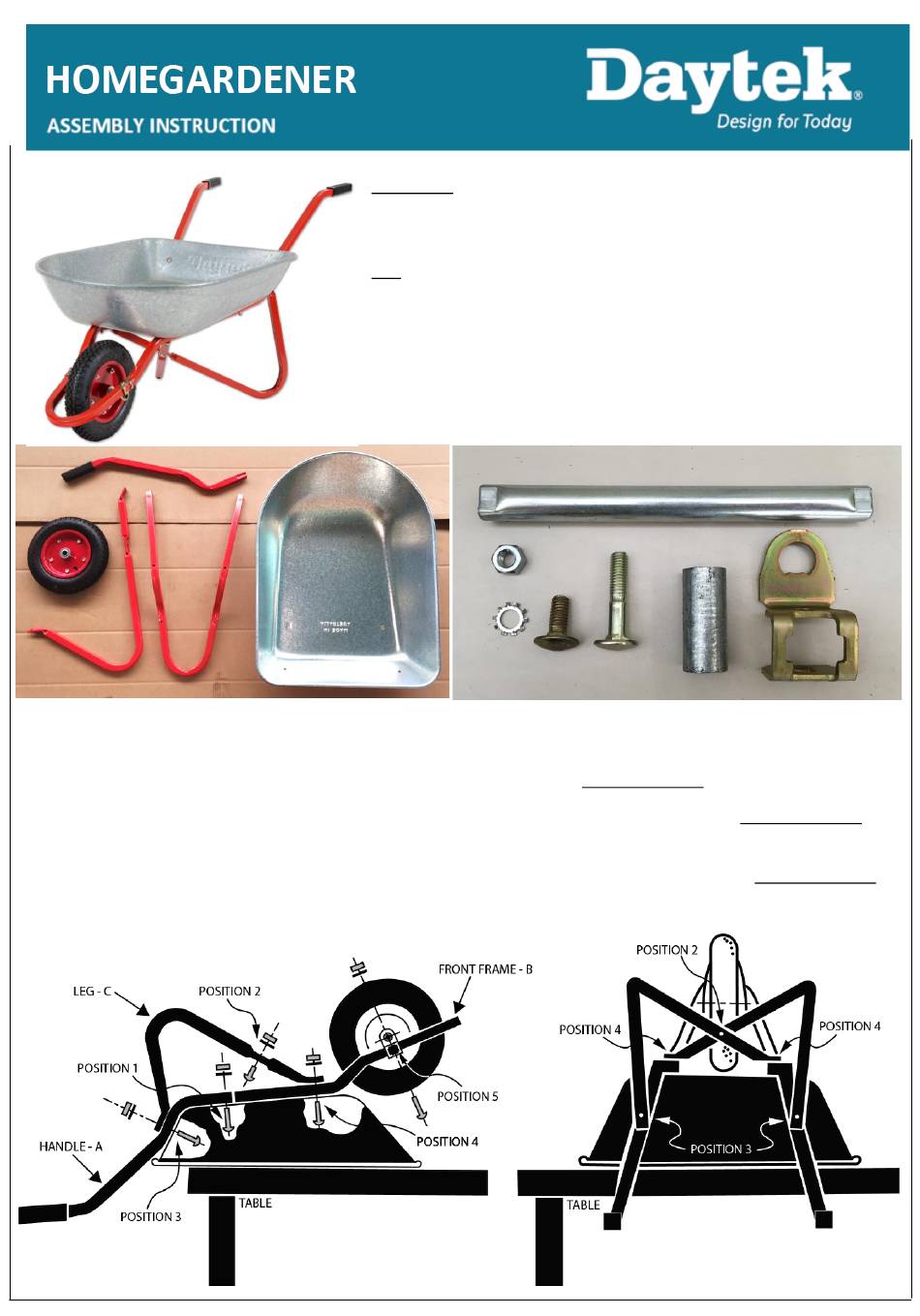

1. PLACE WHEELBARROW BOWL UPSIDE DOWN OVER A BENCH OR TABLE EDGE.
2. ASSEMBLE HANDLES "A" INTO FRONT FRAME "B" AS PER DIAGRAM. LOCATE ASSEMBLY OVER THE HOLES IN THE
BOWL. INSERT 2 x LONG BOLTS FROM INSIDE THE BOWL AT POSITION 1 AND FINGER TIGHTEN WITH WASHERS & NUTS.
3. ASSEMBLE LEGS "C" TOGETHER IN A CROSS-PATTERN AT POSITION 2 WITH 1 x SHORT BOLT AND FINGER TIGHTEN
WITH WASHER & NUT.
4. LOCATE THE LEGS OVER THE BOWL AS SHOWN AND FIX WITH 4 x LONG BOLTS AT POSITION 3 & 4. FINGER TIGHTEN
WITH WASHERS & NUTS.
CAUTION!
RECOMMENDED PRESSURE. ENSURE SQUARE NECK OF BOLTS ARE
LOCATED IN BOWL DURING ASSEMBLY.
TIP
THEM IN POSITION DURING ASSEMBLY. USE A MALLET TO KNOCK
COMPONENTS INTO POSITION IF NEEDED.
x2
BOWL
- INFLATE TYRE WITH CARE. DO NOT EXCEED
– PLACE STRONG TAPE OVER THE HEAD OF THE BOLTS TO HOLD
AXLE x1
x9
x9
x1
v1.0
AXLE SPACER
x2
x8
AXLE
BRACKET
x2
Advertisement
Table of Contents
Related Manuals for DAYTEK HomeGardener
Summary of Contents for DAYTEK HomeGardener
- Page 1 CAUTION! - INFLATE TYRE WITH CARE. DO NOT EXCEED RECOMMENDED PRESSURE. ENSURE SQUARE NECK OF BOLTS ARE LOCATED IN BOWL DURING ASSEMBLY. – PLACE STRONG TAPE OVER THE HEAD OF THE BOLTS TO HOLD THEM IN POSITION DURING ASSEMBLY. USE A MALLET TO KNOCK COMPONENTS INTO POSITION IF NEEDED.
- Page 2 FITTING THE WHEEL 5. INSERT AXLE THROUGH THE WHEEL HUB. 6. SLIDE AXLE SPACER OVER EACH END OF AXLE. ENSURE AXLE AND SPACER ARE POSITIONED CENTRAL IN THE HUB. 7. LOCATE ONE AXLE BRACKET AT POSITION 5 ON FRONT FRAME “B”. SECURE BRACKET WITH 1 x LONG BOLT AND TIGHTEN WITH WASHER &...
