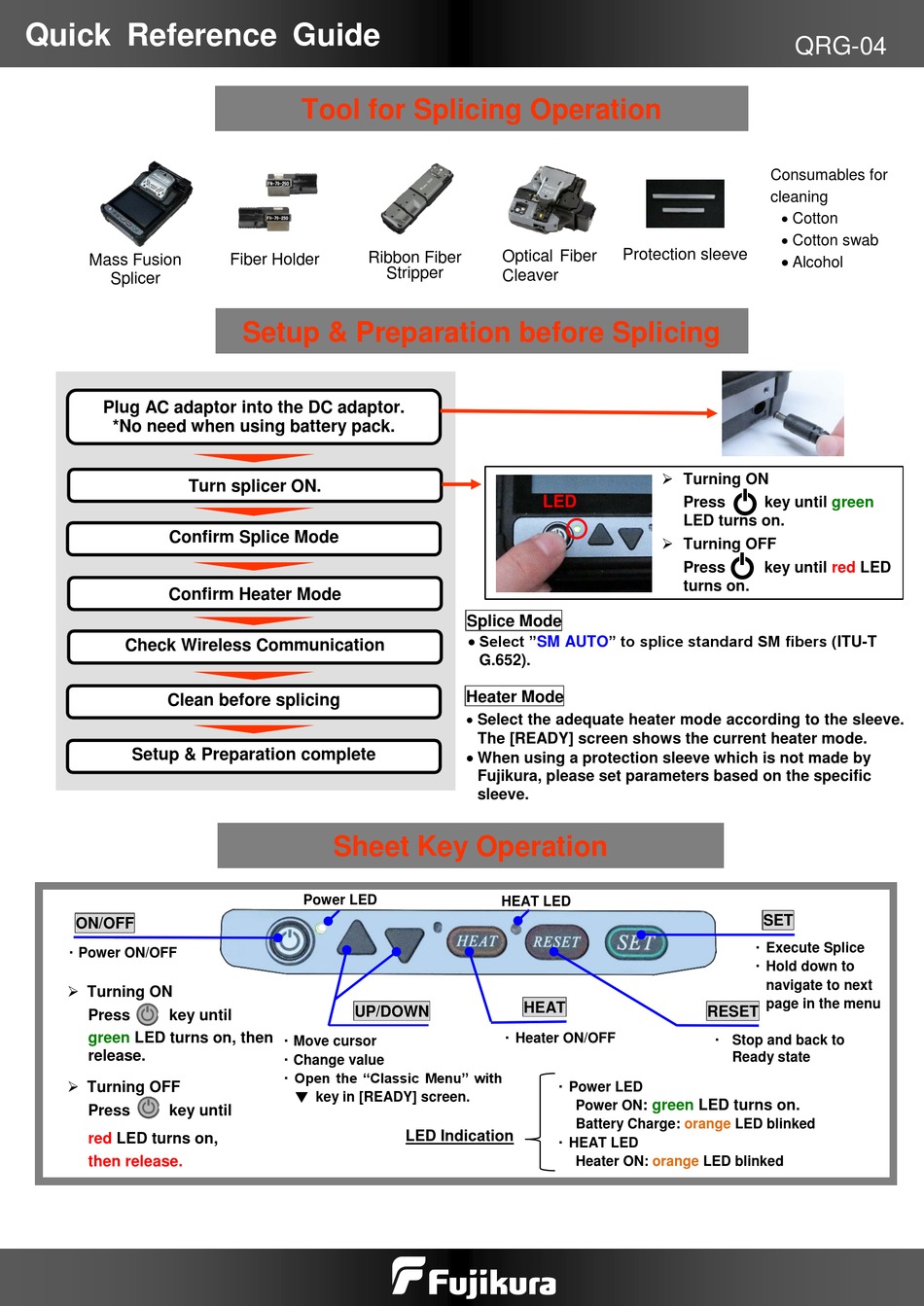

Fujikura QRG-04 Quick Reference Manual

Quick Reference Guide
Mass Fusion
Splicer
Plug AC adaptor into the DC adaptor.
*No need when using battery pack.
Turn splicer ON.
Confirm Splice Mode
Confirm Heater Mode
Check Wireless Communication
Clean before splicing
Setup & Preparation complete
ON/OFF
・Power ON/OFF
 Turning ON
Press key until
green LED turns on, then
release.
 Turning OFF
Press key until
red LED turns on,
then release.
Tool for Splicing Operation
Ribbon Fiber
Fiber Holder
Stripper
Setup & Preparation before Splicing

Sheet Key Operation

Power LED
UP/DOWN
・Move cursor
・Change value
・Open the "Classic Menu" with
▼ key in [READY] screen.
Optical Fiber
Cleaver
LED
Splice Mode

Select "SM AUTO" to splice standard SM fibers (ITU-T
G.652).
Heater Mode
 Select the adequate heater mode according to the sleeve.
The [READY] screen shows the current heater mode.

When using a protection sleeve which is not made by
Fujikura, please set parameters based on the specific
sleeve.
HEAT LED
HEAT
・Heater ON/OFF
・Power LED
Power ON
Battery Charge:
LED Indication
・HEAT LED
Heater ON:
QRG-04
Consumables for
cleaning
 Cotton
 Cotton swab
Protection sleeve

Alcohol
 Turning ON
Press key until
LED turns on.
 Turning OFF
Press key until
turns on.
SET
・ Execute Splice
・ Hold down to
navigate to next
page in the menu
RESET
・ Stop and back to
Ready state
: green LED turns on.
orange LED blinked
orange LED blinked
green
red LED
