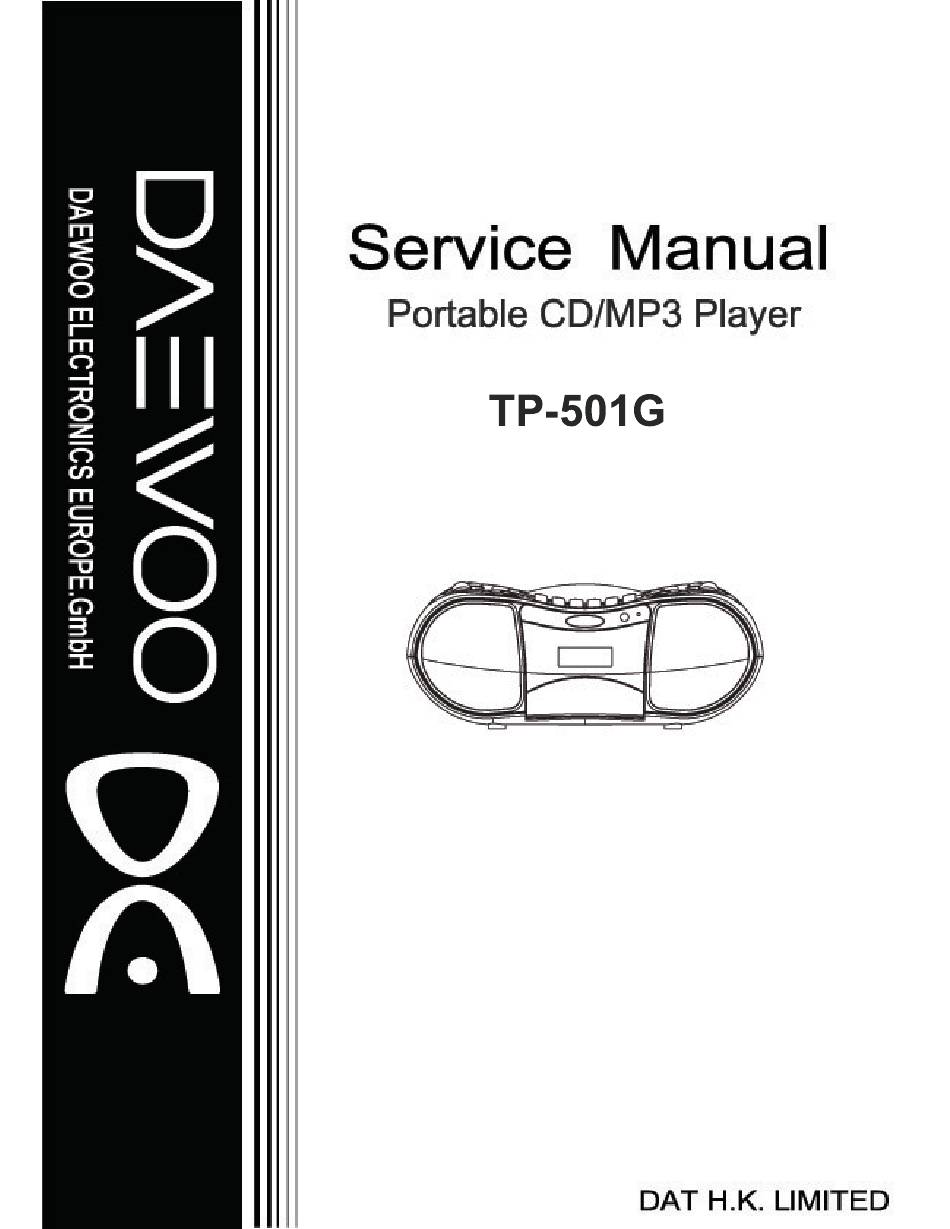

Daewoo TP-501G Service Manual

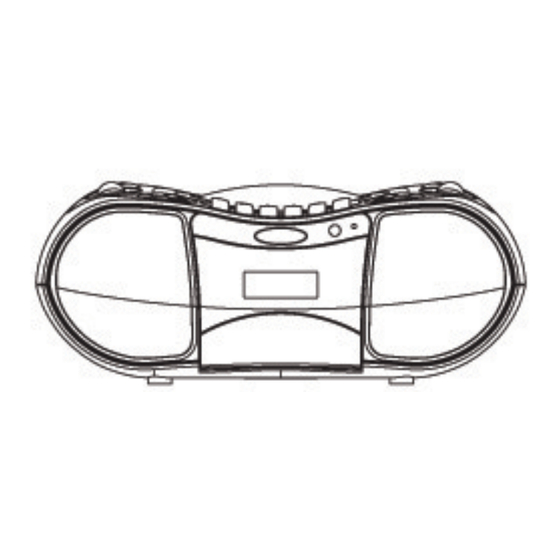

Portable cd/mp3 player
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the TP-501G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo TP-501G

Summary of Contents for Daewoo TP-501G

  • Page 2 CONTENTS 1. Product Specification...........1-8 2. Schematic Diagram..........9-11 3. PCB Layer (Block & Wire Diagram.)....12-20 4. Explored View............21 5. Part List..............22-38...
  • Page 3 Description Brand Name Model No. Digital Signal Generator KENWOOD SG-5150 Distortion Meter MEGURO MAK-6571C Millivolt Meter LODESTAR MV-3201B Low-Frequency Generator KENWOOD AG-203A Oscilloscope GOS-653G Wow-and-Flutter KIKUSUI 677D ’ BAND: AM ITEMS Measurement Conditions UNIT NOMINAL LIMIT 1 Frequency Range ±10 According to FTZ Regulation without AFC HIGH 1650...
  • Page 4 Description Brand Name Model No. Digital Signal Generator KENWOOD SG-5150 Distortion Meter MEGURO MAK-6571C Millivolt Meter LODESTAR MV-3201B Low-Frequency Generator KENWOOD AG-203A Oscilloscope GOS-653G Wow-and-Flutter KIKUSUI 677D ’ BAND: AM ITEMS Measurement Conditions UNIT NOMINAL LIMIT 17 MAX. Distortion (100 dB) 1000 KHz Urf=100dB AF =1000Hz MOD.
  • Page 5 Description Brand Name Model No. Digital Signal Generator KENWOOD SG-5150 Distortion Meter MEGURO MAK-6571C Millivolt Meter LODESTAR MV-3201B Low-Frequency Generator KENWOOD AG-203A Oscilloscope GOS-653G Wow-and-Flutter KIKUSUI 677D ’ BAND: FM/EUROPE UNIT NOMINA LIMI ITEMS Measurement Conditions 63.5 +0.5 Low End Frequency Range Manual 108.5...
  • Page 6 Description Brand Name Model No. Digital Signal Generator KENWOOD SG-5150 Distortion Meter MEGURO MAK-6571C Millivolt Meter LODESTAR MV-3201B Low-Frequency Generator KENWOOD AG-203A Oscilloscope GOS-653G Wow-and-Flutter KIKUSUI 677D ’ BAND: FM/EUROPE NOMINA ITEMS Measurement Conditions UNIT LIMIT Limiting Sensitivity 86 MHz Input Urf=1mV Vol Control to Ref.
  • Page 7 Description Brand Name Model No. Digital Signal Generator KENWOOD SG-5150 Distortion Meter MEGURO MAK-6571C Millivolt Meter LODESTAR MV-3201B Low-Frequency Generator KENWOOD AG-203A Oscilloscope GOS-653G Wow-and-Flutter KIKUSUI 677D ’ BAND: TAPE PLAYBACK ITEMS Measurement Conditions UNIT NOMINAL LIMIT 1 Tape Speed Normal High TCC-112 Volume Control to Ref.
  • Page 8 Description Brand Name Model No. Digital Signal Generator KENWOOD SG-5150 Distortion Meter MEGURO MAK-6571C Millivolt Meter LODESTAR MV-3201B Low-Frequency Generator KENWOOD AG-203A Oscilloscope GOS-653G Wow-and-Flutter KIKUSUI 677D ’ BAND: TAPE PLAYBACK ITEMS Measurement Conditions UNIT NOMINAL LIMIT MIC I/P S.G. 1KHz X@ MIC SENS. +30dB VS NO SIGNAL AC Bias @ MIC I/P SENS 18 Record/Playback ERASE...
  • Page 9 Description Brand Name Model No. Digital Signal Generator KENWOOD SG-5150 Distortion Meter MEGURO MAK-6571C Millivolt Meter LODESTAR MV-3201B Low-Frequency Generator KENWOOD AG-203A Oscilloscope GOS-653G Wow-and-Flutter KIKUSUI 677D ’ BAND: CD PLAYER ITEMS Measurement Conditions UNIT NOMINAL LIMIT Interruption: 1 TCD-725 Volume Control to MAX.
  • Page 10 Description Brand Name Model No. Digital Signal Generator KENWOOD SG-5150 Distortion Meter MEGURO MAK-6571C Millivolt Meter LODESTAR MV-3201B Low-Frequency Generator KENWOOD AG-203A Oscilloscope GOS-653G Wow-and-Flutter KIKUSUI 677D ’ BAND: CD PLAYER ITEMS Measurement Conditions UNIT NOMINAL LIMIT Rms/Pp MAX. Hum/Noise TCD-784 Track 7 Transformer: Rms/Pp...
  • Page 24 DAT HK Limited TP-501G Part List Model No : TP-501G Part No : BCM138AR-A501 Status : MP(量產) Description : 全球線路 CD MPEG+MP3+WMA (NOR) DA11V Verified Date : 01/18/2006 Item Code Description Qty Unit Location 1 003-03906-006 TRANSISTOR 2N3906 TO-92 (PNP...
  • Page 25 DAT HK Limited TP-501G Part List Model No : TP-501G Page : 1 Part No : BCM138AR-A502 Status : MP(量產) Description : 全球線路 CD MPEG+MP3+WMA (SMT) DA11V Verified Date : 01/18/2006 Item Code Description Qty Unit Location 1 001-UTM1800A-0MP P.C.B UTM1800A CD/MP3/WMA...
  • Page 26 DAT HK Limited TP-501G Part List Model No : TP-501G Page : 1 Part No : BCM138AR-A502 Status : MP(量產) Description : 全球線路 CD MPEG+MP3+WMA (SMT) DA11V Verified Date : 01/18/2006 Item Code Description Qty Unit Location 23 005-S182B-013 CHIP RESISTOR 1.8K (0603) +/-5%...
  • Page 27 DAT HK Limited TP-501G Part List Model No : TP-501G Page : 1 Part No : BCM138AR-A502 Status : MP(量產) Description : 全球線路 CD MPEG+MP3+WMA (SMT) DA11V Verified Date : 01/18/2006 Item Code Description Qty Unit Location 42 016-S1015-006 CHIP CAPACITOR 100 PF 50V (0603)
  • Page 28 DAT HK Limited TP-501G Part List Model No : TP-501G Page : 1 Part No : BCM138AR-A201 Status : MP(量產) Description : LCD (NOR) BOARD HT1621 IC Verified Date : 01/18/2006 Item Code Description Qty Unit Location 1 003-08050-014 TRANSISTOR S8050 TO-92...
  • Page 29 DAT HK Limited TP-501G Part List Model No : TP-501G Page : 1 Part No : BCM138AR-A203 Status : MP(量產) Description : LCD (BONDING) BOARD HT1621 IC Verified Date : 01/18/2006 Item Code Description Qty Unit Location 1 002-01621-000 I.C. ET1621 DIE LCD DRIVER...
  • Page 30 DAT HK Limited TP-501G Part List Model No : TP-501G Page : 1 Part No : BCM138AR-A001 Status : MP(量產) Description : AF-S (NOR) BOARD CD2003GP IC Verified Date : 01/18/2006 Item Code Description Qty Unit Location 24 023-00231-105W P.V.C. AM/FM CBM-443DF-1DF 1 pc SHINTO 120-220gf.cm (W05)
  • Page 31 DAT HK Limited TP-501G Part List Model No : TP-501G Page : 1 Part No : BCM138AR-A002 Status : MP(量產) Description : AF-S (SMT) BOARD CD2003GP IC Verified Date : 01/18/2006 Item Code Description Qty Unit Location 11 005-S680B-013 CHIP RESISTOR 68 OHM (0603) +/-...
  • Page 32 DAT HK Limited TP-501G Part List Model No : TP-501G Page : 1 Part No : BCM138AR-A301 Status : MP(量產) Description : RECORDING (NOR) BOARD ST Verified Date : 01/18/2006 Item Code Description Qty Unit Location 1 002-03220-H12 I.C. HWCAT LA3220 2 CH...
  • Page 33 DAT HK Limited TP-501G Part List Model No : TP-501G Page : 1 Part No : BCM138A-B101 Status : MP(量產) Description : MECHANISM 全球線路+DA11V DECK Verified Date : 01/18/2006 Item Code Description Qty Unit Location 1 009-16-061SW FFC CABLE 16 Pin x 61mm 1 pc 1/主板CN1到CD機芯...
  • Page 34 DAT HK Limited TP-501G Part List Model No : TP-501G Page : 1 Part No : BCM138AR-A401 Status : MP(量產) Description : RMX0101B REMOTE CD (NOR) 4 KEYS PT2222 IC Verified Date : 01/18/2006 Item Code Description Qty Unit Location...
  • Page 35 DAT HK Limited TP-501G Part List Model No : TP-501G Page : 1 Part No : BCM138A-B004 Status : MP(量產) Description : MECHANISM 120V ST (全球線路) METAL GRILL Verified Date : 01/18/2006 Item Code Description Qty Unit Location 7 048-PC3N...
  • Page 36 BATTERY SPRING |-| CD210-204 4 pcs Model No : TP-501G Page : 1 Part No : BCW138AR-A101 Status : MP(量產) Description : POWER (NOR) BOARD ST (DAEWOO-1客戶 普通) Verified Date : 01/18/2006 Item Code Description Qty Unit Location 1 002-01117-067 I.C.
  • Page 37 DAT HK Limited TP-501G Part List Model No : TP-501G Page : 1 Part No : BCW138AR-A101 Status : MP(量產) Description : POWER (NOR) BOARD ST (DAEWOO-1客戶 普通) Verified Date : 01/18/2006 Item Code Description Qty Unit Location 9 005-C22XB-013 RESISTOR 2.2 OHM 1/16W +/-5%...
  • Page 38 DAT HK Limited TP-501G Part List Model No : TP-501G Page : 1 Part No : BCW138AR-A101 Status : MP(量產) Description : POWER (NOR) BOARD ST (DAEWOO-1客戶 普通) Verified Date : 01/18/2006 Item Code Description Qty Unit Location 33 036-BB137-UL02W-...
  • Page 39 DAT HK Limited TP-501G Part List Model No : TP-501G Page : 1 Part No : BCW138AR-A103 Status : MP(量產) Description : POWER (SMT) BOARD ST (DAEWOO-1客戶) Verified Date : 01/18/2006 Item Code Description Qty Unit Location 7 005-S104B-013 CHIP RESISTOR 100K (0603) +/-5%...
  • Page 40 DAT HK Limited TP-501G Part List Model No : TP-501G Page : 1 Part No : BCW138AR-A301 Status : MP(量產) Description : RECORDING (SMT) BOARD ST (DAEWOO-1客戶) Verified Date : 01/18/2006 Item Code Description Qty Unit Location 1 001-MCM66K-0M2 P.C.B MCM66K RECORDING S-SIDE...
