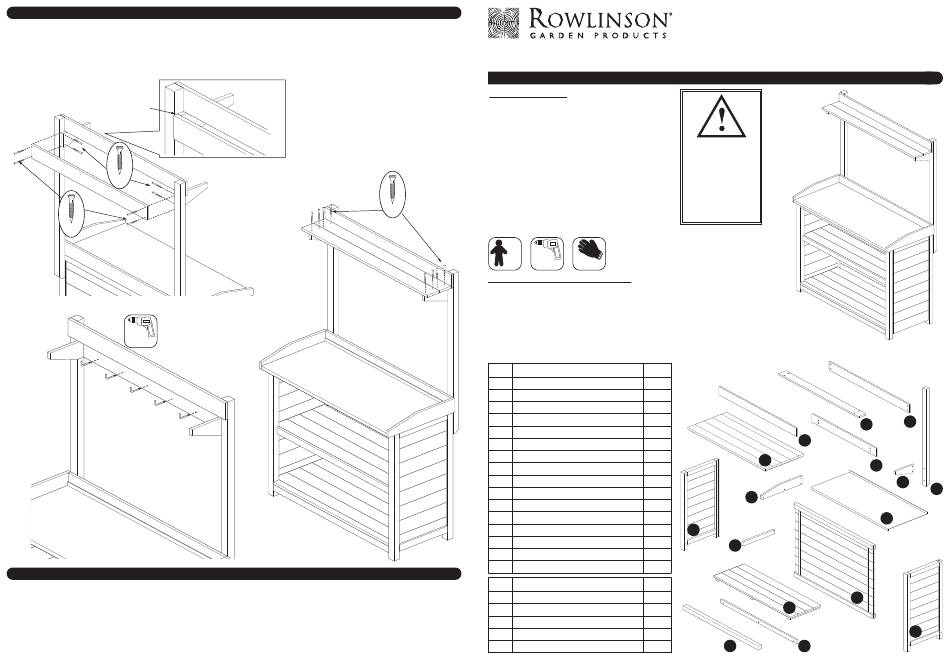

Rowlinson Premier Potting Station Assembly Instructions

7. High level shelf

Position each shelf bracket just below the shelf back board on the inside of the posts. Allow a gap at the back of the
bracket for the hook board to sit between the posts, flush to the back edge of the posts. Secure the each bracket using
2 x40mm screws. when both brackets are in place fix the hook board to the back edge of the brackets using 2 x 40mm
screws at each end of the board. Screw the five hooks into the hook board evenly spaced across the board. Place the
two shelf boards on top of the brackets and secure each board at each end with 2 x 40mm screws.
Important note:
Ensure the bracket is
positioned so that the
hook board fits between
the posts.
40mm
40mm
It is recommended to
drill a pilot hole in the
3mm
hook board for each
Drill
hooks with a 3mm
drill bit.
Information
If in doubt of any aspect regarding the assembly, use or safety of your Potting Station please contact us :
Help Line (Normal Office Hours) 01829 261 121
ROWLINSON GARDEN PRODUCTS LIMITED
Green Lane
Wardle Nr. Nantwich
Cheshire
CW5 6BN
40mm
We constantly improve the quality of our products, occasionally the
components may differ from the components shown and are only
correct at time of printing. We reserve the right to change the
specification of our products without prior notice.
2013 © Rowlinson Garden Products Ltd
Premier Potting Station
Assembly Instructions
Before assembly
• We recommend that time is taken to
read the instructions before starting
assembly, then follow the easy step by
step guide. The instruction sheet is only
a guide to the assembly. Certain items may
not be shown to scale.
•
Check all components prior to assembly
• This product should be assembled
by no less than two people
• Drill all components where indicated
• Some of the components may have sharp
edges wear protective work gloves while
handling components.
x 2
drill Gloves
Recommended tools for assembly
•
Power drill/screwdriver
• 3mm drill bit
• Cross head screwdriver bit
• Tape measure
• Rubber mallet
• Spirit level
• Sharp knife
No. Components Qty.
1 Back panel 1
2 Left panel 1
3 Right panel 1
4 Front rails 2
5 Mid shelf support 2
6 Shelf 2
7 Shelf Coverstrips 2
8 Work top 1
Metal Work top 1
9
10 Work top sides 1
11 Work top back board 1
12 High level shelf posts 2
13 Shelf bracket 1
14 Hook board 1
15 Shelf board 2
16 Shelf back board 1
No. Fixing Kit Qty.
17 Hook 5
18 90mm screw 16
19 40mm screw 39
20 30mm screw 4
21 14mm screw 6
English SS305
Caution
This product
contains sheet
metal. Wear
protective work
gloves while
handling these
components.
15
11
8
10
2
5
1
6
4 7
16
14
13
12
9
3
