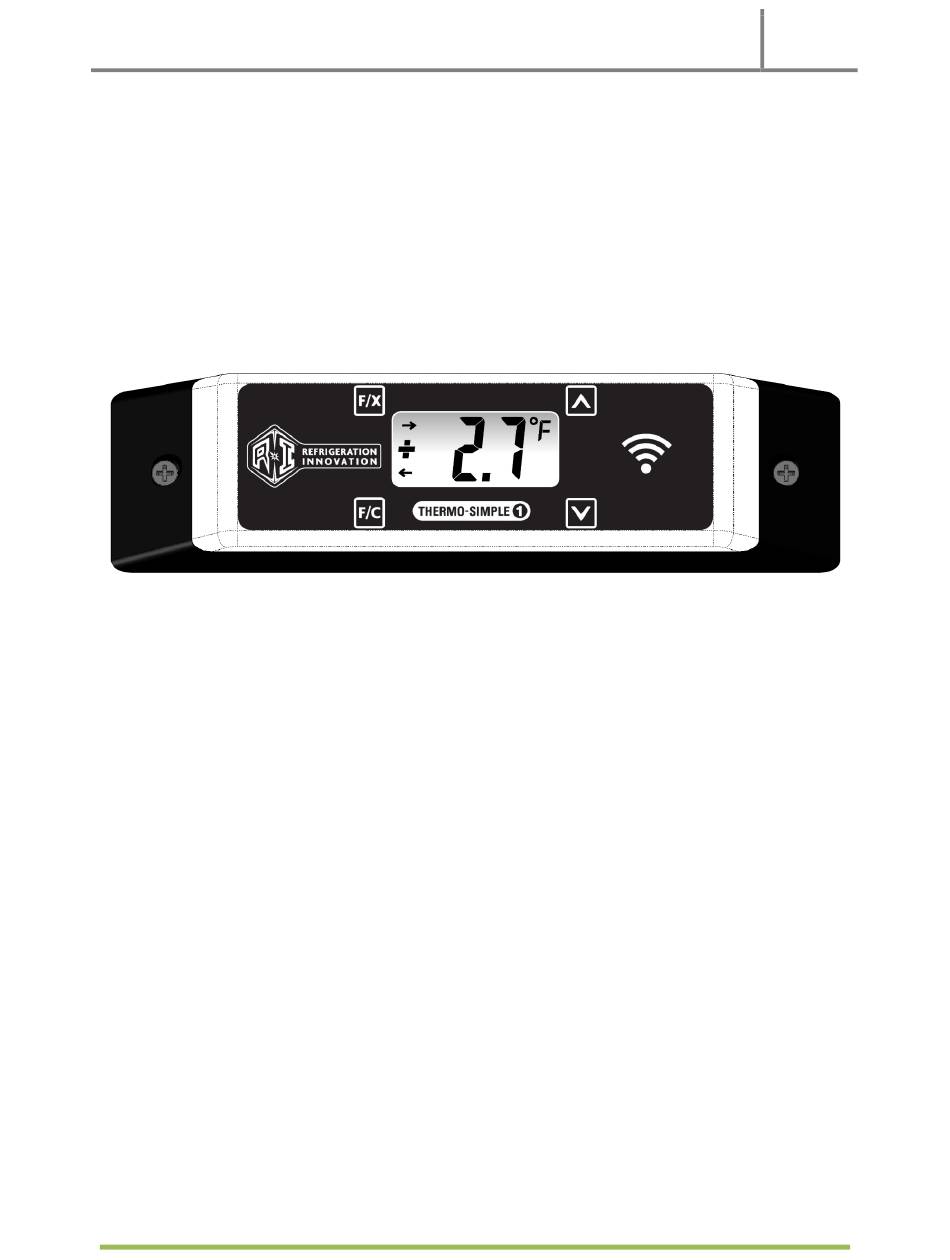

Thermo-Simple 1 version 2 (TS.1 ver.2) 2019
Refrigeration Innovation
Thermo-Simple 1
Manual
Refrigeration Innovation
575 Menlo Drive Suite 5
Rocklin, CA 95765
P: 530.666.3020
Refrigeration Innovation 575 Menlo Drive Suite 5 Rocklin, CA 95765
version 2
For Technical Support contact 530-666-3020 ext 103
to order parts www. refrigerationinnovation.com
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Thermo-Simple 1 version 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Refrigeration Innovation Thermo-Simple 1 version 2

Summary of Contents for Refrigeration Innovation Thermo-Simple 1 version 2

  • Page 1 Thermo-Simple 1 version 2 Manual Refrigeration Innovation For Technical Support contact 530-666-3020 ext 103 575 Menlo Drive Suite 5 to order parts www. refrigerationinnovation.com Rocklin, CA 95765 P: 530.666.3020 Refrigeration Innovation 575 Menlo Drive Suite 5 Rocklin, CA 95765 Page 1...

  • Page 2: Hardware Configurations

    The power supply for Multi-Node Configuration is not interchangeable with Single Node power supply. This is due to different load requirements. INPUT OUTPUT Plug type: NEMA 1-15p Plug type: RJ45 (8 Positions 8 Contacts) Voltage: 100-240 Vac(50-60 Hz) Voltage: 12 Vdc Current: 0.2 A Current: 1.5 A Refrigeration Innovation 575 Menlo Drive Suite 5 Rocklin, CA 95765 Page 2...
  • Page 3 WARNING: DO NOT connect H2-S Power harness in here. Thermo Simple Port: Connect Power harness (H2-S) here. WARNING: DO NOT connect Power Supply or Spine cable in here. Refrigeration Innovation 575 Menlo Drive Suite 5 Rocklin, CA 95765 Page 3...

  • Page 4: Power Supply

    For dual temperature case with Dry Contact switch control. The dual temperature cable wire is orange and white orange. T here’s no polarity. The wires connect to the switch in series. Refrigeration Innovation 575 Menlo Drive Suite 5 Rocklin, CA 95765 Page 4...

  • Page 5: Hardware Installation

    +5 settings immediately. HARDWARE INSTALLATION Thermo-Simple 1 Version 2 consists of 2 main components. The first part, installed first in a case, is the Mounting Plate. The second part, attached to the Mounting Plate, is the Display Unit. The spring contact provides power and temperature reading to the Display unit. In order for the spring contact to work properly, it is imperative to use #6 Pan Head screws on the Mounting Plate and #4 Undercut Countersunk with length no longer than 3/16 inch .
  • Page 6 It is critical that #4 x 3/16” Flathead Undercut Countersunk screws are used to ensure proper engagement between the Mounting Plate spring connector and the Device. Refrigeration Innovation 575 Menlo Drive Suite 5 Rocklin, CA 95765 Page 6...

  • Page 7: Display Unit

    Previous/Down Switch To trigger the magnetic switch on the TS.1 device, a Refrigeration Innovation Magnet Tool is needed. In absence of the Magnet Tool, the magnetic switch on the TS.1 device can be triggered by any strong magnet (Neodymium rare-earth type). A typical refrigerator door magnet or whiteboard magnet are NOT strong enough).

  • Page 8: Features And Functions

    The display unit will show the current default temperature scale. Select default temperature scale using Up/Down arrow Trigger F/X switch to confirm your selection. The display unit default temperature scale is now in Celsius. Refrigeration Innovation 575 Menlo Drive Suite 5 Rocklin, CA 95765 Page 8...
  • Page 9 To enable/disable freeze alarm, unlock the display unit first, and then follow these steps: Trigger F/X switch, the display unit will ask for what Function to select. Select #3 using Up/Down switch Refrigeration Innovation 575 Menlo Drive Suite 5 Rocklin, CA 95765 Page 9...
  • Page 10 To change the color scheme, unlock the display unit first, and then follow these steps: Trigger F/X switch, the display unit will ask for what function to select. Refrigeration Innovation 575 Menlo Drive Suite 5 Rocklin, CA 95765 Page 10...
  • Page 11 ‘GAr’ means Green Amber Red. ‘n-C’ means No color. Select any color scheme using Up/Down switch. Trigger F/X switch to confirm you selection. The color scheme is now Green Amber Red. Refrigeration Innovation 575 Menlo Drive Suite 5 Rocklin, CA 95765 Page 11...
  • Page 12 Once the temperature goes back below (or over, for hot food set-point 142F), the TS.2 unit will display the temperature and “ALA” repetitively until “F/C” switch has been triggered. By default, the Alarm Flag is disabled To enable, unlock the display unit, and follow these steps: Refrigeration Innovation 575 Menlo Drive Suite 5 Rocklin, CA 95765 Page 12...
  • Page 13 Above set-point for more than 120 minutes. FLASHING RED (on GAR only) (Second Alarm after Amber Alarm) Suggested Product for this Set-point: - Ice Cream - Frozen Foood 5.0°F (Dual Temp Low Setting) Refrigeration Innovation 575 Menlo Drive Suite 5 Rocklin, CA 95765 Page 13...
  • Page 14 (on GAR only) (Second Alarm after Amber Alarm) Suggested Product for this Set-point: - Fresh Meat - Fresh Fish 40.0 °F (Dual Temp Hi Setting) LED COLOR and STATE DESCRIPTIONS Refrigeration Innovation 575 Menlo Drive Suite 5 Rocklin, CA 95765 Page 14...
  • Page 15 Above set-point for more than 120 minutes. FLASHING RED (on GAR only) (Second Alarm after Amber Alarm) Suggested Product for this Set-point: - Fresh Produce - Fresh Fruit 52.0°F LED COLOR and STATE DESCRIPTIONS Refrigeration Innovation 575 Menlo Drive Suite 5 Rocklin, CA 95765 Page 15...
  • Page 16 Case heaters are off or have been on for less than 60 minutes. NO COLOR Device assumes case is heating up for the first 60 minutes in this set-point. Refrigeration Innovation 575 Menlo Drive Suite 5 Rocklin, CA 95765 Page 16...
  • Page 17 To change the defrost timer, unlock the display unit first, and then follow these steps: Trigger F/X switch, the display unit will ask for what function to select. Refrigeration Innovation 575 Menlo Drive Suite 5 Rocklin, CA 95765 Page 17...

  • Page 18: Year Warranty

    Refrigeration Innovation, shipping prepaid, for prompt repair or replacement. The foregoing sets forth the full extent of Refrigeration Innovation’s warranties regarding the Product. Repair or replacement at Refrigeration Innovation’s option is the exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND REFRIGERATION INNOVATION SPECIFICALLY DISCLAIMS ALL WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

This manual is also suitable for:

Ts.1 ver.2
