Part 2 - Mechanical installation

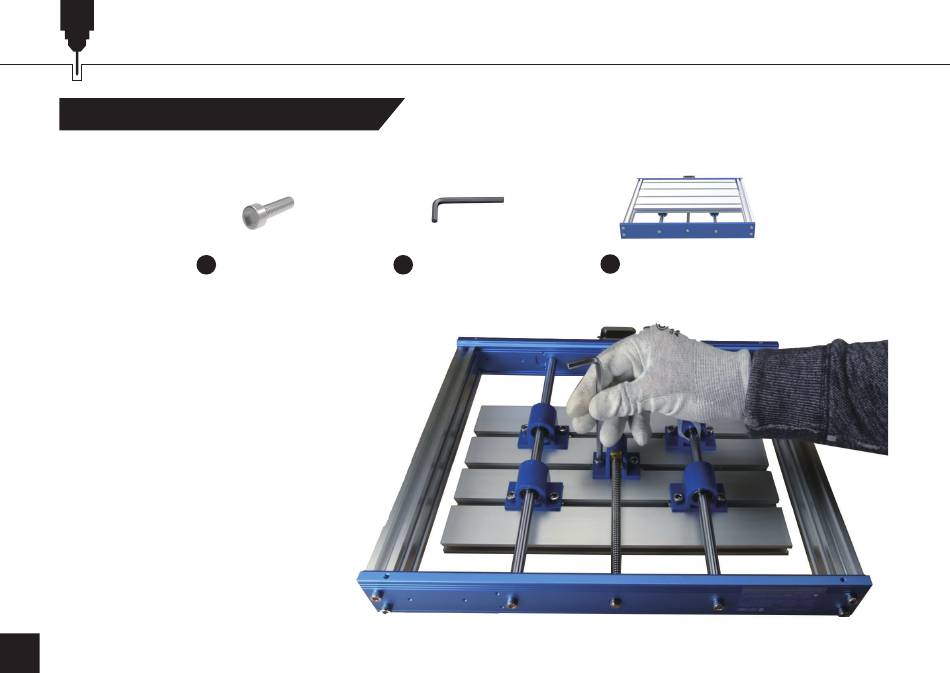

2.1 Preparing your base assembly
What you will need
Step 1: Flip the Y-Axis Base Assembly
upside down and remove the cable ties
from the bearing mount.
Step 2: Align the Aluminum Build Plate
center slot with the blue Y-Axis lead
screw mount as shown in the picture.
Step 3: Tighten (2) M6 16mm screws
to secure the lead screw mount.
08
(2) M6 16mm Bolt
43
Allen Wrench Set,
28
5mm
2 Y-Axis Base Assembly
