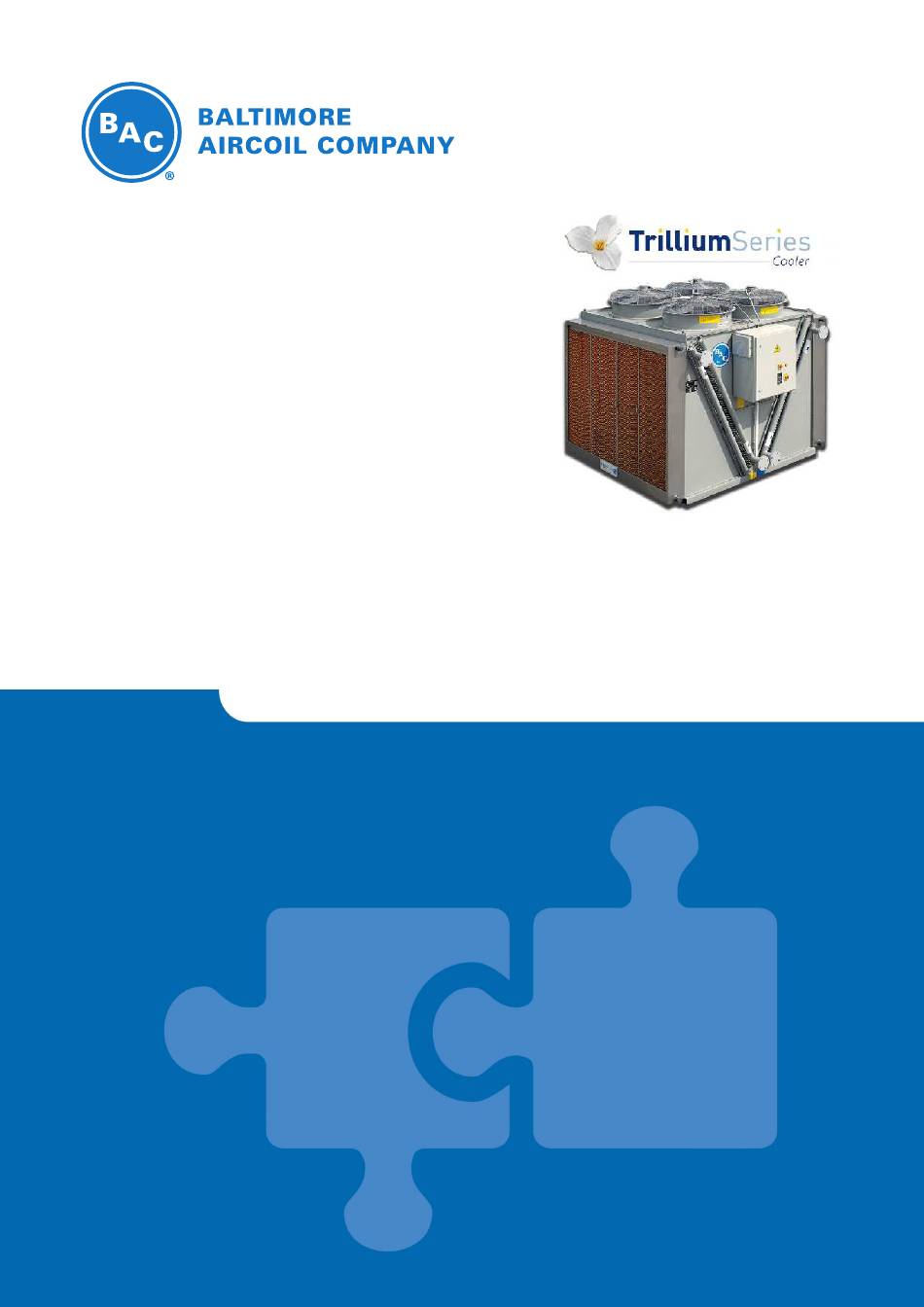

- Page 1 RDFCV-ADv15EN DFCV Dry Cooler DFCV-AD Adiabatic Cooler RIGGING AND INSTALLATION INSTRUCTIONS...
- Page 2 Be sure to have a copy of the unit certified drawing available for reference. If you do not have a copy of this drawing or if you need additional information about this unit, contact the local BAC Balticare representative. His name and phone number can be found on the www.BaltimoreAircoil.eu.
-
Page 3: Table Of Contents
Table of contents RIGGING AND INSTALLATION INSTRUCTIONS General information About engineering and application practices Shipping Inspection before rigging Unit weights Anchoring Leveling Connecting pipework Purge requirements Freeze protection Safety precautions Non-walking surfaces Modifications by others Warranty Rigging General notes Rigging method Section Assembly Installation adiabatic pre-cooler Installation of screw-on flanges... -
Page 4: General Information
Shipping BAC cooling equipment is factory assembled to assure uniform quality and minimum field assembly. The adiabatic pre-cooler sections of the TrilliumSeries equipment are shipped separately. Refer to below table for number of adiabatic pre-cooler sections per model. -
Page 5: Unit Weights
Purge requirements The installer of BAC closed circuit cooling towers must ensure a proper air purging of the system prior to operation. Entrained air can restrict the capacity of the cooler, resulting in higher process temperatures. All connections (installed by others) must be leak free and tested accordingly. -
Page 6: Freeze Protection
Freeze protection These products must be protected against damage and/or reduced effectiveness due to possible freeze-up by mechanical and operational methods. Please contact your local BAC Balticare representative for recommended protection alternatives. Safety precautions All electrical, mechanical and rotating machinery constitutes a potential hazard, particularly for those not familiar with its design, construction and operation. -
Page 7: Non-Walking Surfaces
BAC will guarantee all products to be free from manufactured defects in materials and workmanship for a period of 24 months from the date of shipment. In the event of any such defect, BAC will repair or provide a replacement. -
Page 8: Rigging
DFCV DFCV-AD RIGGING General notes 1. The equipment arrives on site by truck. It is recommended to unload the unit with a crane. If the adiabatic pre-cooling sections for the TrilliumSeries are crated separately, a forklift should be used for unloading of the crate with adiabatic pre-coolers. A crane must always be used to unload the unit from the truck. -
Page 9: Rigging Method
CAUTION Before an actual lift is undertaken, ensure no water, snow, ice or debris has collected in the unit. Such accumulations will add substantially to the equipment's lifting weight. Rigging method To avoid damage during hoisting, a spreader beam should be used and the angles shown in the diagrams below must be observed. - Page 10 8-fan unit 10-fan unit 12-fan unit W W W . B A L T I M O R E A I R C O I L . E U...
-
Page 11: Section Assembly
DFCV DFCV-AD SECTION ASSEMBLY Installation adiabatic pre-cooler 1. REMOVAL OF CRATING Remove crating of pre-cooling sections of the TrilliumSeries Coolers. Crate with adiabatic pre-cooling sections Front view after crate removal 3 Section Assembly 3 Section Assembly W W W . B A L T I M O R E A I R C O I L . E U... - Page 12 Side view after crate removal 2. REMOVAL OF PRE-COOLER MEDIA The pre-cooler media have been placed inside the stainless steel frames for shipment and need to be removed before installation of the empty pre-cooling frames on the dry cooler. Remove the pre-cooler media as follows: Removal of top plate Removal of green water distribution pads W W W .
- Page 13 Removal of pre-cooler media Empty pre-cooler frame 3. ATTACHMENT OF PRE-COOLER FRAME Attach the empty pre-cooler frames to the dry unit, using the stainless steel hardware supplied. Place the different pre-cooler frames such that the water distribution piping between sections can be connected, and the copper water piping installed on the unit connects to the water flow meter of the pre-cooling sections.
- Page 14 Attaching pre-cooler frame to dry unit with stainless steel hardware. Stainless steel bolts and nuts connecting pre-cooler frame to dry unit flanges. Water distribution piping of pre-cooler sections interconnection. Rubber sleeve used to connect with water distribution header of next section. W W W .
- Page 15 4. INTERCONNECTION OF PRE-COOLER SECTIONS Interconnect pre-cooler sections with the stainless steel connection plates. Empty pre-cooler frame attached. Side-by-side pre-cooler frames connected with stainless steel connection plates. 5. RE-INSTALLATION OF THE PRE-COOLER MEDIA Re-install the pre-cooler medium (2) and the water distribution pads (1) placed on top of the pre-cooler medium. Re- install the top plate covering the water distribution section.
- Page 16 CAUTION The pre-cooling media have a front side and a back side and need to be (re)installed in the correct position to ensure full wetting over the depth of the media and to ensure maximum efficiency. The blue coloured side needs to be at the outside. Continue with installation of pre-cooler media Re-installation of top plate.
- Page 17 Connection of pre-cooler water inlet to the pre-installed copper water distribution piping. 7. CONNECTION OF DRAINS Connect bottom water drains of all pre-cooler sections at both sides of the unit to evacuate excess water. The surplus of water distributed over the adiabatic pre-cooling media during adiabatic operation is collected into a gutter and drained to the sewer via one or two different drains per pre-cooler side.
-
Page 18: Installation Of Screw-On Flanges
Each pre-cooler section has a sloping pan, assuring complete water drainage and discharge of any floating solids to the sewer. Larger debris will however accumulate and settle in the gutter system and may be too large to drain via the bottom drain and finally may block the bottom drain. Draining system –... - Page 19 Installing screw-on flange 3 Section Assembly 3 Section Assembly W W W . B A L T I M O R E A I R C O I L . E U...
-
Page 20: Optional Accessories Assembly
DFCV DFCV-AD OPTIONAL ACCESSORIES ASSEMBLY All optional accessories are factory installed. 4 Optional Accessories Assembly 4 Optional Accessories Assembly W W W . B A L T I M O R E A I R C O I L . E U... -
Page 21: Inspection Prior To Start-Up
If required, consult your local BAC Balticare representative for assistance. PURGE REQUIREMENTS The installer of BAC closed circuit cooling towers must ensure a proper air purging of the system prior to operation. Entrained air can restrict the capacity of the cooler, resulting in higher process temperatures. - Page 22 Control panel with Variable Frequency Drive The fan speed is controlled on the basis of the actual process fluid temperature at the exit of the unit and the design leaving temperature, ensuring a minimum in electrical consumption and noise levels. The adiabatic pre-cooling will be activated and stopped on the basis of a pre-programmed logical combination of the fan speed and the ambient temperature (release set-point).
- Page 23 LEGEND Main power switch Magnetic main power circuit breaker Auxiliary fuses - Transformer T1 Auxiliary fuses - 230 V supply Auxiliary fuses - 24 V supply Transformer 400/ 0 – 230 - 24 V F1, F2, F3, etc. Circuit breakers Emergency stop switch Power failure reset button Indicating lamp...
- Page 24 2. Turn the main power switch Q0 (and the “Start” button of the general contactor relay if ordered as option) “on” to power the inverter; its LCP (Local Control Panel) is energised. Turn powerswitch QBO to position I, and the fans are powered by the inverter (in position “II”...
-
Page 25: Further Assistance & Information
FURTHER ASSISTANCE & INFORMATION Assistance BAC has established a specialized total care company called Balticare. The BAC Balticare offering involves all elements required to ensure a safe and efficient operation of your evaporative cooling products. For more details, contact your local BAC representative for further information and specific assistance at www.BaltimoreAircoil.eu... - Page 26 W W W . B A L T I M O R E A I R C O I L . E U...
- Page 27 W W W . B A L T I M O R E A I R C O I L . E U...
- Page 28 W W W . B A L T I M O R E A I R C O I L . E U...
- Page 29 W W W . B A L T I M O R E A I R C O I L . E U...
- Page 30 W W W . B A L T I M O R E A I R C O I L . E U...
- Page 31 W W W . B A L T I M O R E A I R C O I L . E U...
- Page 32 COOLING TOWERS CLOSED CIRCUIT COOLING TOWERS ICE THERMAL STORAGE EVAPORATIVE CONDENSERS HYBRID PRODUCTS PARTS, EQUIPMENTS & SERVICES www.BaltimoreAircoil.eu info@BaltimoreAircoil.eu Please refer to our website for local contact details. Industriepark - Zone A, B-2220 Heist-op-den-Berg, Belgium © Baltimore Aircoil International nv...
