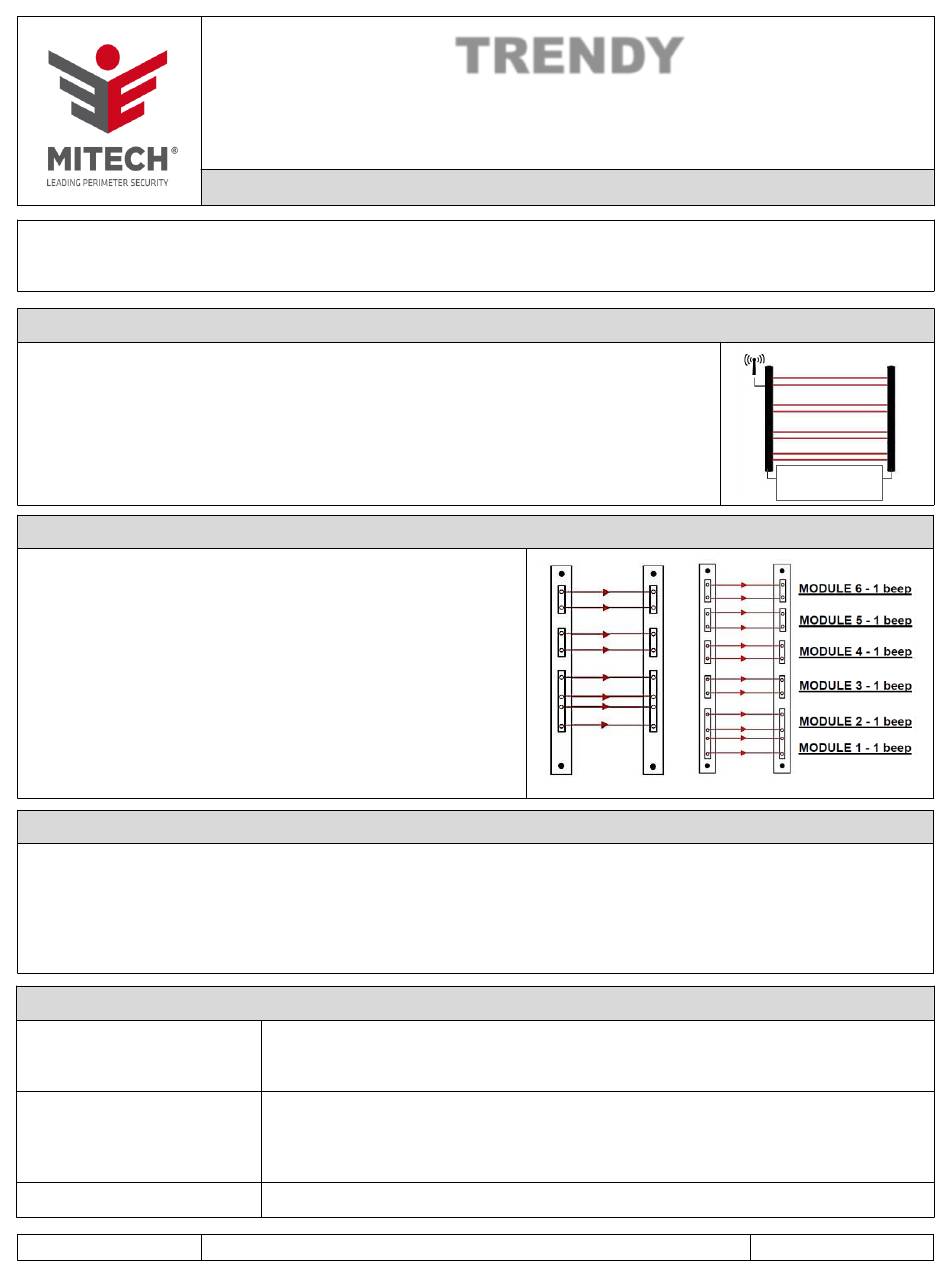

MITECH TRENDY Installation And User Manual

TRENDY is a wireless, self-powered IR barrier with double led and 24 month endurance, which is compatible with any radio transmitter.
It is composed of two symmetrical bars to be installed on either sides of the entrances to be protected and it allows to anticipate
intrusion by leaving freedom to move indoors with even windows and doors open.

TECHNICAL FEATURES AND CONSUMPTION:

Maximum and minimum range: max. 5 m – min. 20 cm
Operating temperature: -25°C + 70°C
Synchronization: optical
Detection system: OR-AND
Battery model: Lithium 3.6V/5200 mAh (Spare part: TREN BAT), endurance: 24 months
Maximum consumption: 190μA TX + 200μA RX
Protection class: IP54

INSTALLATION

1. Remove the caps and the extruded cover.
2. Drill the aluminium profiles at both ends and fix them to the wall
paying attention to keep them on the same axis (Fig.1), for longer
barriers drill additional holes as required.
3. Connect the battery and press briefly the reset button on the RX
motherboard, paying attention not to block the
transmission beams; the buzzer will signal the individual double
beams have been received (Fig. 2).
After this, a single long beep will confirm programming in AND
mode, and a double beep programming in OR mode (see
section SETTING JUMPER)

BUZZER SIGNALS

1. N.C. or N.O. alarm warnings.
2. Reception warning of the beam signal.
3. Low battery warning every 30 minutes, active on both barriers .
O.C. output to negative BATT 0
4. Tamper warning, N.C. output.
Note: the buzzer can be silenced by turning JUMPER BUZ to OFF

SETTING JUMPER

TX BASE BOARD
RX BASE BOARD
TX AND RX EXPANSION BOARDS
MADE IN ITALY
Installation and user manual
RANGE JUMPER: when the range between RX and TX is less than 50cm, insert the Jumper into
position "L" only if there are alignment problems.
BUZZER JUMPER: OFF mode = the buzzer is deactivated, ON mode = the buzzer is activated
PROGRAMMING JUMPER:
- OR mode = the alarm is activated when just one optical group is covered
- AND mode = the alarm is activated when two random optical groups are covered
BUZZER JUMPER: OFF mode = the buzzer is deactivated, ON mode = the buzzer is activated
The jumpers on each TX and RX modules are set as standard and must not be removed.
TRENDY - Rev. 12 - 03/2019 - MITECH srl reserves the right to change the information in this document without warning
TRENDY
SELF-POWERED IR BARRIER
Compatible with any radio transmitter
Fig. 1
OPTICAL
SYNCHRONIZATION
Fig. 2
Page 1 of 2
