Banner BWA-BK-012 Quick Start Manual

Bracket Assembly for the QM30VT Sensor
Quick Start Guide

Installing the BWA-BK-012 and -014 Bracket Assemblies

Required equipment, which is included in the BWA-BK-012 and BWA-
BK-014 bracket assemblies:
• One bracket
• One Phillips flathead screw
• Four M2.5 socket head cap screws
• One thermal tape
The following items are recommended, but not included in the bracket
or sensor kits:
• Loctite 410 (blue)
• Cleaning wipes
• 2 mm hex Allen wrench
• Phillips screwdriver

Install the BWA-BK-012 or -014 Bracket Using Thermal Tape

This example uses a QM30VT2 with BWA-BK-014. The same steps can be applied for a QM30VT1 with BWA-BK-014 or a
QM30VT2-SS-9M with BWA-BK-012. The provided thermal tape or desired epoxy could be used by following these steps.
1. Clean the bracket and sensor.
2. Place the sensor on top of the bracket so the countersunk hole is covered by the sensor and the four corner holes align.

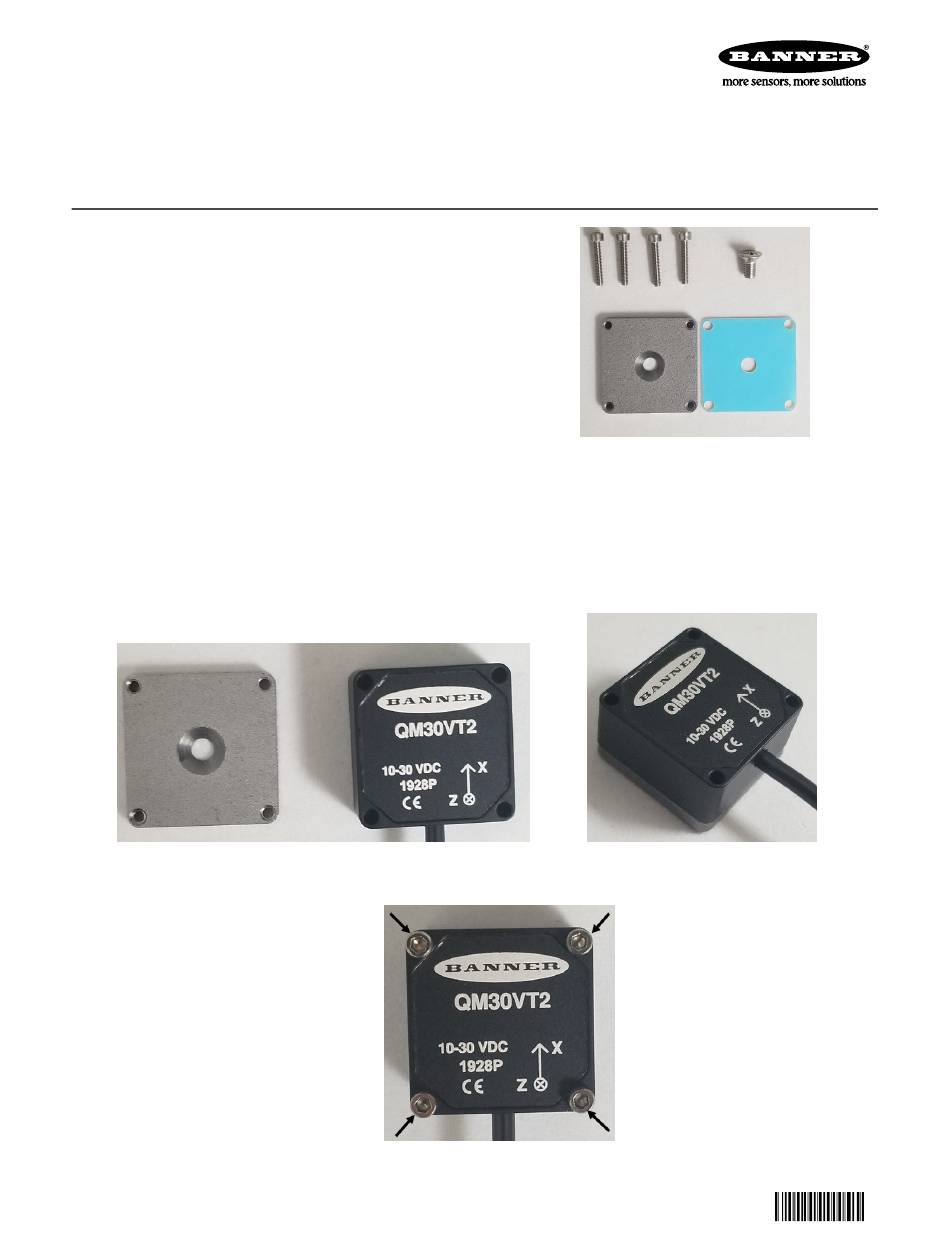

Figure 2. BWA-BK-014 and QM30VT2 sensor
3. Screw the sensor to the bracket with the provided screws using a 2 mm Hex Allen wrench.
Original Document
213323 Rev. A
Figure 4. QM30VT2 screwed onto the BWA-BK-014 bracket
14 August 2019
Figure 1. BWA-BK-012 and -014 parts
Figure 3. QM30VT2 mounted on the BWA-BK-014 bracket
213323
