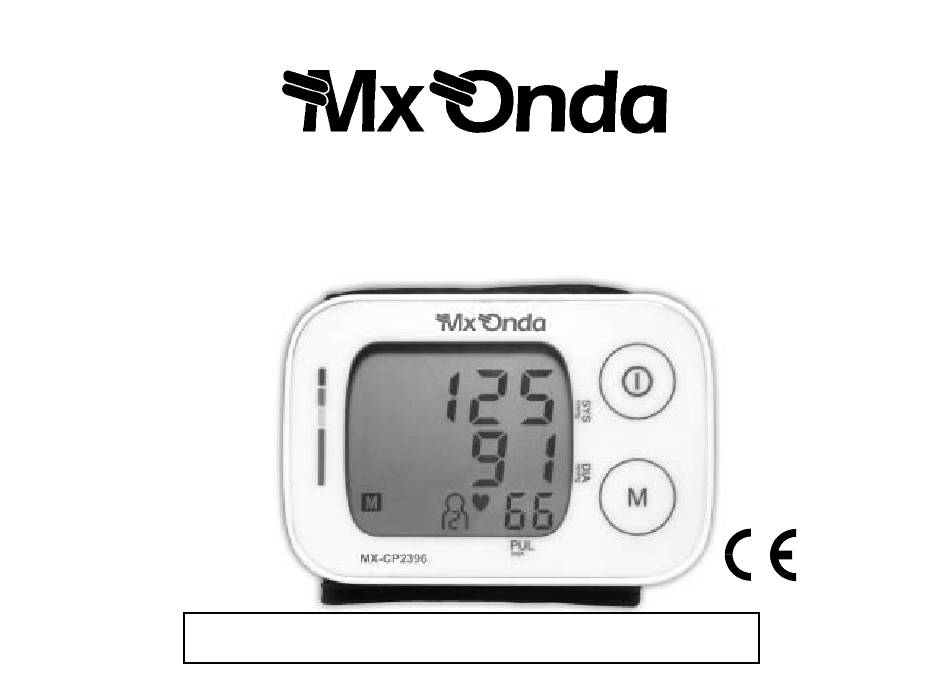

  • Page 1 INSTRUCTION MANUAL WRIST MEASUREMENT BLOOD PRESSURE MONITOR MX-CP2396 MX-CP2396 MODEL: MODEL: 0197 READ THIS MANUAL BEFORE OPERATING...

  • Page 2: Name Of Each Part

    NAME OF EACH PART Hour Date Systolic pressure Power ON/OFF Button Battery cover Diastolic pressure Memory button Memory position Pulse User BEFORE USE THE BLOOD PRESSURE MONITOR Please read kindly these instructions and keeping for a later use. After unpacking, verifies that the apparatus is not damaged. In case of doubt it does not use it;...
  • Page 3 The packing material (plastic bags, etc.) does not have to be left within reach of the children, since they are a potential source of danger. The manufacturer declines any responsibility by damages derived from an inadequate, incorrect or imprudent use of the apparatus. This apparatus has been only designed for domestic use.
  • Page 4 SYMBOLS SHOW IN THE DISPLAY Symbol Condition/cause Number of user This symbol appears when the pulse is located . The display shows this indication when have a irregular heartbeat. This symbol appears when the battery are low, and must be replaced.
  • Page 5 NOTICE BEFORE MEASUREMENT Avoid eating, smoking, and intensive activity 30 minutes before measuring. Please sit down while measuring. During measurement, please make sure the cuff stays at the same height as the heart. Either above or below the position, the accuracy will be affected.

  • Page 6: Battery Loading

    BATTERY LOADING To insert or change the batteries follow the next steps: 1. Open battery cover at the left of the machine. 2. Load two “AAA” size batteries. Please pay attention to the polarity. 3. Close the battery cover. Notes: When replace the batteries the date and the hour will erase.
  • Page 7 If you are allergic to plastic/rubber, please don’t use this device. Do not use this unit in a moving vehicle, This may result in erroneous measurement. Consult your physician if you have any doubt about below cases: 1. The application of the cuff over a wound or inflammation disease. 2.
  • Page 8 SETTING THE CLOCK AND ADJUSTING THE DATE The clock of this device is designed to indicate the hours in 12 or 24 hour format and the date in "month / day" mode. To set the date and time, proceed as follows: With the blood pressure monitor turned off, press and hold the "...
  • Page 9 Fig. 1 Fig.2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Notes: It is very important to keep the date and time updated as these are stored together with the measured values. When replacing the batteries, the date and time will be erased, and the display will show the menu for setting the date and time.
  • Page 10 WRIST CUFF CONNECTING 1. Be sure to place the wrist cuff on bare skin of left wrist, and place monitor on the centre of wrist. 2. Place wrist cuff 1-2 cm above wrist joint. 3. Wrist cuff connecting should make wrist feel no Don’t much tension.
  • Page 11 CORRECT POSTURE TO USE A BLOOD PRESSURE MONITOR The position of pressure monitor in relation to the heart is extremely important to be able to obtain a correct measurement. If the pressure monitor is placed above or under the height of the heart the values of the measurement can more decrease or increase respectively, of significant form with respect to the real value.

  • Page 12: Measuring Process

    MEASURING PROCESS The blood pressure has four independent memories ( ) for four different users. In each memory, up to 30 measurements are automatically stored and you must select the desired memory position before carrying out the measurement. 1. Once placed the blood pressure on the wrist: Press the on / off button , the display will show all the digits and then show the number...
  • Page 13 2. Once the wristband is inflated and the pulse is localized, the " " symbol will begin to flash at the pulse rate, the wristband will begin to deflate at constant speed and the display will show the value of the pressure decreasing Note: To avoid errors during measurement do not move your wrist and do not talk.
  • Page 14 4. If the screen shows the symbol it indicates that there is a possible alteration in the heart rate. A normal heart of a body at rest beats between 60 and 100 palpitations per minute with a rhythm rhythm. This rhythm can increase with physical exercise, stress or with some diseases.
  • Page 15 6. If you want to make a new measurement, you must turn off and on the appliance again, but keep in mind the following suggestions: After carrying out the blood pressure measurement, if you want to make a new measurement in the same person you should wait for 3 to 5 minutes, so that the blood circulation returns to normal.
  • Page 16 storage in the memory (previously selected) is carried out automatically, the last measurement is recorded in position 1, moving the penultimate measurement to position 2 and so on. When the capacity of the selected memory is complete when performing a new measurement, the first position will be deleted.
  • Page 17 (Fig. 4). The average value of all the results which is measured from 5 o’clock to 9 o’clock in last 7 days in the current user memory zone. The average value of all the results which is measured from 18 o’clock to 20 o’clock in last 7 days in the current user memory zone Press the M button for the fourth time to access the different memory locations, press repeatedly to check all the memory positions of the selected...

  • Page 18: Assessing High Blood Pressure For Adults

    ASSESSING HIGH BLOOD PRESSURE FOR ADULTS The follow standards for assessing high blood pressure (without regard to age or gender) have been established as a guide line. Please note that other risk factors (e.g. diabetes, obesity, smoking, etc.) need to be taken into consideration and may affect these figures.

  • Page 19: Technical Alarm Description

    TECHNICAL ALARM DESCRIPTION The monitor will show 'HI' or 'Lo' as technical alarm on LCD with no delay if the determined blood pressure (systolic or diastolic) is outside the rated range specified in part SPECIFICACIONS. In this case, you should consult a physician or check if your operation violated the instructions.

  • Page 20: Troubleshooting

    TROUBLESHOOTING (1) Problem Possible cause Solution The cuff position was not correct or Apply the cuff correctly and try it was not properly tightened again. Review the “BODY POSTURE DURING MEASUREMENT” Body posture was not correct LCD display during testing sections of the instructions and re- shows test.
  • Page 21 TROUBLESHOOTING (2) Problem Possible cause Solution LCD shows low battery Low Battery Change the batteries symbol LCD shows “Er 0” Pressure system is unstable before measurement Don’t move and try again. LCD shows “Er 1” Fail to detect systolic pressure LCD shows “Er 2”...

  • Page 22: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Clean the plastic surface of the unit with a humid cloth and dries it with another dry one. It does not use abrasive alcohol nor products and it does not allow that the unit between in contact with volatile agents like gasoline, disolvents, etc.
  • Page 23 Remove the batteries from the product before disposing of it. This product complies with European Directives RoHS (2011/65/CE), on the restriction of use of certain dangerous substances in electrical and electronic appliances. “MX, MX ONDA” and his logos, are trademarks of MX ONDA, S.A.

  • Page 24: Specification

    SPECIFICATION Measuring method Oscillometric 60 – 260 mmHg (Systolic) Measuring range 40 – 199 mmHg (Diastolic) 40 – 180 pulses/min (pulse) 0 – 300 mmHg Cuff pressure: Measuring accuracy ± 3 mmHg (pressure) Pulse rate: Less than 60: ±3bpm More than 60 (incl.) : ±5% Power source Batteries 2 x 1.5 V SIZE AAA)
  • Page 25 EXPLANATION OF SYMBOLS ON UNIT Symbol for” THE OPERATION GUIDE MUST BE READ”(The sign background colour: blue The sign graphical symbol: white) Symbol for “WARNING” Symbol for “TYPE BF APPLIED PARTS” (The cuff is type BF applied part) Symbol for “MANUFACTURER” Symbol for “COMPLIES WITH MOD93/42/EEC REQUIREMENTS Symbol for “DATE OF MANUFACTURE”...

  • Page 26: Electromagnetic Compatibility Information

    ELECTROMAGNETIC COMPATIBILITY INFORMATION...
  • Page 29 This product complies with the dispositions of the Directive of the Council on sanitary products 93/42/EEC, of the European Parliament, and has been proven and tried in agreement the norms EN 1060-3, EN1060-1. Electronic Sphygmomanometers corresponds below standards：ISO81060-2: 2013(Non-Invasive Sphygmomanometers –Part 2: Clinical Validation Of Automated Measurement Type).
  • Page 30 Authorized representative in the EU: iHealthLabs Europe SAS 36 Rue de Pontieu, 75008 Paris, France Imported and distributed by: MX ONDA, S.A. Isla de Java, 37 28034 - MADRID (SPAIN) E-mail: info@mxonda.es www.mxonda.es Telephone of information and Technical Service: 902 551 501...
