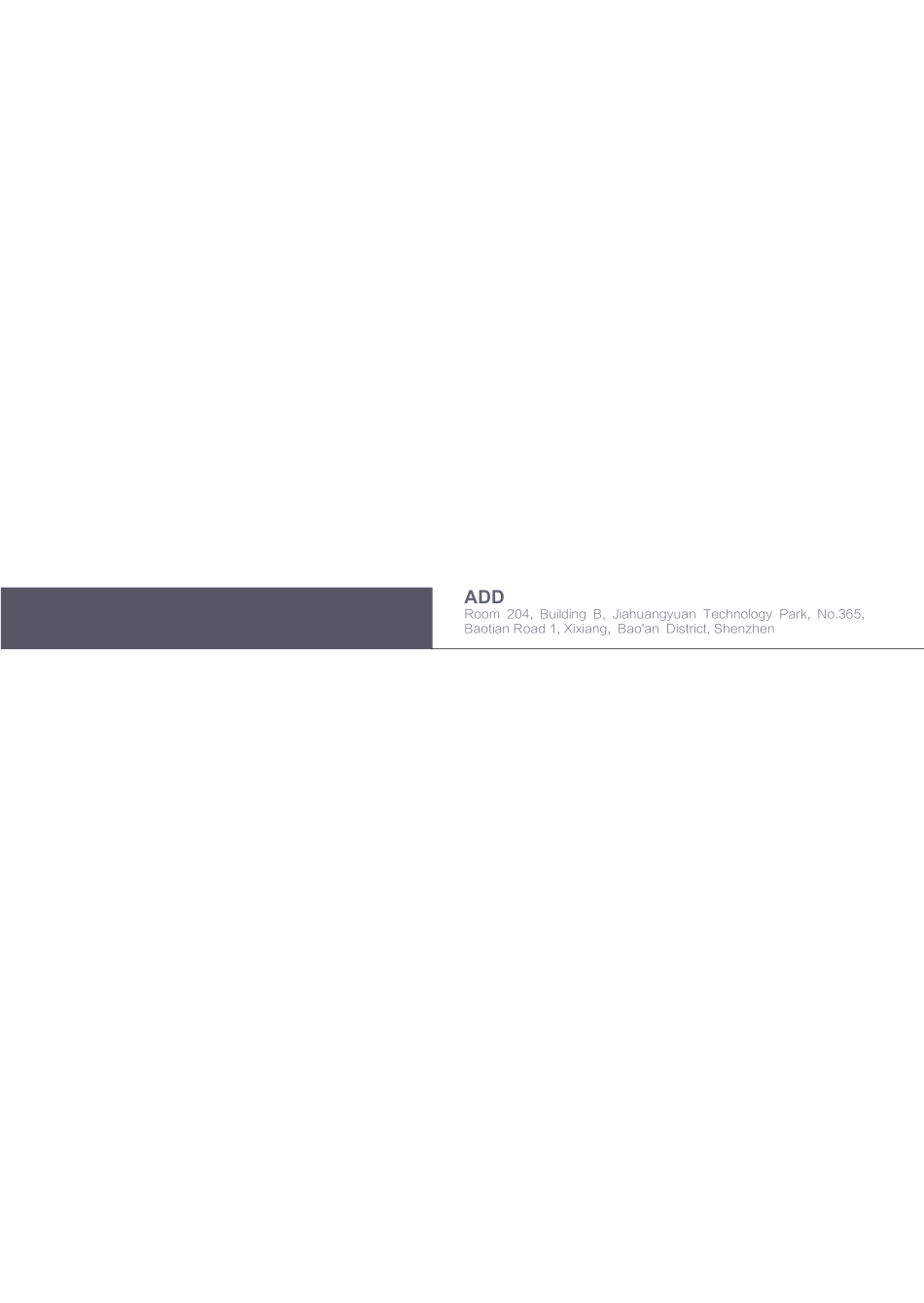

- Page 1 TOPSKY T E L ：0755-27369301 WEB: www.ivstopsky.com Email：topsky@hktopsky.com...
- Page 2 Thanks for using TOPSKY F7X FPV Goggles! Before you use this product, please read this manual carefully, and according to the manua, install and use this glasses correctly, and keep the manual properly for future reference.We will not make any compensation for...
- Page 3 Structure and buttons Page 1 Product parameter Page 2 RX mode Page 3 Unopened Receiving mode Open Receiving Mode Mode Control Switch DVR control key Page 4 CH +/- button DVR control key DVR control key Page 5 Recording Video mode DVR control key Page 6 Photo...
- Page 4 IPD adjustment key IPD adjustment key DC connector RX(5.8G)Switch HDMI port AV port Fan switch PS/2 interface Earphone jack Mode control button DVR control key volume + volume -...
- Page 5 MODULAR 3D FPV GOGGLES 42° Resolution 1280*720(0.5”LCoS) backlight NTSC/PAL auto selection Video format Head tracking module (optional) Module Built-in high-sensitivity receivers with 40 channelshigh-speed Receiver one-touch search MJPG 30FPIntegrated mode DVR (only for RF), micro TF card and Digitas Video support 32GB, video compression format MJPG/30 FP Intensity control/contrast control/ channel control/display mode Buttom adjustment...
- Page 6 Insert the battery into the DC interface and the glasses turn on automatically (At this time, the goggles is default to the AV-IN -2D mode) After turning on , the sensor is in working condition. Slide the RX switch to ‘ON’，opening the 5.8G signal reception mode. Slide the RX switch to ‘OFF’to close the 5.8G signal reception with the snow screen.
- Page 7 Adjust the CH button (it will have the notice 5869G sound), select the required channel, and there are 40 the frequency channels. In the process of choosing the channel, there is screen tip on the screen, which can see the the page jump when adjusting.
- Page 8 Enter the video mode interface, backward toggle the DVR key can start to recording.the same time, there will be a tone, the page will be REC words, REC words and the page will always be flashing, stop the video will sound twice, after recording, will stop at the current page.
- Page 9 Press VOL (volume) button to adjust the volume,the volume progress bar will appear under the centre position. Voltage indicator Power display button Total 4 pcs of Indicator lights,when turns to the blue ligh,you can press the power display button to show the actual power.The indicator turns off automatically after 3 seconds。 Myopia lens installation method: As shown below in the red wireframe which Insert the card slot from the side (The insertion direction is indicated by the arrow)
- Page 10 You can then adjust the parameters by toggling from side to side. F7X glasses do not have power to open the key, the glasses are powered by an external battery,After power on, the glasses will turn on automatically.
- Page 11 In video mode interface, right toggle can take pictures, can hear tone two times, and the page does not change. In the video playback list, vertical short press DVR button to enter the picture list. right toggle short press In the video playback list, vertical short press DVR button to enter the picture mode slide around the DVR key, can choose pictures, backward short press to view the picture, forward short press to return to the picture playback mode.
- Page 13 Most HDMI connection problems are caused by incorrect display settings orincorrect HDMI cables.If HDMI Cable is defective, you should change the HDMI Power source and the HDMI Wire. Battery Bandage Glass cloth AV Wire Charger HDMI Wire Goggles sponge Silicone goggles Two-dimensional Detailed operating instructions...
- Page 14 Fault description: Username： Postcode： Contact NO： Order NO： Purchase Date： Machine No: Mode NO： User signature: Address： The following conditions will not allowed to provide free warranty service 1. Damaged product by yourself 2. Customer replace the parts themself without my company technical staff to repair,change or modify 3.
