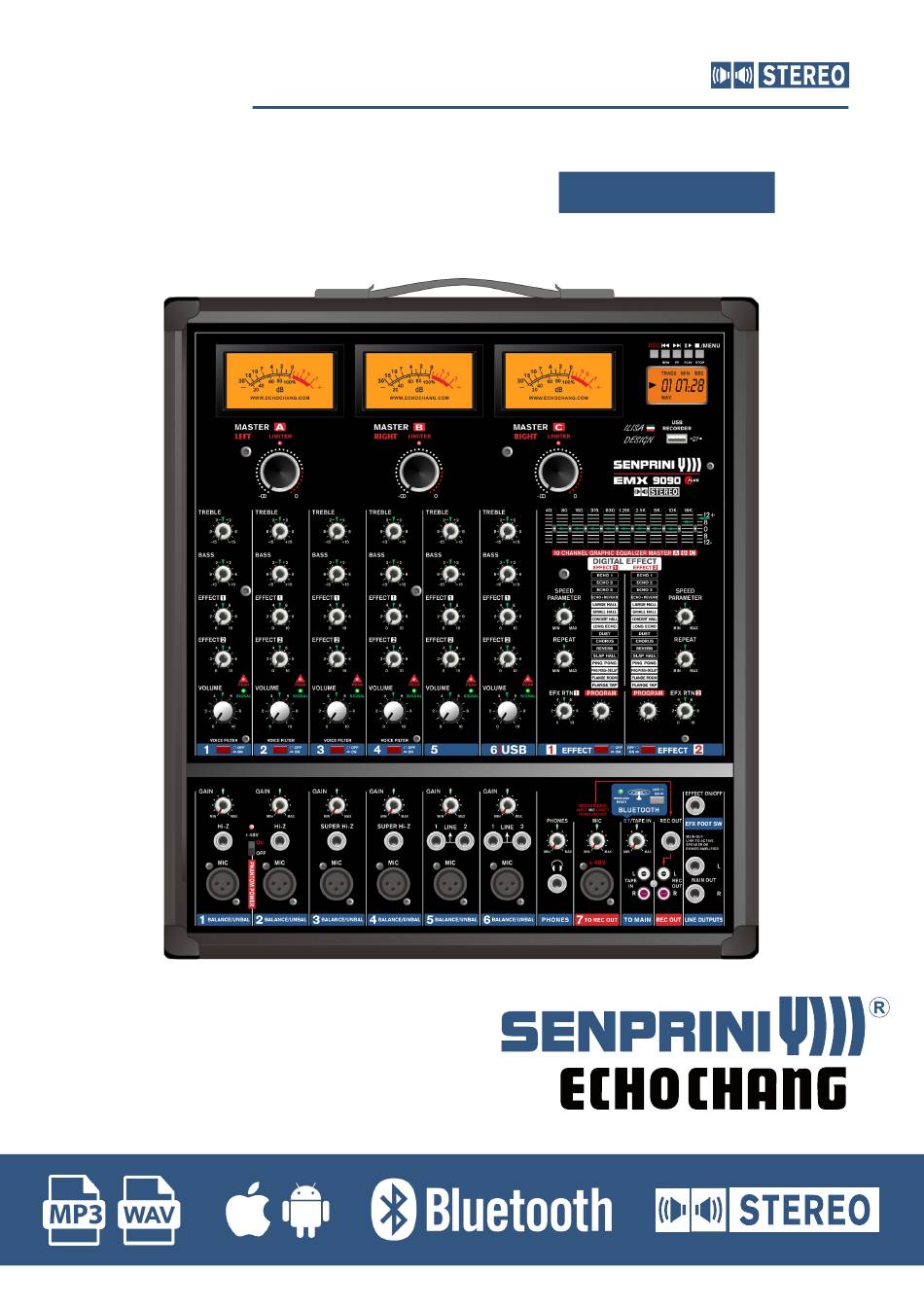

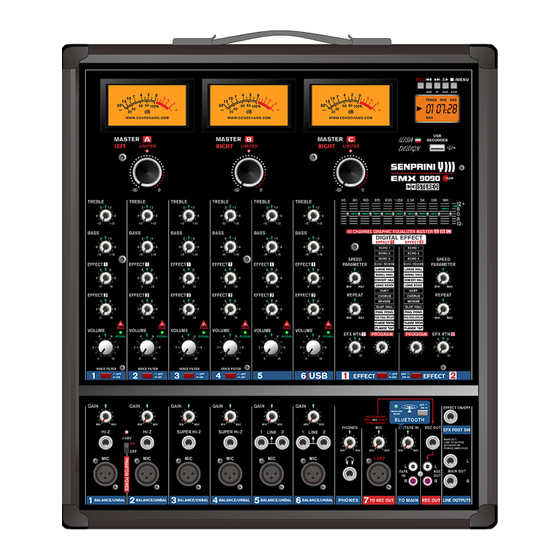

- Page 1 EMX9090 PLUS 7-Channel, 3 x 1000W Professional Powered Mixer USER'S MANUAL دفترچه راهنما...
- Page 2 دستورالعملهای مهم حفاظتی IMPORTANT SAFETY INSTRUCTIONS 1. Read t hese instructions before operating t his بمنظور استفاده بهتر و رعایت نکات ایمنی ، قبل از بکار گیری دستگاه apparatus. ،دستورا لعملهای کتابچه راهنما را به دقت مطا لعه فرموده و جهت مراجعات 2.
-
Page 3: Table Of Contents
P O W E R E D M I X E R TABLE OF CONTENTS INTRODUCTION................4 FEATURES..................5 GETTING STARTED.................5 FRONT PANEL..................6 BACK PANEL................... 15 APPLICATION................17 SPECIFICATIONS................18... -
Page 4: Introduction
سنپر ینی تولید و به بازارSENPRINI مهندس پرویز یوسفی پور در سال 1431 اولین اکو آمپلی فایر نواری 002 وات المپی را با نام . اکوچنگ به کاربران ا رایه گردیدECHO CHANG عرضه نمود . در سال 8531 محصوالت تولیدی سنپرینی با نام و عال مت... -
Page 5: Features
EMX9090 Plus Features Getting Started • Three speaker output channels offering 1000 1. Before turning the power on, the three Master Watts Peak power each at 4 ohms output controls should be set to -∞. • Six input channels offering Mic XLR, Hi-Z, Super 2. -
Page 6: Front Panel
EMX9090 Plus User's Manual Front Panel Treble Control Turn to the right to boost high frequencies, adding crispness to percussion from drum machines, cymbals, and synthesizers. Turn to the left to cut these frequencies, reducing the possibility of sibi- lance or hissing. The control has a shelving response giving 15dB of boost or cut at 12 kHz. - Page 7 EMX9090 Plus Gain Control This control adjusts the sensitivity of the corresponding input jacks. If the input PEAK LED keeps lighting up, just turn to the left to mini- mize the possible distortion. Volume Control The volume control determines the proportion of the channel sig- nal to the mix, and provides a clear visual indication of channel level.
- Page 8 EMX9090 Plus User's Manual Hi-Z ¼” Inputs The Hi-Z inputs allow users to incorporate ¼’ microphones directly into their main mix. XLR Jacks These inputs accept typical XLR-type connectors for low imped- ance microphones. Phantom Power Switch Super Hi-Z ¼” Inputs Turning Phantom Power on provides +48V of power to the channel 1 and 2 microphone inputs, allowing condenser microphones to The Super Hi-Z (470K ohms) input is best suited for direct input...
- Page 9 EMX9090 Plus 14 16 17 Bluetooth Button Push this button to activate the Bluetooth streamining function of the EMX9090 Plus. The EMX9090 Plus will then be available as SENIPRINI_EMX9090 in your BT-enabled devices. Activate with the password: 9090. The audio will be sent through your 2T input mix.
- Page 10 EMX9090 Plus User's Manual Footswitch Jack This jack is for a standard non-latching type footswitch. Using a footswitch with this jack will allow users to turn the EFX on and off. VU Level Meters The EMX9090 Plus features contemporary-styled VU level meters Master A Control to show the output levels of Masters A, B and C.
- Page 11 EMX9090 Plus EFX Processor Effect RTN The Effect 1 and 2 return controls adjusts the level of the pro- cessed effect sounds returned from the built-in digital effect pro- cessors to the Master A, B and C mixes. Effects are in stereo so left signals will be sent to Master A while right signals will be sent to Masters B and C.
- Page 12 EMX9090 Plus User's Manual USB Recorder/Player The EMX9090 Plus features a fantastic USB recording and play- back feature that allows users to record MP3 files directly from the main signal of the mixer. Users can also playback MP3 and WMA files from properly formatted USB flash drives.
- Page 13 EMX9090 Plus Reverse/Cue Buttons More on the USB Recorder Push either of these buttons to skip to the previous track (rev) or to cue the next track (cue). Hold either of them down to fast-forward (cue) or reverse (rev) through the currently playing track. These buttons also allow for users to scroll through menus.
- Page 14 EMX9090 Plus User's Manual Changing the Recording Sample Rate Repeat Mode Push and hold the Record button for 4 to 5 seconds to change the To activate repeat, push and hold the Stop/Menu button. Select recording sample rate. When you do so, the two available sample “Repeat”...
-
Page 15: Back Panel
EMX9090 Plus Back Panel Speaker Output Jacks Two Speaker Connection (Power Amps A, B and C) Two 8Ω to 16Ω speakers can be connected to Power Amp A, two Speakers can be connected to these jacks. The EMX9090 Plus more to Power Amp B, and two more to Power Amp C, for a grand includes a three-channel power amp, and there are two ways in total of six speakers. - Page 16 EMX9090 Plus User's Manual Power Switch This switch turns the power of the EMX9090 Plus on and off. NB. Before turning the EMX9090 Plus on or off, turn down the MASTER controls of Master A and B, and ensure the AC outlet is of a suitable voltage.
-
Page 17: Application
EMX9090 Plus APPLICATION KEYBOARD DRUM MACHINE USB FLASH DISC FOOTSWITCH HEADPHONES MICROPHONE MICROPHONE CD or MP3 PLAYER GUITAR BASS ADDITIONAL MIXER SPEAKERS Page 17... -
Page 18: Specifications
EMX9090 Plus User's Manual SPECIFICATIONS Peak Output Power 3x1000W @ 4 ohms POWER AMP, output power in watts (@THD<0.5%, 1KHz) Average Output Power 3x500W @ 4 ohms Built-in Dual Digital Effect Processor Each:16 programs with two main trim(parameter) controls XLR Mic input 6+1 (with +48V Phantom power on Ch1、2, Ch7) Master Graphic EQ 10-band on Master A、B、C amp out... - Page 19 EMX9090 Plus MEMO Page 19...
- Page 20 WWW.ECHOCHANG.COM www.e c ho c h a ng . ir Head Office: No.224, Echo Chang Building .Keshavarz Blvd, 14177 Tehran , Iran Tel: +98 21 88959010,88961413 Fax: + 98 21 88959252...
