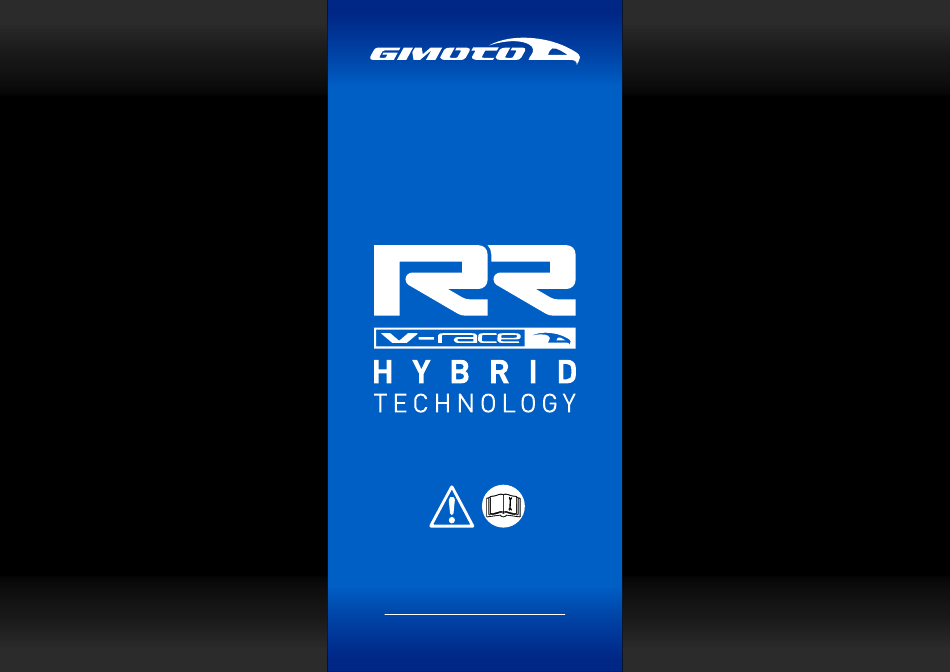

  • Page 1 SYSTEM COMPONENTS PARTS AND CONNECTIONS...
  • Page 2 VIRTUAL CABLE SYSTEM CONSISTS OF 3 DEVICES THE CPU. The brain of the system ANTENNA ON THE VEST. Called “VEST TAG” ANTENNA ON THE BIKE. Called “ANCHOR” Anchoring to give exactly the concept of VIRTUAL CABLE fixing...

  • Page 3: Parts & Connections

    PARTS & CONNECTIONS VEST CONNECTOR Connect CPU to TAG If not inserted the system cannot work properly (CPU “Blinks” Purple) ACTUATOR CONNECTOR Connect actuator, if not connected system cannot inflate the vest...
  • Page 4 PARTS & CONNECTIONS DISCONNECT WHEN REST FOR LONG TIME Disconnect if not going to use the vest for long time, it may drain the battery TURN CPU OFF BEFORE CONNECT/DISCONNECT TAG may be damaged if CPU is on, then the system cannot operate properly (CPU “Blinks”...
  • Page 5 V-RACE RR CPU CPU LED CPU SWITCH (ON IS RIGHT SIDE) CHARGER PORT...
  • Page 6 V-RACE RR CPU V-RACE RR CPU CPU needs to be charged at least 6/8 hours before use, using the USB charger sup- plied in the box, and needs to be charged each time cpu led turns RED Li-Ion accumulator requires 3 cycles to reach maximum level of power...
  • Page 7 V-RACE RR BIKE ANCHOR V-RACE RR BIKE ANCHOR Anchor needs to be charged at leat 6h before use using the USB charger supplied in the box, then charge will last 24/30h. Li-Ion accumulator requires 3 cycles to reach maxi- mum level of power. The ANCHOR system does not have a switch on/off button.
  • Page 8 V-RACE RR BIKE ANCHOR POSITION Anchor best positioning At back of rider, in sight. Inside tail installation allowed, please check distance via App to check anchor is seen in action range (<1m)
  • Page 9 V-RACE RR BIKE ANCHOR DETECTION Vest detect automatically all anchors in range (up to 6 MT) but it “choose” the nearest one MOTORBIKE B farest anchor MOTORBIKE A nearest anchor...
  • Page 10 V-RACE RR BIKE ANCHOR ANCHOR BINDING Vest automatically bind the anchor as soon as bike starts. So there’s no need to do any manual bin- ding, neither changing anchor. The rider can switch on another bike with a different anchor and the CPU read it automatically. The SYSTEM is ARMED , is ready to inflate the AIRBAG, when the BIKE reaches the minimum speed levels.
  • Page 11 V-RACE RR CPU - LED DIAGNOSTIC STARTUP CYCLE (WHEN TURNED ON) INITIALIZAZION STARTED (SYSTEM CHECK) (SOLID YELLOW) STREET MODE RACETRACK MODE (FLASHING LIGHT BLUE) (FLASHING WHITE) CHECK ENDS DO NOT USE THE SYSTEM SYSTEM OK NO TAG DETECTED IF LED TURN RED (FLASHING YELLOW) (FLASHING PURPLE) CHECK CPU CONNECTOR...
  • Page 12 V-RACE RR CPU - LED DIAGNOSTIC OTHER LED MESSAGES BATTERY NEED TO BE CHARCED (SOLID RED) ANCHOR DETECTED (FLASHING ICE BLUE) GPS SIGNAL LOCKED (FLASHING GREEN) SYSTEM ARMED (FLASHING BLUE) DO NOT USE THE SYSTEM IF LED TURN RED SYSTEM ACTIVATED (SOLID PURPLE)
  • Page 13 V-RACE RR CPU - APP THE SYSTEM WORKS WITHOUT THE APP. WHEN THE CPU AND THE ANCHOR ARE SWITCHED ON, THE SYSTEM WORKS AUTOMATICALLY The V-RACE RR APP is just an “Instant Diagnostic” for: Battery Level of the CPU Selection of the RIDING MODE (STREET or RACETRACK mode) RESET the CPU after an inflation.
  • Page 14 V-RACE RR CPU - APP PAIRING CPU SERIAL AND PAIRING PASSWORD Procedure is slightly different depending on your device OS (Android or Apple iOS) and version of OS VRACE RR HW: R04.00 SN: 00328 PIN: 123456 VRACERR****** Turn on Bluetooth for pairing the airbag CPU INSERT PIN CODE and seach the device...

  • Page 15: Common Issues

    V-RACE RR CPU - APP PAIRING COMMON ISSUES On Android devices using BLE requires GPS position ON On Android 10, the application itself needs to be authorized On some Android devices, pairing is a bit tricky with paring authorization request hidden in notifi- cation area...
  • Page 16 V-RACE RR CPU - APP PAIRING COMMON ISSUES Only one device per time can be paired and connected, once connected the cpu may not be seen from other smartphones Once set desired mode (Track or Street) the app is totally optional, the system will work without any connection to a smartphone Be a bit patient: connection requires some se- conds, and entering connection menu the app...

  • Page 17: Help Links

    HELP LINKS TUTORIAL AIRBAG STRETCH KIT ELECTRONIC RECHARGE MECHANIC RECHARGE ELECTRONIC MANUAL MECHANIC MANUAL LED DIAGNOSTIC CATALOGUE...
