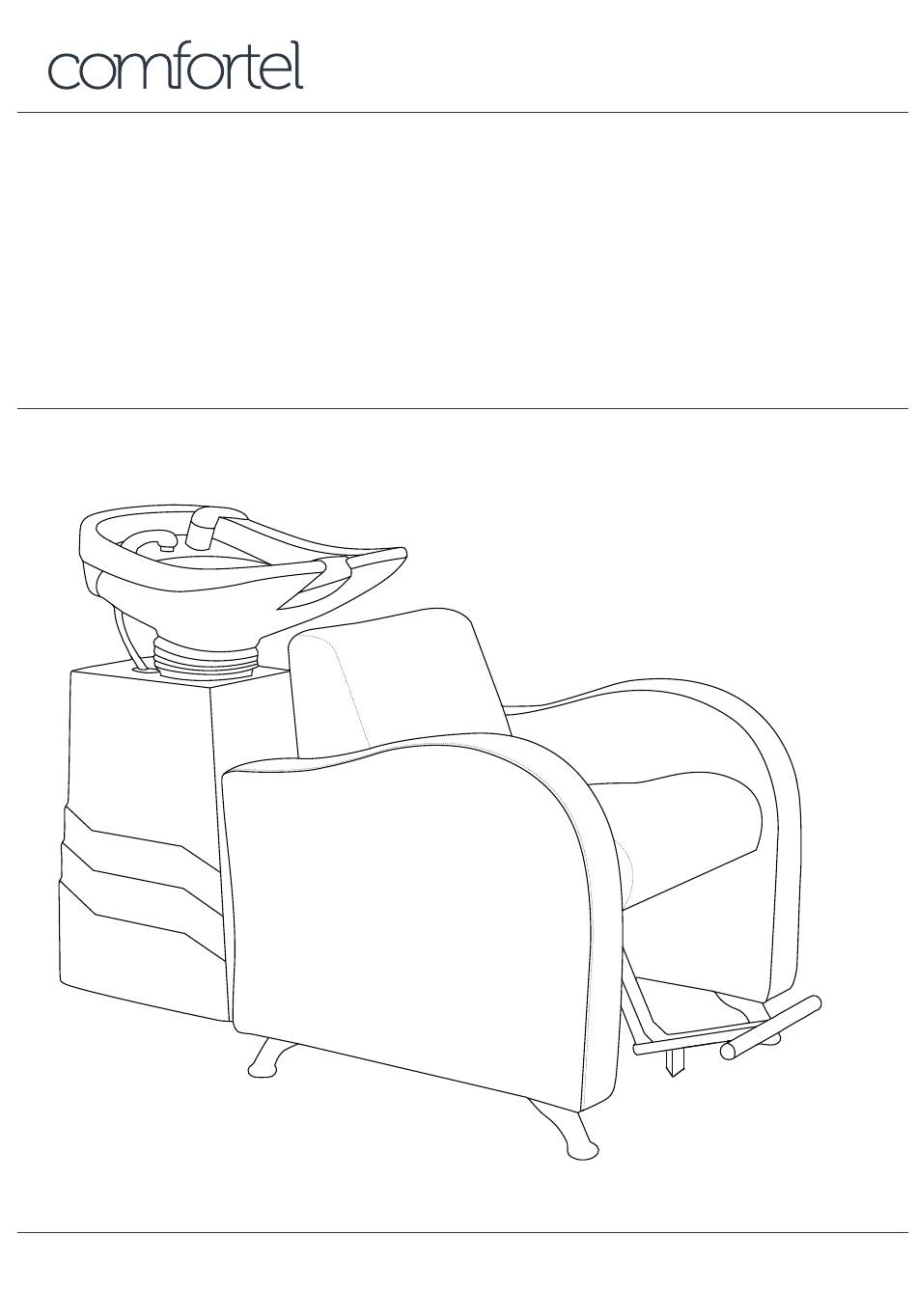

- Page 1 #1500 CLAIRE comfortel.com.au...
-
Page 2: Get Started
EDGES NAME: CLAIRE W BA ALL DESIGNS SHOWN ARE REGISTERED AND COPYRIGHTED TO COMFORTEL PTY LTD ALL RIGHTS RESERVED. THESE DESIGNS ARE CONFIDENTIAL AND ARE NOT TO BE USED OR SHOWN TO A THIRD PART WITHOUT EXPRESSED WRITTEN AUTHORIZATION STAND BY COMFORTEL. - Page 3 IMPORTANT PLEASE READ THESE SAFETY INSTRUCTIONS GENERAL SAFETY IMPORTANT 1. Read carefully and keep these instructions in a safe place. ALL PLUMBING MUST BE COMPLETED 2. Use this product only for its intended function and BY A LICENSED PLUMBER do not use attachments not recommended by the manufacturer.
- Page 4 ASSEMBLY STEP 1...
- Page 5 ASSEMBLY STEP 2 STEP 3...
- Page 6 POSITIONING: BASIN STAND OPTION DIAGRAM A Wall 1600 If washing from rear of stand, add extra distance of 400mm from wall. DIAGRAM B 2920 If washing from side add 400mm between each chair. All measurements are in mm. PLUMBING ACCESS OPTIONS IMPORTANT Determine the best way to connect plumbing ALL PLUMBING MUST BE COMPLETED...
- Page 7 Position Diagram, where 2 x Basin Bench Doubles are installed next to each other. Basin Bench Kit is recommended for situations requiring washing from behind when the plumbing is not through the floor. For more information about the product go to www.comfortel.com.au.
- Page 8 INSTALLATION & ASSEMBLY: BASIN STAND OPTION DIAGRAM E BEFORE INSTALLING YOU SHOULD CONSIDER THE FOLLOWING: Allow for the necessary room around the unit for free movement. • If installing against a wall, a minimum distance of 80mm between wall and bottom back of stand is required to allow free backward movement of basin.
- Page 9 O-ring Vinyl Strap Basin spring Flat seal Bench Kit Frame Flexible Waste Pipe IMPORTANT Comfortel Furniture Pty Ltd ABN 60 300 719 042 ALL PLUMBING MUST BE COMPLETED www.comfortel.com.au BY A LICENSED PLUMBER Victoria (Head Office) New South Wales Queensland...
- Page 10 INSTALLATION & ASSEMBLY: CHAIR TO BASIN STAND Connector DIAGRAM G INSTALL CHAIR TO BASIN STAND • Fix Connector to stand front using two bolts and nuts provided. INSTALLATION & ASSEMBLY: CHAIR TO BASIN BENCH Connector DIAGRAM H INSTALL CHAIR TO BASIN BENCH •...
-
Page 11: Maintenance
Damage caused by any improper treatment of this product is not covered by the product warranty. MAINTENANCE A periodic inspection of all components and fasteners should be made to ensure that your Comfortel Product is structurally intact and functioning properly. -
Page 12: Warranty Period
Comfortel Furniture Pty Ltd. #1500 CLAIRE WASH LOUNGE Comfortel Furniture Pty Ltd. assumes no responsibility for any errors that may appear in this document nor does it make expressed or implied warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
