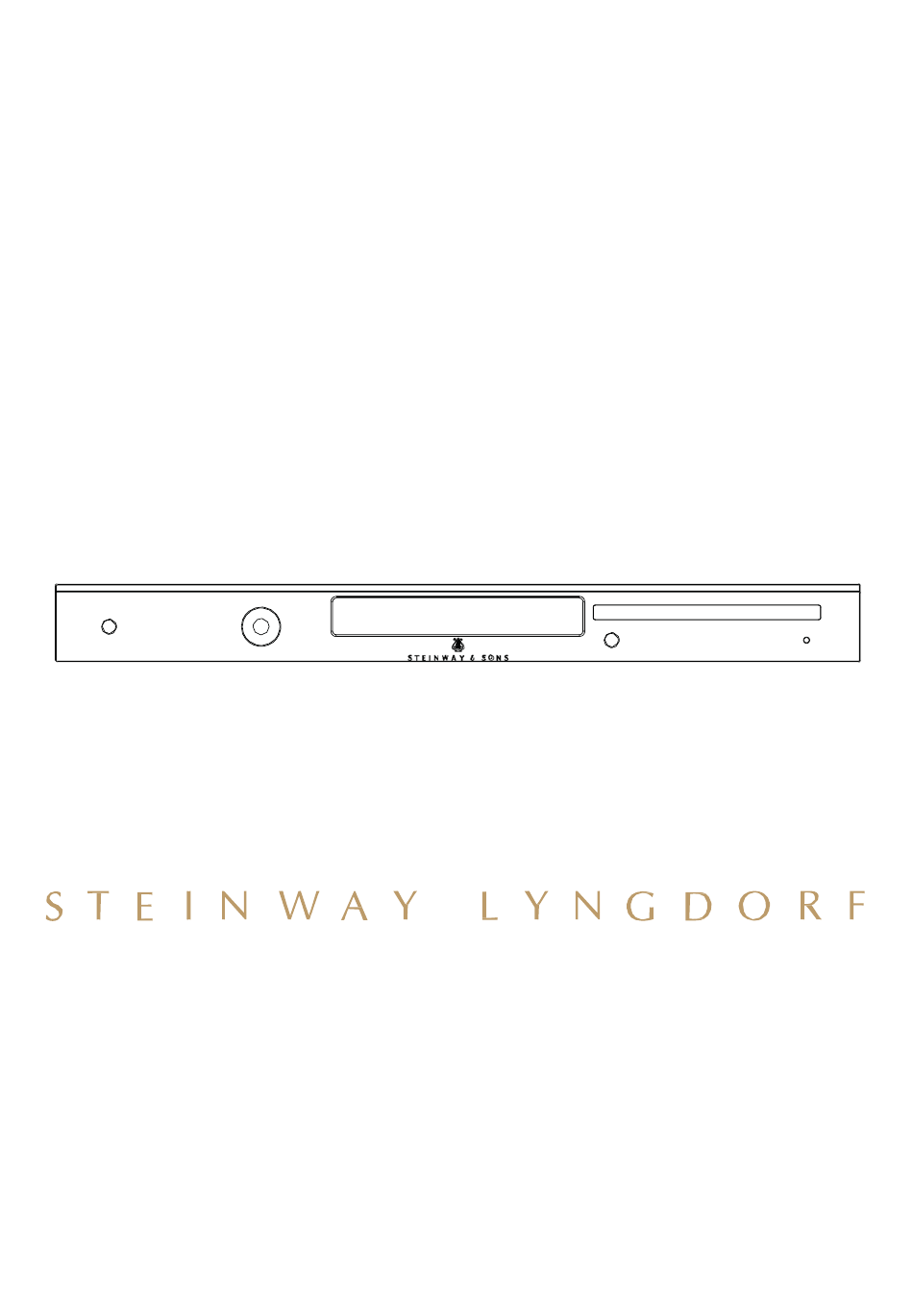

- Page 1 INSTALLATION MANUAL CDP-1 V 1.4...
-
Page 2: Table Of Contents
TABLE OF CONTENTS WARNINGS ..............................3 FRONT PANEL ..............................4 REAR PANEL ..............................5 SETUP............................... 6 MENU SYSTEM ............................7 NOTES OF IMPORTANCE ......................... 9 TECHNICAL SPECIFICATIONS ......................... 10 ... -
Page 3: Warnings
WARNINGS CAUTION: RISK OF ELECTRICAL SHOCK. DO NOT OPEN. CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. Exclamation symbol The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. -
Page 4: Front Panel
FRONT PANEL Standby button Standby mode. Play/Select The Play/Select button is a skip-wheel which allows you to skip left |<< and skip right >>| by turning the wheel in either direction. • The button in the center works in exactly the same way as the Play/Pause button. During play mode, it toggles between Play and Pause. -
Page 5: Rear Panel
Toslink Connector for digital output. 2. SPDIF SPDIF input. 3. Link termination Switch on if the CDP-1 is the last Steinway Lyngdorf product in the daisy-chain. 4. Steinway Lyngdorf Digital Link 5. USB software update connector For software update. 6. Control connector The RS232 communication connectors are for communication to a PC or remote control from Steinway Lyngdorf equipment with broadcast commands or linked control between other components. -
Page 6: Setup
Switch “Link termination“ to on if the CDP-1 is the last Steinway Lyngdorf product in the chain. If inserting the CDP-1 at the end of a chain of amplifiers, make sure to switch off the amplifier´s dipp switch link termination. To do this, toggle the number 8 switch from on to off. -
Page 7: Menu System
• 192 kHz / 24 bit Display Timeout The timeout can be set to on or off. On is a 10 second display timeout. Auto Off Auto off will automatically turn off the CDP-1 after it has been idle for 5 minutes. ... - Page 8 1. Download the new firmware 2. Upload it to the root of a FAT32 formatted USB stick. 3. Go to Software Update in the Advanced menu of the CDP-1 and click Yes. 4. The display should show “Updating: Name of firmware file.”...
-
Page 9: Notes Of Importance
Carefully remove the unit and accessory kit from the carton, and visually check for shipping damage. Contact both the shipper and your Steinway Lyngdorf representative immediately if the unit bears any sign of damage from mishandling. All Steinway Lyngdorf equipment is carefully inspected before leaving our factory. -
Page 10: Technical Specifications
OPERATE mode, Playing CD Mains Connector Mains voltage to the CDP-1 is applied via an IEC320 type connector. The supplied cable with safety ground should be used to connect the CDP-1 to a mains outlet. Connect the power input only to the AC source printed on the label and the setting shown on the voltage selector switch.
