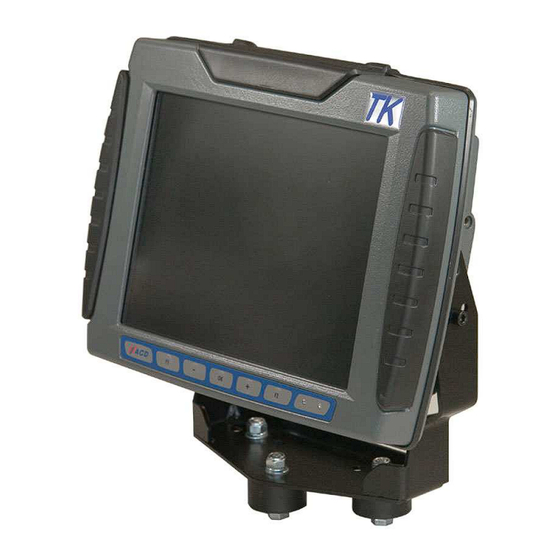

- Page 1 Brief Overview MFT920 Vehicle Terminal – F160 U.S. Edition 2015 Version: 1.50 © 2015 ACD Group All Rights Reserved This document may not be duplicated or made accessible to third parties without written permission by ACD. MFT920_F160_Fusion_Summit_Brief_Overview_FCC_V1.50_en.doc 1 / 16...
-
Page 2: Table Of Contents
Table of Contents Scope of Delivery ..................3 Intended Use ....................3 Handling of the Device ................. 4 Switching the Device on and off ................5 3.1.1 Switching on ......................5 3.1.2 Switching off ......................6 Connection Ports of the Device ................6 3.2.1 Pin Assignment Voltage Supply: Sub-D Plug (15-pole) ........ -
Page 3: Scope Of Delivery
Figure 1: Package content 2 Intended Use The MFT920 serves as a vehicle terminal, specifically designed for use in vehicles such as forklifts or order pickers. Do not use the system in geographical areas where explosives may be used. Observe the local regulatory requirements for wireless devices. -
Page 4: Handling Of The Device
3 Handling of the Device Read all instructions first before using the MFT920! Do not drink any alcohol or take any drugs while using the MFT920 and follow the saftey instructions carefully! Only original ACD power packs or the ACD power supply cable may be used for operating the MFT920. -
Page 5: Switching The Device On And Off
Voltage may occur on the inside of the device, which may lead to severe or even fatal injuries when touching live parts or handling the device in an improper manner. It may also lead to severe material damage. The device may only be opened by trained specialists, and only ATTENTION after consulting with ACD. -
Page 6: Switching Off
3.1.2 Switching off To shut down the device, you may either use the software or press a customised key (default setting: ACD key) for 5 seconds (default setting). If the device is in standby mode, this is indicated by flashing of the green LED. -
Page 7: Pin Assignment Voltage Supply: Sub-D Plug (15-Pole)
Because it is possible that there is a short circuit at the power supply plug or the power supply cable, the MFT920 must be protected externally at the machine end. The appropriate value is on the rating plate in the cable entrance area of the device. -
Page 8: Pin Assignment Com 1 (Rs232) Interface: Sub-D Plug (9-Pole)
3.2.2 Pin Assignment COM 1 (RS232) Interface: Sub-D Plug (9-pole) Usually scanners are connected at the COM1 interface, or it serves as interface for other electronic devices. Figure 8: COM 1 Pin no. Description Function Input RS232 Handshake Input RS232 Incoming data Output RS232 Outgoing data... -
Page 9: Pin Assignment Com 2 (Rs232) Interface: Sub-D Plug (9-Pole)
3.2.3 Pin Assignment COM 2 (RS232) Interface: Sub-D Plug (9-pole) Usually scanners are connected at the COM2 interface, or it serves as interface for other electronic devices. Figure 9: COM 2 Pin no. Description Function Input RS232 Handshake Input RS232 Incoming data Output RS232 Outgoing data... -
Page 10: Pin Assignment Ps/2 Jack: Mini-Din (6-Pole)
3.2.4 Pin Assignment PS/2 Jack: Mini-Din (6-pole) Usually older keyboards or scanners which dispose of this connection are connected at the PS/2 interface. Figure 10: PS/2 Pin no. Description Function DATA PS/2 Data signal Incoming and Outgoing data not assigned COMMON GND-PS/2 Voltage output... -
Page 11: Usb (Usb1, Usb2, Usb3)
3.3 Emergency Supply The MFT920 is equipped with an internal voltage stabiliser which continues to supply the device with voltage in the event of sporadic voltage drops of less than 3 seconds. -
Page 12: Cleaning And Maintenance Information
4 Cleaning and Maintenance Information Clean the device with a soft cloth when dirty. Always disconnect the device from the voltage supply before cleaning! Do not use any corrosive chemicals, cleaning solutions or strong cleaning agents in order to clean the device. ATTENTION All components must be disposed of properly at the end of their technical lifetime. -
Page 13: Fcc Statement Of Compliance
6 FCC Statement of Compliance Contains FCC ID: TWG-SDCPE15N To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm (8 inches) from all persons and must not be co-located or operating in conjunction with any NOTE other antenna or transmitter.”... - Page 14 MFT920_F160_Fusion_Summit_Brief_Overview_FCC_V1.50_en.doc 14 / 16...
-
Page 15: Manufacturer's Representations And Warranties
7 Manufacturer’s Representations and Warranties ACD Elektronik GmbH Engelberg 2 88480 Achstetten Germany Phone: +49 7392 708-0 Fax: +49 7392 708-190 These Representations and Warranties are applicable to all customers (the “Customers” and each, individually, a “Customer”) purchasing products (the “Products”) manufactured by ACD Elektronik GmbH (the “Company”). - Page 16 1.9. All requests and notices under this Warranty shall be directed to: ACD Elektronik GmbH Engelberg 2 88480 Achstetten Germany Phone: +49 7392 708-0 Email: info@acd-elektronik.de 1.10. THE WARRANTY SET FORTH IN SECTION 1.1 IS MADE IN LIEU OF ALL OTHER WARRANTIES (WHETHER EXPRESS OR IMPLIED), RIGHTS OR CONDITIONS, AND CUSTOMER ACKNOWLEDGES THAT EXCEPT FOR SUCH LIMITED WARRANTY, THE PRODUCTS ARE PROVIDED “AS IS.”...
