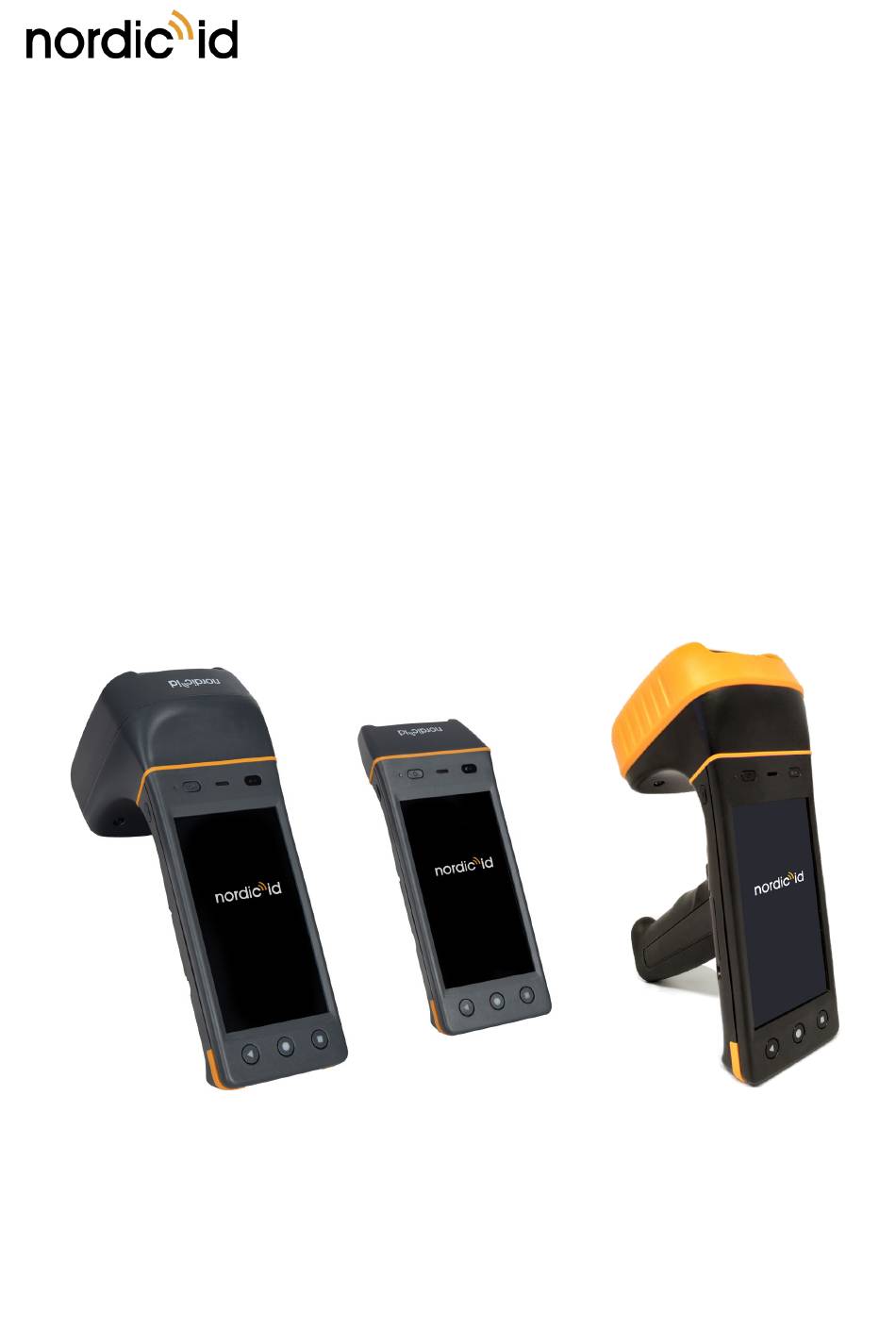

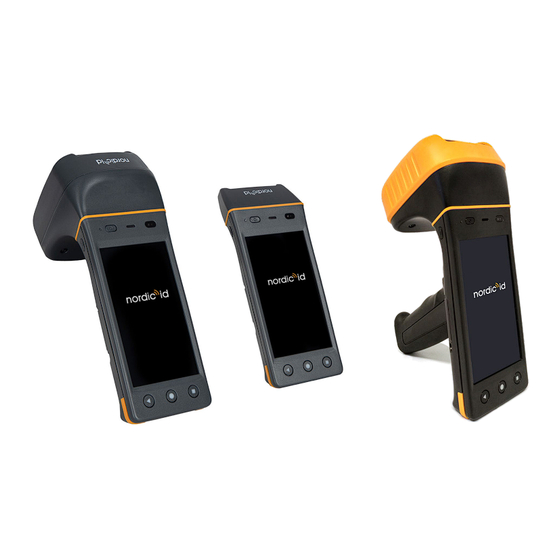

- Page 1 2020-05-18 Nordic ID HH83/HH85 User Guide Version 1.3 NORDIC ID HH8x NORDIC ID HH83 / NORDIC ID HH85 USER GUIDE...
-
Page 2: Table Of Contents
NORDIC ID HH83 VARIANTS ......................4 NORDIC ID HH85 VARIANTS ......................5 1.3. AVAILABLE ACCESSORIES ..........................5 NORDIC ID HH83 AND NORDIC ID HH85 ACCESSORIES ............. 5 NORDIC ID HH83 ONLY ACCESSORIES ..................6 NORDIC ID HH85 ONLY ACCESSORIES ..................6 1.4. - Page 3 Nordic ID HH83/HH85 User Guide Version 1.3 SOFTWARE ..............................22 2.1. NORDIC ID APPLICATIONS ........................22 NORDIC ID RFID DEMO FOR ANDROID .................. 23 NORDIC ID WEDGE SERVICE ...................... 24 NORDIC ID APP CENTER ......................24 2.2. INSTALLING 3 PARTY APPLICATIONS ....................25 2.3.
-
Page 4: Getting Started
* Upgrade must be made by authorized service centers. Upgrade ordering codes are ACN00199/200. 1.2. VARIANTS NORDIC ID HH83 VARIANTS The Nordic ID HH83 is available in 5 different variants (all of them with WLAN interface, rear camera and NFC reader) that are: RFID ACD... -
Page 5: Nordic Id Hh85 Variants
2020-05-18 Nordic ID HH83/HH85 User Guide Version 1.3 NORDIC ID HH85 VARIANTS The Nordic ID HH85 is available in 3 different variants (all of them with WLAN interface, rear camera and NFC reader) that are: RFID ACD CODE FREQUENCY 2D IMAGER... -
Page 6: Nordic Id Hh83 Only Accessories
NORDIC ID HH85 ONLY ACCESSORIES CODE DESCRIPTION ACN00182 Nordic ID HH85 Battery 10050mAh with Pistol grip cover Picture 5. Removing the Nordic ID HH85 battery cover Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo | Finland Office +358 2 727 7700 | Fax + 358 2 727 7720 | info@nordicid.com... -
Page 7: Inbox Content
• 3350mAh battery included in Nordic ID HH83 Barcode variants 6700mAh battery included in Nordic ID HH83 RFID ACD variants 10050mAh battery with pistol grip included in Nordic ID HH85 RFID ACD variants Wrist strap • Safety and regulations card •... -
Page 8: Battery "Hot Swap
Version 1.3 BATTERY “HOT SWAP” The Nordic ID HH83/HH85 provides a battery “hot swap” functionality which the user can activate from the Android “power off” menu (displayed when Power button is pressed during 1 second). This feature allows removing a (discharged) battery and installing a fully charged one in a matter of seconds, thus allowing a larger usage time of the device when having extra batteries for replacement. -
Page 9: Charging
Charging time from 0 – 100% via the desktop and Quick Charge 3.0 USB charger is about 4 hours for both Nordic ID HH83 Barcode and RFID ACD variants. Due to its larger battery, charging time from 0 – 80% is about 4 hours for Nordic ID HH85 RFID ACD, and 6 hours to 100%. -
Page 10: Battery Charging Using Desktop Charger
NOTE! that one Nordic ID HH85 with pistol grip and one spare battery with pistol grip cover cannot be charged in the same bay of a desktop charger. -
Page 11: Features Overview
Nordic ID HH83/HH85 User Guide Version 1.3 1.7. FEATURES OVERVIEW Picture 10 Nordic ID HH83 keys and user interface (front side) The three buttons below the screen map the typical on-screen Android buttons. Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo | Finland Office +358 2 727 7700 | Fax + 358 2 727 7720 | info@nordicid.com... - Page 12 Picture 11 Features of Nordic ID HH83 (back side) The variant shown in Picture 10 and Picture 11 is Nordic ID HH83 Barcode. Keys and user interactions are the same in Nordic ID HH83 RFID ACD and Nordic ID HH85 RFID ACD, except: Nordic ID HH83 RFID ACD and Nordic ID HH85 RFID ACD do not build a ToF sensor.
-
Page 13: Using The Device
SCAN BUTTONS The trigger (SCAN) buttons are in Nordic ID HH83 on both sides of the device, and also on the pistol grip in the Nordic ID HH85. Depending on the application in use, the trigger button starts/stops UHF RFID or barcode reading. -
Page 14: Status Led
TOF SENSOR The ToF sensor is located on the top front side of the Nordic ID HH83 Barcode device, by the barcode scanner. It is used to trigger barcode scanning instead of using the Scan button. ToF mode is disabled by default. -
Page 15: Light And Proximity Sensor
1.8.3.3. NFC READER An NFC reader is located on the back side of the Nordic ID HH83/HH85. NFC antenna is indicated with a ((waves)) icon in the Nordic ID HH83 (there is no icon in the Nordic ID HH85). Multiple NFC standards are supported, proximity and vicinity, which makes Nordic ID HH83/HH85 also compliant with existing NFC Android apps. -
Page 16: Scanning Directions
Picture 14 Scanning direction with Nordic ID HH83 Barcode Picture 15 Scanning direction with Nordic ID HH83 RFID ACD and Nordic ID HH85 RFID ACD Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo | Finland Office +358 2 727 7700 | Fax + 358 2 727 7720 | info@nordicid.com... - Page 17 Nordic ID HH83/HH85 User Guide Version 1.3 Picture 16 Correct grip of Nordic ID HH83 Barcode Picture 17 Correct grip of Nordic ID HH83 RFID ACD and Nordic ID HH85 RFID ACD Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo | Finland Office +358 2 727 7700 | Fax + 358 2 727 7720 | info@nordicid.com...
-
Page 18: Nordic Id Hh83/Hh85 Rfid Acd Variants
Version 1.3 NORDIC ID HH83/HH85 RFID ACD VARIANTS Nordic ID HH83 RFID ACD and Nordic ID HH85 RFID ACD include Advanced Cross Dipole antenna that includes SW controllable (via Nordic ID RFID demo application and NUR API) antenna polarizations (vertical and/or horizontal), enabling a nominal reading distance about 15 m / 50 ft. -
Page 19: Imager
Opticon’s online configuration tools to create a configuration barcode and print it onto paper. Then scan the code with the 2D imager of Nordic ID HH83 and new settings will be set and saved automatically. Quick Instructions to generate imager configuration barcodes: 1. -
Page 20: Using Nordic Id Rfid Demo Application
After sending configuration file to the reader, Nordic ID RFID demo will send “save settings” command automatically to the 2D imager. Source code of Nordic ID RFID demo is public, so one can study how 2D imager configuration using the specific files has been implemented on Android. See section 2.7.2 for more information. -
Page 21: Rf Profiles
Version 1.3 1.9. RF PROFILES The Nordic ID HH83 RFID ACD and Nordic ID HH85 RFID ACD include the Nordic ID NUR2-1W UHF RFID module which supports three different kind of RF profiles. The profiles are Robust, Nominal and High speed. It is important to select the correct RF profile based on use case and environment. More... -
Page 22: Software
Version 1.3 SOFTWARE Nordic ID has taken an open source SW development approach in use with the Nordic ID HH83/HH85. Nordic ID provides the SDK along with the examples through the GitHub. The Nordic ID HH83/HH85 supports powerful NUR API so developers can use familiar NUR API for application development. -
Page 23: Nordic Id Rfid Demo For Android
Android OS. Screenshot 5 Nordic ID RFID Demo application can be used for testing the capabilities of compatible Nordic ID devices and how the various RFID settings affect the reading performance. Nordic ID RFID Demo application enables different key features: RFID Inventory (EPC, TID and user memory) ** •... -
Page 24: Nordic Id Wedge Service
All of them being secure apps without malware or virus. With Nordic ID App Center, the user has full control of the available repositories and can add new ones to extend the number of available apps. -
Page 25: Rd Party Applications
APK installation file to the device and launching it using the Files app. In order to copy a file to the Nordic ID HH83/HH85 device, please follow these instructions: 1. Connect the Nordic ID HH83/HH85 to your computer using a USB cable 2. - Page 26 2020-05-18 Nordic ID HH83/HH85 User Guide Version 1.3 3. You will now be warned about unknown apps, potential attacks and app permissions requests. Please make sure that you are installing a safe and known app before accepting both prompts. Screenshot 8...
-
Page 27: Locking The User Interface
2.3. LOCKING THE USER INTERFACE Also known as “kiosk mode”, this feature is useful to prevent the user to modify certain settings and install/uninstall applications in Nordic ID HH83/HH85. When the user interface is locked, the user cannot: Install additional applications. -
Page 28: How To Lock/Unlock Ui
2020-05-18 Nordic ID HH83/HH85 User Guide Version 1.3 3. Select the wallpaper and add any widget which should be visible the home screen. You can configure this by long tapping the home screen background and selection the appropiate option in the pop up menu. -
Page 29: Update Instructions
Version 1.3 2.4. UPDATE INSTRUCTIONS Android OS and Nordic ID HH83/HH85 drivers/firmware can be updated by following these steps: 1. Connect to the Internet using WLAN, LTE or the desktop cradle with Ethernet adapter. 2. Open Settings menu (Android menu, not Nordic ID RFID Demo settings). -
Page 30: Backup And Restore Configuration
2.5. BACKUP AND RESTORE CONFIGURATION The settings in the Nordic ID HH83/HH85 can be exported to a file, which can later be imported in the same or another Nordic ID HH83/HH85 unit to apply the same settings. This enables an easy mass configuration and roll out of Nordic ID HH83/HH85 devices. -
Page 31: Manually Restore Backup
If the backup file is renamed to “auto_restore_backup” and saved in the root folder of a USB flash drive, the restore process will start automatically when the USB drive is plugged to a (powered on) Nordic ID HH83/HH85 device. -
Page 32: Enterprise Mobility Management (Emm)
The first step to enroll a Nordic ID HH83/HH85 on an EMM platform is to provision the device, which is a standard procedure in every Android device. You must provision the device owner mode of operation during the initial setup of a new device or after a factory reset. -
Page 33: Application Development
2.7. APPLICATION DEVELOPMENT NUR API IN GENERAL NUR API is an application programming interface for Nordic ID UHF RFID module. It provides control for all Nordic ID UHF RFID readers. The NUR API provides compatibility between Nordic ID UHF RFID reader from RFID functions perspective. -
Page 34: Regional Settings
UHF RFID readers to comply local regional requirements. Nordic ID has created set of regional settings in order to fulfill local regulations. Nordic ID is required to ensure compliance of Nordic ID products will remain after production. Solution for this is products including UHF RFID functionality will be set and locked in production based on customer order e.g. -
Page 35: Rf Exposure
ID device needs repair, always use only our Nordic ID Service or our authorized service partners. We want to make sure that your Nordic ID product serves you the best possible way, and by using our preferred service partners the quality of the service is trustworthy and the spare parts are original. This way the existing product warranty remains, and you receive a 3-month service warranty for the repaired devices. -
Page 36: Warranty
Version 1.3 WARRANTY Nordic ID warrants that the Products are at the time of delivery free from defects in materials and workmanship, provided the Products remain unmodified and are operated under normal and proper conditions. Warranty period is the longer of twenty-four (24) months from the date of delivery in case the Customer is end-customer or twenty-seven (27) months from the date of manufacture in case the Customer is reseller. -
Page 37: Version History
30.04.2020 Lock User Interface, pictures of accessories, compliance statements 18.05.2020 Nordic ID HH85, new backup restore modes, EMM support, Nordic ID App Center Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo | Finland Office +358 2 727 7700 | Fax + 358 2 727 7720 | info@nordicid.com... -
Page 38: Appendices
2020-05-18 Nordic ID HH83/HH85 User Guide Version 1.3 APPENDICES 10.1. APPENDIX 1 SAMPLE 2D IMAGER CONFIGURATION BARCODES NOTE! Barcode configuration codes can be read only when there is no active Bluetooth connection with the host device Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo | Finland Office +358 2 727 7700 | Fax + 358 2 727 7720 | info@nordicid.com...
