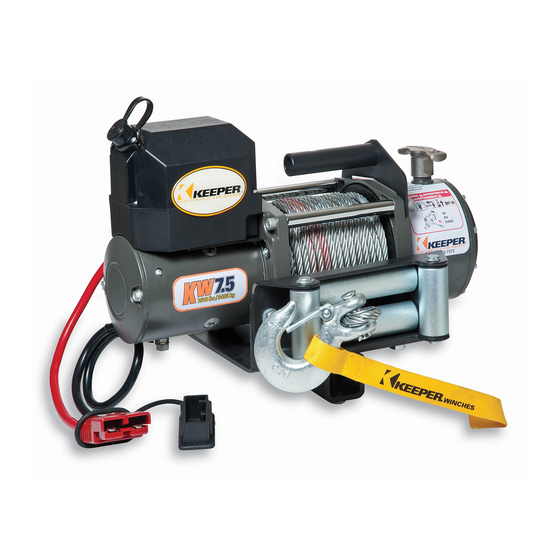

- Page 1 ™ Assembly & Operating Instructions KW7.5RM 7500 lbs 12V DC Electric Winch CAUTION! READ AND UNDERSTAND THIS MANUAL BEFORE INSTALLATION OWNER’S MANUAL AND OPERATION OF THIS PRODUCT.
- Page 2 Save this Manual KW7.5RM 7500 lb 12V DC Electric Winch You will need this manual for the safety warnings and cautions, assembly instructions, operating procedures, Designed for Utility Recovery, and General Utility Winching Applications. maintenance procedures, trouble shooting, parts list, and diagram. Keep your invoice with this manual. Write the invoice THIS PRODUCT IS NOT INTENDED FOR LIFTING/HOISTING number on the inside of the front cover.
-
Page 3: General Description
Line Speed FPM (MPM) Motor Amp Dr Pull By Layer Lbs. (kg) 11. NEVER HOOK THE WIRE ROPE BACK ONTO ITSELF. This will damage the wire rope. Use a KEEPER 02953 3” X 6’ 35 (10.7) 1 @ 7500 (3402) WINCH STRAP, sling, tree saver or other recommended accessory for this type connection (Figure 5). -
Page 4: Winch Installation
Wire Rope vehicle hand-brake, and chock all wheels. Under-wind 25. DO NOT USE THE WINCH TO HOLD LOADS IN PLACE. Use other means of securing loads such as KEEPER Direction brand tie-down straps. 26. USE ONLY FACTORY APPROVED SWITCHES, ADAPTERS, REMOTE CONTROLS AND ACCESSORIES. Use of non- factory approved components may cause injury or property damage and could void your warranty. -
Page 5: Pendant Operation
Winch Installation (Continued) Pendant Operation The handheld pendant switch activates a solenoid that WARNING activates power to the winch motor. FIGURE 10 To connect the handheld pendant switch, remove the cover USE ONLY 3/8” -16 UNC BOLT AND NUTS WITH MINIMUM ISO GRADE 8.8. on the plug receptacle and insert the plug end of remote WARNING switch (See Figure 10). - Page 6 Operation Instructions for KTA14126 Wireless Remote Operation Instructions for KTA14126 Wireless Remote Wireless remote operation Reprogramming senders to a receiver If you ever have to replace your senders or receiver you can program the new units to FIG. 1 Your wireless remote will operate the winch from up to 100+ feet depending on FIG.
-
Page 7: Freespool Operation
“Engaged” position, apply power to engage block is load is greater than 75% of the rated capacity of the winch. For the KW7.5RM use a pully block once you exceed 5,600 lbs. Always use a pulley block (part number KWA14550) that is rated twice the capacity of the winch. -
Page 8: Troubleshooting
Troubleshooting Symptom Possible Causes Corrective Action Motor will not 1. Broken wires or bad battery 1. Check for poor connection(s) and that all wiring is tight operate or runs in connection and clean one direction only 2. Switch inoperative 2. Check that switch wires are connected properly to 3.
