Converting the Neo

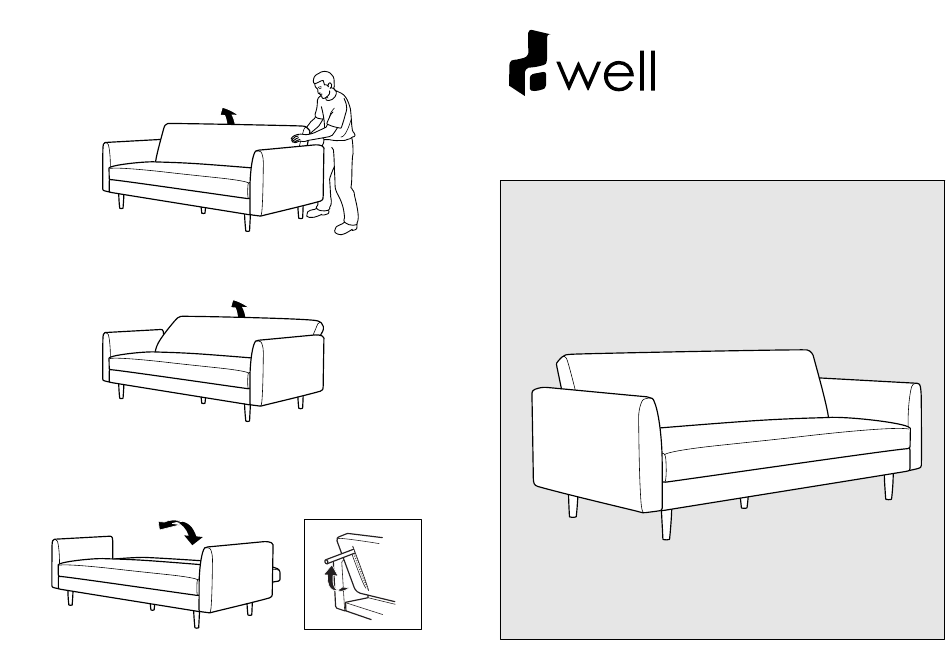

Converting to Sofa
Standing at the side of the unit (from bed position), lift backrest to the desired position and secure in
place by releasing to the sound of a click.
Neo
Converting to Lounger
In bed position, lift backrest upwards with each click sound until the desired lounge position is reached.
Converting to Bed
From sofa or lounge position, lift backrest all the way upwards until the last click is heard which unlocks
the mechanism and carefully return to a flat position.
IMPORTANT: Ensure that the support legs are extended out (behind the backrest) when using it
as a bed.
4-4
2011/03
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dwell Neo
Summary of Contents for Dwell Neo
- Page 1 Converting the Neo Converting to Sofa Standing at the side of the unit (from bed position), lift backrest to the desired position and secure in place by releasing to the sound of a click. Converting to Lounger In bed position, lift backrest upwards with each click sound until the desired lounge position is reached.
- Page 2 Assembling the Neo Parts and Hardware Carefully unpack and place sofa body unit upright on a clean flat surface to show the base as shown. Long Bolt Washer Short Bolt Unzip both side compartments on the base and locate the pre-drilled holes inside. Align armrest into position (see above) and secure with four long bolts and washers for each armrest from inside with Allen key.
