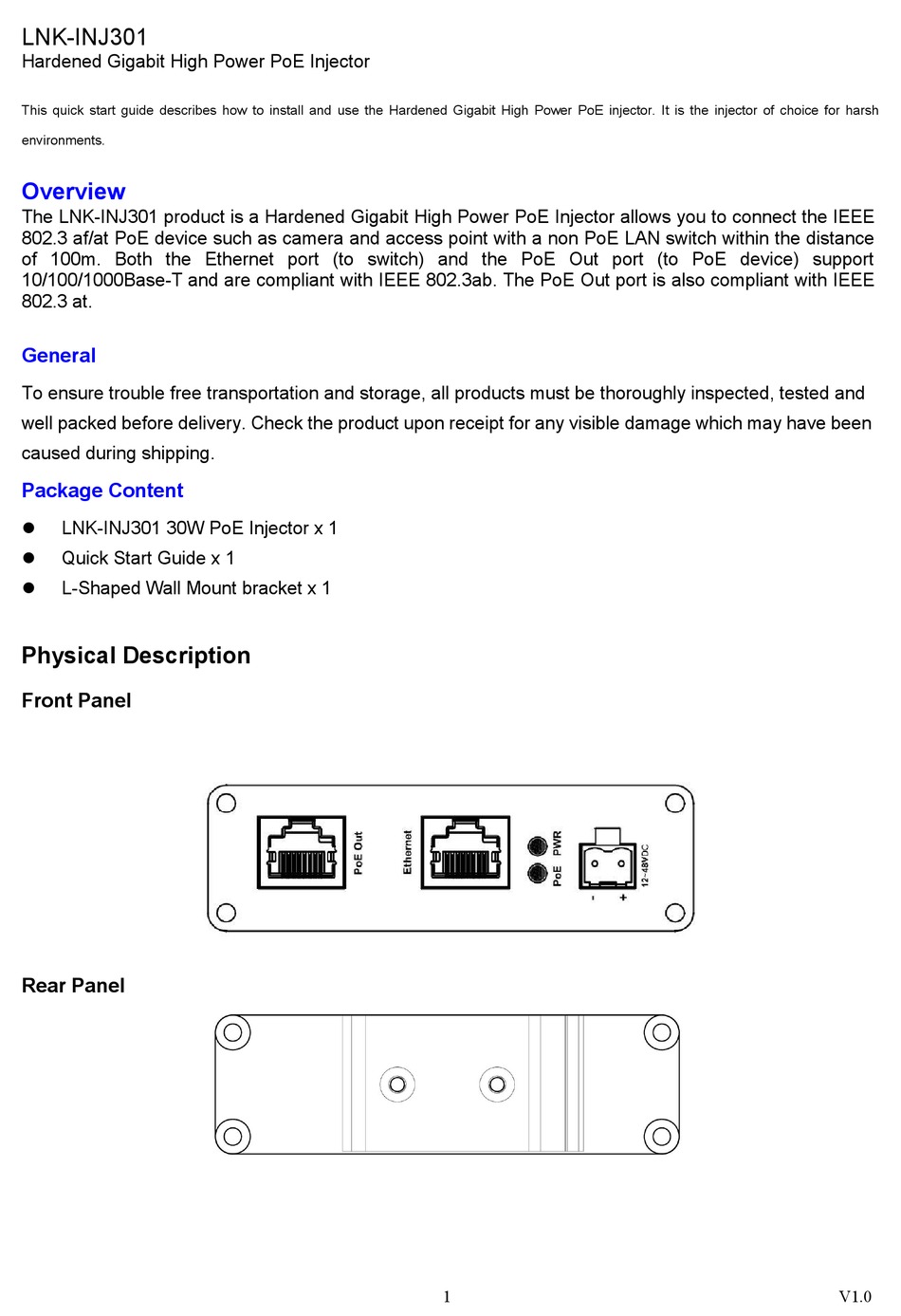

E-LINK LNK-INJ301 Quick Start Manual

LNK-INJ301
Hardened Gigabit High Power PoE Injector
This quick start guide describes how to install and use the Hardened Gigabit High Power PoE injector. It is the injector of choice for harsh
environments.

Overview

The LNK-INJ301 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE
802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance
of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support
10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE
802.3 at.

General

To ensure trouble free transportation and storage, all products must be thoroughly inspected, tested and
well packed before delivery. Check the product upon receipt for any visible damage which may have been
caused during shipping.

Package Content

LNK-INJ301 30W PoE Injector x 1

Quick Start Guide x 1

L-Shaped Wall Mount bracket x 1


Physical Description

Front Panel
Rear Panel
1 V1.0
