LNK-INJ-48-95W

Hardened 1 RJ45 Gigabit data input port to 1 RJ45 Gigabit PSE output port 95W PoE Injector

This quick start guide describes how to install and use the Gigabit PoE Injector. The PoE Injector support LTPoE++ 95W high power, It is a perfect

choice for no power source of Ethernet environments.

Overview

The LNK-INJ-48-95W product is an Hardened PoE Injector which provides 2 port 10/100/1000Base-TX, 1

ports supports LTPoE++ 95W PSE (Power Sourcing Equipment) and compliant with IEEE 802.3at.

To ensure trouble free transportation and storage, all E-link products must be thoroughly inspected, tested

and properly packed before delivery. Check the product upon receipt for any visible damage which may

have been caused during shipment.

Hardened 1 RJ45 Gigabit data input port to 1 RJ45 Gigabit PSE output port 95W PoE Injector x 1

Quick Start Guide x 1

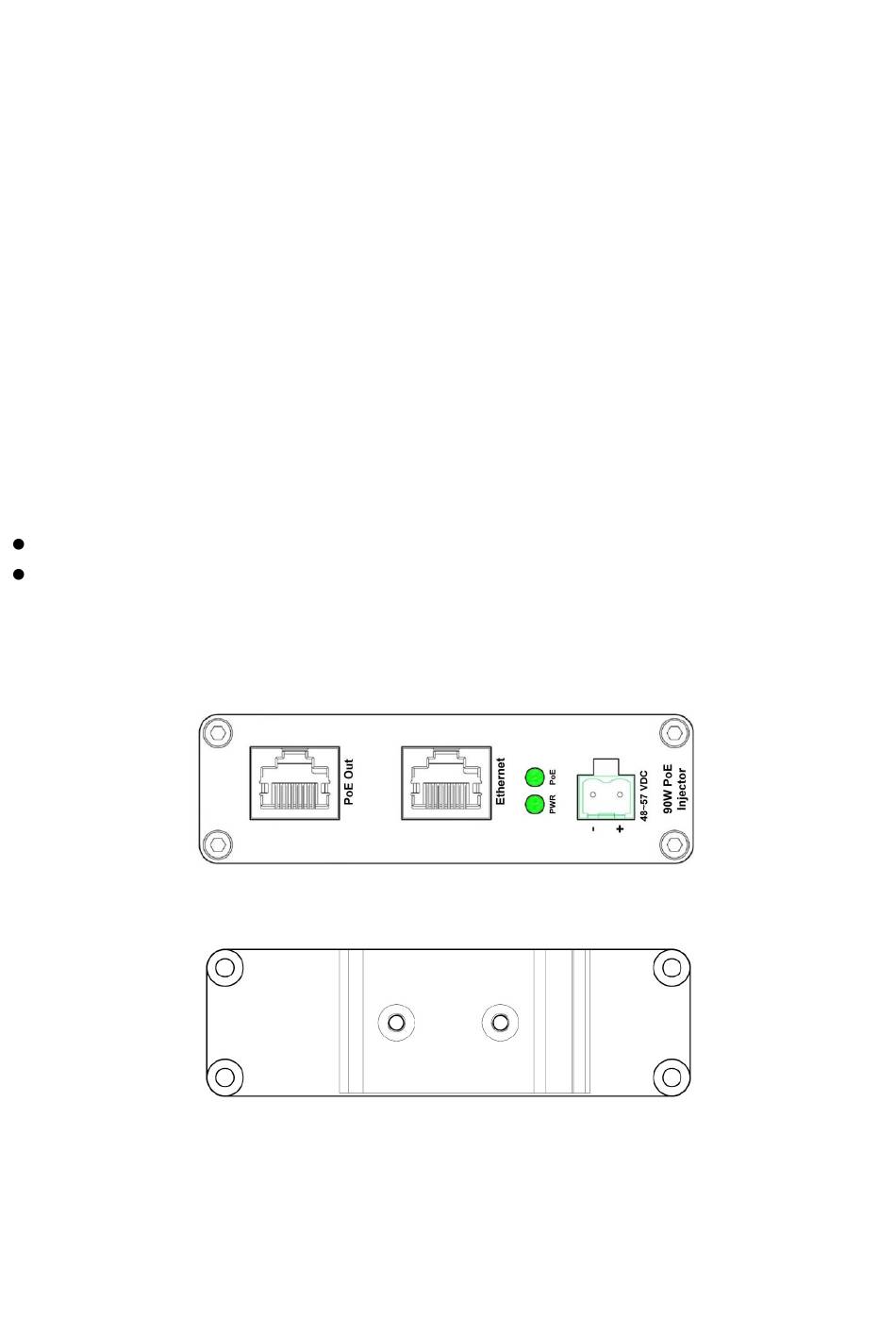

Front Panel

Rear Panel

V1.0

Table of Contents

Do you have a question about the LNK-INJ-48-95W and is the answer not in the manual?

Page 1 This quick start guide describes how to install and use the Gigabit PoE Injector. The PoE Injector support LTPoE++ 95W high power, It is a perfect choice for no power source of Ethernet environments. Overview The LNK-INJ-48-95W product is an Hardened PoE Injector which provides 2 port 10/100/1000Base-TX, 1 ports supports LTPoE++ 95W PSE (Power Sourcing Equipment) and compliant with IEEE 802.3at. General To ensure trouble free transportation and storage, all E-link products must be thoroughly inspected, tested and properly packed before delivery.
Page 2 Setup a) Connect the LNK-INJ-48-95W to the power supply. Ensure the power supply in connected to a power source and the PWR indicator is ON. If not, please ensure that the power cable is connected properly and the power supply is functioning normally.
Page 3 LNK-INJ-48-95W Hardened 1 RJ45 Gigabit data input port to 1 RJ45 Gigabit PSE output port 95W PoE Injector Interface Signal Name RJ-45 Pin Assignment TP0+ Positive (VCC+) TP0- Positive (VCC+) TP1+ Negative (VCC-) TP2+ Positive (VCC+) TP2- Positive (VCC+) TP1-...
Page 4 LNK-INJ-48-95W Hardened 1 RJ45 Gigabit data input port to 1 RJ45 Gigabit PSE output port 95W PoE Injector Dimensions of the LNK-INJ-48-95W (Unit: mm) Functional Description • 1 RJ45 Gigabit data input port to 1 RJ45 Gigabit PSE output port (Data + Power) •...
