Page 1

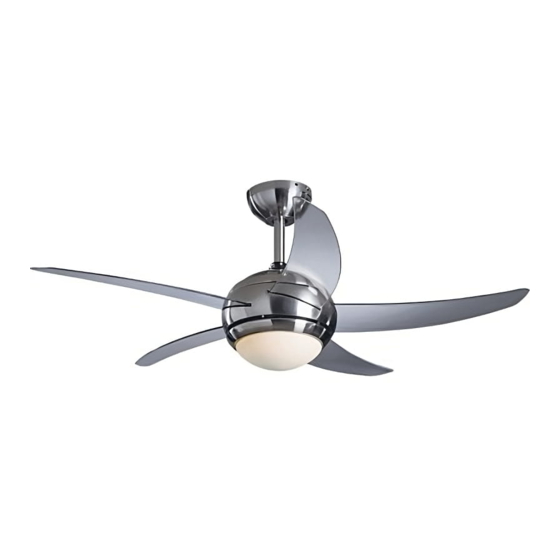

Manhattan Remote Control Ceiling Fan Assembly Instruction 432/8317 - Please keep for future reference 432/5114 Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0345 640 0800...
Page 2
ASSEMBLY & FITTING INSTRUCTIONS ASSEMBLY & FITTING INSTRUCTIONS FIGURE 1 IMPORTANT EARTHED Please read these instructions carefully before attempting to install this MAINS SUPPLY SCREWS reference ceiling fan. It is also advisable to keep these instructions in a safe place for future reference.
Page 3
CONNECTION TO THE LIGHT CIRCUIT FIGURE 4 Ensure electricity is switched off at the mains before installing or main- taining this fitting. Any switches connected to the ceiling fan must con- MOUNTING PLATE form to the necessary British Standards. If you are not sure how to wire the ceiling fan consult a qualified electrician.
Page 4
TROUBLE SHOOTING ASSEMBLY & FITTING INSTRUCTIONS Fan will not start CAUTION: Make sure mains power is switched off before you carry out these checks. 1. Check the main and branch circuit fuses or contact breakers. 2. Check power supply wires to the fan are secured. 3.
Page 5
A Guide to Wall Mounting & Fixings IMPORTANT: When drilling into walls always check that there are no hidden wires or pipes etc. Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualified tradesperson if you are unsure. HINTS: 1) General Rule Always use a larger screw and wall plug if you are not sure.
