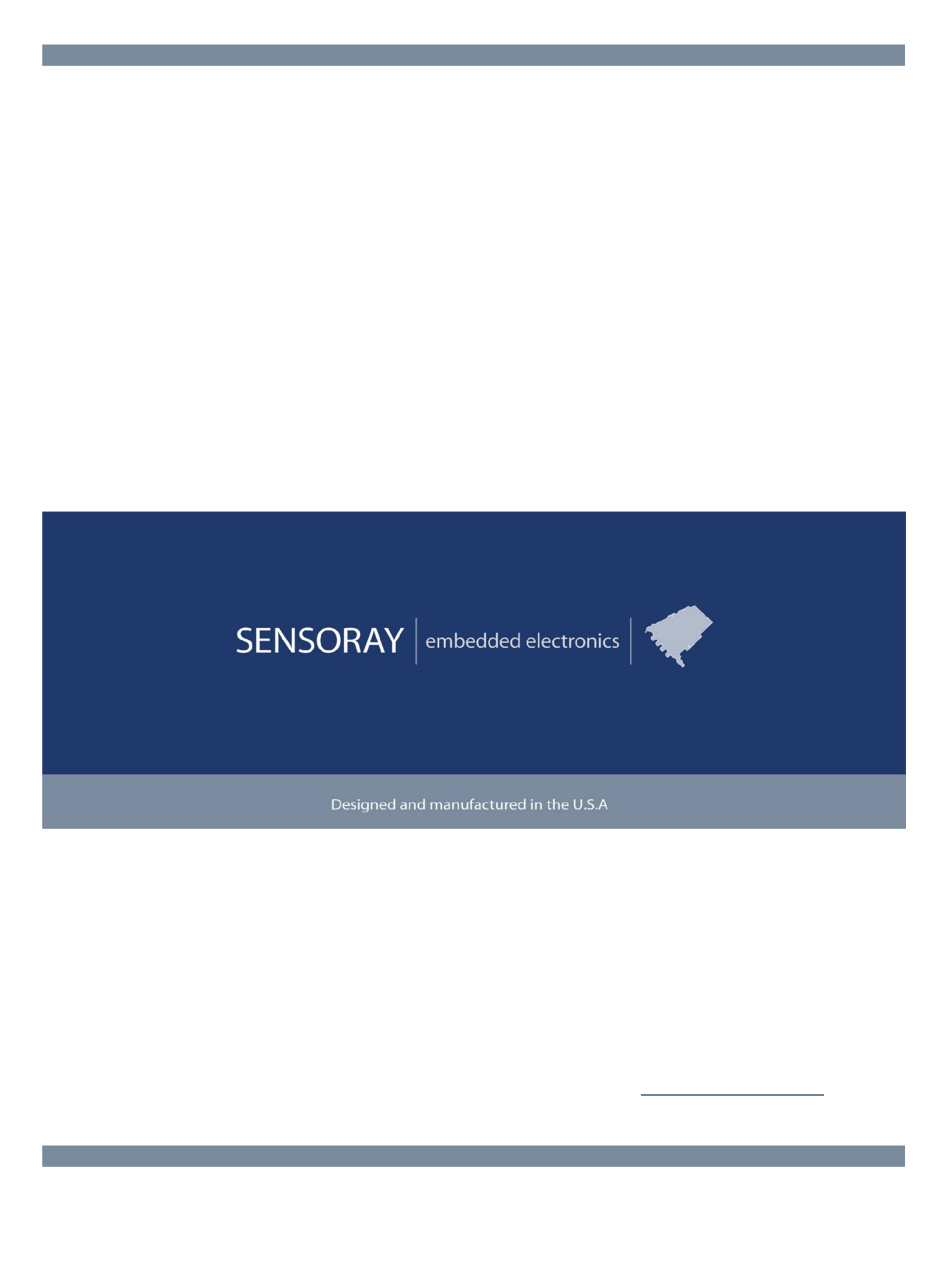

- Page 1 HD-SDI Video Capture Device Model 2267 Hardware Manual Ver. 1.0.1 | December 2019 SENSORAY | p. 503.684.8005 | email:info@SENSORAY.com | www.SENSORAY.com 7313 SW Tech Center Drive | Portland, OR 97203...
-
Page 2: Table Of Contents
Table of Contents Limited warranty ......................... 3 Introduction ..........................4 System requirements ........................5 Block diagram ..........................6 Connectors ............................ 7 USB, J1............................7 Audio inputs, JP1 ........................7 RS232, GPIO, JP2 ........................7 MicroSD card extension, JP3 ....................8 Specifications .......................... -
Page 3: Limited Warranty
Sensoray specifications for two years from the date of shipment to purchaser. Sensoray will, at its option, repair or replace equipment that proves to be defective during the warranty period. This warranty includes parts and labor. -
Page 4: Introduction
Audio is compressed and multiplexed into a transport stream along with compressed video. The 2267 is a UVC (USB Video Class) device, which means it does not require a device- specific driver and can be easily controlled using popular video APIs such as DirectShow and Video4Linux. -
Page 5: System Requirements
System requirements Supported operating systems: Windows 7, 8, 10; Linux 2.6, 3.x, 4.x. -
Page 6: Block Diagram
Block diagram Fig.1. Model 2267 block diagram. -
Page 7: Connectors
Connectors USB, J1 Molex 53047-0410 Signal Ground VBUS Audio inputs, JP1 Molex 0532610771 Signal Ground Mic input + Mic input - Ground Line in, right Ground Line in, left Note: microphone input expects an electret condenser microphone: RS232, GPIO, JP2 Molex 0532610671... -
Page 8: Microsd Card Extension, Jp3
Vin, external power (5V) in DVR mode Ground RS2323 RX RS232 TX Ground GPIO Note: No specific RS232 and GPIO functionality is implemented. Please contact Sensoray to discuss the requirements. MicroSD card extension, JP3 Molex 0532610871 Signal Data2 CD/Data3 Data0... -
Page 9: Specifications
Specifications Video Input Data rates 270 Mbps, 1.483 Gbps, 1.485 Gbps Standards SMPTE 259M(C), SMPTE 292M Maximum 1920x1080p30 (compressed) resolution/frame rate Connector BNC, 75 Ohm Output video streams H.264 High Profile @ Level 3 (MP4, AVI, transport stream) JPEG Single snapshots, AVI Raw (uncompressed) UYVY Audio inputs... -
Page 10: Software
Software Software (Windows and Linux) Driver UVC video Library wrappers around the DirectShow (Windows) or V4L2 (Linux) APIs... -
Page 11: Firmware Updates
LED blinks. Do not unplug the device while the red LED is blinking. After the update is complete, the Update2263 folder is closed, and the 2267 reconnects as a UVC device. To cancel the update mode without updating firmware, right click the Update2263 removable device in Computer and click Eject. -
Page 12: Revision History
Revision history Version Notes 1.0.1, December 2019 Connectors pinout information added. 1.0.0, August 2018 Initial release.
