Impresind ELITURBO E.L.C. Series User And Maintenance Manual
Air mixer
Hide thumbs
Also See for ELITURBO E.L.C. Series:
- Install, use and maintenance instructions (10 pages)
Related Manuals for Impresind ELITURBO E.L.C. Series
Summary of Contents for Impresind ELITURBO E.L.C. Series

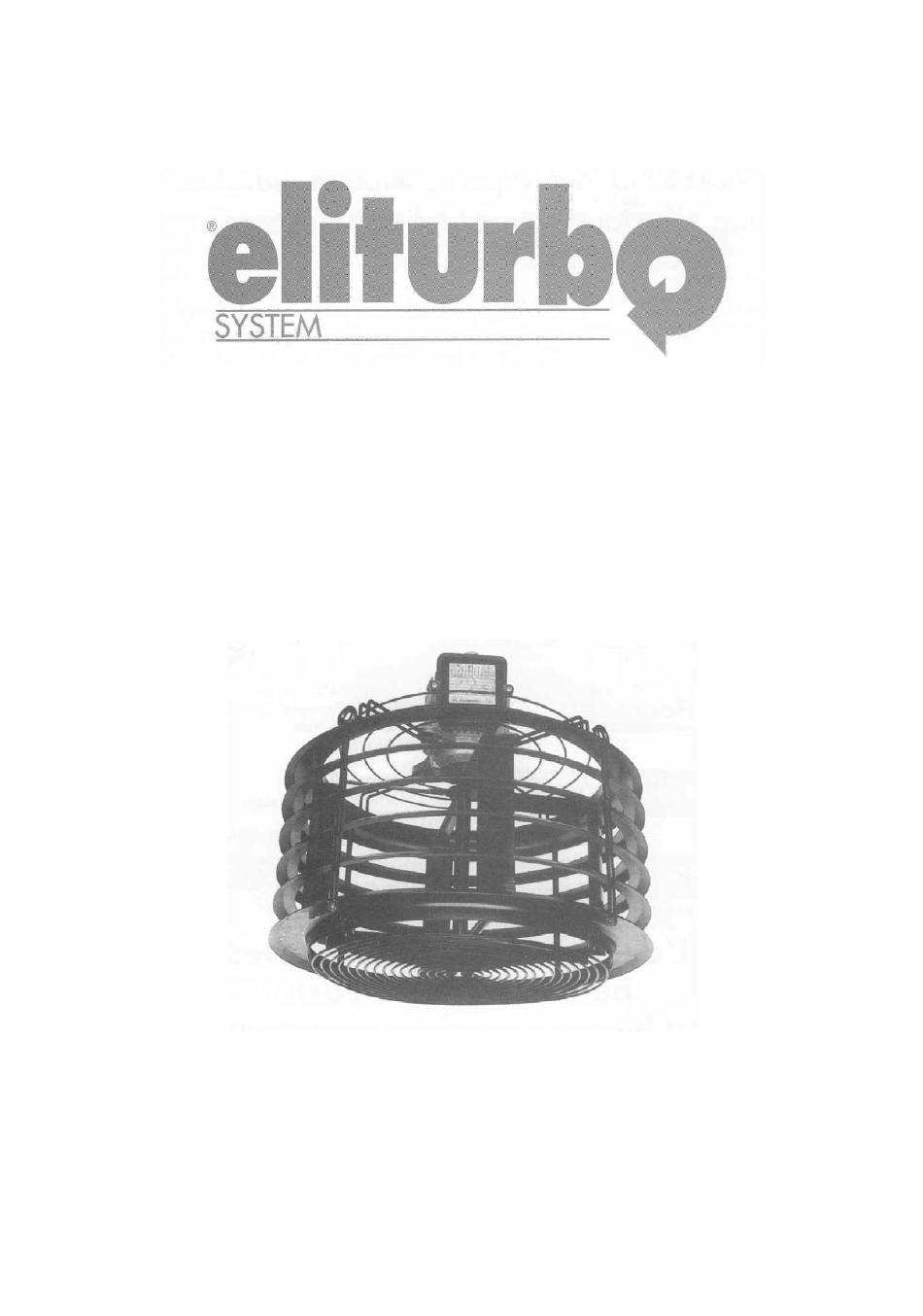

- Page 1 Distribuitor: CALOR SRL Str. Progresului nr. 30-40, sector 5, Bucuresti tel: 021.411.44.44, fax: 021.411.36.14 www.calorserv.ro - www.calor.ro Air Mixer User and maintenance guide...
-
Page 2: Table Of Contents
ELITURBO SYSTEM Section 0 – General information Index SECTION 0 – GENERAL INFORMATION ..................3 Information for the user ..........................4 SECTION 1 – TECHNICAL CHARACTERISTICS..............5 1.1 Identification data of the product......................5 ® 1.2 ELITURBO air mixer introduction ....................... 5 1.3 Technical characteristics.......................... -
Page 3: Section 0 - General Information
• In case of damage and consequent block of the product, Impresind Srl doesn’t refund eventual economical losses due to the forced block of the product and doesn’t extend the warranty. -
Page 4: Information For The User
In case of loss or damage of the guide a copy of it has to be requested immediately by contacting the Technical Assistance of Impresind Srl, keep handy the identification data of the system printed on the product’s data plate and on the cover of the guide. -
Page 5: Section 1 - Technical Characteristics
® Eliturbo uses a special helicentrifugal rotor patented by Impresind Srl that generates air mixing, it does not create currents that bother workers, it is manufactured in accordance with the security norms and the environment’s hygiene norms. -
Page 6: Technical Characteristics
ELITURBO SYSTEM Section 1 – Technical characteristics ® The Eliturbo air mixer creates a constant air exchange through the open windows and other openings, keeping an active ventilation of the environment. 1.3 Technical characteristics Eliturbo series E.L.C. 2000 2002 Engine type (Size) Absorbed power Frequency Tension... -
Page 7: Switchboards
During the use of the product do not touch the ventilator – Mechanical danger. 1.6 Switchboards The switchboards, eventually, supplied by Impresind Srl are realised in specification to the EN 60204/1 norms. ABSOLUTELY FORBIDDEN MODIFY... -
Page 8: Section 2 - Packing, Logistic And Transport
Impresind Srl. 2.2 Logistic and transport Pay high attention in handling the Eliturbo units during the phases of: ®... -
Page 9: Unpacking
ELITURBO SYSTEM Section 2 – Packing, logistic and transport 2.4 Unpacking ® Carry the Eliturbo units in the installation area. Free all the wrapped components from the packaging and collect everything to prevent the potential danger of fire and suffocation of people or animals. The discharge of the packaging material has to be done in specification to the norms in force in the destination Country of the Eliturbo ®... -
Page 10: Section 3 - Installation And Testing
ELITURBO SYSTEM Section 3 – Installation and testing SECTION 3 – INSTALLATION AND TESTING 3.1 General warnings for installation Before proceeding with the installation of the Eliturbo units, it is necessary to check if all the components have been unpacked and their integrity controlled. ®... - Page 11 ELITURBO SYSTEM Section 3 – Installation and testing To lift people the machinery has to be specifically certified and used by qualified personnel. The personnel that will be working at heights has to be previously trained, wear and use individual protection media to respect the legislation in force, safety shoes, gloves, protection helmet, harness, etc.
-
Page 12: Electric Network Connection
ELITURBO SYSTEM Section 3 – Installation and testing Ensure that the installation is done respecting a perfect horizontal plane. 3.3 Electric network connection The electric network connection has to be done by qualified personnel. All the components used for the connection have to be certified. Before operating on the power cables ensure that the network was severed. - Page 13 ELITURBO SYSTEM Section 3 – Installation and testing ® A safety motor switch has to be inserted between each Eliturbo air mixer and the electric network, it has to have a minimum distance between the contacts of at least 3mm for each pole, they have to be inserted in a position easily reachable by the user.
- Page 14 • the product does not have an excessive vibration due to the unbalance of the girante: in this case stop immediately the engine by cutting off the electric power that supplies the product and refer to the Technical Assistance of Impresind Srl • do not start the product if is shows any of the anomalies stated above...
-
Page 15: Section 4 -Protection Systems
SECTION 4 –PROTECTION SYSTEMS 4.1 Protection devices To comply with the dispositions of the Community Directives applicable to the unit that this guide is referred to, Impresind Srl has predisposed on the unit the security systems requested by the existing legislation. 4.2 Clothing As the product cannot be installed at normal working height and is not reachable by the users during normal activities, there is not any particular clothing prescription for the personnel. -
Page 16: Section 5 -Product Use
• switch off the system; • sever the electric supply; • contact the Technical Assistance of Impresind Srl, the installer or a qualified technician. 5.5 Signs applied on the product Electric organs with voltage ⇒ indicates danger due to electric parts with voltage Mechanical organs ⇒... -
Page 17: Section 6 - Maintenance
Maintenance personnel have to be qualified. Before applying any maintenance operation, carefully read this section of the guide. For any necessity contact the Technical Assistance of Impresind Srl. Impresind Srl declines any responsibility for any damage or dysfunction if due to lack of application of the indications in this section of the guide Maintenance personnel doesn’t have to wear clothes with large sleeves, laces or belts that could... -
Page 18: Technical Assistance Requests
ELITURBO SYSTEM Section 6 – Maintenance IT IS FORBIDDEN TO: • DEPOSIT COMBUSTION MATERIALS NEAR SWITCHBOARDS • OPERATE ON THE ELECTRIC PARTS WITHOUT HAVING PREVIOUSLY SELECTED THE ELECTRIC SUPPLY LINE • OPERATE ON ANY PART OF THE UNIT WITHOUT HAVING SWITCHED OFF THE SYSTEM •... -
Page 19: Section 7 - Dismantling
ELITURBO SYSTEM Section 7 – Dismantling SECTION 7 – DISMANTLING 7.1 Dismantling The dismantling of the system has to be done by specialised personnel with correct instruments and personal protection devices. Do not smoke and not use free flames In case of dismantling or alienation of the system, it is necessary to recover all the materials and send them to the respective collection centres, possibly referring to specialised companies.
