Absco 45232WK Assembly & Instruction Manual

Workshop shed
Hide thumbs

Advertisement

Quick Links

Download this manual
FRONT: 4.48m
We thank you for choosing an Australian made
shed. For further assistance please visit our detailed
instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
of our instructions. Feedback makes us better.
feedback@absco.com.au
ABSCO INDUSTRIES
Workshop Shed Model: 45232WK
SIDE:

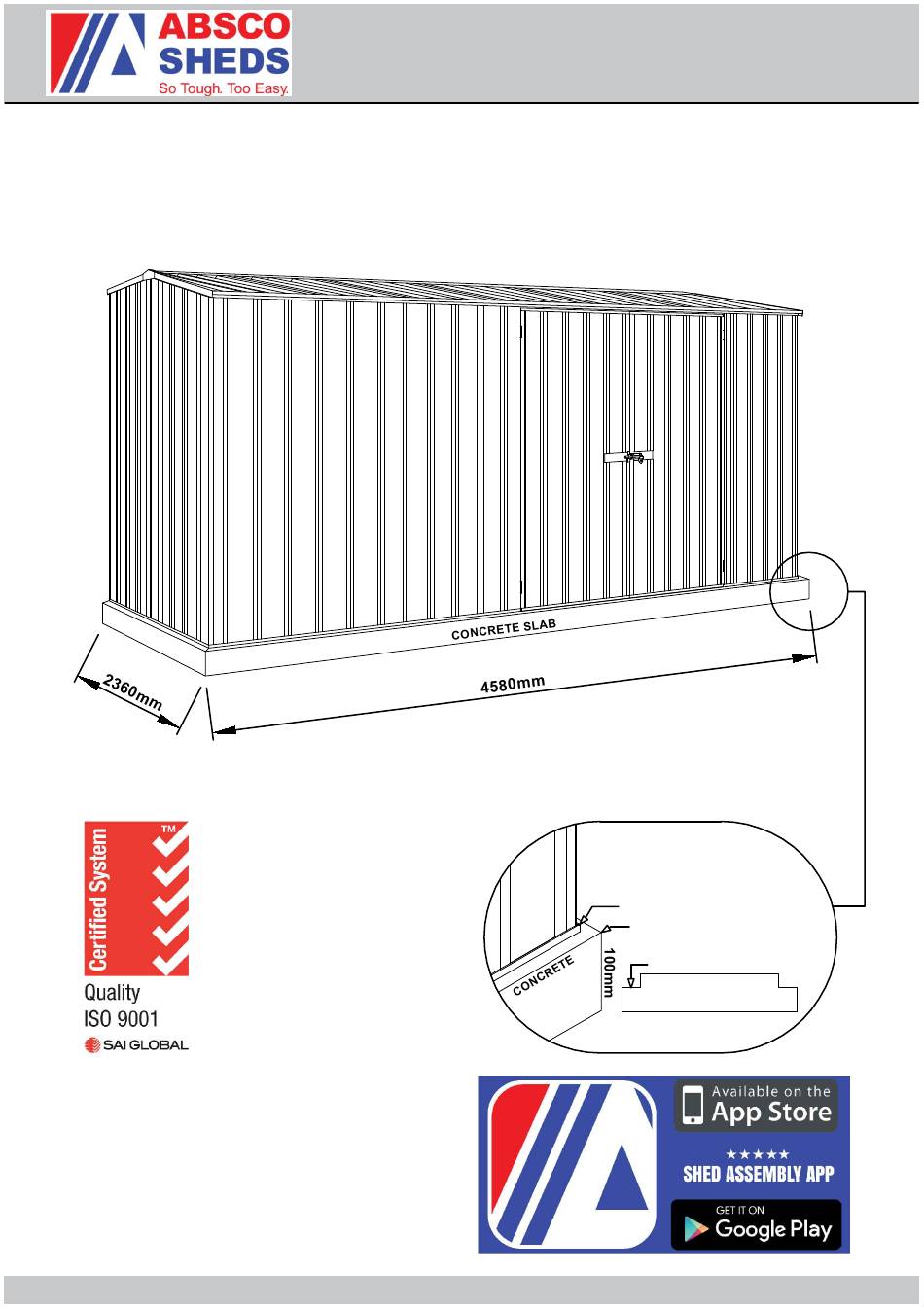

WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
ASSEMBLY INSTRUCTION MANUAL
Absco Industries
2.26m
HEIGHT: 2.00m
BOTTOM CHANNEL
SHED MODEL: 45232WK
REBATED EDGE
75mm WIDE REBATE
CONCRETE SLAB
07-11-2017
PAGE 01

Advertisement

loading
Need help?

Need help?

Do you have a question about the 45232WK and is the answer not in the manual?

Questions and answers

Related Manuals for Absco 45232WK

Summary of Contents for Absco 45232WK

  • Page 1 For further assistance please visit our detailed instructional video library at Http://www.abscosheds.com.au/watch-videos At ABSCO Industries we are always looking to be number ONE, so please let us know what you think of our instructions. Feedback makes us better. feedback@absco.com.au...
  • Page 2 Absco Industries Workshop Shed Model: 45232WK GENERAL INSTRUCTIONS · Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. · Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on pages three and four.

  • Page 3: Component Description

    Absco Industries Workshop Shed Model: 45232WK COMPONENTS PACKING LIST - CHECK OFF ALL COMPONENTS MAIN PACK CARTON (PACK 1 OF 2) COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION RIDGE STEEL SHEET 97AL BEAM 1915mm X 773mm L = 1521mm...
  • Page 4 Absco Industries Workshop Shed Model: 45232WK COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS FITTINGS & ACCESSORIES PACKET CONTENTS DOOR STRAP CHANNEL JOINER L: 165mm L= 200mm (7.9") CAP GABLE RIDGE L: 170mm PLATES RIDGE CAP PSTKSGL JOINER SINGLE DOOR FITTINGS PACK...
  • Page 5 Absco Industries Workshop Shed Model: 45232WK COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS MAIN PACK CARTON (PACK 2 OF 2) COMPONENT PART COMPONENT PART CHECK CHECK CHECK DESCRIPTION DESCRIPTION STEEL SHEET STEEL SHEET 1785mm X 773mm 1915mm X 773mm...
  • Page 6 Absco Industries Workshop Shed Model: 45232WK COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS 45232WCP CHANNEL PACK COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION 55AL 55AR CHANNEL CHANNEL L = 1496.5mm L = 1463.5mm 55BL 55BR CHANNEL CHANNEL L = 1496.5mm...
  • Page 7 Absco Industries Workshop Shed Model: 45232WK COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS 45232WCP CHANNEL PACK (CONT.) COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION CHANNEL CHANNEL WITH HINGES L = 1143mm L = 1725mm CHANNEL CHANNEL L = 1725mm...
  • Page 8 Absco Industries Workshop Shed Model: 45232WK INSTRUCTIONS FOR JOINING SPLICED CHANNELS NOTE: THE TEXT MARKED ON ALL PARTS MUST BE SHOWN ON THE SAME SIDE AS EACH OTHER. JOIN>> JOIN>> JOIN>> <<JOIN STEP 1. STEP 2. Position the channels and the CSJ...
  • Page 9 Absco Industries Workshop Shed Model: 45232WK STEP 1. PRE-ASSEMBLY OF SPLICED CHANNELS NOTE: JOIN TOGETHER 20 X CHANNEL SECTIONS USING 10 X CHANNEL JOINERS (PART CSJ) NOTE: SOME CHANNELS HAVE 2 x 81A HOLES IN THEM - YOU WILL NEED...
  • Page 10 Absco Industries Workshop Shed Model: 45232WK INSTRUCTIONS FOR JOINING SPLICED RIDGE BEAM STAGE 1: PUSH RIDGE BEAMS TOGETHER, MAKE SURE THERE IS A 50mm OVERLAP OF THE RIDGE CAP STAGE 2: INSERT RIDGE CAP JOINER INTO CONNECTED RIDGE CAPS. MAKE SURE JOINER HAS 225mm IN EACH RIDGE CAP.
  • Page 11 Absco Industries Workshop Shed Model: 45232WK STEP 2. PRE-ASSEMBLY OF SPLICED RIDGE BEAM QTY. = 1 PHILLIPS DRIVER BIT QTY. = 8 SELF DRILLING TEK SCREW RIDGE BEAM 1521mm QTY. = 2 PARTS 97AL & 97AR QTY. = 1 PART ZARSP - 450mm LONG...
  • Page 12 Absco Industries Workshop Shed Model: 45232WK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 45232WK 07-11-2017 PAGE 12...
  • Page 13 Absco Industries Workshop Shed Model: 45232WK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 45232WK 07-11-2017 PAGE 13...
  • Page 14 Absco Industries Workshop Shed Model: 45232WK ABSCO ASSEMBLY INTRODUCTION The snaptite assembly system locks most perimeter channels to all roof and wall sheets without the need for tools and fasteners. To pre-assemble the four wall panels and two roof panels, the perimeter...
  • Page 15 Absco Industries Workshop Shed Model: 45232WK DOOR PANEL ASSEMBLY DOOR PANEL ASSEMBLY ALL VERTICAL DOOR CHANNELS ARE INSTALLED IN THE REVERSE DIRECTION IN COMPARISON TO HORIZONTAL DOOR CHANNELS 20mm FLANGE 15mm FLANGE FOUR HOLE SET FOR PADBOLT CONNECTION ABSCO INDUSTRIES...

  • Page 16: Rear Panel Assembly

    Absco Industries Workshop Shed Model: 45232WK SMALL PANEL LARGE PANEL REAR PANEL ASSEMBLY (1 Required) (1 Required) ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 45232WK 07-11-2017 PAGE 16...

  • Page 17: Side Panel Assembly

    Absco Industries Workshop Shed Model: 45232WK SIDE PANEL ASSEMBLY (2 Required) ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 45232WK 07-11-2017 PAGE 17...
  • Page 18 Absco Industries Workshop Shed Model: 45232WK LARGE ROOF PANEL ASSEMBLY (2 Required) NOTE: ONE ROOF PANEL WILL HAVE PART (86A) FITTED TO THIS END ONLY. 2/PRE-PUNCHED HOLES TO THIS END OF EACH SHEET WITH PART NOTE: ONE ROOF No. 81A FITTED...
  • Page 19 Absco Industries Workshop Shed Model: 45232WK SMALL ROOF PANEL ASSEMBLY (2 Required) NOTE: ONE ROOF PANEL WILL HAVE PART (86A) FITTED TO THIS END ONLY. NOTE: ONE ROOF PANEL WILL HAVE 2/PRE-PUNCHED PART (86A) FITTED HOLES TO THIS TO THIS END ONLY.
  • Page 20 Absco Industries Workshop Shed Model: 45232WK FRONT DOOR PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 45232WK 07-11-2017 PAGE 20...

  • Page 21: Front Panel Assembly

    Absco Industries Workshop Shed Model: 45232WK FRONT PANEL ASSEMBLY (1 Required) ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 45232WK 07-11-2017 PAGE 21...

  • Page 22: Door Panel Assembly

    Absco Industries Workshop Shed Model: 45232WK DOOR PANEL ASSEMBLY NOTE: Nuts and bolts (supplied) may be used instead of pop rivets (supplied) by simply enlarging the hinge hole sets in the jamb using a 4mm drill bit NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for proper alignment.
  • Page 23 Absco Industries Workshop Shed Model: 45232WK JOINING RIDGE BEAMS DO NOT CUT OFF THE PROTRUDING SECTION AT EACH END OF THE FULL LENGTH RIDGE BEAM USING A HACKSAW, REMOVE THE PROTRUDING SECTION OF EACH RIDGE BEAM. THIS WILL ALLOW THE TWO SECTIONS TO BUTT UP NEATLY TO EACH OTHER.
  • Page 24 Absco Industries Workshop Shed Model: 45232WK REFER TO PAGE 4 FOR MID-FRAME MID-FRAME DETAILS PARTS AND ACCESSORIES PART C1106 PART C1704 80mm FRAME ASSEMBLY AN EASY WAY TO ENSURE THAT THE ANGLE AT THE TOP OF THE MID-FRAME IS CORRECT IS TO USE THE GABLE WALL PANEL AS A TEMPLATE TO LAY THE SECTIONS OUT.
  • Page 25 Absco Industries Workshop Shed Model: 45232WK MID-FRAME ASSEMBLY x 19 SECURE RIDGE x 24 PLATES TO APEX PLATES 1550 3030 SLAB CENTRE LINE SLAB SIZE: 4580 x 2360 (REFER: PANEL CONSTRUCTION) 45mm TEK SCREW WALL PANEL 2 WALL PANEL 1...
  • Page 26 Absco Industries Workshop Shed Model: 45232WK PANEL CONSTRUCTION NOTE: TAKE CARE TO ENSURE THAT BOTH FRONT AND REAR WALL PANELS ARE NOT POSITIONED UPSIDE DOWN. THE TOP CHANNEL OF EACH PANEL IS PRE-PUNCHED FOR ATTACHING ROOF SHEETS, THE BOTTOM CHANNELS ARE NOT.
  • Page 27 Absco Industries Workshop Shed Model: 45232WK ROOF CONSTRUCTION SECURE EACH RIDGE BEAM TO EACH RIDGE PLATE WITH 4 X 16mm SELF DRILLING TEK SCREWS. INSIDE VIEW OF FIXING SECURE PEAK BRACE MOVE THE OTHER ROOF PANEL TO RIDGE BEAM AND...
  • Page 28 Absco Industries Workshop Shed Model: 45232WK FINAL CONSTRUCTION BEND THE TOP AND BOTTOM FLANGES AS SHOWN, THEN HOOK THE BOTTOM FLANGES UNDER THE TOP CHANNEL AND SCREW THE TOP FLANGES FOR BOTH AS SHOWN GABLE CAPS ANCHORING OF SHED LOCATION OF 16...
  • Page 29 Absco Industries Workshop Shed Model: 45232WK ABSCO CENTRE MID-FRAME ASSEMBLY ASSEMBLY SUPPORT PHOTOGRAPHS STEP 1A, B, C: Draw pattern on concrete, in accordance with the dimensions detailed in the assembly instruction. STEP 2A, B, C: Understand where components are to be...
  • Page 30 Absco Industries Workshop Shed Model: 45232WK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 45232WK 07-11-2017 PAGE 30...
  • Page 31 Absco Industries Workshop Shed Model: 45232WK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 45232WK 07-11-2017 PAGE 31...
  • Page 32 Absco Industries Workshop Shed Model: 45232WK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 45232WK 07-11-2017 PAGE 32...
  • Page 33 Absco Industries Workshop Shed Model: 45232WK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 45232WK 07-11-2017 PAGE 33...
  • Page 34 Absco Industries Workshop Shed Model: 45232WK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 45232WK 07-11-2017 PAGE 34...
  • Page 35 Absco Industries Workshop Shed Model: 45232WK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 45232WK 07-11-2017 PAGE 35...
  • Page 36 Absco Industries Workshop Shed Model: 45232WK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 45232WK 07-11-2017 PAGE 36...
  • Page 37 This warranty covers any Absco product used for normal domestic use and installed in accordance with the installation instructions. The warranty does NOT cover Damage caused by storms, wind, rain snow or poor foundations.
  • Page 38 ABSCO SHEDS include garden sheds, garden beds, storage units, aviaries, garages, awnings and carports. ABSCO SHEDS are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fixings etc., may exhibit minor deformations which may allow some water entry.
