AVT Ninja 650 NI Install Manual

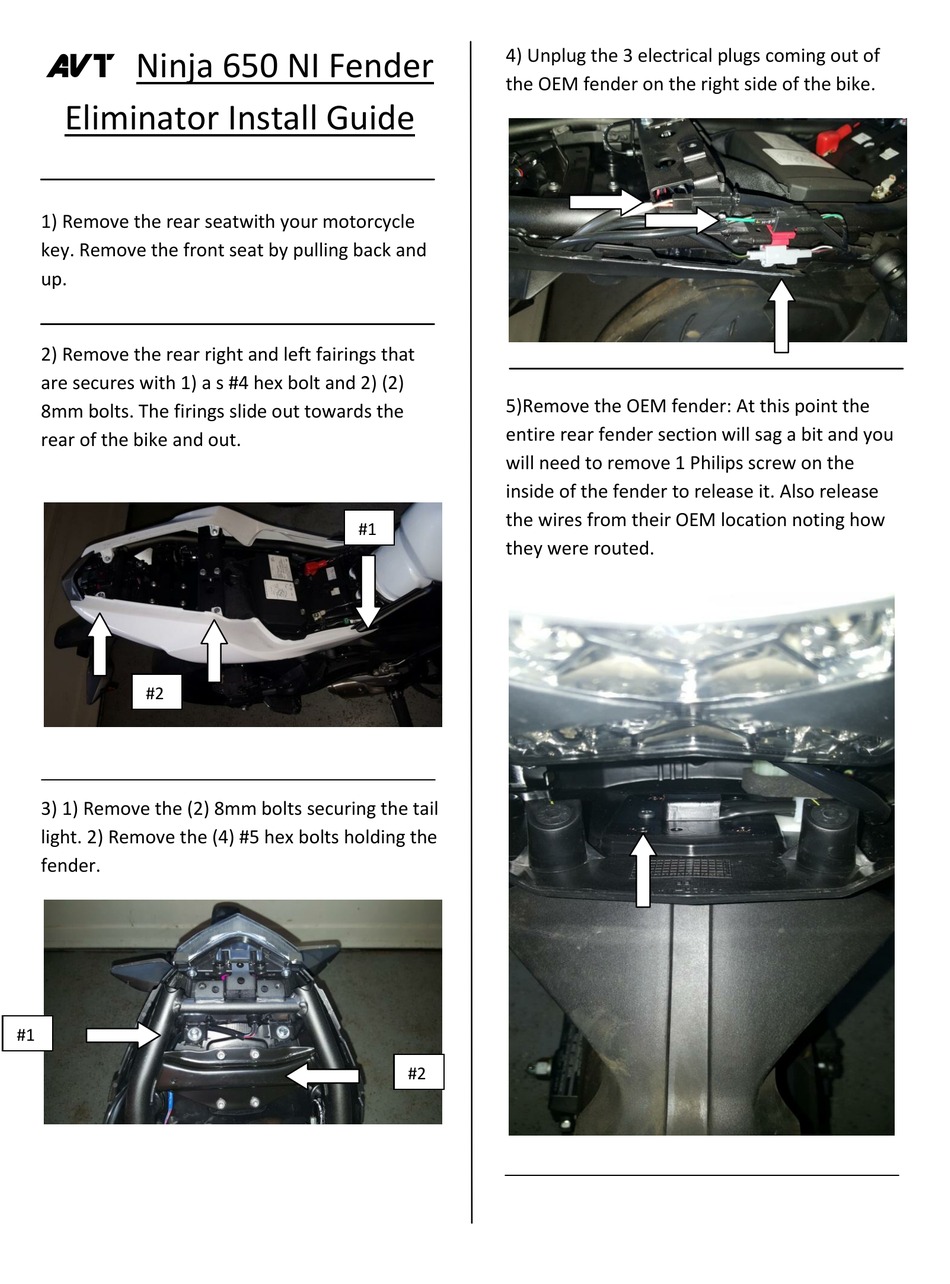

AVT Ninja 650 NI Fender
Eliminator Install Guide
1) Remove the rear seatwith your motorcycle
key. Remove the front seat by pulling back and
up.
2) Remove the rear right and left fairings that
are secures with 1) a s #4 hex bolt and 2) (2)
8mm bolts. The firings slide out towards the
rear of the bike and out.
#2
3) 1) Remove the (2) 8mm bolts securing the tail
light. 2) Remove the (4) #5 hex bolts holding the
fender.
#1
4) Unplug the 3 electrical plugs coming out of
the OEM fender on the right side of the bike.
5)Remove the OEM fender: At this point the
entire rear fender section will sag a bit and you
will need to remove 1 Philips screw on the
inside of the fender to release it. Also release
the wires from their OEM location noting how
#1
they were routed.
#2
