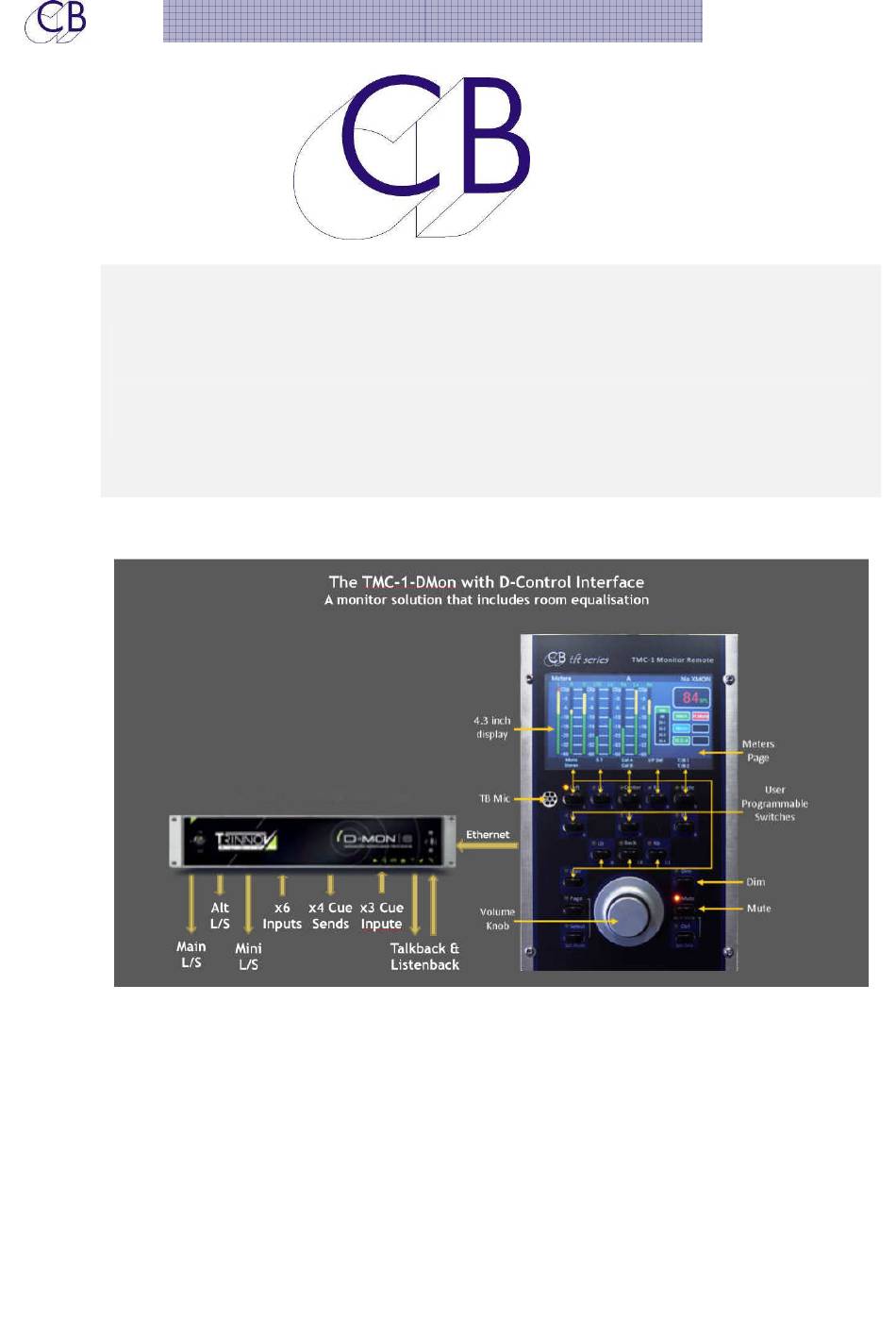

TMC1-DMon Monitor Controller
CB Electronics
TMC-1-DMon Monitor Remote
Use with the TMC-1Reference
Version 1.0
© 2016 CB Electronics
1
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMC-1-DMon and is the answer not in the manual?

Questions and answers

Related Manuals for CB ELECTRONICS TMC-1-DMon

Summary of Contents for CB ELECTRONICS TMC-1-DMon

  • Page 1 TMC1-DMon Monitor Controller CB Electronics TMC-1-DMon Monitor Remote Use with the TMC-1Reference Version 1.0 © 2016 CB Electronics Version 1.0...

  • Page 2: Table Of Contents

    TMC1-DMon Monitor Controller s ............................2 n ........................... 4 TMC-1-DMon User guide....................... 4 Ethernet Connection ........................4 Setting the TMC-1 IP Address from the TMC-1-win/mac program..........5 D-Mon Inputs..........................6 D-Mon Dim ..........................6 D-Mon 4.1 Implementation ......................7 D-Mon E-Net Pages ........................9 Discovery............................
  • Page 3 Trinnov Main Page........................16 Trinnov Studio Setup Page ...................... 17 Trinnov Session Configure......................17 n ..........................18 : ............................. 20 e ......................... 21 Installing the D-Mon Option....................21 g ........................22 s ..........................23 © 2016 CB Electronics Version 1.0...

  • Page 4: T R I N N O V D - M O N

    TMC1-DMon Monitor Controller TMC-1-DMon User guide This document only describes the Ethernet connections of the TMC-1 and any differences in operation. Please refer to the TMC-1 Reference which is available from the TMC-1-DMon Web Page. http://www.colinbroad.com/cbsoft/tmc1/tmc1dmon.html Ethernet Connection The TMC-1 communicates to the D-Mon via Ethernet, when connected to the network it will discover any connected D-Mon’s and display them.

  • Page 5: Setting The Tmc-1 Ip Address From The Tmc-1-Win/Mac Program

    TMC1-DMon Monitor Controller Setting the TMC-1 IP Address from the TMC-1-win/mac program © 2016 CB Electronics Version 1.0...

  • Page 6: D-Mon Inputs

    D-Mon Dim The TMC-1 reads the D-Mon “Auto-Dim on Talkback” Option and determines the Dim as follows If Set: the fixed 20dB D-Mon Dim is used If not Set: the programmable TMC-1 Dim is used © 2016 CB Electronics Version 1.0...

  • Page 7: D-Mon 4.1 Implementation

    TMC1-DMon Monitor Controller D-Mon 4.1 Implementation The TMC-1-DMon and D-Mon are both new, not everything is implemented at this time, currently the TMC-1 can control anything that is available on the D-Mon Web interface. Function Details Connection/Notes Metering metering is available from the D-Mon 4.1.2...
  • Page 8 Mono, Stereo, 5.1 implemented as user keys on TMC-1 Individual Speaker Trims Disabled in TMC-1, Included in D-Mon Speaker correction Input Trims Implement by changing main output gain Listen back 2 input Not implemented in D-Mon © 2016 CB Electronics Version 1.0...

  • Page 9: D-Mon E-Net Pages

    Used to debug systems, You can change the socket number using the [+] or [-] keys. Socket 00 = Discovery and setup Socket 01 = D-Mon Control Socket 02 - Meters Other D-Mon Pages © 2016 CB Electronics Version 1.0...

  • Page 10: Cue Sends Page

    Use the [More] key toswitch between Session Snapshots and Studio presets Phones Source Page Access using the [Ph Source] key Two pages with a [More]/[Less] key to select between the pages (Todo: Display the names from D-mon) © 2016 CB Electronics Version 1.0...
  • Page 11 TMC1-DMon Monitor Controller © 2016 CB Electronics Version 1.0...

  • Page 12: H D 1 5 C O N N E C T O R ( X M O N )

    TMC1-DMon Monitor Controller The XMon connector is available on the TMC-1-DMon for the following Talkback Microphone and Headphone The TMC-1 provides an analogue Talkback Microphone with preamp and Headphone connection which are connected to the HD15 connector. To use connect to Analogue Inputs and outputs on the D-Mon.

  • Page 13: Connecting To A Icon Console (D-Control Or D-Command)

    TMC1-DMon Monitor Controller Connecting to a Icon Console (D-Control or D-Command) The D-Control or D-Command monitor control may be used to control the TMC-1-DMon using a special cable. The Icon monitor control panel has no tally back from the XMon so...

  • Page 14: Hd 15 Connector Fitted To Tmc-1 Units

    Midi In - Check Connected in Cable Midi In + Check Connected in Cable RS422 Rx + Normally Connected in Cable RS422 Tx + Normally Connected in Cable Midi Out + Check Connected in Cable © 2016 CB Electronics Version 1.0...

  • Page 15: 15 Pin "Xmon" Headphone And Microphone Connections

    Avid Doc incorrect 14 Input Headphone Right Avid Doc incorrect Ground 15 Output Internal Talkback Mic+ Output Internal Talkback Mic- Link J13 between pins 2 and 3 Mic Ground Link J13 between pins 1 and 2 © 2016 CB Electronics Version 1.0...

  • Page 16: D - M O N

    TMC-1 will read the names from the D-Mon. The following two images show how the D-Mon is configured. Not all inputs and outputs have to be connected. Using this layout will allow the TMC-1 to operate correctly. © 2016 CB Electronics Version 1.0...

  • Page 17: Trinnov Studio Setup Page

    TMC1-DMon Monitor Controller Trinnov Studio Setup Page Trinnov Session Configure © 2016 CB Electronics Version 1.0...
  • Page 18 TMC1-DMon Monitor Controller Trinnov Session Routing The [BassX] user switch will enable/disable the Bass Extension settings on the D-Mon The [LFE+10] user switch will enable/disable the LFE +10 setting on the D-Mon © 2016 CB Electronics Version 1.0...
  • Page 19 TMC-1. If not then the TMC-1 will use its Dim Setting to adjust the gain of the D-Mon. The source selection only controlled on the TMC-1cues page, this will overide ny selection on the Trinnov GUI. Link © 2016 CB Electronics Version 1.0...

  • Page 20: C A S E S T U D Y

    When Linkis activated on the TMC-1 cues page the monitor source (input) will be routed to the Cue output, this is updated when you select a new input. The Levels are not controlled by the TMC-1. © 2016 CB Electronics Version 1.0...

  • Page 21: T M C - 1 S O F T W A R E U P D A T E

    TMC-1-DMon or TMC-1-XMon web page. http://www.colinbroad.com/cbsoft/tmc1/tmc1DMon.html Note. When upgrading from TMC-1-Xmon to TMC-1-DMon an upgrade key must be purchased and the D-Mon Option enabled before the D-Mon software is installed. If you install without enabling the D-Mon Option the TMC-1 will jump directly to the software Installation page.

  • Page 22: T M C - 1 F A U L T F I N D I N G

    The talkback routing must be specified in the TMC-1 cue sends page which will override any settings on the D-Mon Web Page Input Selection Not Working Check that L/B is Not enabled Unexpected L/B, talkback, SLS or Monitor Check Auto-Mute Enable/mute © 2016 CB Electronics Version 1.0...

  • Page 23: Cb Electronics

    TMC1-DMon Monitor Controller CB Electronics has made every effort to ensure the accuracy of information contained within this document, which is nevertheless supplied for information purposes only and does not constitute any form of warranty or guarantee. All trademarks acknowledged.
