CB ELECTRONICS TMC-1 Setup Manual

Connecting with yamaha mmp1
Hide thumbs Also See for TMC-1:
Table of Contents

Advertisement

Quick Links

Download this manual
MMP1 to TMC-1
Setup Guide
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMC-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CB ELECTRONICS TMC-1

Summary of Contents for CB ELECTRONICS TMC-1

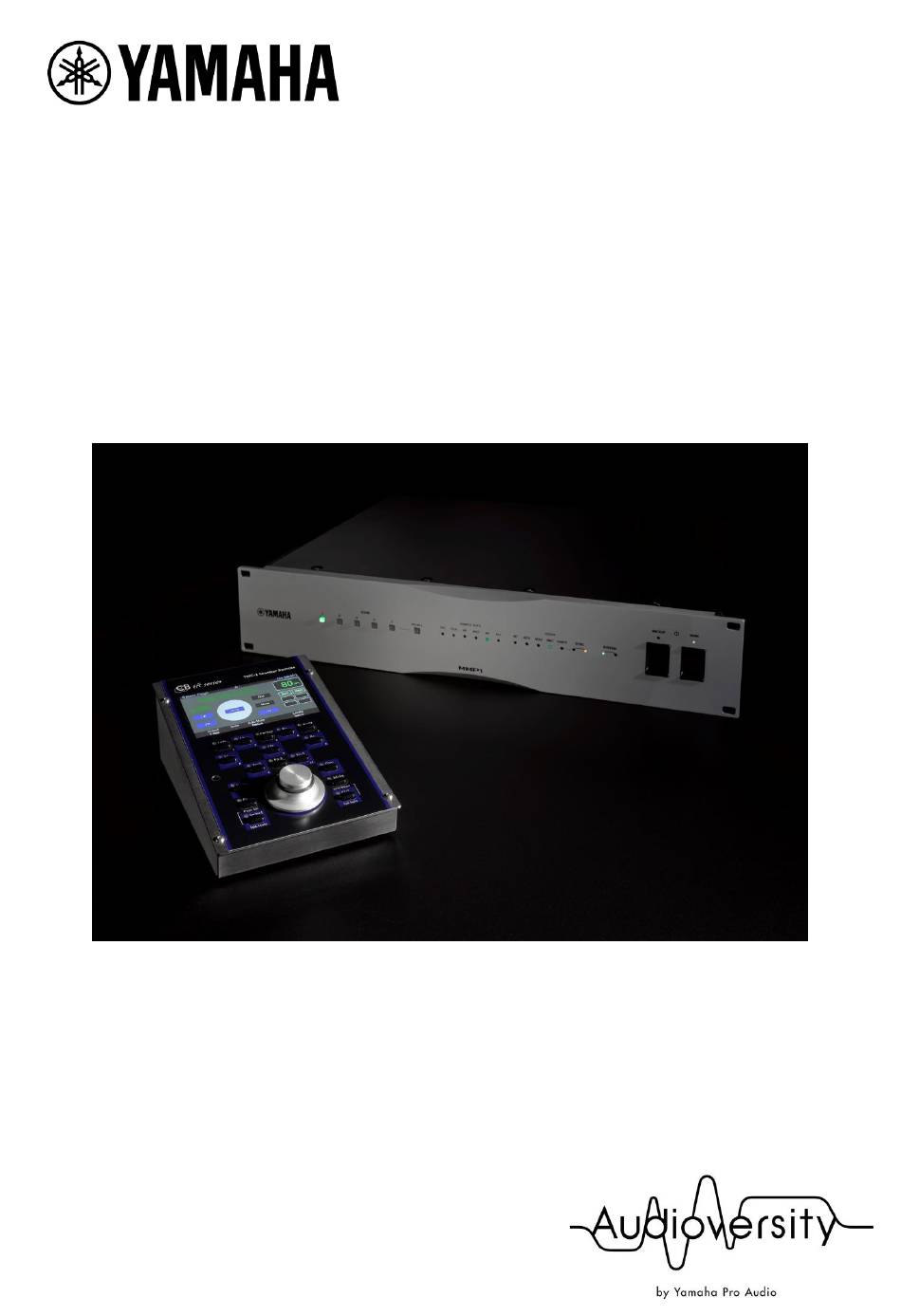

  • Page 1 MMP1 to TMC-1 Setup Guide Version 1.0...

  • Page 2: Table Of Contents

    Precautions for a system with a Dante network ............ 10 Changing the TMC-1 Settings ................... 10 To connect TMC-1 to TMC-1 setup software............10 To assign a function to the User Keys ..............11 To set TMC-1 IP address..................12 To update TMC-1 Firmware and factory reset ............

  • Page 3: Introduction

    Introduction The TMC-1 is a monitor controller developed by CB Electronics. It allows remote control of the Yamaha MMP1 Studio Monitor Management System via Ethernet connection, allowing for level adjustments, mute on/off, and monitor source selection. This guide explains how to connect the MMP1 to the TMC-1 and set up the system.

  • Page 4: Part Names And Functions

    User Key at the bottom. User Keys ② Functions can be assigned to eight User Keys using the TMC-1 setup software. See "To assign a function to the User Keys" on page 11 for how to assign a function to the User Keys.
  • Page 5 When the Meters page is displayed, pressing this key switches between two User Key Banks that can be set for the TMC-1. You can change the User Key functions for each bank using the TMC-1 setup software. See "To assign a function to the User Keys" on page 11 for details.
  • Page 6 [Ctrl] key (Spk. Solo) ⑨ Pressing this key allows the User Keys to select “Speaker Solo”. Each press of this key switches the speaker solo bank between 00 and 01. A different function can be assigned to this key using theTMC-1 setup software. Monitor Level encoder ⑩...

  • Page 7: Connection

    Use a CAT5e or higher Ethernet cable for the connection. Connect the TMC-1 to the computer via the USB ports. This connection is required only for setting up the TMC-1. After the setup is finished, you do not have to connect them via a USB cable.

  • Page 8: Setting Up The System

    To connect TMC-1 to MMP1 If you want to connect the TMC-1 to the MMP1 using IP addresses other than Auto IP, see "To set IP addresses" on page 9 to set the IP addresses according to your system before connecting them.

  • Page 9: To Set Ip Addresses

    2 “Select” on the Discovery page will set a network address that has the same subnet as the MMP1. Press the [Page] key to display the Meters page. When the TMC-1 is connected to the MMP1, the text "No MMP1" at the top right corner of the display changes to "TMC-1+MMP1". To set IP addresses The TMC-1 can be connected to a MMP1 using IP addresses obtained by either of the following three methods: AUTO (link-local address), DHCP, and static IP.

  • Page 10: Precautions For A System With A Dante Network

    TMC-1 IP address The TMC-1 IP address can be set using the TMC-1 setup software. For details, see "To set TMC-1 IP address" on page 12. After assigning the IP address, check the IP address on the Discovery page. Precautions for a system with a Dante network Since the TMC-1 has a Fast Ethernet port, turn on the IGMP snooping and querier settings of the network switch in a system that runs together with a Dante network.

  • Page 11: To Assign A Function To The User Keys

    You can change the functions assigned to the User Keys in the [User Key] tab. Select a function to be assigned to each User Key from the pull-down menus. The TMC-1 has two banks for the User Keys and you can switch the bank between 1 and 2 in the [User Key] tab.

  • Page 12: To Set Tmc-1 Ip Address

    If you click the [Read] button, the current IP address will be shown. To update TMC-1 Firmware and factory reset You can update the TMC-1 firmware and reset it to the default settings using MidiUpd software. For details about MidiUpd, see the MidiUpd guide.

  • Page 13: User Key List (Version 19612)

    User Key List (Version 19612) User Key Description functions Turns on or off "SUM" (Monitor Source Summing). Turns on or off SOLO for a specified main monitor. (If used with the Spk Solo MUTE function, the MUTE function will be prioritized.) Spk Mute Mutes or unmutes a specified main monitor.
