Access Lighting 20347 Installation Instructions

CERTIFICATION: CETL WET
INSTALLATION INSTRUCTIONS
IMPORTANT
Before assembling your access lighting fixture, please make sure that
you carefully read through these instruction sheets. Consider having
your fixture installed by a qualified licensed electrician.
NOTE: The important safeguards and instructions that appear in this
manual are not meant to cover all possible conditions and situations
that may occur. It must be understood that common sense, caution and
care, are factors that can't be built into any product. These factors must
be supplied by the person(s) caring for and operating the fixture.
GENERAL INFORMATION
All electrical connections must be in accordance with all ordinances,
Local and National Electrical Codes. These fixtures are intended for
mounting to a standard 4" x 2 1/2"metal octagon outlet box. The box
must be directly supported by the building structure and U.L. Recognized.
STEP BY STEP INSTRUCTIONS
Before starting your installation disconnect the Power by turning off the
Circuit Breaker or by removing the fuse at the fuse box. Just turning the
light off at the light switch is not sufficient to prevent electrical shock.
COLLECTION
WHAT WE PROVIDE
•
Back Plate
•
Mounting Hardware
•
Gasket
•
1 x Crossbar
•
1 x Glass diffuser
•
1 x Front Cover
•
2 x 24W T5 HO Tubes
1

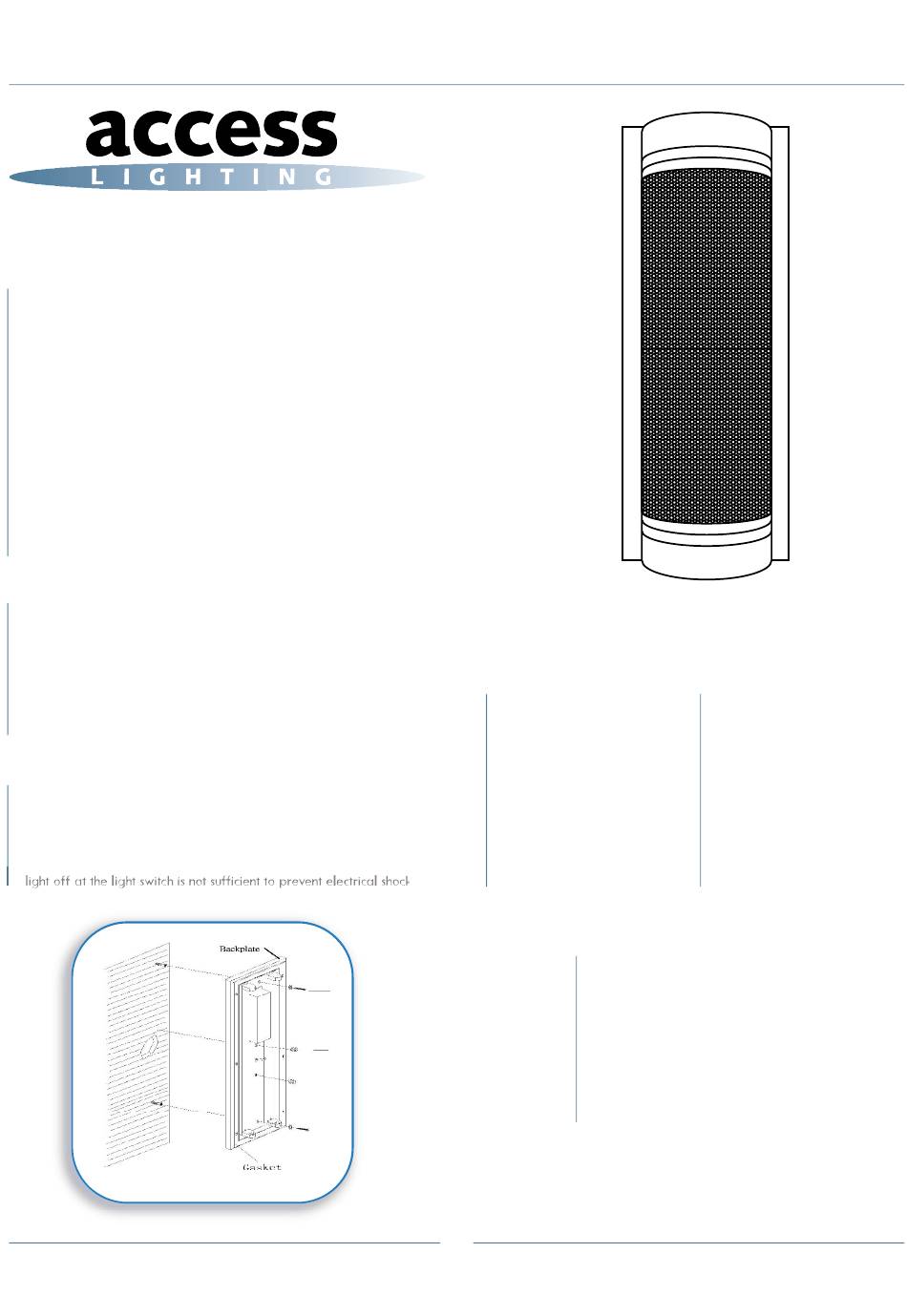

MARK BACK PLATE LOCATION
Determine the desired location of your fixture. Hold
the back plate up to the surface and mark with a pencil
the location of the mounting plugs (small hole on
the up and down side of the back plate). Drill
a hole and insert the mounting plugs into the mounting
surface.
1
APPLICATION MODEL NO.
Wall Fixture
WHAT YOU NEED
•
Screwdriver
•
Wire Cutters
•
Wiring Supplies as Specified
by Electrical Code
NO. 20347
20347
