Double Glider Instructions (LYSC07)
Before assembly please refer to the parts list below to ensure all parts are correct.
Please retain for future use.
Warnings:
This product is not for commercial use
Keep children away during assembly. This item contains small parts which can be swallowed
by children.

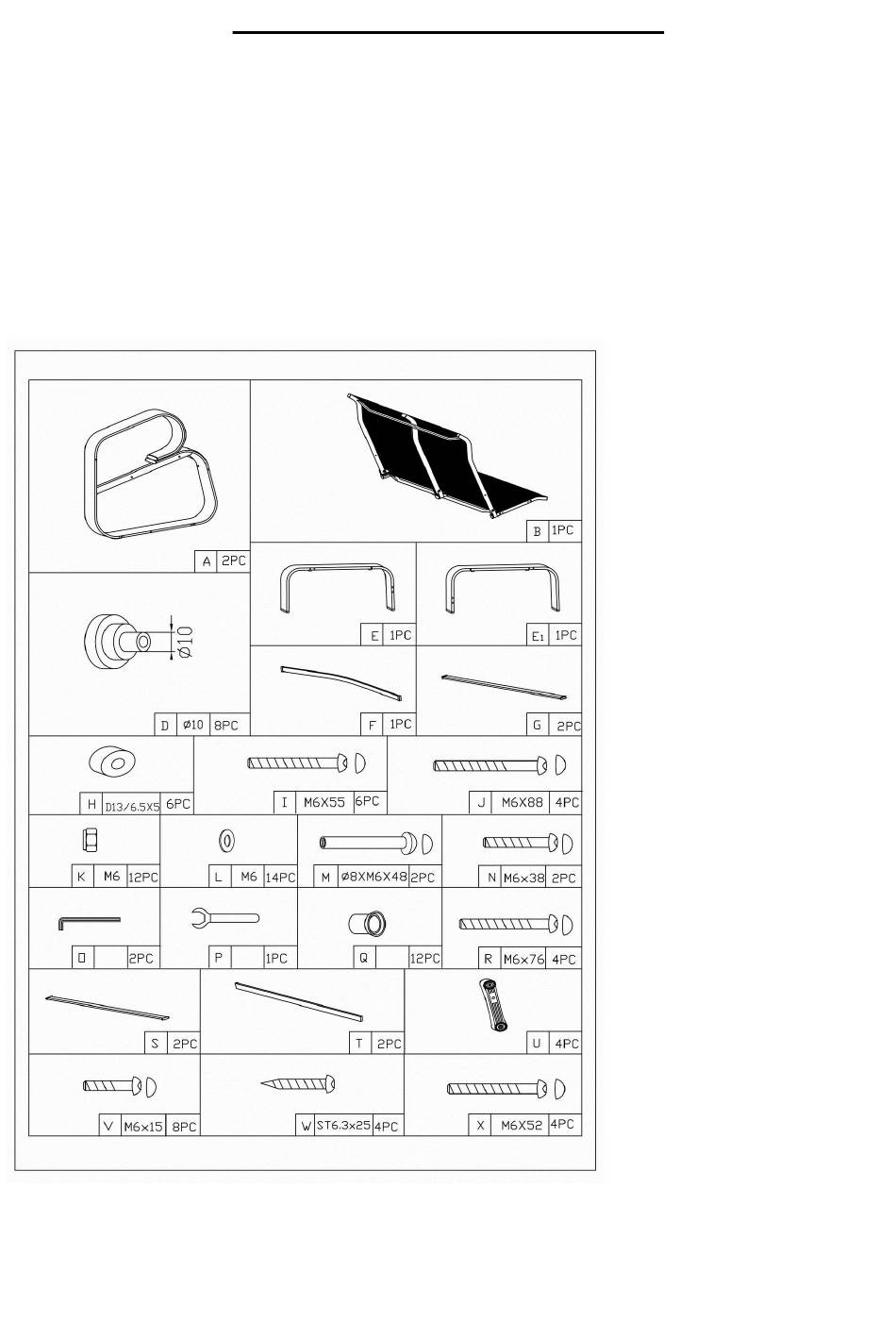

Parts List:
１
Advertisement
Related Manuals for Suntime LYSC07
Summary of Contents for Suntime LYSC07
- Page 1 Double Glider Instructions (LYSC07) Before assembly please refer to the parts list below to ensure all parts are correct. Please retain for future use. Warnings: This product is not for commercial use Keep children away during assembly. This item contains small parts which can be swallowed by children.
- Page 2 Assembly Guide: Attach parts S to parts E and E1 using bolts #V II) Attach parts T to part U, use screws W, repeat until 2 sections completed. Attach part D to part U III) Attach assembled parts to the base frame, use bolts R and add parts K and L These should now swing freely on the base frame.
- Page 3 V) Place seat onto the seat frame. VI) Attach seat frame using bolts X or N, refer to diagram, ensure the spacer washer H is between the seat and the arms. VII) Place frame legs over the centre bar of the seat. VIII)Connect seat frame to the sub frame by attaching to the swing arms.
- Page 4 Please note we stock the below spare parts should they be missing from your item on receipt. If the item has a major fault or fundamental flaw please return to the place of purchase, otherwise visit our website Suntime-spares.co.uk to order the parts. Part D...
