1:1 REDUNDANT
LINE AMPLIFIER
MODEL NUMBER SUPPLIED
RL1-095145
RL1-095175
RL1-095215
RL1-150180
RL1-200270
RL1-340420
Option 1: RF Input Monitor
Option 2: RF Output Monitor
Option 3: Input Level Control
Option 4: Output Level Control
Option 11A: +15 dBm output power at 1 dB compression
Option 11B: +20 dBm power at 1 dB compression
Option 16A: 40 dB minimum gain
Option 16B: 50 dB minimum gain
Option 17C: RS232 Remote Control
Option 17D: Contact Closure Remote Control
Option 17H: Ethernet Remote Control
Option: N Female RF Input/Output Connectors
SYSTEM
RL1-450480
RL1-572672
RL1-584643
RL1-640720
RL1-725840
RL1-107128
OPTIONS SUPPLIED
RL1-137148
RL1-177212
RL1-177220
RL1-275310
RL1-310330
1 0 0 D a v i d s D r i v e
H a u p p a u g e , N e w Yo r k 11 7 8 8 - 2 0 3 4
Te l : 6 3 1 4 3 6 7 4 0 0
F a x : 6 3 1 4 3 6 7 4 3 1
w w w. m i t e q . c o m
Advertisement
Table of Contents
Related Manuals for Miteq RL1-095145
Summary of Contents for Miteq RL1-095145

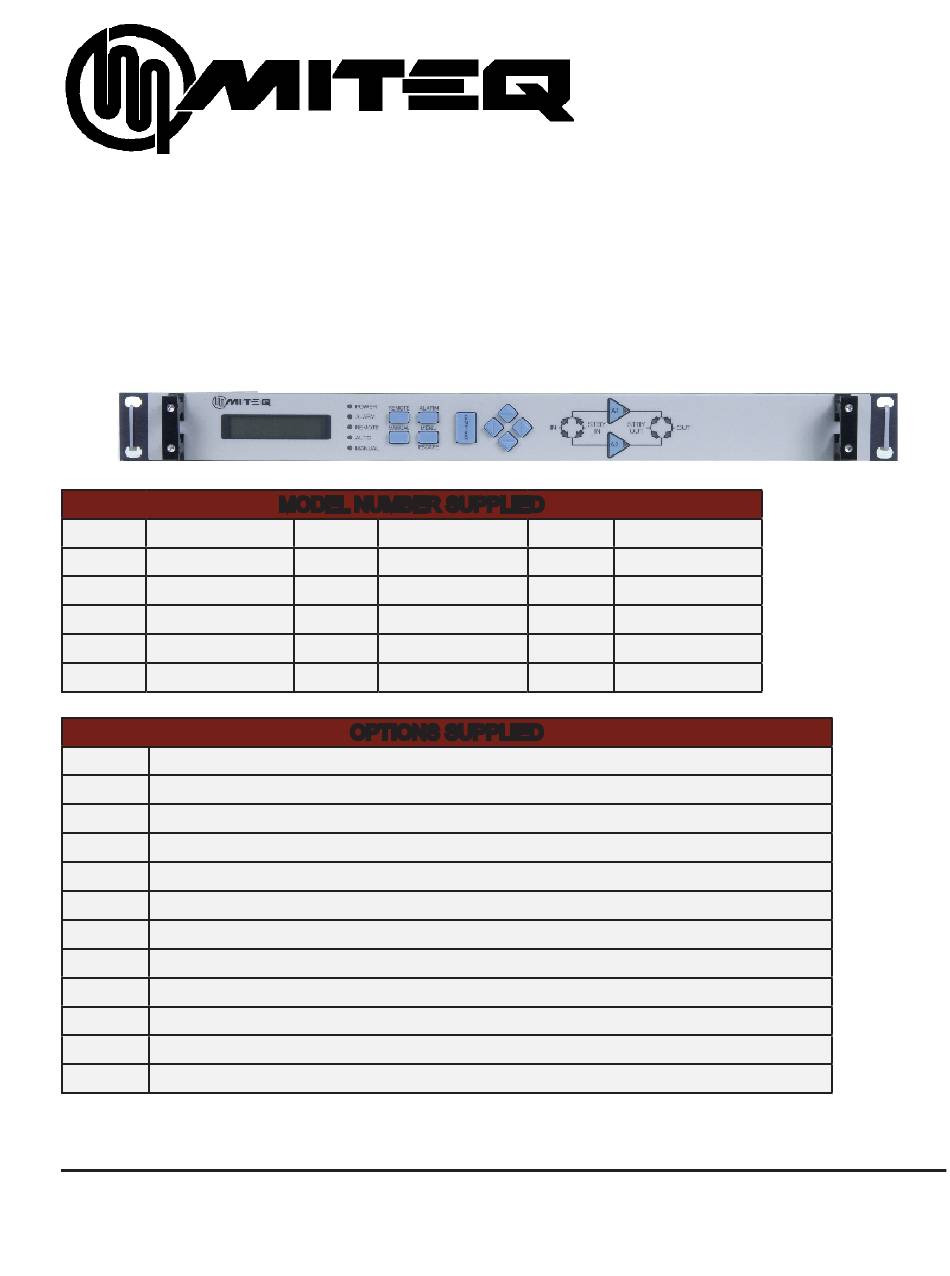

- Page 1 1:1 REDUNDANT LINE AMPLIFIER SYSTEM MODEL NUMBER SUPPLIED RL1-095145 RL1-450480 RL1-137148 RL1-095175 RL1-572672 RL1-177212 RL1-095215 RL1-584643 RL1-177220 RL1-150180 RL1-640720 RL1-275310 RL1-200270 RL1-725840 RL1-310330 RL1-340420 RL1-107128 OPTIONS SUPPLIED Option 1: RF Input Monitor Option 2: RF Output Monitor Option 3: Input Level Control...
- Page 2 DOCUMENTATION REVISIONS The purpose of this section is to chronicle any and all changes made in this manual, in regards to both technical information concerning this piece of equipment, and the actual format/function of this document. MANUAL REVISIONS 4/13/04: REV.A (ALL 1:1 RL UNIT MANUALS COMBINED INTO ONE MANUAL FOR THE LINE) 4/1/05: REV.A TO REV.B ADDED “?ATT”...
- Page 3 char i,sum; sum = 0; for ( i = 0; i < mes_len; i++ ) { sum = sum + ( array[i] - 32 ); if ( sum >= 95 ) sum = sum - 95; return(sum + 32); return the checksum character for the message in array subtract 32 from each character before taking modulo 95 sum add 32 to the final sum mes_len = message length...
-
Page 4: Table Of Contents
TABLE OF CONTENTS SECTION 1: INTRODUCTION GENERAL DESCRIPTION PHYSICAL EQUIPMENT CHARACTERISTICS PHYSICAL FUNCTIONAL SECTION 2: INSTALLATION UNPACKING, STORAGE, RESHIPMENT MOUNTING TURN-ON PROCEDURE SYSTEM CONFIGURATION AMPLIFIER REPLACEMENT PROCEDURE POWER SUPPLY REPLACEMENT PROCEDURE SECTION 3: OPERATION DEFINITIONS ACTIVE ALARMS AMPLIFIER CURRENT LIMITS PRIMARY AMPLIFIER BACKUP AMPLIFIER ERROR TONE... - Page 5 TABLE OF CONTENTS SECTION 3: OPERATION (CONTINUED) REMOTE OPERATIONS SERIAL REMOTE PROTOCOL (RS485/RS422/RS232) SERIAL MESSAGE FORMAT COMMAND AND ERROR CODE SUMMARY SYSTEM FAULT STATUS = ALR ATTENUATION = ATT INTERNAL CALENDAR/CLOCK = CLK AMPLIFIER CURRENT LIMITS = LIM EVENT LOG = LOG REDUNDANCY MODE = MOD AMPLIFIER PRIORITY = PRI SLOPE = SLP...
- Page 6 FIGURES & TABLES Figure 1-1. Front View, 1:1 Redundant Line Amplifier System Figure 1-2. Rear View, 1:1 Redundant Line Amplifier System Figure 1-3. Interior View, 1:1 Redundant Line Amplifier System Figure 3-1. Automatic Switching Decision Process for a Failed Amplifier Figure 3-2.
-
Page 7: Section 1: Introduction
SECTION 1: INTRODUCTION GENERAL DESCRIPTION The 1:1 Redundant Line Amplifier System is designed FEATURES to ensure continuous operation without disruption of • Fault tolerant design signal transmission. An amplifier fault can be repaired • Fully redundant, hot-swappable power supplies and/or routine maintenance can be performed with out •... -
Page 8: Equipment Characteristics
A4A6 A4A4 A1A3 A4A5 A1A1 A1A2 A4A1 A4A3 (Hidden) A2A3 A4A13 A2A1, A2A6 (Hidden) A2A2 A2A4 A2A5 Figure 1-3. Interior View, 1:1 Redundant Line Amplifier System EQUIPMENT CHARACTERISTICS PHYSICAL Weight..........20 pounds nominal Chassis dimensions......19” x 1.75” panel height x 20” maximum Connectors RF..........SMA female 3.5 mm compatible >... -
Page 9: Functional
FUNCTIONAL 1:1 Redundant Line Amplifier Performance Specifications Model Number Frequency (GHz) RL1-095145* 0.95-1.45 RL1-095175* 0.95-1.75 RL1-095215* 0.95-2.15 RL1-150180 1.50-1.80 RL1-200270 2.00-2.70 RL1-340420 3.40-4.20 RL1-450480 4.50-4.80 RL1-572672 5.725-6.725 RL1-584643 5.845-6.430 RL1-640720 6.40-7.20 RL1-725840 7.25-8.40 RL1-107128 10.70-12.75 RL1-137148 13.75-14.8 RL1-177212 17.70-21.20 RL1-177220 17.70-22.00... -
Page 10: Section 2: Installation
SECTION 2: INSTALLATION PROPER GROUNDING PRECAUTIONS ARE REQUIRED AT ALL TIMES TO PREVENT DAMAGE FROM ESD WHILE HANDLING THIS UNIT UNPACKING, STORAGE, RESHIPMENT Carefully open the shipping container and remove the equipment. Inspect the equipment thoroughly and report any damage. If the equipment is to be stored, it should be wrapped in plastic and kept in a clean, dry place. -
Page 11: System Configuration
SYSTEM CONFIGURATION Refer to Figure 4-1 Redundant Line Amplifier Block Diagram and Figure 4-2 RF Assembly Block Diagram for connections. Table 2-1. External Connections DESIGNATION DESCRIPTION Power Cords Attach power cords to the rear panel AC power inlets marked “PSA” and “PSB”. Connect the other end to the power source. -
Page 12: Section 3: Operation
SECTION 3: OPERATION DEFINITIONS ACTIVE ALARMS An active alarm is a Redundant Amplifier Unit (RAU) generated fault, which indicates that the unit is presently detecting a fault. The active alarms that can be reported are: • An amplifier alarm is active while the current drawn by the amplifier exceeds the current limits programmed into the unit for that amplifier. -
Page 13: Operating Modes
OPERATING MODES The operating modes of the RAU are selected from the front panel (in Local mode) or over the remote bus (in Remote mode). AUTO MODE In Auto mode the On-Line/Standby status of the amplifiers is controlled automatically without operator intervention. Amplifier path control is locked out from both the front panel and the remote bus. -
Page 14: Front Panel
locked out. The event log and any active alarms can be examined while the unit is in REMOTE mode. FRONT PANEL The front panel has been organized so that important information is available at a glance. Control functions and additional status information is available through a menu system and the front panel LCD. -
Page 15: Display Timeout
Display Timeout After a 50-second period without any keys being pressed, the display will revert to the default screen and a one-second beep will sound. When the cursor is blinking, further input is required from the user. If five seconds pass without a key press, an error tone will sound and the blinking cursor will revert to an arrow. -
Page 16: On-Line/Standby Screen
“Contrast Adjust” Adjust contrast “(Press ENTER)” “Channel Priority” Display/Set amplifier priority. “(Press ENTER)” (1:2 model only) “Date/Time” Display/Set real time clock. “(Press ENTER)” “Attenuation” Display/Set Attenuation values. “(Press ENTER)” (Attenuation option only) “Set Slope” Display/Set slope adjustment values. “(Press ENTER)” (Slope option only) ONLINE/STANDBY (Press ENTER) -
Page 17: Current Monitor Screen
Current Monitor Screen If not already displayed, use the MENU and arrow keys to select the CURRENT MONITOR screen, then press ENTER. 155 mA* 133 mA* *Exact current levels vary model to model. Figure 3-5. Current Monitor Screen This screen updates to provide the latest readings from the current monitor of the amplifiers. See Section 2 for a definition of current limits. -
Page 18: Remote Format Screen
The initial Amplifier Current Limits are set in the factory. It is recommended that Amplifier Current Limits be changed by an operator only when an amplifier is being replaced in the field. To Change Current Limit: • Point the arrow cursor to the desired amplifier Current Limits. The UP and DOWN keys move the arrow cursor. If the desired Current Limits are not on the display, the other limit(s) may be reached by using the UP and DOWN keys. -
Page 19: Ethernet Parameter Screens
Change Parity: (P) (RS232, RS422 and RS485 Options Only) • Use LEFT, RIGHT, UP and DOWN keys to navigate the cursor to the “:” after “P”. • While the cursor is blinking, the UP and DOWN keys can be used to change the parity to Odd (O), Even (E) or None (N). -
Page 20: Contrast Adjust Screen
• Use the UP and DOWN arrow keys to scroll the numeric value of the octet. • Press the RIGHT or LEFT arrow key to highlight the next octet field to change. • Press ENT to save the Subnet Mask. •... -
Page 21: Date/Time Screen
Change Priority: • Press UP and DOWN keys to scroll through the following selections: A1, A2 and NONE. • Press ENTER key to confirm changes. Date/Time Screen If not already displayed, use the MENU and arrow keys to select the DATE/TIME screen, then press ENTER. →DATE: 1/01/00 TIME:... -
Page 22: Set Slope Screen
Change Attenuation: • 1P represents attenuation applied to Amp.1 when in the Primary Path. 1S represents attenuation applied to Amp.1 when in the Standby Path. • 2P represents attenuation applied to Amp.2 when in the Primary Path. 2S represents attenuation applied to Amp.2 when in the Standby Path. -
Page 23: Alarm Menu
Alarm Menu If not already displayed, press the ALARM key to display the Alarm Menu. →02 ALARMS 32 EVENTS Figure 3-19. Alarm Menu The Alarm Menu displays the number of active alarms and the number of events stored in the Event Log. The Alarm Menu also provides access to the Active Alarm screen and the Event Log screen. -
Page 24: Remote/Local Screen
Remote/Local Screen If not already displayed, use the REMOTE key to display the Remote/Local control mode screen. →REMOTE LOCAL Figure 3-20. Remote/Local Screen Change the Remote/Local Status: • Press the REMOTE, UP and DOWN keys to move the cursor to the new status. •... -
Page 25: Remote Operations
REMOTE OPERATIONS The equipment is supplied with an RS485/RS422 bus. As an option, the equipment can be supplied with an IEEE- 488, RS232 or contact closure interface instead of the RS485/RS422. The command structures for the serial buses are identical. The IEEE-488 format is similar, with the exception that no header, address, trailer or checksum bytes are included in the structure. - Page 26 Below is a program, written in the ‘C’ programming language that illustrates the checksum calculation. return the checksum character for the message in array subtract 32 from each character before taking modulo 95 sum add 32 to the final sum mes_len = message length char check_sum(char *array, char mes_len) char i,sum;...
-
Page 27: Command And Error Code Summary
COMMAND AND ERROR CODE SUMMARY LEGACY COMMAND SET ASCII Character String Function On-line/Standby Status Alarm Status Mode On-line/Standby Status Mode REMOTE COMMAND SET ASCII Character String Function Alarm Status Combined Attenuation Real Time Clock Amplifier Current Limits Log Entries Mode (cmd same as U, query same as R) Amplifier Priority (1:2 unit only) Slope On-line/Standby Status (cmd same as P, query same as S) -
Page 28: Attenuation = Att
Query Alarm Status Command Parameters Query Command Sequence: Unit Response: Qabe (for 1:1 Systems) Qabce (for 1:2 Systems) Qabcde (for Dual 1:1 Systems) a = A1, Amplifier 1 (0 = Normal, 1 = Fault) b = A2, Amplifier 2 (0 = Normal, 1 = Fault) c = A3, Amplifier 3 (0 = Normal, 1 = Fault) d = A4, Amplifier 4 (0 = Normal, 1 = Fault) e = Any Switch Alarm or Any Power Supply Alarm (0 = Normal, 1... -
Page 29: Internal Calendar/Clock = Clk
n = 1 = Output Attenuator for Primary Path 1 n = 2 = Output Attenuator for Primary Path 2 For a 1:2 system with Input and Output Attenuators with Slope n = 1 = Module 1 in Primary Path 1 n = 2 = Module 1 in Standby Path n = 3 = Module 2 in Primary Path 2 n = 4 = Module 2 in Standby Path... -
Page 30: Event Log = Log
The QUERY command requires only one parameter, a single digit character representing the amplifier path. Command Parameters Remote Command Sequence: ?LIMa Unit Response: ?LIMaLlllHhhh EVENT LOG = LOG The SET command clears the unit’s event log of its contents. Command Parameters Remote Command Sequence: $LOG00 Unit Response:... -
Page 31: Redundancy Mode = Mod
Man/Auto Mode Change A1 On-Line A2 On-Line A3 On-Line A4 On-Line Remote Format Change Date/Time Change 11-21 Reserved for future use A1 Fault A2 Fault A3 Fault A4 Fault Switch1 Fault Switch2 Fault Switch3 Fault Switch4 Fault A1 Fault Recovery A2 Fault Recovery A3 Fault Recovery A4 Fault Recovery... -
Page 32: Amplifier Priority = Pri
AMPLIFIER PRIORITY = PRI The SET command requires one parameter a single digit in length representing the amplifier path which will have the higher priority. Command Parameters Remote Command Sequence: $PRIa Unit Response: $PRI a = 1 = A1 a = 2 = A2 The QUERY command requires no parameters. -
Page 33: Online/Standby Status = Swt
n = 7 = Module 3 in Standby Path For a Dual 1:1 system n = 1 = Module 1 in Primary Path 1 n = 2 = Module 2 in Primary Path 2 n = 3 = Module 3 in Standby Path 1 n = 4 = Module 4 in Standby Path 2 ONLINE/STANDBY STATUS = SWT The SET command requires one parameter a single digit in length representing the online and standby path positions. -
Page 34: Voltage And Current Readings = Vlt
VOLTAGE AND CURRENT READINGS = VLT There is no SET command. The QUERY command requires a single parameter one character in length representing the parameter being requested. Command Parameters Query Command Sequence: ?VLTx Unit Response: ?VLTxddd x = Requested voltage or current a = PSA 5.5V b = PSA 24.5V c = PSB 5.5V... - Page 35 1:1 Status Output Connector, Contact Closure Option Only (J2) - pin designations are indicated in Table 3-2. TABLE 3-2. 1:1 STATUS OUTPUTS (CONTACT CLOSURE) (J2) DESCRIPTION (COMMANDS) CLOSED COMMON OPEN A1 ONLINE, A2 STANDBY A2 ONLINE, A1 STANDBY AUTO MANUAL DESCRIPTION (STATUS) A1 ONLINE, A2 STANDBY A2 ONLINE, A1 STANDBY...
- Page 36 A3 NORMAL A3 FAULT A4 NORMAL A4 FAULT SIGNAL/FRAME GROUND 1:2 Status Output Connector, Contact Closure Option Only (J2) - Pin designations are indicated in Figure 3-4. TABLE 3-4. 1:2 STATUS OUTPUTS (CONTACT CLOSURE) (J2) DESCRIPTION (COMMANDS) CLOSED COMMON OPEN A1 &...
-
Page 37: Ethernet Interface Installation And Operation
ETHERNET INTERFACE INSTALLATION AND OPERATION FUNCTIONAL DESCRIPTION The Control Unit is equipped with an Ethernet Interface feature permitting control and monitoring via a 10 or 100 Mbps Ethernet connection. Available interface protocols are HTTP (web access), SNMP (Simple Network Management Protocol), and Telnet. -
Page 38: Configuring Via Ethernet
The computer must be configured with the same Subnet Mask as the unit, but a different IP address, to connect properly. For connecting with the Converter set to the address in the example above, the following settings are recommended for the Parameters PC Setting IP Address... - Page 39 Figure 3-22. Login Screen Once logged in, the home page will appear. At the top of each page the MITEQ logo along with the model number of the unit is displayed. (all pages) Function Name Description Mode Select between Auto and Manual Redundancy Modes...
- Page 40 Figure 3-23. Home Screen Home Page Function Name Description Amplifier Status Select/Show Online and Standby Amplifier Paths Amplifier Currents Show Amplifier Currents Current Limits Set Amplifier Currents Operation | 34...
- Page 41 Figure 3-24. Communications Screen The Communications Page provides access to the communication settings of the unit. Changing the IP settings will disrupt the session and the operator will be required to reconnect to the unit at the new settings. These can be set from the remote port.
- Page 42 Figure 3-25. Time and Date Screen The unit is equipped with a real time clock, which can be adjusted from the Time Page. Simply use the pull-downs to adjust the display for the desired settings, pull down the unlock tab and submit the changes. Operation | 36...
- Page 43 Figure 3-26. Miscellaneous Settings Page Miscellaneous Page Function Name Description Enable Telnet Permit or prevent Telnet access Enable Re-Flash Permit or prevent remote upgrade of the converter firmware Send a Test Trap Check this box and press Submit to send a single SNMP test trap Un-lock All Pages Disables the screen-locked function at each page Alarm Refresh Rate...
- Page 44 Figure 3-27. Event Log Page The Log Page allows the user to review the events stored in the event log. The event log can be cleared by unlocking the screen and pressing the clear log button. Log Page Function Name Description Log Listing View a listing of all system log entries...
- Page 45 Figure 3-28. Logout Page Pressing the Logout button will end the session and the page shown above will appear on the browser screen. Operation | 39...
-
Page 46: Access Via Snmp
Access via SNMP The unit may be accessed and monitored via the Simple Network Management Protocol (SNMP). SNMP is designed for control of network elements from a central management point. SNMP Command Structure TABLE 3-7. GENERAL SECTION - PRESENT IN ALL PRODUCTS Get/set Access Description... - Page 47 171517.1.16 The SNMP Management Information Base (MIB) file for the system, available from MITEQ, defines the specifics of the interface. The SNMP management tool chosen to read this files provides an “understanding” of the interface. The MIB file is in a format that can be read with any text editor.
-
Page 48: Access Via Telnet
When a Telnet connection is established, the Converter will request the password, which should be sent in the standard MITEQ wrapper (‘{‘<address byte (ignored)><password>’}’<checksum byte>). The default password is five numerical ones and can be type in as: {{11111}} Figure 3-29. -
Page 49: Emergency Operation
EMERGENCY OPERATION In the event of a failure in LCL components, refer to Section 5 to determine possible causes/remedies. SHUTDOWN PROCEDURE The Local Control Unit and Redundant Amplifier Assembly are completely shut down when the AC power is removed. Operation | 43... -
Page 50: Section 4: Principles Of Operation
SECTION 4: PRINCIPLES OF OPERATION INTRODUCTION The following paragraphs provide information on the principles of operation of the 1:1 Redundant Line Amplifier System. Overall functional operation of the system is discussed on this page, and detailed principles of operation for the individual subassemblies are presented on Page 47. -
Page 53: Subsystems And Components Functional Description
SUBSYSTEMS AND COMPONENTS FUNCTIONAL DESCRIPTION CONTROL BOARD ASSEMBLY (A4A1) The Control Board Assembly contains the microcomputer and analog circuitry necessary to control the front panel indicators, accept data from the front panel keys, monitor switch positions and provide a RS422/RS485 bus and summary alarm interface. -
Page 54: Isolators
ISOLATORS ISOLATORS (A2A1, A2A6) Model Number Part Number Frequency Insertion Loss VSWR Isolation Connectors (GHz) (dB) (50 Ohms) (dB min) RL1-150180 122522 1.5-1.8 1.2:1 SMA female RL1-200270 123504 2.2-3.0 1.2:1 SMA female RL1-340420 123343-2 3.4-4.2 1.2:1 SMA female RL1-450480 131891 5.725-6.725 1.2:1 SMA female... -
Page 55: Amplifiers
AMPLIFIERS AMPLIFIERS (A2A3, A2A4) Model Number Part Number Frequency (GHz) RL1-095145 135963-L1 0.95-1.45 RL1-095175 135963-L2 0.95-1.75 RL1-095215 135963-L3 0.95-2.15 RL1-150180 135963-L4 1.50-1.80 RL1-200270 135963-S1 2.00-2.70 RL1-340420 135963-C1 3.40-4.20 RL1-450480 135963-C2 4.50-4.80 RL1-572672 135963-C3 5.725-6.725 RL1-584643 135963-C4 5.845-6.430 RL1-640720 135963-C5 6.40-7.20... -
Page 56: Input Monitor (Option 1 Only)
INPUT MONITOR (OPTION 1 ONLY) DIRECTIONAL COUPLER (A2A7) Model Number Part Number Frequency VSWR Coupling Insertion Loss Connectors (GHz) (50 Ohms) (dB) (dB max) RL1-095145 117525-2 1.0-2.0 1.1:1 0.15 SMA female RL1-095175 117525-2 1.0-2.0 1.1:1 0.15 SMA female RL1-095215 117525-9 1.0-4.0... -
Page 57: Input Attenuator (Option 3 Only)
See Table for Isolator (A2A8) INPUT ATTENUATOR (OPTION 3 ONLY) PIN DIODE ATTENUATOR (A2A11) Model Number Part Number Frequency VSWR Attenuation Range Insertion Loss (GHz) (50 Ohms) (dB min) (dB) RL1-095145 135962-L1 0.95-1.45 1.5:1 RL1-095175 135962-L2 0.95-1.75 1.5:1 RL1-095215 135962-L3 0.95-1.45 RL1-150180 135962-L4 1.50-1.80... -
Page 58: Output Attenuator (Option 4 Only)
OUTPUT ATTENUATOR (OPTION 4 ONLY) PIN DIODE ATTENUATOR (A2A13) See Table for Pin Diode Attenuator (A2A11) ISOLATOR (A2A14) See Table for Isolator (A2A12) Principles of Operation | 52... -
Page 59: Section 5: Maintenance
SECTION 5: MAINTENANCE PROPER GROUNDING PRECAUTIONS ARE REQUIRED AT ALL TIMES TO PREVENT DAMAGE FROM ESD WHILE HANDLING THIS UNIT PREVENTIVE MAINTENANCE The redundant amplifier assembly is of a completely solid state design. Normal periodic inspection for cleanliness and mechanical integrity should be made in accordance with standard procedures. To prevent long and costly downtime of the 1:1 Redundant Line Amplifier System, periodic monitoring of the overall performance parameters that are most indicative of individual amplifier performance is necessary. -
Page 60: Power Supply Malfunction
POWER SUPPLY MALFUNCTION If the fault is detected in the power supply, check the AC voltage input to the power supply. Isolate the malfunctioning supply and remove it. Check the power supply fuse and replace it if necessary. If the AC input and fuse are good, replace the power supply as described on Page 5 and adjust it to the proper voltage levels. - Page 61 Index alarm menu 17 attenuation screen 15 Attenuation Operation 18 contrast adjust screen 14 current limit screen 11 current monitor screen 11 Command Codes date/time screen 15 amplifier current limits 23 default screen 9 amplifier priority 26 ethernet parameter 13 attenuation 22 main menu 9 event log 24...
- Page 62 Index Slope Operation 18 Subsystem and Components Functional Description amplifier current sensor board 47 amplifiers 49 contact closure remote interface board 47 control board assembly 47 input attenuator 51 input monitor 50 isolators 48 output attenuator 52 output monitor 50 power supplies 47 power supply connector board 47 RF switch 48...
