ACM-198 / ACM-198C
Return Fitting Ultra Bright LED Light
TURN OFF POOL PUMP BEFORE
STEP 1
STARTING INSTALLATION.
From existing return fitting, unscrew
STEP 2
large, ribbed nut
and remove eyeball
Unscrew inner sleeve* . DO NOT
STEP 3
UNSCREW EXISTING RETURN FITTING.
*Keep this part in case you remove the return
fitting light.

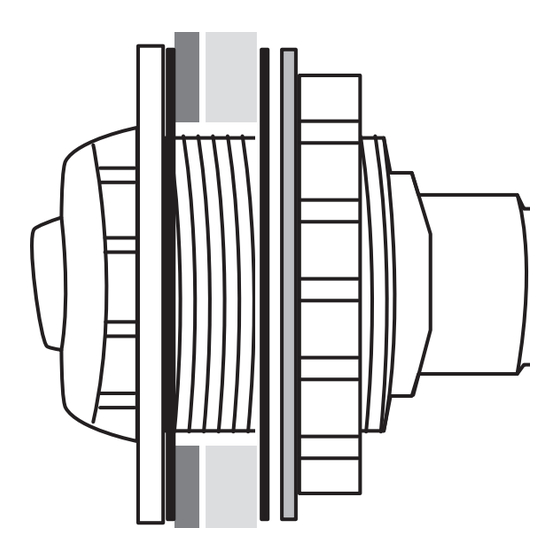

Install return fitting light
STEP 4
return fitting. Align and secure in place with
large nut
. Do not overtighten.
From existing return fitting, replace
STEP 5
eyeball
and ribbed nut
Make sure the electrical cord
STEP 6
and transformer
are out of the water.
Slide plastic O-ring
STEP 7
transformer plug.
Insert pins
STEP 8
and secure with cap. The transformer
should be plugged into a GFCI outlet.
NOTE: ACM-198C Remote Control
instructions included with remote.
WARNING
• Risk of electrical shock, if instructions are not
followed. Connect only to a grounded GFCI outlet
that is a minimum of 10 feet (3 m) away from the
pool. DO NOT USE EXTENSION CORDS.
• Do not let children use this device unsupervised.
• For use on permanent above-ground pools only.
• Do not use the light if the lens, transformer or
cord is damaged.
WINTER STORAGE: Freezing weather may
damage light fixture. Disconnect light and
remove from the pool. Store in dry space at room
temperature.
over the
.
onto
into transformer outlet
Existing
return fitting
.
Champlain Plastics Inc.
87 Pillsbury Road, Rouses Point, NY 12979
(INS-ACM198-rev2)
Existing
return
fitting
¶
