INSTRUCTIONS TO OPERATORS
LANDIS CHAINSTITCH McKAY STITCHER
Model "77"
CATALOGUE OF PARTS
Shoe Systems Plus, Inc.
249 W Main Street
Goshen, NY 10924
1-800-354-6278

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the McKay Stitcher 77 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Landis McKay Stitcher 77

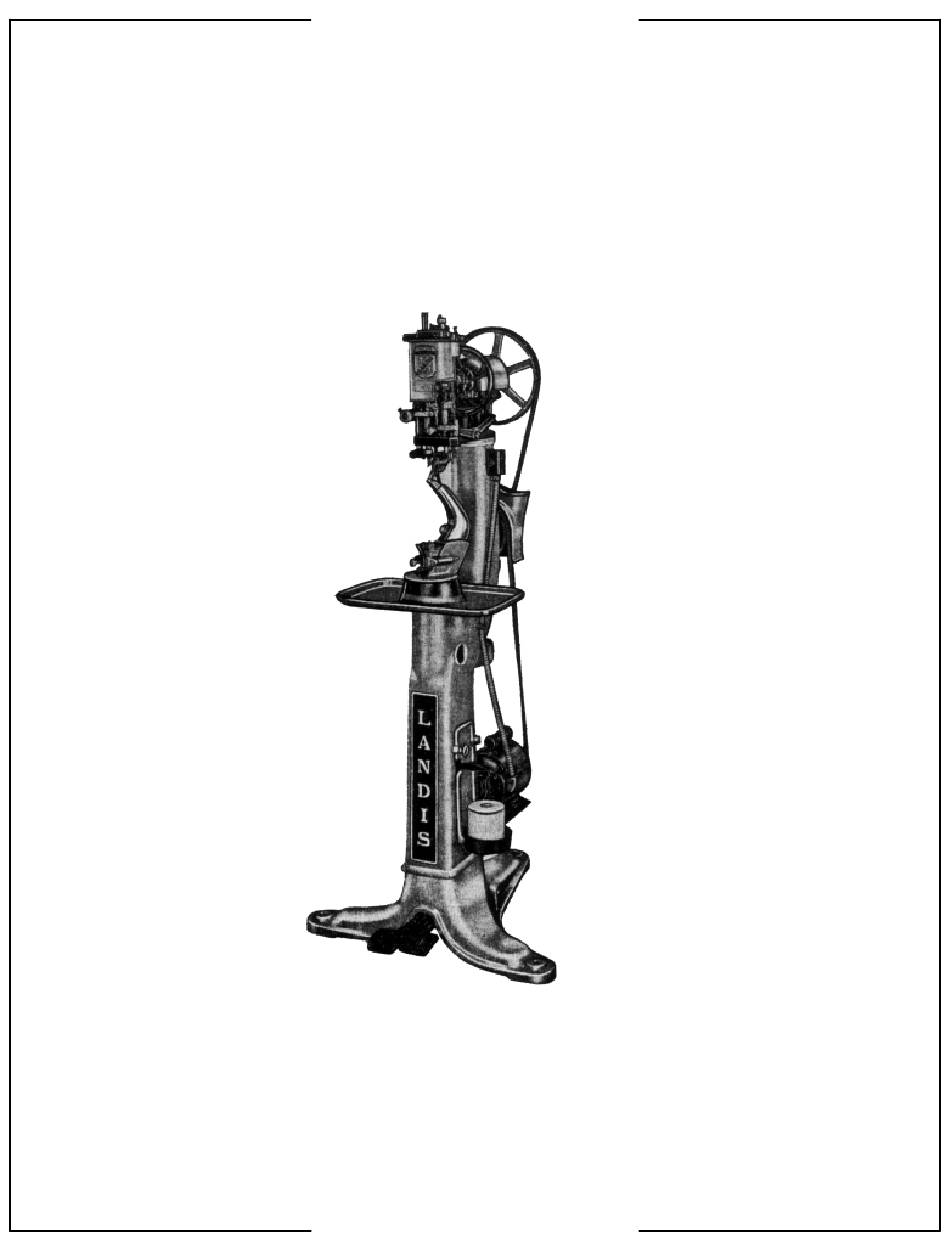

  • Page 1 INSTRUCTIONS TO OPERATORS LANDIS CHAINSTITCH McKAY STITCHER Model “77” CATALOGUE OF PARTS Shoe Systems Plus, Inc. 249 W Main Street Goshen, NY 10924 1-800-354-6278...
  • Page 3 The Fayscott Landis Machine Corp. will continue to manufacture the Model “77” McKay Stitcher as a Landis Product and we reserve the right to make changes or improvements at any time, without thereby incurring any obligation either to install the same on machinery or equipment previously sold, or install the old part, which has been changed, improved or omitted in new machines or equipment subse- quently sold.
  • Page 4 GENERAL INSTRUCTIONS Keep your machine well oiled. Use a good grade of Oil. We recommend Landis Stitcher Oil. Always use a good grade of Liquid Wax. We recommend Landis Yellow Label-Al-Liquid Wax for McKay Stitchers. All Model “77” McKay Stitchers are carefully adjusted at the factory by experts who are competent on these machines, and they are shipped to you ready for operation.
  • Page 5 Stir Liquid Wax thoroughly before putting it in Wax Pot. Use “thinner” to thin wax when too thick or heavy. Order Landis Yellow Label Machine Cleaner & Wax Thinner available in pint and quart cans. CAUTION: Do not put oil in wax pot.
  • Page 6 LANDIS “77” TO SET NEEDLE Turn machine until Needle Bar is at its lowest position. Adjust needle until it projects slightly below bottom of whirl. The Needle should be set so that the Whirl lays the thread in the barb groove of the Needle as it revolves around the Needle, much on the order of the Looper on the Curved Needle Stitcher.
  • Page 7 LANDIS “77” SETTING THE CAST-OFF The adjustment of the Cast-Off S-95 is important. The Cast-Off Point must be set low enough to completely cover the barb of the Needle S- 92 as the Needle pulls the thread up. To adjust Cast-Off up or down, loosen Cast-Off Screw S-97, raising or...
  • Page 8 LANDIS “77” CAUTION: Before mounting the sole on a shoe, it will be well to find and pull out two to four staples, which will be found near the beginning of the toe curvature, where the upper puckers worst. These staples were put in to hold the sole before the first McKay sewing.
  • Page 9 LANDIS “77” As for sewing the channel, and the general handling of stitching, you will find the Model “77” McKay Stitcher without doubt the easi- est simplest machine to operate and you will find it extremely so in sewing in the channel and around the toe.
  • Page 10 LANDIS “77” THREAD TENSION For More Tension To increase the Tension, turn Tension Thumb Nut S-583 to the right, Turn and to decrease, turn to the left. (See figure No. 8). For Less Tension Thread Turn S-574 WAX STRIPPER ADJUSTMENT...
  • Page 11 Your machine will be ready for work the next day and this will eliminate any difficulty from hard and gummed wax. On the LANDIS McKay Stitcher Model “77” the Horn is sepa- rated in three parts to provide easy cleaning and threading.
  • Page 12 S-320 S-21 S-22 S-32 S-26 S-256 S-25 S-630 S-318 S-255 S-259 S-326 S-260 S-307 S-301 S-327 S-174 S-305 S-644 S-308 S-314 S-642 S-302 S-306 S-313 S-41 S-40 S-70 S-65 S-71 S-64 S-128 S-48 S-45 S-61 S-79 S-62 S-36 S-42 S-60 S-150 S-37 S-63...
  • Page 13 S-363 S-346 S-347 S-361 S-347 S-365 S-342 S-341 S-366 S-343 S-357 S-354 S-345 S-227 S-226 S-181 S-155 S-146 S-228 S-175 S-222 S-179 S-250 S-242 S-176 S-246 S-177 S-247 S-214 S-220 S-215 S-239 S-230 S-221 S-395 S-386 S-397 S-390 S-380 S-385 S-391 -11-...
  • Page 14 S-566 S-574 S-508 S-507 S-578 S-571 S-504 S-545 S-513 S-582 S-564 S-556 S-583 S-518 S-560 S-534 S-638 S-572 S-639 S-575 S-633 S-627 S-630 S-631 S-632 S-726 S-11 S-10 S-710 S-725 S-13 S-12 S-727 S-728 S-692 S-415 S-736 S-732 -12-...
  • Page 15 LIST OF PARTS - MODEL “77” MCKAY STITCHER P P P P P AR ART T T T T P P P P P AR ART T T T T NAME OF P NAME OF P NAME OF PAR NAME OF P NAME OF P ART T T T T NAME OF P...
  • Page 16 LIST OF PARTS - MODEL “77” MCKAY STITCHER P P P P P AR ART T T T T P P P P P AR ART T T T T NAME OF P NAME OF P NAME OF P NAME OF P NAME OF PAR ART T T T T NAME OF P...
  • Page 17 LIST OF PARTS - MODEL “77” MCKAY STITCHER P P P P P AR ART T T T T P P P P P AR ART T T T T NAME OF P NAME OF P NAME OF P NAME OF P NAME OF PAR ART T T T T NAME OF P...
  • Page 18 77-S-871 Model Name Plate Drive 77-S-861 Oil Can Screw CHAMPION AND LANDIS COMBINATION HAND CHANNELER AND GROOVER P P P P P AR ART T T T T P P P P P AR ART T T T T NAME OF P...
