AcuRite 00782 Quick Start Manual

IN
Battery Installation
-Batteries not incuded
Insert 2 fresh alkaline "AAA" batteries into the main unit first, then the remote unit next.
Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable
(nickel-cadmium) batteries.
Slide off the battery compartment cover on the back of each unit. Be sure to insert the
batteries in the correct manner according to the polarity symbols indicated in the battery
compartment. After the batteries are installed in the main unit, "IN" will display the main
unit temperature. The "OUT" temperature will display "---" due to the remote unit not being
powered on at this point.
Once batteries are installed, the remote unit will transmit the wireless signal to the main
unit about once every minute. If the temperature does not display under the "OUT" on the
main unit after a few minutes, refer to the troubleshooting section of this manual.
Placement:
The main unit may be wall mounted using the built-in hanger, or it can be placed on a desk or
table using the fold-out stand. The remote sensor can be wall-mounted.
The remote unit is weather resistant. Keep out of direct sunlight and direct weather elements
to extend the life of the unit. Also, when selecting a location for the base unit, make sure it is
within 100 feet of the wireless remote sensor. The range may be affected by electronic
interference from devices such as televisions and computers. For the best results, keep both
units at least 10 feet away from any electrical equipment or devices that may cause electronic
interference.
IN OUT
10 feet
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
00782 / 00782GTSB

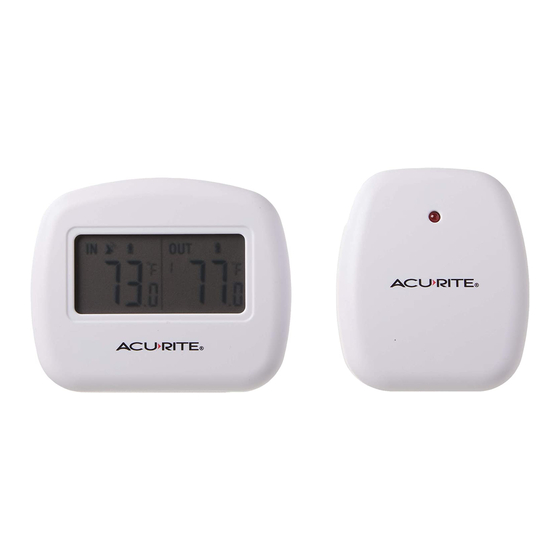

Wireless Indoor/Outdoor Thermometer
OUT
100 feet maximum
Troubleshooting:
If the main unit displays "---" in the "OUT" display area for more than a few minutes:
• The batteries may be low in the wireless remote sensor unit.
• The wireless remote sensor unit may be out of range.
• Electronic devices or equipment may be causing interference- relocate both units.
• Both units may need to be reset to re-establish wireless communications.
If this problem persists, remove and replace the batteries on both units and place both
units in close proximity to each other for awhile. This may help re-establish communications
and avoid any electronic interference in the area.
Specifications:
• Temperature measurement range:
- MAIN UNIT: 32ºF - 122ºF
- WIRELESS REMOTE: 0ºF - 130ºF
Battery Compartment Access (back)
RESET
FOLD-OUT STAND
OPEN
Do not return product to retail store.
For Technical Assistance and product return information,
please call Chaney Instrument Co. direct at:
877-221-1252
00782 INST1122-05
RESET
OPEN
