OPERATION AND MAINTENANCE MANUAL
aquatherm welding device Art.-No. 50336, 50337, 50341
Fusion for
aquatherm green pipe, aquatherm blue pipe, aquatherm lilac pipe, aquatherm red pipe and aquatherm ti
pipesystems from 16 up to 125 mm

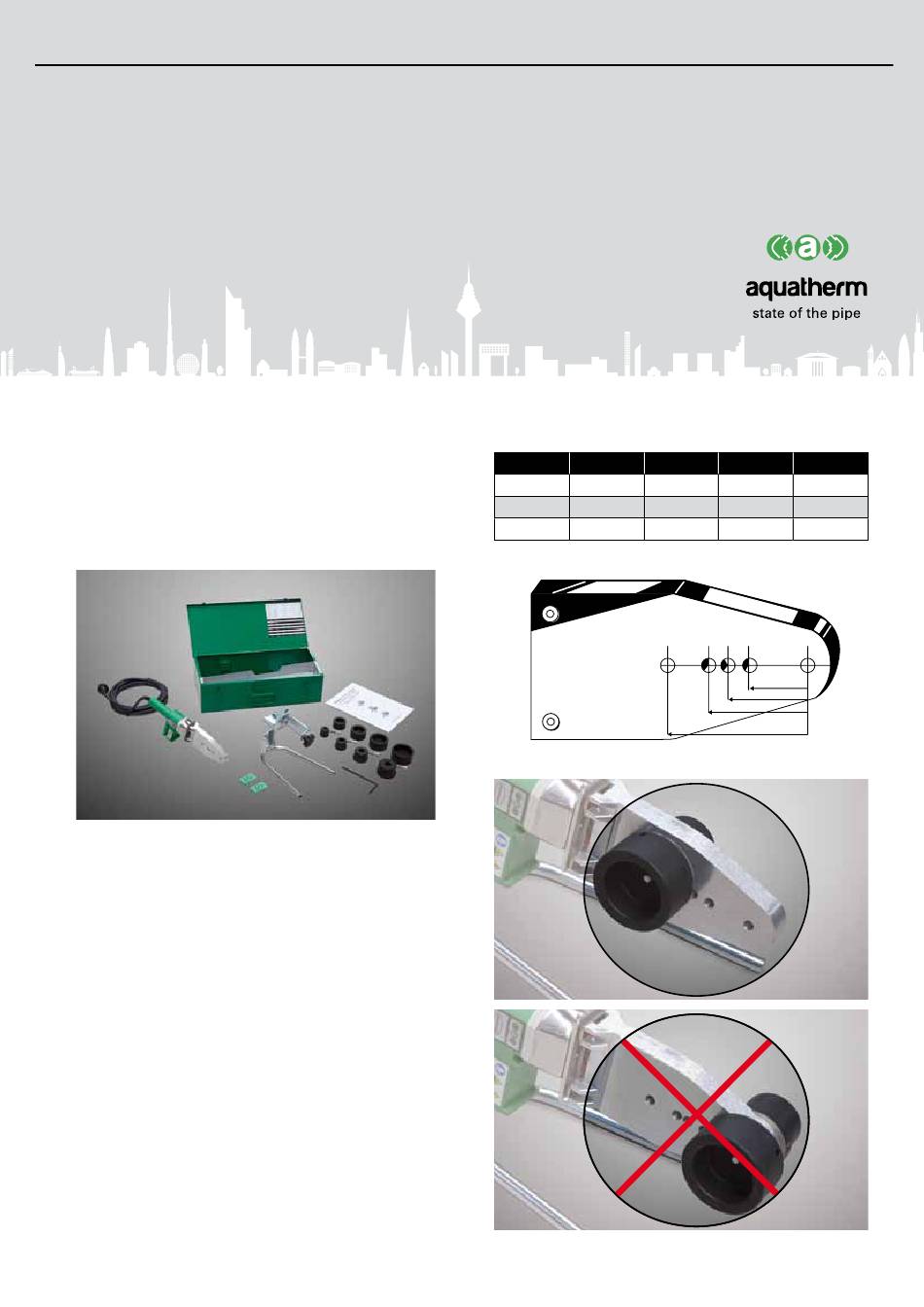

PART A: MOUNTINg Of ThE TOOLs
IMPORTANT!
Only use the original aquatherm welding devices and aquatherm wel-
ding tools, except devices and tools which are especially approved
by aquatherm.
2. Assemble and tighten the cold welding tools manually.
3. Before fusing the distribution block, in which two connections are
fused simultaneously, the welding tools have to be placed into the
respective holes as described in the adjoing table A and drawing B.
4. All welding tools must be free from impurities. Check if they are
clean before assembling. If necessary clean the welding tools with
a non fibrous, coarse tissue and with methylated spirit.
Place the welding tools on the welding device so that there is full
surface contact between the welding tool and the heating plate.
Welding tools over Ø 40 mm must always be fitted to the rear
position of the heating plate.
Electric supply:
The power supply must coincide with the data on the type plate of
the welding device and must be protected according to the local
regulations. To avoide high power loss, the conductor cross-section
of the used extension cables must be selected according to the
power input of the welding devices.
6. Plug in the welding device. Depending on the ambient temperature
it takes 10 - 30 minutes to heat up the heating plate.
English Italiano
A
Art.-No. Passage
30115 Ø 25 mm A + E
85123 Ø 20 mm A + B
85124 Ø 20 mm A + B
B
E
RIghT
wRONg
Español
Hole Branch Hole
Ø 20 mm A + C
Ø 16 mm A + C
Ø 16 mm A + C
D C B A
35
50
60,00
85
