Dr. Trust Micro Mesh Nebulizer Manual

Portable mesh nebulizer
Hide thumbs
Table of Contents

Advertisement

Quick Links

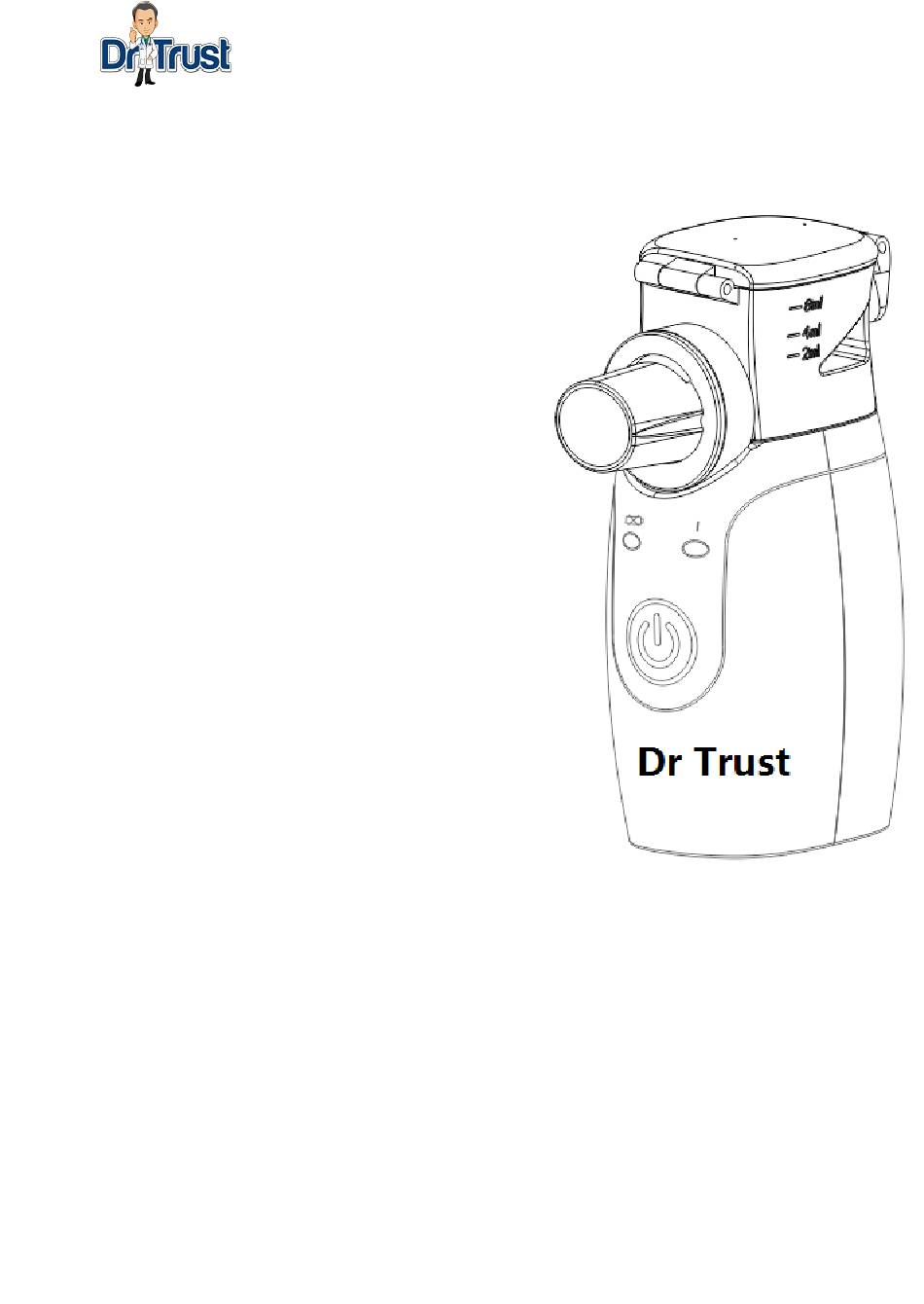

Portable Mesh Nebulizer
■ Intended Use:
Legally certified medical experts, such as doctor, nurse and therapist, or healthcare personnel or
patient under the guidance of qualified medical experts .
The user should also be capable of understanding general
operation of Mesh Nebulizer and the content of instruction
manual
■Intended User:
Adult and pediatric patients suffer from asthma, Chronic
Obstructive Pulmonary Disease (COPD) such as
emphysema and chronic bronchitis, or other respiratory
diseases that are characterized by obstruction to air flow
■ Environment
This product is intended for use in a medical facility, such
as Hospital, clinic and doctor's office, in a room of general
household, and in open-air environment with a roof.
■ Durable period
Durable periods are as follows, provided the product is
used to nebulize saline 3 times a day for 10 minutes each
time at room temperature (23°C).Durable period may vary
depending on usage environment.
■CAUTION: Federal law restricts this device to sale by or
on the order of a physician.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Micro Mesh Nebulizer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dr. Trust Micro Mesh Nebulizer

Summary of Contents for Dr. Trust Micro Mesh Nebulizer

  • Page 1 Portable Mesh Nebulizer ■ Intended Use: Legally certified medical experts, such as doctor, nurse and therapist, or healthcare personnel or patient under the guidance of qualified medical experts . The user should also be capable of understanding general operation of Mesh Nebulizer and the content of instruction manual ■Intended User: Adult and pediatric patients suffer from asthma, Chronic...

  • Page 2: Table Of Contents

    Contents • A nebulizer is a type of medical apparatus. Please follow a doctor’s instructions on choosing the correct type, dose, and regimen of medication. • The nebulization characteristics of the unit differ by the properties of medication. The nebulization rate may vary with using different medicine. Before Using Safety Precautions ·············································...

  • Page 3: Safety Precautions

    Safety Precautions To ensure safe and correct use of this product, please read the instruction manual carefully before use. Warning! Please follow a doctor’s instructions on choosing the correct type, dose, and regimen of medicine. Do not place any liquid in the medication chamber that is not prescribed by a physician. This is a single patient device.

  • Page 4: Product Features

    Product Features 1. Pocket-sized and easy to carry. 2. Low power consumption and low residual medication volume. 3. Mesh nebulizer can function properly for a short time after being rotated to any angle. When the nebulizer is rotated such that the medication does not contact the mesh, it can nebulize properly for about 15 seconds.

  • Page 5: Component Names And Functions

    Components Names and Functions...
  • Page 6 How to assemble Mesh nebulizer 1. Attach the medication chamber to the main unit:  Please ensure that the medication chamber is attached correctly; otherwise, it may result in a bad connection and the nebulizer may not function properly.  Please keep the electrodes of main unit and medication chamber clean;...

  • Page 7: How To Connect To The Power Supply

    How to connect to the power Supply This product can use either batteries or an AC adapter (optional) as its power supply. ■ How to install batteries Please open the battery cover and insert 2 “AA” alkaline batteries. 1. Open the battery cover. 2.
  • Page 8 Attention  Do not mix different types of batteries.  Battery life may be different depending on type of the batteries used. ■ How to use the AC adapter (with USB connector) 1. Plug the USB connector into the main unit’s power 2.

  • Page 9: How To Fill The Medication

    How to fill the medication Please remove the main unit cover, mask adapter, and mouthpiece and inhalation mask first. 1. Remove the medication chamber from the main unit: Press the PUSH button on the rear side of the main unit and push the medication chamber towards the front side of the main unit.
  • Page 10 3. Re-attach the medication chamber to the Attention main unit: Attach the medication chamber while it gives off  Make sure the medication chamber is a sound “Click”. attached correctly or the bad connection may result in malfunction.  To ensure correct functioning of Nebulizer, keep the electrodes of the main unit and the medication chamber clean.

  • Page 11: How To Operate The Nebulizer

    How to operate the nebulizer You can also fill a 0.9 % Sodium Chloride (Table salt) solution in the medication chamber and then press “START/STOP” button for a function test after reassembly and before use. If the nebulizer cannot spay out, please go to page 18 for troubleshooting. 1.
  • Page 12 2. Inhalation： Hold the nebulizer in your hand stably and start inhalation. Attention  If the device detects no medication in medication chamber, it will shut off automatically.  If the device does not shut off automatically when medication depleted , press the “START/STOP” button to turn the power off immediately to avoid the mesh breaking.
  • Page 13 3. Turn off the power：  The nebulizer shuts off automatically after the medication is depleted.  If you wish to halt the treatment, press the “START/STOP” button to turn the power off. The power indicator light will go out. ...

  • Page 14: How To Clean After Using

    How to clean after using After each use, make sure to clean the nebulizer instantly with the mineral water before storing or carrying. Attention 1. Clean the remaining medication： • Open the cover of the medication  If the device give off the high frequency chamber and discard the remaining sound and the mineral water is depleted, medication.
  • Page 15 4. Dry the cleaned parts thoroughly: After the parts are cleaned, dry with new gauze and air dry thoroughly. Attention  Please do not dry with cotton or cloths of other materials; otherwise, dust or cloth fiber may be left on the mesh, causing the nebulizer to malfunction.
  • Page 16 7. Disinfecting Attention  In the case of infectious illnesses, the device must be disinfected every day or all attachments must be sterilized. You can also use alcohol or other common alcohol-based disinfectant sprays. Make sure that no disinfectant residues are left behind on the attachments to ensure safe inhalation when next used.
  • Page 17 How to replace the medication chamber The medication chamber is a maintenance part and does not carry any warranty. Under normal conditions, the lifetime of the medication chamber is approximately 6 months (three times usage per day or 45 minutes per day). However, the nebulization performance may start deteriorating in less than 6 months depending on the way you use it or the use of certain types of medication.
  • Page 18 1. Remove the medication chamber from Attention the nebulizer: Press the PUSH button on the rear side  To avoid damaging the nebulizer, please ensure the PUSH button is of the main unit, and push the medication pressed down before pushing the chamber toward the front side of the main medication chamber forward.

  • Page 19: How To Carry The Nebulizer

    How to carry the nebulizer Please follow the steps below to dismantle the components first. Then, store them in the carrying pouch for carrying. 1. Dismantle the nebulizer: Please remove the mouthpiece and inhalation mask as shown in the figure. 2.

  • Page 20: Troubleshooting

    Troubleshooting Please refer to the table below to troubleshoot any problems you may encounter when using the nebulizer. Problems Possible Causes Solutions Re-attach the medication chamber Medication chamber is not correctly and restart the power. (See completely attached. page 6) No contact between Adjust the nebulizer’s angle so the medication and mesh for...
  • Page 21 are clogged with medication or or water and restart the power. (See page water. Electrodes on nebulizer and Remove the stains and restart the power. medication chamber are stained. (See page 14) If it still cannot be used after cleaning, please Mesh of medication chamber is replace with a new medication chamber.
  • Page 22 Hold the nebulizer in the hand Nebulizer is being shaken in the use. stably. (See page 11) Replace with a new medication Medication chamber is broken. chamber and then put in the medication. (See page 16) Some type of medications for Clean the foam and restart the nebulization may be caused to produce a power.

  • Page 23: Specifications

    Specifications Product Name Micro Mesh Nebulizer Method of Operation Ultrasonic Dimensions Approx.72 mm(L) × 40 mm(W) × 113 mm(H) Weight Approx. 98 g (Exclude batteries) 3V DC (“AA” 1.5V alkaline battery x 2) Power Supply USB cable (Input: 100-240VAC, 50/60Hz, 0.2A...

  • Page 24: Technical Data

    Technical data: Note: Test result of cascade impact measurements for particle size. Performance may vary with different drugs such as suspensions or high viscosity. See drugs  supplier’s data sheet for further details. MMAD = Mass Median Aerodynamic Diameter.  Mass Median Aerodynamic Diameter.

  • Page 25: Accessories / Optional Part

    Accessories / Optional parts Accessories / Optional parts are shown below. If you wish to purchase any of them, please contact supplier. Inhalation mask (S) Inhalation mask (L) Medication chamber (For Children) (For Adult) Mouthpiece Main unit cover Carrying pouch USB cable (optional )

  • Page 26: Note

    Note: The device complies with the FDA, CE, and TGAReviewer Guidance for Nebulizers, Metered Dose Inhalers, Spacers and Actuators. Important / Caution / Note! Read the instruction manuals. Classification: - Internally powered equipment - BF type applied part - IP22 - Not suitable for use in presence of flammable anesthetic mixture with oxygen or nitrous oxide.
  • Page 27 IMPORTANT NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 28: Appendix A: Emc Information

    Appendix A: EMC information Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Guidance and Manufacturer’s declaration – electromagnetic emissions The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.
  • Page 29 70 % U power supply or a battery. 70 % U (30 % dip in ) for 25 cycles (30 % dip in U for 25 cycles <5 % U (>95 % dip in ) for 5 sec <5 % U (>95 % dip in U for 5 sec...
  • Page 30 Guidance and manufacturer’s declaration – electromagnetic immunity – for device that is not LIFE-SUPPORTING. Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. Immunity IEC 60601 Complianc...
  • Page 31 maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device as recommended below, according to the maximum output power of the communications equipment. Separation distance according to frequency of transmitter Rated maximum output power of transmitter 800 MHz to 2,5 150 kHz to 80 MHz 80 MHz to 800 MHz...
