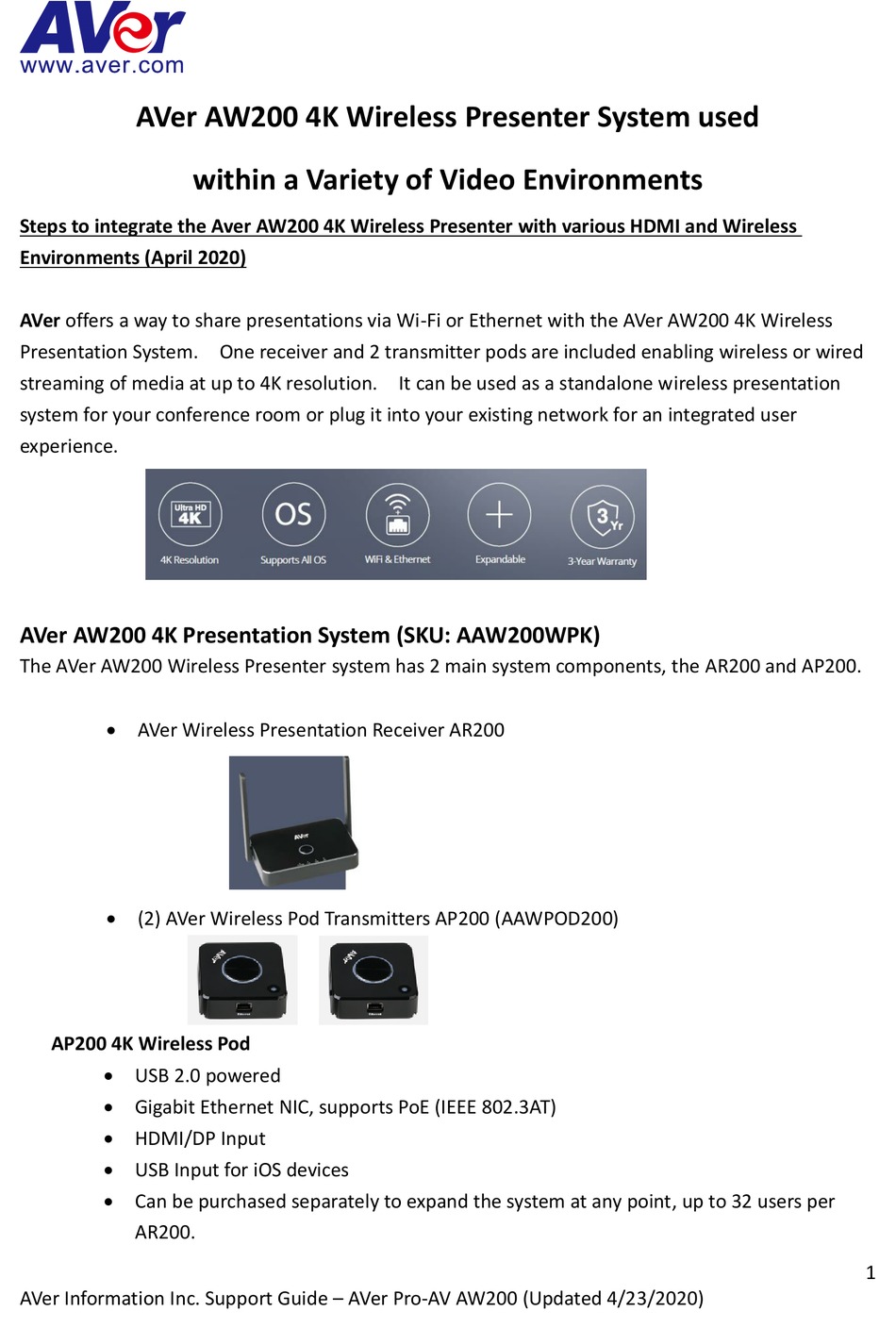

AVer AW200 4K Wireless Presenter System used
Steps to integrate the Aver AW200 4K Wireless Presenter with various HDMI and Wireless
Environments (April 2020)
AVer offers a way to share presentations via Wi-Fi or Ethernet with the AVer AW200 4K Wireless
Presentation System. One receiver and 2 transmitter pods are included enabling wireless or wired
streaming of media at up to 4K resolution. It can be used as a standalone wireless presentation
system for your conference room or plug it into your existing network for an integrated user
experience.
AVer AW200 4K Presentation System (SKU: AAW200WPK)
The AVer AW200 Wireless Presenter system has 2 main system components, the AR200 and AP200.
 AVer Wireless Presentation Receiver AR200
 (2) AVer Wireless Pod Transmitters AP200 (AAWPOD200)
AP200 4K Wireless Pod
 USB 2.0 powered
 Gigabit Ethernet NIC, supports PoE (IEEE 802.3AT)
 HDMI/DP Input
 USB Input for iOS devices
 Can be purchased separately to expand the system at any point, up to 32 users per
AR200.
AVer Information Inc. Support Guide – AVer Pro-AV AW200 (Updated 4/23/2020)
within a Variety of Video Environments
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AW200 and is the answer not in the manual?

Questions and answers

Related Manuals for AVer AW200

Summary of Contents for AVer AW200

  • Page 1 Steps to integrate the Aver AW200 4K Wireless Presenter with various HDMI and Wireless Environments (April 2020) AVer offers a way to share presentations via Wi-Fi or Ethernet with the AVer AW200 4K Wireless Presentation System. One receiver and 2 transmitter pods are included enabling wireless or wired streaming of media at up to 4K resolution.
  • Page 2 Once you have un-packed the AR200 and AP200 devices you will need to connect to your conference room or setup to verify operation, it can be used in a “Stand Alone” configuration or in a network “Connected” integrated configuration. AVer Information Inc. Support Guide – AVer Pro-AV AW200 (Updated 4/23/2020)
  • Page 3 AVer AW200 Installation (continued) 1. First, connect the AVer AR200 Receiver to power with included Power Supply and an HDMI Monitor. 2. Next, once connected, press the Power Button of the Receiver. *Note: The Corp Network connection is only needed to access the AR200’s Admin Web Login from company network.
  • Page 4 Monitor at one time. 6. Next, press the center “control button” to start the “pairing”, the outer ring color should turn from Red to White, indicating it has paired. AVer Information Inc. Support Guide – AVer Pro-AV AW200 (Updated 4/23/2020)
  • Page 5 AVer AW200 Installation (continued) 7. Below is a list showing AVer Transmitter Light Indicators and Status. 8. This concludes the “basic” stand alone configuration for the AW200. AVer Information Inc. Support Guide – AVer Pro-AV AW200 (Updated 4/23/2020)
  • Page 6 AVer AW200 Typical Installation for Conference Room There are multiple ways to use the AW200 Wireless Presentation system; below is a typical use in a Conference room, 7-10 people. AVer Information Inc. Support Guide – AVer Pro-AV AW200 (Updated 4/23/2020)
  • Page 7 AVer AW200 with Zoom, Teams, and UC platforms The AVer AW200 can also be used with Zoom, Teams, BlueJeans, UC platforms via an HDMI to USB converter, like the AVer BU110 converter, (SKU: PTCVBU110). AVer AW200 with Chromecast The AVer AW200 does support Chromecast, but does not support multiple sources “Split Screen”...
  • Page 8 6. If you want to change the “Cast Tab” or change the “Source”, you would have to select “Stop Casting” to disconnect, select another Tab or Source, then select the AVer device again. 7. Next, to cast a desktop, select “Sources”, then select “Cast desktop”.
  • Page 9 9. The “Desktop” should now be seen on the monitor or device connected to the AR200 HDMI output. *Note: Only 1 screen at a time using Chromecast through AW200. AVer Information Inc. Support Guide – AVer Pro-AV AW200 (Updated 4/23/2020)
  • Page 10 AVer AW200 and adding a Mobile device There are multiple ways to use the AW200 Wireless Presentation system, adding a Mobile device is one of them. There are (2) main devices we will discuss, IOS and Android. iPhone / iPad USB cable 1.
  • Page 11 2. Open an App that supports AirPlay, select the AirPlay symbol, you should now have devices listed that support AirPlay. 3. Select “AVerR01_” or the assigned SSID of the AVer AR200 device, you should now have Audio and Video being displayed on the AR200’s HDMI output.
  • Page 12 1. Visit the Google Play store to download the AW Share App “AW Share”. 2. Connect the Android Device to the AVer Receivers Wi-Fi connection. 3. Next, open the AW Share app; click the AVer Transmitter projection key on the App to begin projection/transmitting.
  • Page 13 5. Next, press the AP200 “Pairing” button to connect, verify the PC/Mobile switch is set to “Mobile”. 6. If AVer AR200 Receiver cannot connect to the device, you will need to do the “Pairing” setup process again either “Locally” or using a USB Flash Drive, information found in this document.
  • Page 14 AVer for an updated list of commercial touch screens supported. Touch Screen Monitor 1. Connect the USB port of the Touch Screen to the USB port of the AVer AR200 Receiver. 2. Next, connect the USB cable from the AVer AP200 Transmitter to the computer and verify the PC/Mobile switch is in the PC setting.
  • Page 15 AVer AW200 Typical Installation for Camera Production There are multiple ways to use the AW200 Wireless Presentation system; below are a couple of typical uses in a Camera Production / HDMI Streaming environment. Camera HDMI Environment with HDMI Switcher AVer Information Inc. Support Guide – AVer Pro-AV AW200 (Updated 4/23/2020)
  • Page 16 “Connected” configuration and more detail on the Web Login. Web Login, Admin Setting 5. Connect to the AVer Receiver via Wi-Fi or by the Wired Network connection. You can obtain the IP information from the AR200 HDMI output or you can use the “default” IP address: 192.168.168.1 to connect.
  • Page 17 10. Next, you should now be in the “Admin Setting” page of the AR200 Receiver. 11. Next, selecting WiFi Channel allows the selection for which Country, Channel, and Bandwidth to use. AVer Information Inc. Support Guide – AVer Pro-AV AW200 (Updated 4/23/2020)
  • Page 18 13. Next, selecting SSID will enable you to configure the SSID Name, Hide SSID, or Turn Off SSID. 14. Selecting Password allows you to change the Wi-Fi SSID password to connect to the AR200. AVer Information Inc. Support Guide – AVer Pro-AV AW200 (Updated 4/23/2020)
  • Page 19 17. Selecting Admin Password allows you to change the Password for the Admin login via a Web Browser (Chrome). 18. Selecting the Screen Saver will allow you to change the Screen Saver setting AVer Information Inc. Support Guide – AVer Pro-AV AW200 (Updated 4/23/2020)
  • Page 20 20. Selecting Fixed Host will allow you to configure the IP setting, DHCP, Fixed IP, and Fixed device. 21. Selecting ChromeCastSetting will allow you to Enable/Disable ChromeCast. 22. Selecting Castcode Control will allow you to select a Random or Fixed code. AVer Information Inc. Support Guide – AVer Pro-AV AW200 (Updated 4/23/2020)
  • Page 21 AVer AW200 network Connected Configuration (continued) 23. Selecting Upgrade will allow you to upgrade the FW on both the AVer Receiver and Transmitter. *Note: The AR200 NIC will need to be on a network that has access to the internet.
  • Page 22 Once connected to the AR200 via Wi-Fi or Network you will have access to configure the Language, Resolution, Max Connections, Pairing File, Display Mode, and Timed Restart of the device. 1. Selecting Language will enable you to configure the Language used in the AR200. AVer Information Inc. Support Guide – AVer Pro-AV AW200 (Updated 4/23/2020)
  • Page 23 *Note: As more users are added, bandwidth will be affected. 4. Selecting Download Pairing File will enable you to download the “pairinginfo.json” file used in the “manual” AP200 USB pairing procedure. AVer Information Inc. Support Guide – AVer Pro-AV AW200 (Updated 4/23/2020)
  • Page 24 5. Selecting Display Mode will enable you to select “Fit to Screen” or “Zoom to Screen” as your Display Mode. 6. Selecting Timed Restart will enable you to set the AR200 to “Off” or “On” for a Timed restart. AVer Information Inc. Support Guide – AVer Pro-AV AW200 (Updated 4/23/2020)
  • Page 25 Adding an additional AVer AP200 Pod To expand your system from the initial (2) pods included with the AW200, you will need to go through a “pairing” process so that the AR200 and Pod are communicating. There are (2) methods to do this.
