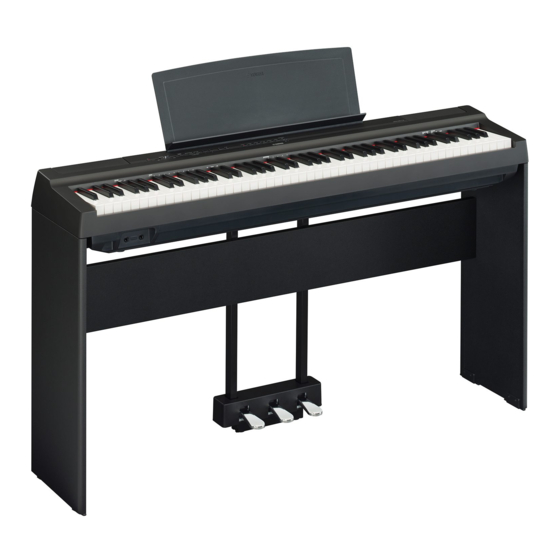

Yamaha P-125 Manual

Midi reference
Hide thumbs

Advertisement

Quick Links

x
Download this manual
2
MIDI Functions
D I G I T A L P I A N O
P - 1 2 5
P - 1 2 1
MIDI Reference
MIDI-Referenz
Référence MIDI
Referencia MIDI

Table of Contents

MIDI Functions .................................................................................... 2
MIDI Transmit/Receive Channel Selection ................................................... 2
Local Control ON/OFF .................................................................................. 2
Program Change ON/OFF ............................................................................ 3
Control Change ON/OFF .............................................................................. 3
MIDI Data Format................................................................................. 4
MIDI Implementation Chart............................................................... 16
EN

Advertisement

loading

  Also See for Yamaha P-125

Yamaha P-125 Owner's Manual
Yamaha P-125 Owner's Manual 36 pages
Yamaha P-125 Quick Operation Manual
Yamaha P-125 Quick Operation Manual 2 pages

  Related Manuals for Yamaha P-125

  Summary of Contents for Yamaha P-125

  • Page 1: Table Of Contents

    D I G I T A L P I A N O P - 1 2 5 P - 1 2 1 MIDI Reference MIDI-Referenz Référence MIDI Referencia MIDI Table of Contents MIDI Functions ..................2 MIDI Transmit/Receive Channel Selection ........... 2 Local Control ON/OFF ..................

  • Page 2: Midi Functions

    You can make detailed adjustments to MIDI settings. NOTE • For instructions on how to connect this instrument to the computer, refer to the “Computer-related Operations” downloadable from the Yamaha Downloads website. MIDI Transmit/Receive Channel Selection MIDI transmission channels in...

  • Page 3: Program Change On/Off

    While simultaneously holding down the [METRONOME] and [RHYTHM] buttons, press the D5 can be used with the instrument, refer to key. Pressing the D5 key repeatedly toggles between Control Change On and Off. page 4. Default setting: ON P-125 P-121 P-125, P-121 MIDI Reference...

  • Page 4: Midi Data Format

    Vintage E.Piano Synth Piano [ORGAN] Jazz Organ Rock Organ Organ Principal Organ Tutti [CLV./VIB.] Harpsichord 8’ Harpsi.8’+4’ E.Clavichord Vibraphone [STRINGS] Strings Slow Strings Choir Synth Pad [+BASS] Acoustic Bass Electric Bass Bass & Cymbal Fretless Bass P-125, P-121 MIDI Reference...
  • Page 5 [GM2] Polyphonic After (n:Channel (00H...7FH) Key no. (0-127) (00H...7FH) Data Touch Number) Pitch Bend (n:Channel (00H...7FH) LSB (00H...7FH) MSB [GM1] Change Number) [GM2] Realtime Message F8H MIDI Clock Start Continue Stop Active Sens [GM2] System Reset P-125, P-121 MIDI Reference...
  • Page 6 : 40H 00H 0[cent] mm ll : 7FH 7FH 100[cent] Coarse Tune mm : 28H-40H-58H (-24...0...+24[semitones]) [GM1] [GM2] Modulation Sensitivity mm : Specified in semitone steps [GM2] ll : Specified in 100/128 cent steps Null [GM2] P-125, P-121 MIDI Reference...
  • Page 7 00-7F CHORUS PARAMETER 10 Refer to Effect Type List (page 15). Depends on Chorus Type. O (Depends on Chorus Type.) 00-7F CHORUS RETURN -∞dB...0dB...+6dB(0...64...127) 01-7F CHORUS PAN L63...C...R63 00-7F SEND CHORUS TO REVERB -∞dB...0dB...+6dB(0...64...127) TOTAL SIZE P-125, P-121 MIDI Reference...
  • Page 8 0.1...12.0 NOT USED 34-4C EQ GAIN4 -12...0...+12[dB] 0E-36 EQ FREQUENCY4 100...10.0k[Hz] 01-78 EQ Q4 0.1...12.0 NOT USED 34-4C EQ GAIN5 -12...0...+12[dB] 1C-3A EQ FREQUENCY5 0.5k...16.0k[Hz] 01-78 EQ Q5 0.1...12.0 00-01 EQ SHAPE5 shelving, peaking TOTAL SIZE P-125, P-121 MIDI Reference...
  • Page 9 When bulk dumps that include Effect Type data are transmitted, the parameters for addresses 02-0B will always be transmitted. For effects that require MSB however, when a bulk dump is received, the parameters for addresses 02-0B will not be received. P-125, P-121 MIDI Reference...
  • Page 10 -9600...0...+9450[cent] 00-7F CAT AMPLITUDE CONTROL -100...0...+100[%] 00-7F CAT LFO PMOD DEPTH 0...127 00-7F CAT LFO FMOD DEPTH 0...127 00-7F CAT LFO AMOD DEPTH 0...127 28-58 PAT PITCH CONTROL -24...0...+24[semitones] 00-7F PAT LOW PASS FILTER CONTROL -9600...0...+9450[cent] P-125, P-121 MIDI Reference...
  • Page 11 = PART NUMBER If there is a Drum Voice assigned to the part, the following parameters are ineffective. • BANK SELECT LSB • PORTAMENTO • MONO/POLY • SCALE TUNING • POLY AFTER TOUCH • PITCH EG P-125, P-121 MIDI Reference...
  • Page 12 When a part to which a Drum Setup is assigned receives a program change, the assigned Drum Setup will be initialized. If the same Drum Setup is assigned to two or more parts, changes in Drum Setup parameters (including program changes) will apply to all parts to which it is assigned. P-125, P-121 MIDI Reference...
  • Page 13 XN = When N is received N=0-F,whichever is received. X=ignored 00001001 09 = Sub-ID #1=General MIDI Message 00000010 02 = Sub-ID #2=General MIDI Off 11110111 F7 = End of Exclusive *1 Changed to XG, and output. P-125, P-121 MIDI Reference...
  • Page 14 00110000 30 = Address High 00000000 00 = Address Mid 00000000 00 = Address Low 0000mmmm 0m = Master Tune MSB 0000llll = Master Tune LSB 0ccccccc = don't care 11110111 F7 = End of Exclusive P-125, P-121 MIDI Reference...
  • Page 15 * For each Depth value, the reset value is 40H = voice parameter Effect Type List(Panel) Reverb Type List Decimal Effect Name Recital Hall Concert Hall Chamber Club DSP Type List Decimal Effect Name Damper Resonance P-125, P-121 MIDI Reference...

  • Page 16: Midi Implementation Chart

    Mode 1 : OMNI ON , POLY Mode 2 : OMNI ON , MONO o : Yes Mode 3 : OMNI OFF, POLY Mode 4 : OMNI OFF, MONO x : No Manual Development Group ©2018 Yamaha Corporation Published 07/2018 POA0 P-125, P-121 MIDI Reference...
