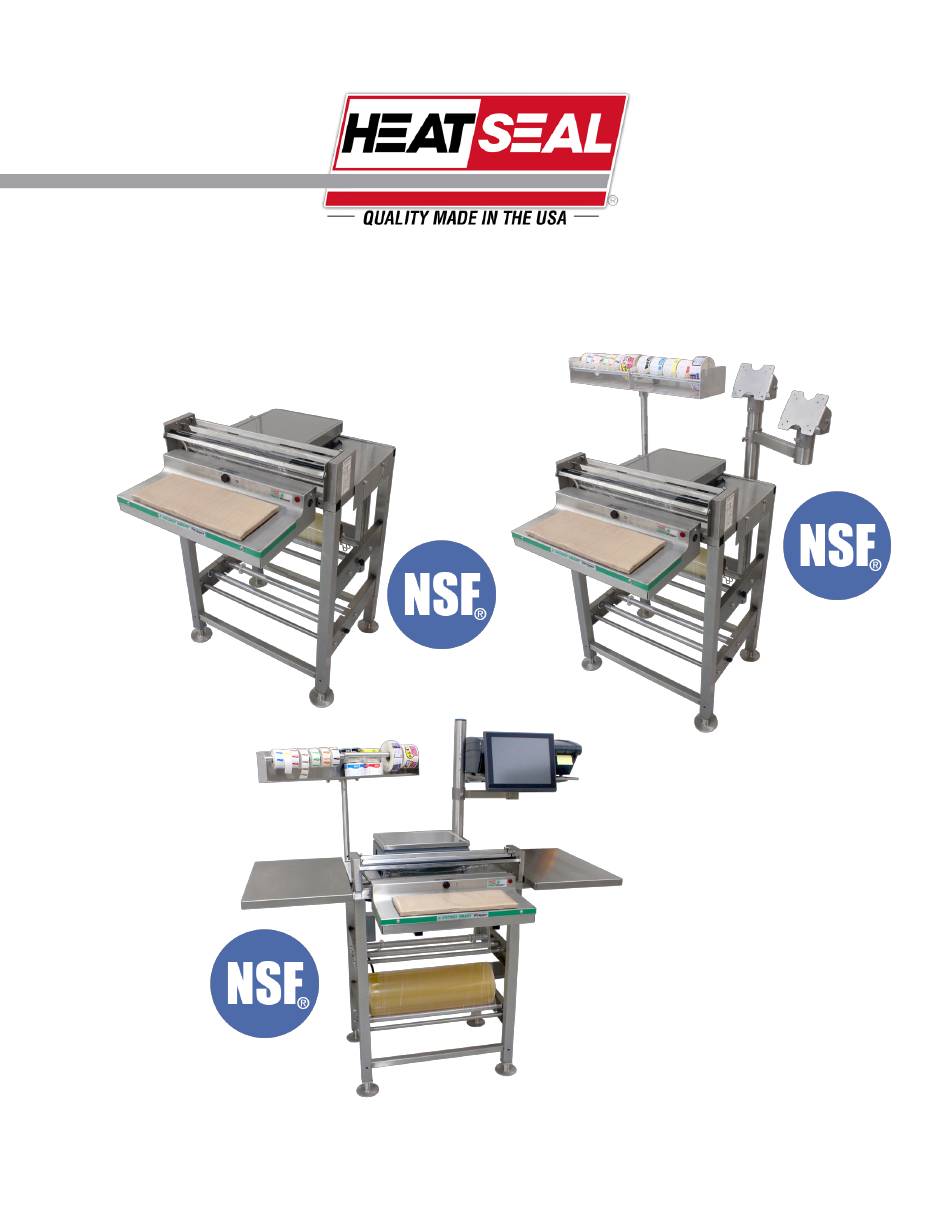

OPERATING & SERVICE PARTS MANUAL

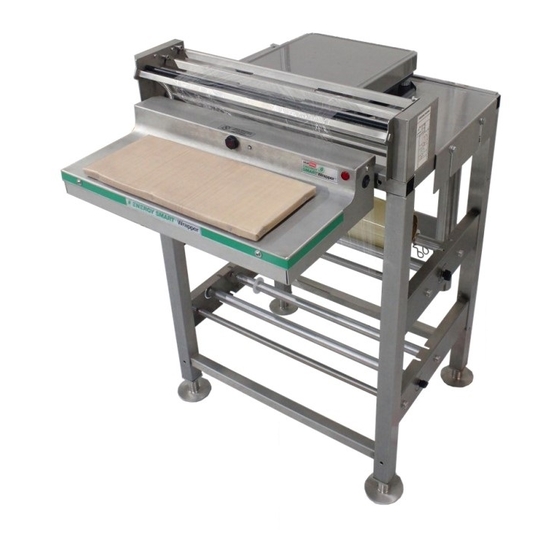

SM20ES – C6R1XXXXXXB
6" x 15" Seal Plate
*Scale pictured is not included
Certified
READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING EQUIPMENT
SM20ES ENERGY SMART® WRAPPER
Series B
Certified
SM20ES – C6B2WWBPXLB
6" x 15: Seal Plate with Optional Left &
Right Wings, Label Dispenser and
Printer Shelf
*Scale and printer pictured are not included
Certified
SM20ES – C6D1XXXXXXB
6" x 15" Seal Plate with
Optional Label Dispenser and
Monitor Mount
*Scale pictured is not included
Revised 2017
Advertisement
Related Manuals for Heat Seal SM20ES
Summary of Contents for Heat Seal SM20ES
- Page 1 OPERATING & SERVICE PARTS MANUAL SM20ES ENERGY SMART® WRAPPER Series B Certified Certified SM20ES – C6R1XXXXXXB 6” x 15” Seal Plate SM20ES – C6D1XXXXXXB 6” x 15” Seal Plate with *Scale pictured is not included Optional Label Dispenser and Monitor Mount *Scale pictured is not included SM20ES –...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Machine Components & Electrical Rating ..............3 Cradle Mount Film Setup ....................5 Recommended Maintenance ..................6 Troubleshooting Guide ....................7 Control Board Assembly ....................9 Service Parts Information ................... 10 Revised 2019... -
Page 3: Machine Components & Electrical Rating
(approximately 3 seconds). After the cycle the wrapper stops heating to conserve energy. Heat Seal tests all seal plates before they ship. Thermal expansion in the seal plate layers will create a wrinkle effect – this is normal. - Page 4 The heat cycle will be shorter than 3 seconds when residual heat is present in seal plate. The thermistor is located inside the seal plate assembly. ELECTRICAL RATING The Model SM20ES is rated 120V 60Hz 132 watts. Revised 2019...
-
Page 5: Cradle Mount Film Setup
CRADLE MOUNT FILM SETUP FILM THREADING - CRADLE MOUNT Film threading is very important to achieve proper film tensioning. Route the lower film first. Facing the tension knob side of the machine, the film should come off the roll counter-clockwise and go in-between the two rollers it sits on. -
Page 6: Recommended Maintenance
Repeat degreaser as needed until the rod is clean. CLEANING THE UNIT The SM20ES can be completely wiped down using mild cleaning detergent and a soft cloth or paper towels. DO NOT HOSE DOWN OR SUBMERGE THE UNIT. -
Page 7: Troubleshooting Guide
C) You’ll know the GFCI is reset when the red power light on the right of the unit glows. D) If the GFCI trips, the seal plate might have moisture inside. Allow 1-2 days to dry out and then try resetting it again. Figure 1 SM20ES Electrical Box Pictured Revised 2019... - Page 8 TROUBLESHOOTING Symptom Possible Solution Unit has power Does the Cycle Light turn ON when the unit is cycled? but the Seal Plate 1) If neither the dual-colored light next to the photo eye nor seal plate work – check the 20 does not work amp circuit breaker.
-
Page 9: Control Board Assembly
CONTROL BOARD ASSEMBLY 120 VAC NEUTRAL HEATER OUT PRODUCT DETECTION (+) THERMISTOR (-) THERMISTOR Revised 2019... -
Page 10: Service Parts Information
SERVICE PARTS INFORMATION BILL OF MATERIALS FOR MAJOR ASSEMBLIES ITEM QTY PART NUMBER DESCRIPTION 5901-011 Non-stick Cover, 6 x 15 5901-001 Non-stick Cover, 8 x 15 6137-149 Replacement 6 x 15 Seal Plate Kit 6137-150 Replacement 8 x 15 Seal Plate Kit 6137-094 Hot Rod Replacement Kit Includes : (1) Square Boardless Cut Off Rod with 1 FT Wire Secure and (1) Strain Relief Grommet... - Page 11 SERVICE PARTS INFORMATION 10,11 BILL OF MATERIALS FOR ELECTRICAL BOX ITEM QTY PART NUMBER DESCRIPTION 5901-011 Non-stick Cover, 6” X 15” 5901-001 Non-stick Cover, 8” x 15” 6137-149 Replacement 6 x 15 Seal Plate Kit 6137-150 Replacement 8 x 15 Seal Plate Kit 6 x 15: 1818-035 Energy Smart®...
