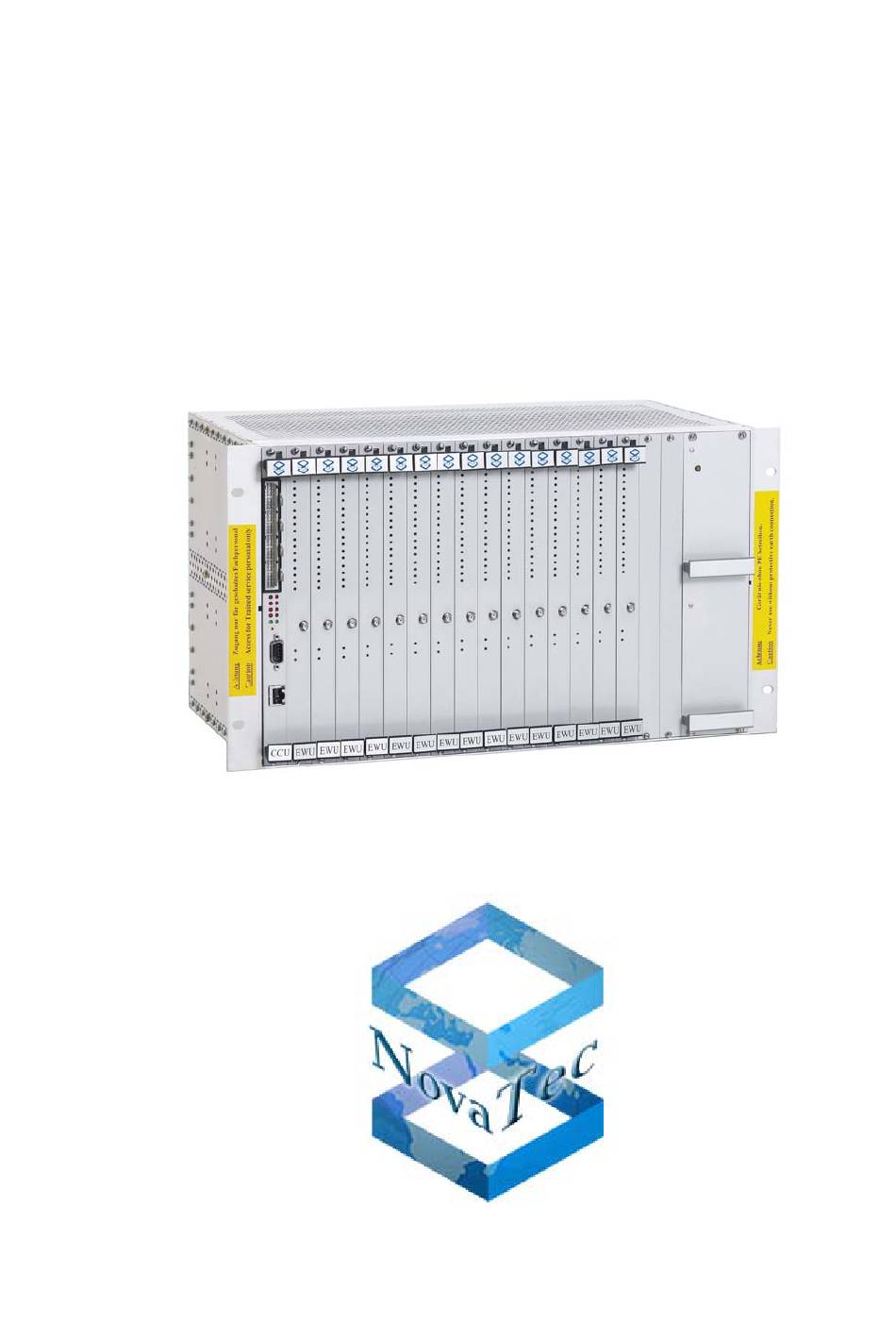

NovaTec Mobile Gateway
S20
Mounting and Installation
Version 6.0 from 13.10.2005
- Subject to change without notice -
______________________________________________________________________________
NovaTec Mobile Gateway S20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NMG S20 and is the answer not in the manual?

Questions and answers

Related Manuals for NovaTec NMG S20

Summary of Contents for NovaTec NMG S20

  • Page 1 NovaTec Mobile Gateway Mounting and Installation Version 6.0 from 13.10.2005 - Subject to change without notice - ______________________________________________________________________________ NovaTec Mobile Gateway S20...

  • Page 2: Table Of Contents

    Laying the Cable..................13 4.4.1 Strain Relief and Positioning of the Cables ...........13 Internal Structure of NovaTec Mobile Gateway S20 ........15 Limitation of the NovaTec Mobile Gateway S20 ...........20 NovaTec Mobile Gateway S20 Connector Panel ..........25 Earthing the NovaTec Mobile Gateway S20 ..........26 Connecting the NovaTec Mobile Gateway S20 ..........28...
  • Page 3 Connecting the Terminals to the ULU ..............64 4.12.4 Trunk Line Connections to the CCU ................65 Commissioning .......................66 Status Displays on the NovaTec Mobile Gateway S20 ..........66 5.1.1 Status Displays on the CCU and CCU-Light..............66 5.1.2 Status Displays on the CCU-3 ..................69 5.1.3...

  • Page 4: Preface

    The NovaTec Mobile Gateway S20 can be operated using eihter a 230/115 volt power supply or a 48 volt DC power supply. The mains socket allocated to the NovaTec Mobile Gateway S20 should be independent and for the sole use of the NovaTec Mobile Gateway S20.
  • Page 5 Please follow the safety advice when inserting or replacing the system’s Slide-in modules. • The NovaTec Mobile Gateway S20 as well as the pole of the outdoor antenna must be earthed via an earthing cable with a minimum cross-sectional area of 2.5 mm . Should installation or operational problems occur which are not covered in this handbook please contact NovaTec Kommunikationstechnik GmbH immediately.
  • Page 6 ______________________________________________________________________________ Technologiepark9, 33100 Paderborn, Germany Declaration of Conformity: NovaTec Kommunikationstechnik GmbH. declare under own sole responsibility that the product NMG-S20 is in conformity with the provisions of the following european council directive: 1999/5/EC (R&TTE-Directive) The corresponding declarations and documents are deposited at the manufacturer.

  • Page 7: General Information

    NovaTec Mobile Gateway S20. For this reason, we advise you to read the chapters according to the order in which they are written and to undertake and complete the corresponding activities as they occur.

  • Page 8: Connection And Mounting

    The mounting site should preferably be located within the office or living area close to where the PC will be located. The NovaTec Gateway S20 can also be installed in the cellar or attic as well as in other frost-, dust- and heat-free rooms.
  • Page 9 (fuse), the equipment is as still under voltage as long it is connected to the mains power. • If more than one NovaTec Mobile Gateway S20 is being installed an a 19“ cabinet, do not connect more NovaTec Mobile Gateway S20 system to mulit socket-outlets than allowed by the building power supply wiring regulations.

  • Page 10: Regulations And Master Conditions

    Your NovaTec Mobile Gateway S20 should only be operated in dry rooms where the temperature remains beween 0° C und 40° C. For this reason, do not install your NovaTec Mobile Gateway S20 in locations subject to direct sunlight or strong cold influences.

  • Page 11: Mounting Directions

    If possible mount your NovaTec Mobile Gateway S20 in the immediate vicinity of the mains electricity supply for the building and a 230V socket. Do not plug the Novatec Mobile Gateway S20 into the socket until all installation work has been completed.

  • Page 12: Scope Of Delivery

    ______________________________________________________________________________ Scope of Delivery The complete NovaTec Mobile Gateway S20 system will be delivered in one cabinet in a large crate. It contains the following components: P . s P . s P . s P . s Q . y t Q .

  • Page 13: Contents Of The Package

    Please check that the contents of the cardboard box or wooden box are correct and complete according to the delivery note. NovaTec Mobile Gateway NMG S20 incl. CD Picture 1: Contents of the package in fullsize configuration...

  • Page 14: Mounting

    (number of mobile channels). Laying the Cabling All connections except the mains power cable and the earth cable are connected to the NovaTec Mobile Gateway S20 from the front. The mains power cable is connected from the back using the cable that has already been fitted for this purpose.
  • Page 15 ______________________________________________________________________________ to the outdoor antenna 2xPRA 4xBRA depending from Type of CCU see CCU3 Ethernet Ethernet Picture 2: Laying the cabling to the NovaTec Mobile Gateway S20 ______________________________________________________________________________ Page 14 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 16: Internal Structure Of Novatec Mobile Gateway S20

    Internal Structure of the NovaTec Mobile Gateway S20 The NovaTec Mobile Gateway S20 is comprised of several different modules. All modules can be inserted into the 19“ rack and then connected together at the rear of the rack via the backplane.
  • Page 17 (the number of the possible cascade stages is location pendant. For more information please contact NovaTec). The ACU contains 4, 8 or16 inputs. 15 inputs shall be connected to the RF outputs of the WAU’s (in a 60 channel configuration) or should be terminated by RF termination resistors (please consolt NovaTec).
  • Page 18 GPS receiver doughter board. This doughterboard is optional necessary to be used minimum one in a system, when the NovaTec S20 has no other Synchronisation Source and synchron data should be transfered via IP network (TDM over IP).
  • Page 19 The Add-on board with the numbers 1F5100ER and 1F5100R switch between Interface 1 to Interface 2 when the system is inactive, this allows for operated systems behind the NovaTec to carry on operating when the NovaTec is out of operation. GSM-2 Plug-in-card The GSM-2-plug in card can be used on the WAU.
  • Page 20 Antenna two Resistor Antenna Combiner Unit NMG-S20, 32 Channel with SXU. to Antenna one to Antenna two Antenna Combiner Unit Picture 3: Internal Structure of the NovaTec Mobile Gateway S20 ______________________________________________________________________________ Page 19 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 21: Limitation Of The Novatec Mobile Gateway S20

    A maximum of around 60 connections divided between two PRA interfaces are possible. If the system is equipped with modules providing more than 120 B channels, it is a blocking NovaTec Mobile Gateway S20. At no point in time can all these connections be used simultaneously.
  • Page 22 The values provided in the table are parameters for the maximum expansion that can be undertaken. If you are intending to use the NovaTec Mobile Gateway S20 as a fixed mobile PABX, then you can combine the WAU modules with ULU for U interfaces and CAUs for the S/T interfaces.
  • Page 23 ______________________________________________________________________________ ______________________________________________________________________________ Page 22 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 24 DC4s should be assembled from Slot 17 down Power Pack NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec Pictrue 4:NovaTec’s proposal for the expansion capabilities NovaTec Mobile Gateway S20 ______________________________________________________________________________ Page 23 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 25 The the CCU-3 is preferably used in Slot 1. If the CCU-3 is used in the range Slot 2 to Slot 16, this CCU-3 cannot serve further modules in the system. This is usually when e.g. if a second NovaTec is used in form an individual CCU-3 (e.g.

  • Page 26: Novatec Mobile Gateway S20 Connector Panel

    ______________________________________________________________________________ NovaTec Mobile Gateway S20 Connector Panel All connections that are required to operate the NovaTec Mobile Gateway S20 are established via the plug-in connectors on the front panel. Therefore, only use officially authorised cables or those that we provide with the equipment. The following illustration shows the front panel of the NovaTec Mobile Gateway S20 with the standard configuration for 60 channels without SXU respectively 32 Chahnnels with SXU.

  • Page 27: Earthing The Novatec Mobile Gateway S20

    2.5 mm on the rear of the NovaTec Mobile Gateway S20. Identify a point in the building where building services are located and the NovaTec Mobile Gateway S20 can be earthed. We recommend the potential equalisation bar of your building plant.
  • Page 28 The following diagramm illustrates a correctly connected earth cable with an appropriate strain relief. Picture 6: Connection of the earth cable to the NovaTec Mobile Gateway S20 (viewed from rear) Where more than one 19“ rack is used, each must be earthed seperately and directly to the building’s potential equalisation bar.

  • Page 29: Connecting The Novatec Mobile Gateway S20

    In case of delivery in a cabinet by NovaTec, all trunk and terminal equipment interfaces on the NovaTec Mobile Gateway S20 are fed through a main distribution frame or a patch panel. This includes all lines from the trunk or subscriber to the NovaTec Mobile Gateway S20 and the lines from NovaTec Mobile Gateway S20 to the switch.

  • Page 30: Novatec Mobile Gateway S20 Terminal Equipment Interface

    ______________________________________________________________________________ 4.10 NovaTec Mobile Gateway S20 Terminal Equipment Interface This chapter describes the physical assembly of the NovaTec Mobile Gateway S20 terminal equipment interface. Furthermore, the number of wires and their assignments are given for each type of interface. 4.10.1 The BRA Interface The BRA interface is a digital 4-wire interface.

  • Page 31: The Antenna

    The type of the coax cable connected to the RF output of the ACU is configuration dependent. If a long distance is required (cable length more than 10 meters) other cable types must be used. For more information please contact the support center of NovaTec. ______________________________________________________________________________ Page 30 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 32: Installing Instructions Of The Outdoor Antenna

    9- Fixing basement of the pole. 10- Earthing belt of the pole to the equalization rail of the building (between 35 and 50 sqmm). Picture 8: Installation of the ground plane antenna ______________________________________________________________________________ Page 31 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 33 8- Fixing basement of the pole. 9- Earthing belt of the pole to the equalization rail of the building (between 35 and 50 sqmm). Picture 9: Installation of the directional antenna ______________________________________________________________________________ Page 32 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 34: Pin Assignment For Connections To Thenovatec Mobile Gateway S20

    Pin Assignment for Connections to the NovaTec Mobile Gateway S20 This chapter describes the signal assignment for all NovaTec Mobile Gateway S20 plug connections. This information will enable you to plug all your terminal equipment into the NovaTec Mobile Gateway S20.
  • Page 35 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ______________________________________________________________________________ Page 34 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 36 If a BRA expansion board is inserted into the PRA slot on the CCU, the front cover signal assignment for Plug 2 also applies for Plug 1. ______________________________________________________________________________ Page 35 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 37: Ccu-Light Pin Assignment

    In the chapter for CAU is described, how the terminal resistances of the plug-on maps can be deactivated. Status display (LED) Row C Trunk and terminal equipment Row A Reset button interfaces Picture 12: CCU-3 pin assignment ______________________________________________________________________________ Page 36 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 38: Sos Pin Assignment

    In the chapter for CAU is described, how the terminal resistances of the plug-on maps can be deactivated. Status display (LED) Row C Trunk and terminal equipment Row A Reset button interfaces Picture 13: SOS pin assignment ______________________________________________________________________________ Page 37 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 39: Cbs Pin Assignment

    In the chapter for CAU is described, how the terminal resistances of the plug-on maps can be deactivated. Status display (LED) Row C Trunk and terminal equipment Row A Reset button interfaces Picture 14: CBS pin assignment ______________________________________________________________________________ Page 38 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 40: Wau Front Panel Assignment

    3- Push the drawer with the SIM card into the appropriate slot, with the contacts of the SIM card pointing to the LEDs. 4- For all other channels please go through the same procedure. 5- Then configure the SIM card into the system with the configuration software. ______________________________________________________________________________ Page 39 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 41 It these LED’s shines green, you have a Modul without DTMF. (Important for Call-Back) Release button SIM card drawer Channel 1 Picture 15: WAU front panel assignment and placing of the SIM-Cards ______________________________________________________________________________ Page 40 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 42: Sxu Front Panel Assignment

    WAU without drawer! Flatcable for the connections to the WAU Release button SIM card drawer SIM - Status LED SXU-Status LED Picture 16: SXU front panel assignment and placing of the SIM-Cards ______________________________________________________________________________ Page 41 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 43: The Module Sim Card Multiplexer Sxu

    (see Picture 16 and 17) On a NMG S20 with 30 channels the SXU’s are in alternate positions with the WAU’s on a 1 to 1 basis and in this case the ACU2 must be affixed to the bottom of the mounting shelf/ Rack.

  • Page 44: Scu Front Panel Assignment

    4.11.10 SCU front panel Assignment Syntax of counting GSM interface SIM-Card No. Release button SIM card drawer SIM - Status LED SCU-Status LED Picture 17: SCU front panel assignment and placing of the SIM-Cards ______________________________________________________________________________ Page 43 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 45: The Module Sim Combiner Unit

    Card should match the marked corner of the drawer) Push the drawer and Sim Card into the appropriate slot, with the contacts of the Sim Card pointing towards the LED’s Configuration of the Sim Cards can then go ahead. ______________________________________________________________________________ Page 44 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 46: Ewu Front Panel Assignment

    ______________________________________________________________________________ 4.11.13 EWU front panel Assignment Status LEDs (please see 5.1.7) Channel 4 Channel 1 Picture 18: EWU front panel assignment ______________________________________________________________________________ Page 45 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 47 4- For all other channels please go through the same procedure. Important Note: All Simcard readers are to be in the locked position before the EWU is inserted into the NMG Picture 19: Sim card reader on EWU ______________________________________________________________________________ Page 46 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 48 ______________________________________________________________________________ Picture 20: Handling the Sim card reader on EWU Picture 21: OpenSim card reader on EWU ______________________________________________________________________________ Page 47 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 49 ______________________________________________________________________________ Picture 22: Placed SIM-Card Picture 23: Placed SIM-Card in closed holder ______________________________________________________________________________ Page 48 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 50: Cau Pin Assignment

    Picture 24: CAU pin assignment Coding switch to activate/deactivate the terminating resistor for basic rate interfaces Terminal equipment interfaces 2 Light emitting diodes Terminal equipment interfaces 1 Picture 25: Positioning of the CAU coding switch ______________________________________________________________________________ Page 49 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 51 P g u l P g u e t i t e l e t i e t i e t i t e l e t i e t i ______________________________________________________________________________ Page 50 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 52 If each of the CAU plugs in spaces 1-3 are equipped with a PRA card, only the first two interfaces of the respective plugs are assigned with a signal (see CCU signal assignment). ______________________________________________________________________________ Page 51 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 53: Ulu Pin Assignment

    Signal assignment for the V.24/RS232 configuration and data interface P n i P n i P n i P n i r e t - - - - - - - - - ______________________________________________________________________________ Page 52 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 54 L e n i L e n e t i t e l e t i e t i e t i t e l e t i e t i ______________________________________________________________________________ Page 53 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 55: Pti Pin Assignment

    This chapter describes the signal assignment for all PTI plug connections. For directionally orientated signals the given signal direction is always described from the perspective of the NovaTec S20 PTI. PTI-SU Pin Assignment The contact pins in the plug are arranged in two rows (Row A and Row C) with each row providing 32 contacts.
  • Page 56 ______________________________________________________________________________ PTI-SU, S and U interfaces, directionally orientated signals the given signal is always described from the perspective NovaTec S20. l P g u l P g u l P g u l P g u i L e n...

  • Page 57: Bcu Pin Assignment

    ______________________________________________________________________________ 4.11.17 BCU Pin Assignment The B-Channel-Unit (BCU) enables the VOIP/IP connectivity of the NovaTec S20. The BCU includes the vocoder and the elastic buffer for the voice compression and Jitter compensation for the IP Package trip. BCU handels the RTP and RTCP for the VOIP applications.

  • Page 58: Signal Assignment Of The Telecommunications Sockets

    This chapter describes the signal assignment of the telecommunications sockets in the field and at the patch panel (Only available in a delivery within cabinet) of the NovaTec Mobile Gateway S20. This information is necessary to enable you to connect the terminal equipment plugs in accordance with the signal assignment.
  • Page 59 ______________________________________________________________________________ Page 58 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 60: Connecting The Interfaces

    The maximum length of these wires is approximately 220 m. The end of the line that is not connected to the NovaTec Mobile Gateway S20 must be terminated with 2 x 100 ohm. The following illustration shows the wiring and corresponding limiting values in this context.
  • Page 61 ______________________________________________________________________________ It is possible to connect up to 12 ISDN sockets to each NovaTec Mobile Gateway S20 BRA interface. These sockets are simply connected in parallel configuration. A maximum of two items of terminal equipment can be connected to each NovaTec Mobile Gateway S20 BRA interface at the same time even if more ISDN sockets are mounted.

  • Page 62: Star-Shaped (Category 5) Cabling Connection

    If your building cabling operates using a star-shaped cabling format, the terminating resistors in your NovaTec Mobile Gateway S20 must be deactivated. This deactivation must be undertaken separately for every port concerned. In order to do this, first determine on which of the NovaTec Mobile Gateway S20 modules the one or more terminating resistors must be deactivated.
  • Page 63 “Off ” position. The terminating resistors only have to be deactivated when using a star-shaped installation (see page 56). On delivery, all terminating resistors are activated. ______________________________________________________________________________ Page 62 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 64 ______________________________________________________________________________ Loosen screws Loosen screws Picture 33: Removing a Module from the NovaTec Mobile Gateway S20 ______________________________________________________________________________ Page 63 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 65: Connecting The Terminals To The Ulu

    BRA interfaces are required, we recommend you to use a PT-US. Terminal with U interface 1..2 3 4 5 6 7 NovaTec Mobile Gateway S20 U interface Wire A Wire B Order number: Terminal with BRA interface 2F3101 1..

  • Page 66: Trunk Line Connections To The Ccu

    CCU and CAU dependent configurations of the NovaTec Mobile Gateway S20. If your NovaTec Mobile Gateway S20 has an integrated U interface, an NTPM is not necessary and you can connect your trunk line directly to the respective interface of the system.

  • Page 67: Commissioning

    Antennas. Commissioning takes place when the main plug is inserted into the designated three pin socket. Assuming the GSM slide in modules and the CCU of NovaTec Mobile Gateway S20 has been configurated, it is ready for use after booting for approximately 2 minutes.
  • Page 68 (Sequentially flashing light, turning from left to right.) Boot monitor active (Power - LED is off) System is in default configuration System is in operation The LED 1-8 shows the status of the interfaces. Picture 36: CCU status display ______________________________________________________________________________ Page 67 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 69 ______________________________________________________________________________ Page 68 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 70: Status Displays On The Ccu-3

    CCU-3. (see also Picture 36) Upon connecting the NovaTec S20 to the main supply, the system undertakes a processor test followed by a RAM- and firmware test. When there is a valid configuration, the system then moves into operational mode.
  • Page 71 (Sequentially flashing light, turning from left to right.) Boot monitor active (Power - LED is off) System is in default configuration System is in operation The LED 1-8 shows the status of the interfaces. Picture 37: CCU-3 status display ______________________________________________________________________________ Page 70 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 72 ______________________________________________________________________________ Note: When an PRI-Plug-in card with only one PRI-Interface is used, 2 and/or. 6 are not occupied. ______________________________________________________________________________ Page 71 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 73: Status Displays On The Sea-Of-Sims (Sos)

    SOS. (see also Picture 38) Upon connecting the NovaTec S20 to the main supply, the system undertakes a processor test followed by a RAM- and firmware test. When there is a valid configuration, the system then moves into operational mode.
  • Page 74 (Sequentially flashing light, turning from left to right.) Boot monitor active (Power - LED is off) System is in default configuration System is in operation The LED 1-8 shows the status of the interfaces. Picture 38: SOS status display ______________________________________________________________________________ Page 73 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 75 ______________________________________________________________________________ Note: When an PRI-Plug-in card with only one PRI-Interface is used, 2 and/or. 6 are not occupied. ______________________________________________________________________________ Page 74 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 76: Status Displays On The Call-Back-Server (Cbs)

    CBS. (see also Picture 39) Upon connecting the NovaTec S20 to the main supply, the system undertakes a processor test followed by a RAM- and firmware test. When there is a valid configuration, the system then moves into operational mode.
  • Page 77 (Sequentially flashing light, turning from left to right.) Boot monitor active (Power - LED is off) System is in default configuration System is in operation The LED 1-8 shows the status of the interfaces. Picture 39: status display ______________________________________________________________________________ Page 76 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 78 ______________________________________________________________________________ Note: When an PRI-Plug-in card with only one PRI-Interface is used, 2 and/or. 6 are not occupied. ______________________________________________________________________________ Page 77 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 79: Status Displays On The Ulu

    The U interface is powered by an internal power supply of 115V. Observe for this reason all precautions for personal protection (switch off the system, seperate the interface from the system and deactivate the interface) ______________________________________________________________________________ Page 78 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 80 On board diagnosis started Internal test of the U interfaces EPROM (firmware) check ULU is ready to run ULU in operation, all 4 channels are active Picture 40: Status displays on the ULU ______________________________________________________________________________ Page 79 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 81: Status Displays On The Cau

    The LED 1 is associated to the expansion slot one and LED 2 to the expansion slot two and the LED 3 to the expansion slot three (see Picture 41). Picture 41: Status displays on the CAU ______________________________________________________________________________ Page 80 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 82: Status Displays On The Wau

    LED is continuously shining LED is flashing LED is off Sub module 2 Sub module 1 Picture 42: Status displays on the WAU during power on diagnostic ______________________________________________________________________________ Page 81 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 83 In a connection mode the signal level indications LED4, LED3 and LED2 keep steady on and the LED1 starts to flash. Picture 43: Status displays on the WAU after Power-On diagnostic ______________________________________________________________________________ Page 82 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 84: Status Displays On The Sxu

    SIM-Card ready and in use. Flashing with 1 Hz Flashing with 8 Hz SIM-Card empty or Budget expired SIM-Card placed but SIM-Card not in use No SIM-Card placed Picture 44: Status displays on the SXU ______________________________________________________________________________ Page 83 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 85: Diagnostics And Status Indications

    When the Sim Card is not inserted or the budget is expired LED fast flashing When no Sim Card is inserted LED not lit When the Sim Card is inserted but not selected LED permanently lit ______________________________________________________________________________ Page 84 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 86: Status Displays On The Scu

    Flashing with 1 Hz data transfered to Client Flashing with 8 Hz Reading from SIM-Card SIM-Card o. k. No SIM-Card placed or SIM-Card damaged Picture 45: Status displays on the SCU ______________________________________________________________________________ Page 85 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 87 Sim card as this will prolong the readout and the loading time. After the complete readout of the Sim Card the data will be transferred from the Sim server to the Sim Client for its further use. ______________________________________________________________________________ Page 86 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 88: Status Displays On The Ewu

    There is not enough DRAM mounted (system stops) Error in DRAM (system stops) Load Onboard FPGA1 (Sequentially flashing light, turning from left to right.) Boot monitor active Picture 46: Status displays on the EWU during power on diagnostic ______________________________________________________________________________ Page 87 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 89 In a connection mode the signal level indications LED4, LED3 and LED2 keep steady on and the LED1 starts to flash. Picture 47: Status displays on the EWU after Power-On diagnostic ______________________________________________________________________________ Page 88 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 90: Status Displays On The Pti

    The U interface is powered by an internal power supply of 115V. Observe for this reason all precautions for personal protection (switch off the system, seperate the interface from the system and deactivate the interface). ______________________________________________________________________________ Page 89 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 91 Internal test of the U interfaces Internal test of the S interfaces EPROM (firmware) check PTI-SU is ready for work PTI-SU in operation, all 4 channels are active Picture 48: Status displays of the PTI ______________________________________________________________________________ Page 90 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 92: Status Displays On The Bcu

    BCU is ready (Ready-LED flashes slower) Line Status indicator (Yellow) no connection connected Flashing Data Transfer Ethernet connection speed indicator (green) 10 MBit 100 MBit Picture 49: Status displays of the BCU ______________________________________________________________________________ Page 91 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 93: Features Of The Default Configuration

    ______________________________________________________________________________ 5.2 Features of the Default Configuration When a valid system configuration cannot be found following a system start, the NovaTec Mo- bile Gateway S20 will always start in the default configuration. In these circumstances, as a client, you will retain use of the telephones, for limited applications, until a valid configuration has been defined.

  • Page 94: Alarm Contacts

    The relay contacts are specified for a maximum switching voltage of 100 Vdc and a maximum switching current of 1 A. The maximum allowed switching power is 30 W. The alarm contacts are activated by the following cause: · power failure of the NovaTec Mobile Gateway S20 Power Pack Alarm A BC D In this diagramm the switches are in position “no alarm”...

  • Page 95: Installing The Configuration Software

    Installation of the Electronic Data Transfer Adapter and TCP/IP To enable you to transmit data to the NovaTec Mobile Gateway S20, the electronic data transfer adapter and the network protocol TCP/IP must be installed. To do this, undertake the following...
  • Page 96 This procedure can take a couple of minutes. NovaTec Network Services (Network Services) To enable the configuration data to be transmitted to the NovaTec Mobile Gateway S20, you must start the Network Services first. To do this, select Network Services in your installation folder.
  • Page 97 New password: new You enter: old;new;new Should you forget your password, you can enter the NovaTec Mobile Gateway S20 with the user name Technik and the password NoPassWd. Please note that under these circumstances, all data in the NovaTec Mobile Gateway S20 will be automatically deleted, necessitating a new download from the PC.

  • Page 98: Remarks To Callback-Configuration

    The call costs will then be invoiced with the server end and not with the client. Generally each NovaTec Splitter/NMG can take over both the role of the client, however the server must be installed with the SOS board .
  • Page 99 NMG system using port 809. This may include IP-Masqucrading, and port forwarding for the NovaTec system. · The server (SOS) must be correctly installed with valid IP information (IP address, Mask, DNS etc.
  • Page 100 Under IP the correct IP Address of the Server should be entered. Port 809 is permanently preconfigured. Under Local / National dialing code the international dialling code should be entered e.g. : Paderborn Germany 00495251 Hamburg Germany 004940 ______________________________________________________________________________ Page 99 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 101 If the call is routed over the LCR module the Hash sign (#) will not be accepted by the LCR Module and the connection will be terminated with Cause 1 (unknown called number). ______________________________________________________________________________ Page 100 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 102 Under„Access list“ a permission class or access restriction/white list can be chosen. Only callers on this list can use the Callback functions. In the case where the setting „Without“ is configured all subscribers can use the Callback Service. ______________________________________________________________________________ Page 101 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 103 The Server needs a Profile where the Incoming number (Trigger) and Outgoing Server Clip is configured as 0044123456 (00 Prefix for International) When the Client is installed in SA, the Numbers should be configured so: 0944123456 (09 Prefix for International in SA). ______________________________________________________________________________ Page 102 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 104: Remarks To Sms To E-Mail Configuration

    The prefix will be cut off by the system (before passing through the SMS alias lists). ______________________________________________________________________________ Page 103 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 105 RCPT TO: 01705202222@nmg.novatec.de DATA Hi Phil, how is the help coming on? (dependant on the telnet client being used, the signaling of the end of data may be CTRL++, or <enter>.<enter>) QUIT ______________________________________________________________________________ Page 104 NovaTec Mobile Gateway S20 Version 6.0...
  • Page 106 Due to the many various mail server setups and servers that are available (MS Exchange, Linux/Unix MailTo, Lotus Notes etc) this is just a brief and general overview on how to integrate the NovaTec SMS <-> Email application into an existing environment.

  • Page 107: Remarks To Sim-Server Installation

    NovaTec NovaTec NovaTec NovaTec NovaTec Internet NMG / Client Firewall Router NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec NovaTec Picture 51: SIM-Server installation ______________________________________________________________________________ Page 106 NovaTec Mobile Gateway S20 Version 6.0...

  • Page 108: Technical Data

    > - ° 0 i s l ° 0 i s l i t a ° 5 i s l ° 0 i s l i t a i t a ______________________________________________________________________________ Page 107 NovaTec Mobile Gateway S20 Version 6.0...

Table of Contents
